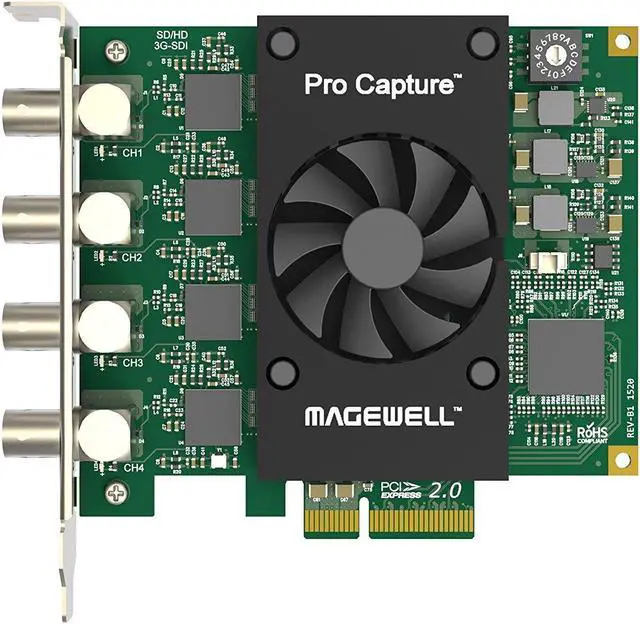

Main image of Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

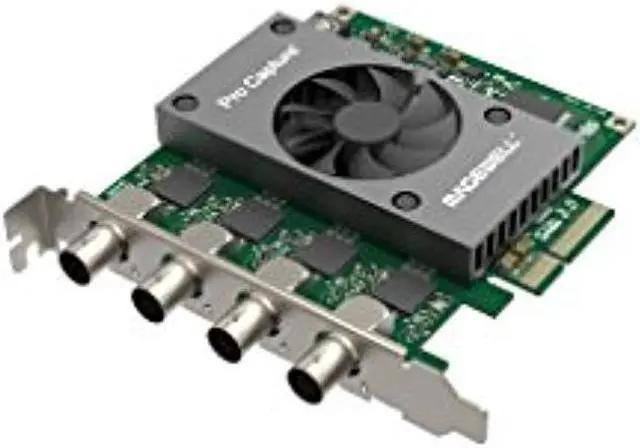

Alt view image 2 of 5 - Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

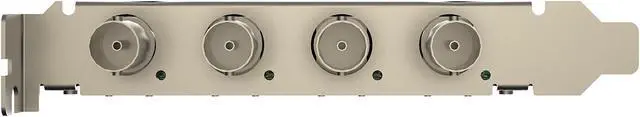

Alt view image 3 of 5 - Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

Alt view image 4 of 5 - Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

Alt view image 5 of 5 - Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

Shop All Magewell Products | Visit B-IN Electronics Store

Magewell Pro Capture Quad SDI Four Channel HD Capture Card #11090

Be the first to review this product...

Supported OS:Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)Linux (based on V4L2, supports x86, x64 & arm architecture) Mac OS X
Supported APIs:Windows: DirectShowDirectKSWave API/DirectSound/WASAPILinux: V4L2ALSA
Supported Software:VLCVirtualDubOBSxSplitvMixVidBlasterWirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces:4x BNC: SD/HD/3G SDI
Output Interfaces:4x PCIe Gen2
Input Functions:Support for input video resolutions up to 2048x2048 pixels

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PCIe 2.0
Capture 2k x 2k
Compatible with Windows
Compatible with Linux
Compatible with Mac OS X
Up/down Scaling
Deinterlacing
Multiple Streaming
Automatically Detecting Input Signal
High-fidelity Video Processing Pipeline
Image Control
Various Output Color Spaces
SG-DMA Transmission Mode
Multiple Devices on One Host
Hardware Time Stamp
Mounting Hole
Rotary Switch
High-speed Memory
LED Indicator
Firmware Upgrade
Common Driver
Continuously Work for 24h x7
SD/HD/3G-SDI x

Model
Brand	Magewell
Model	11090

Details
Type	Video Capture & Editing
Specifications	Supported APIs: Windows - DirectShow - DirectKS - Wave API/DirectSound/WASAPI Linux - V4L2 - ALSA Supported Software: VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software Input Features: Support for input video resolutions up to 2048x1080 pixels SDI Specific Features: Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048x1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz (channels 1-8 from the 16 available in the SDI spec) Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: - YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 - YCbCr 4:4:4 10-bit: captured as 4:2:2 - RGB 4:4:4: R/B sub-sampled Multiple Cards per System: Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display "01: Pro Capture AIO" when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch) Multiple Capture Streams: Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream Ultra Low Latency Support: Latency of 64 video lines Partial notification mode in SDK

Tuner
Interface	PCIe Gen2 x4
Video System	Video Processing Features: Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing - Weave - Blend top & bottom field - Top field only - Bottom field only Video aspect ratio conversion - Auto or manual selection of input aspect ratio - Auto or manual selection of capture aspect ratio - Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion - Auto or manual selection of input color format & quantization range - Auto or manual selection of capture color format, quantization range & saturation range - Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats - Support for Limited or Full quantization range - Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition - Support for PNG OSD image (up to 2048x2160) - Support for dynamic loading of RGBA OSD image via SDK
Video Format	Video Capture Formats: Support for capture image resolutions up to 2048x2160 pixels Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Pro Capture SDK for DirectKS
Ports In	4x BNC: SD/HD/3G SDI

System
Mac Compatible	Yes
Operating Systems Supported	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) OS X 10.9-10.11 macOS 10.12
