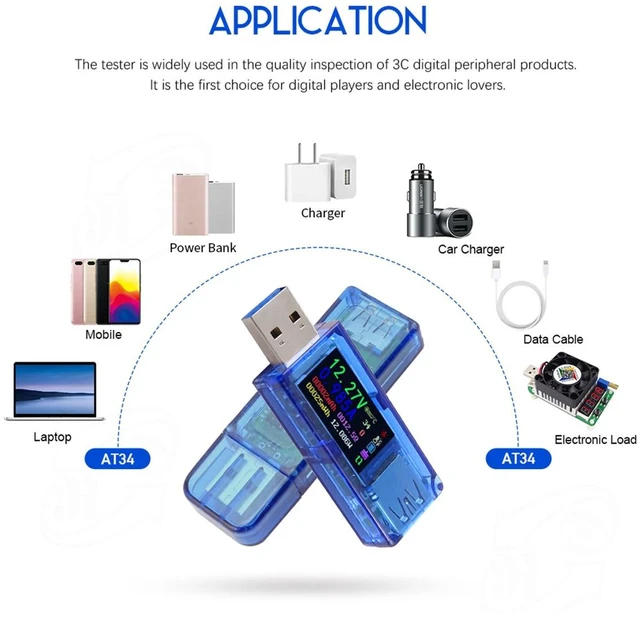

Application:
- Testers are widely used in the quality inspection of 3C digital peripheral products, and are the first choice for digital gamers and electronic enthusiasts;
- Real-time detection of the state of charge of the appliance, voltage, current, power and other indicators at a glance;
Technical Parameters:

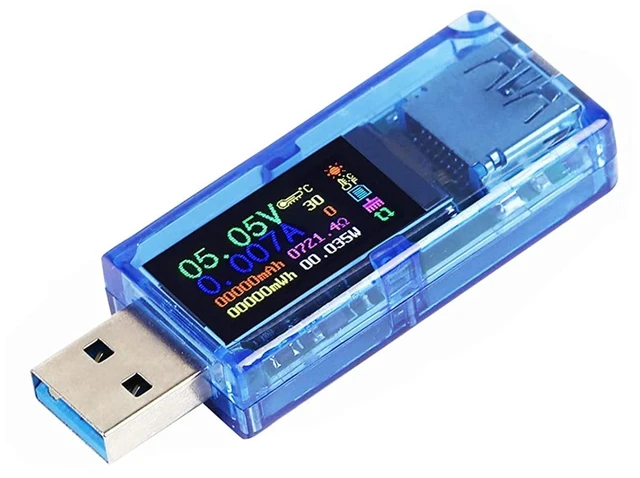

- Model: AT34
- Measuring voltage: 3.7-30V
- Measuring current: 0-4A
- Capacity measurement range: 0-99999mAh
- Energy measurement range: 0-99999mAh-999.99Wh
- Load impedance measurement range: 1O-9999.9O

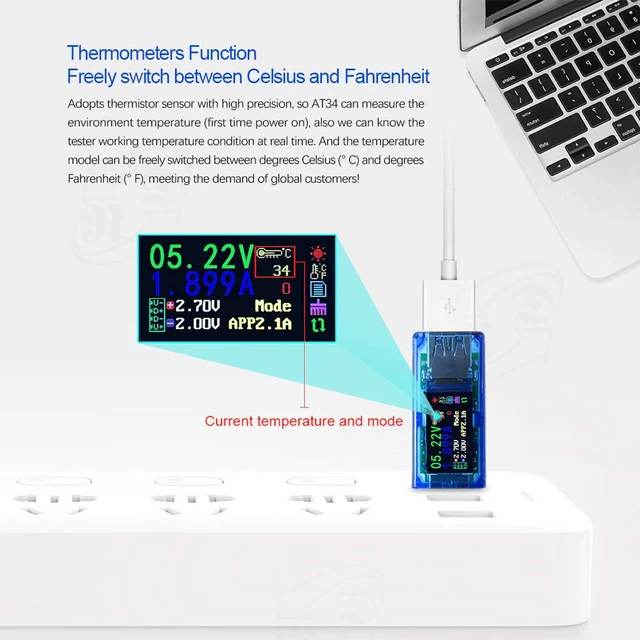

- Temperature measurement range: 0°C-80°C / 32°F-176°F
- Operating temperature range: 0°C-45°C / 32°F-113°F
- Product size: 64mmx22mmx12mm
- Display screen: 0.96 inch color LCD
- Voltage measurement resolution: 0.01V
- Current measurement resolution: 0.001A
- Voltage measurement accuracy: ± (0.8% + 4 words) @ ??25 ° C
- Current measurement accuracy: ± (1% + 4 words) @ ??25 ° C
- Power measurement range: 0-120W
- Temperature measurement error: ±3°C / ±6°F
- Refresh rate: 2Hz

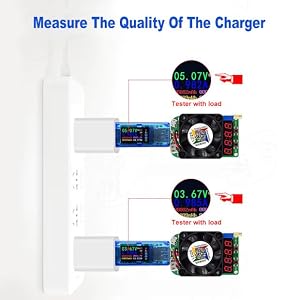

Measure The Quality Of The Charger
- Connect the same load, compare with no-load and on-load, if the voltage drops more, it shows that the worse the charging capacity of the charger is, the worse the quality is.
- When the voltage drop smaller or voltage is increasing (charger has cable loss compensation function ), it shows that the better the charger's load capacity, the better the quality!

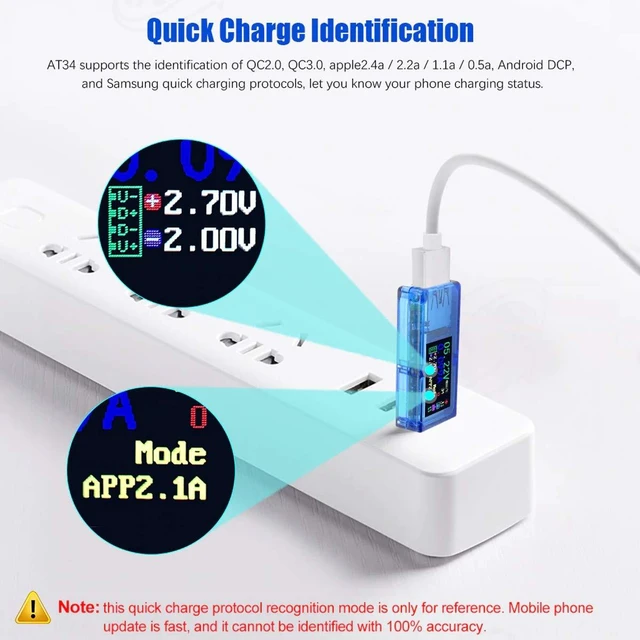

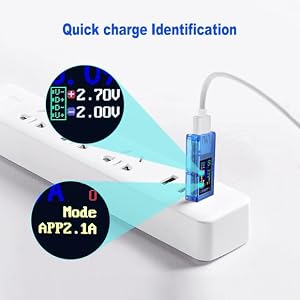

Quick Charge ldentification
- AT34 supports the identification of QC2.0, QC3.0, apple2.4a/ 2.2a/ 1.1a /0.5a, Android DCP, and Samsung quick charging protocols, let you know your phone charging status.

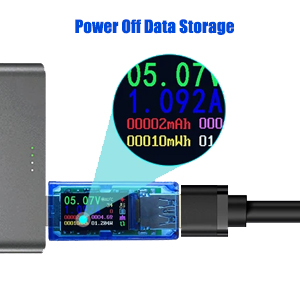

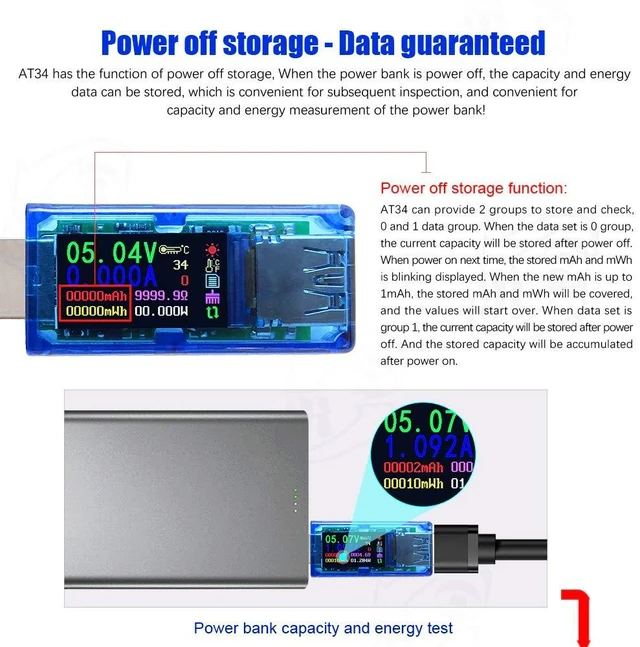

Power off storage-Data stored
- AT34 has the function of power off storage, When the power bank is power off, the capacity and energy data can be stored, which is convenient for subsequent inspection, and convenient for capacity and energy measurement of the power bank!

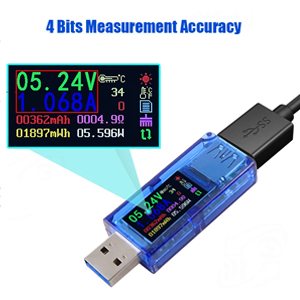

4 Bits Measurement Accuracy
- At AT34 internal, adopt the professional instrument to sample circuit and use the Ruideng unique precision algorithm, which ensures the accuracy and stability of the product at the hardware and software level!

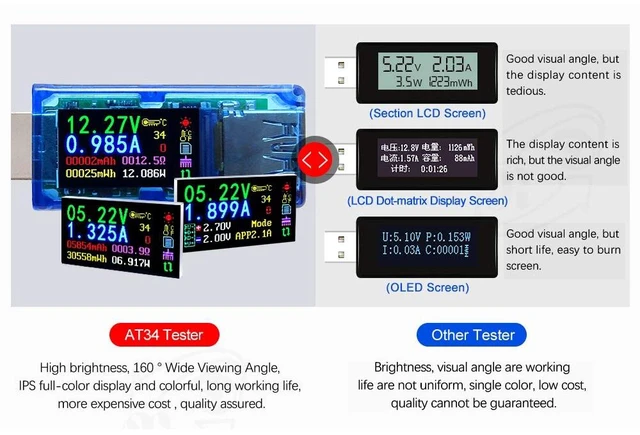

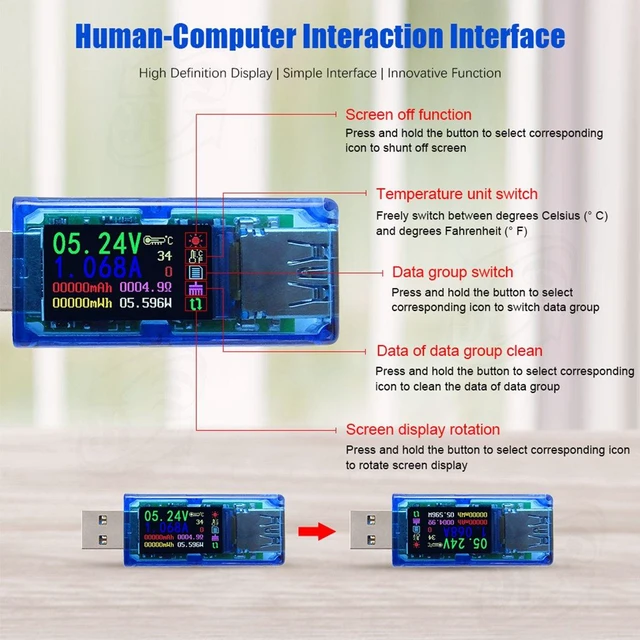

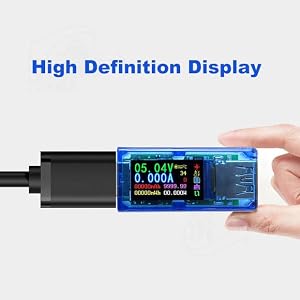

High Definition Display
- The AT34 adopts a 0.96 inch IPS HD color LCD display with a 160-degree wide view, high brightness and long service life. Let you see from any angle to appreciate the color bright, exquisite and natural display picture.

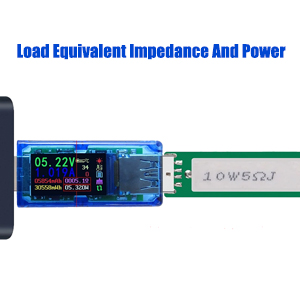

Measure Load Equivalent Impedance And Power
- Clearly understand the load impedance and current discharge power, better understand the load usage range, usage will be more convenient and faster.
