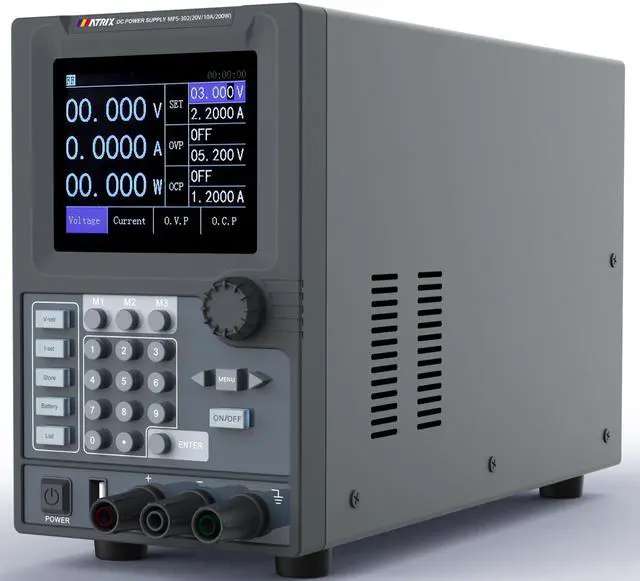

MATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply Programmable, 1mV 0.1mA High Resolution, USB Data Storage, Adjustable Upward Slope, Battery Charging and External Triggering Function
- 20V 10A 200W Linear programmable dc power supply, 1mV 0.1mA High accuracy and resolution
- 3.5-inch high visibility TFT color display. Voltage and current can be adjusted using the numeric keypad or knobs
- List output function. Low ripple and low noise. Intelligent fan control saves energy and reduces noise
- Voltage and current ramp rate can be set. Voltage rise time is less than 10ms
- SCPI and MODBUS commands to facilitate the establishment of intelligent test platforms
- CC/CV priority function. Over-voltage, over-current protection and over-temperature protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

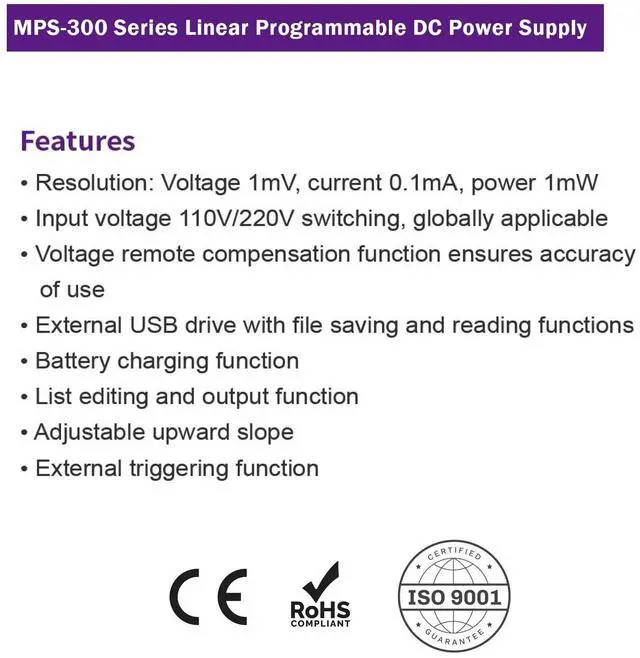

MPS-302 20V 10A 200W Programmable Linear DC power supply Features
- Resolution: Voltage 1mV, current 0.1mA, power 1mW
- Input voltage 110V/220V switching, globally applicable
- Voltage remote compensation function ensures accuracy of use
- External USB drive with file saving and reading functions
- Battery charging function
- List editing and output function
- Adjustable upward slope
- External triggering function

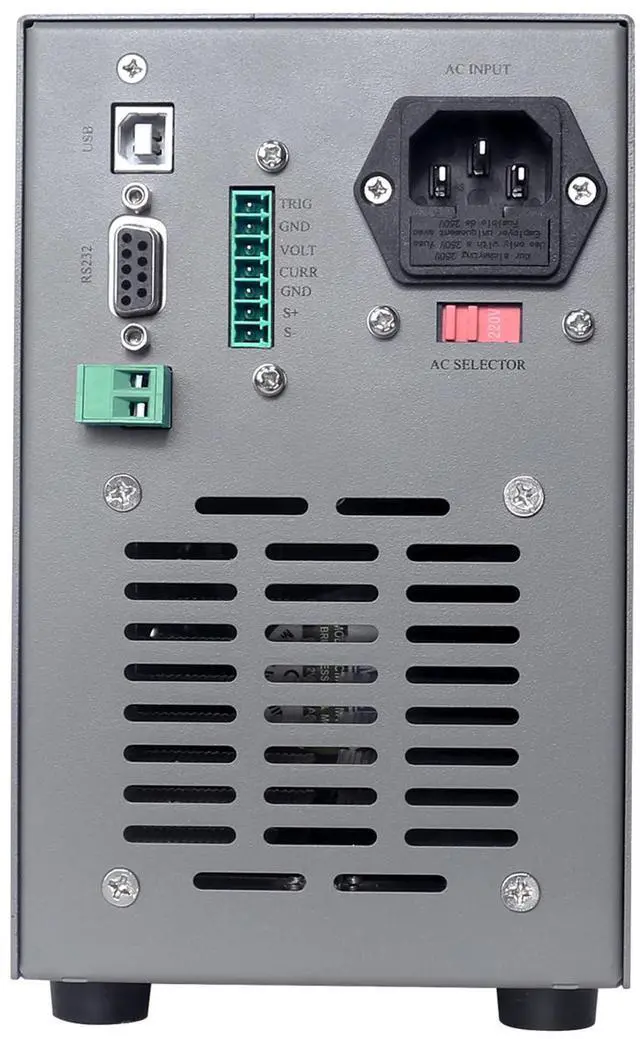

- RS-232, RS-485 and USB interface, supporting SCPI and MODBUS commands

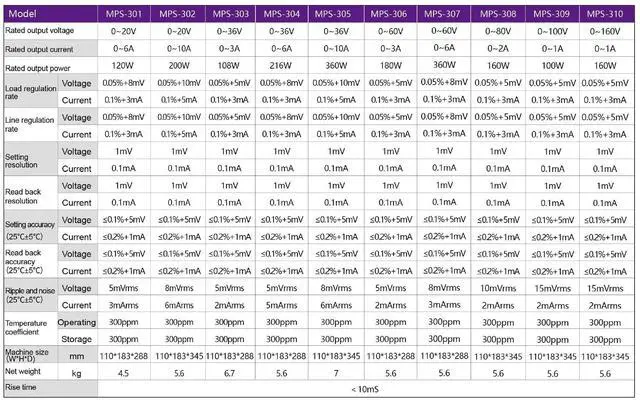

Product information
| Brand | MATRIX |
| Output Wattage | 200 Watts |
| Item dimensions L x W x H | 4.3 x 11.4 x 7.2 inches |
| Item Weight | 13 Pounds |
| Manufacturer | MATRIX TECHNOLOGY INC. |
| Product Dimensions | 4.3 x 11.4 x 7.2 inches |
| Item model number | 20V 10A |
| Date First Available | August 15, 2025 |
