• $1,390.00
  • Free 30-day Returns
  • Ships from China.
    Price alert
    Shop it at NeweggBusiness.

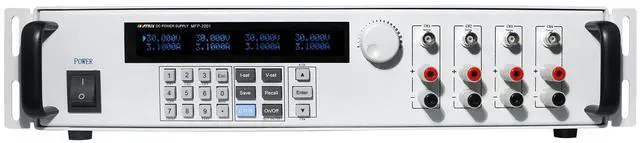

    MATRIX 32V 10A 4-Channel Programmable DC Power Supply MFP-2002, 1mV 0.1mA Bench Power Supply Equipped with RS232, Adjustable DC Power Supply with List Output, Intelligent Temperature-Controlled Fan

    • MFP-2002 32V 10A 4-Channel Programmable DC Power Supply List sequence output function4 in 1 easy to install and occupies a small spaceEach channel is independently adjustable and isolated from eadh otherVoltage compensation function ensures accuracyIntelligent temperature controlled fan for quieter usage environmentVoltage and current range setting functionButton sound on/off function
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    MATRIX MFP-2001 four-channel programmable DC power supply, all four channels can independently adjust voltage and current. The bench power supply is equipped with an RS232 communication interface, which has the characteristics of desktop and system
    type, meeting the measurement requirements of different occasions.





    • List sequence output function

    • 4 in 1 easy to install and occupies a small space

    • Each channel is independently adjustable and isolated from the other

    • The voltage compensation function ensures accuracy

    • Intelligent temperature controlled fan for a quieter usage environment

    • Voltage and current range setting function

    • Button sound on/off function





    • Rated input voltage: AC220V/110V±10%

    • Rated output: 0-32V 0-10A 4CH

    • Load regulation rate: 0.02%+8mV 0.02%+5mA

    • Line regulation: 0.02%+8mV 0.02%+5mA

    • Setting value resolution: 1mV 0.1mA

    • Readback value resolution: 1mV 0.1mA

    • Setting accuracy(25±5°): 0.1%+8mV 0.2%+2mA

    • Readback accuracy(25±5°): 0.1%+8mV 0.2%+2mA

    • Ripple: 8mVrms 5mArms

    • Interface: RS232

    • Size(inch): 19x5.6x14.5

    • Weight(lb): 19.8


    Product information

    Product Dimensions 19 x 14.5 x 5.6 inches; 38 Pounds
    Item model number MFP-2001
    Date First Available January 16, 2024
    Manufacturer MATRIX TECHNOLOGY INC.
