$499^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by MATRIX TECHNOLOGY INC.

Shipped by MATRIX TECHNOLOGY INC.

Meet Your Seller

MATRIX TECHNOLOGY INC.

See Seller Store

Main image of Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 2 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 3 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 4 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 5 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 6 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Alt view image 7 of 7 - Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

Visit MATRIX TECHNOLOGY INC. Store

Dc Power Supply Variable 30V 10A, Triple Output Power Supply 615W, MATRIX MPS-3010H-3 Adjustable Linear DC Bench Power Supply 10mV/1mA High Resolution, Voltage/Current Display in Series/Parallel Mode

High Accuracy and Stability: MATRIX MPS-3010H-3 triple output adjustable dc power supply rated maximum for 30V and 10A. The bench power supply with a 4-digit LED display and 10mV/1mA high resolution in voltage and current output. Voltage precision<0.01%+8mV, Current precision< 0.1%+5mA. Low ripple and noise of less than 2mVrms ensure stable and accurate DC output, minimizing interference and protecting electronic devices.

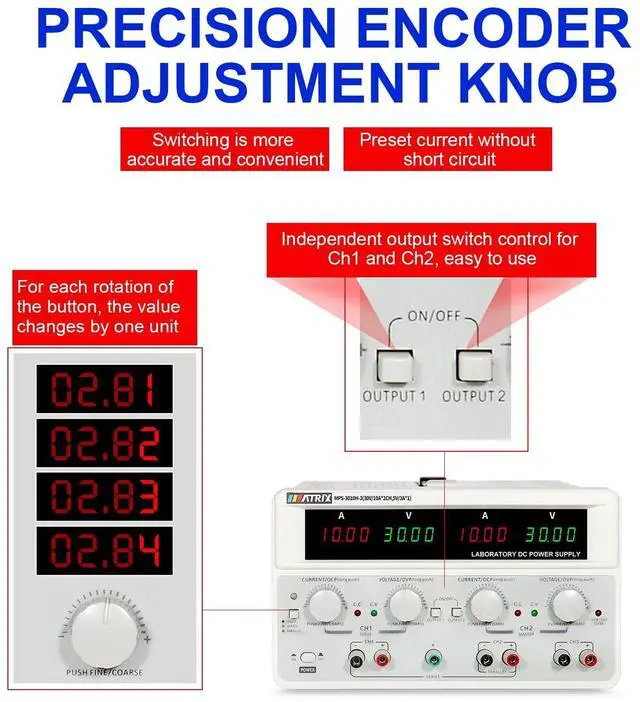

4 Encoder Adjustment Knobs: MATRIX variable dc power supply says goodbye to the hassle of coarse and fine adjustments by 4 precise encoder knobs, every time you turn the knob, the value changes by 1 unit. Our dc bench power supply also has protection so that if the knob is touched unconsciously, the value does not change.
One-key Series and Parallel Function: MATRIX bench power supply allows for easy switching between series and parallel or is used in synchronous mode circuit configurations with just the press of a button, without the need for manual reconnection of wires. And the series-parallel mode directly displays the voltage and current. The adjustable lab power supply is more convenient, time-saving, efficient, safe, and accurate.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MATRIX

Reliable, durable, and stable power supply

ABOUT MATRIX
MATRIX is an innovative enterprise founded in 2003, that focuses on the research and development of DC power supplies, providing our users with more reliable, durable, and stable products. Certified by authoritative organizations such as CE, ROHS, and KC.
Our service
Matrix offers a 3-year of after-sales service for all MATRIX-branded products.
When did we start?
We dedicated in researching, developing, producing and selling of DC power supplies since 2003.
What makes our products unique?
Technologically, there are some new designs such as preset current without short circuits, intelligent temperature control fan, coded switch, independent control of each channel, and getting into series or parallel mode by pressing one key, etc.
Our philosophy
Value first, quality is fundamental, and customers are supreme.
DC Power Supply
High Power DC Power Supplies
Digital LCR Meter Power Meter
Programmable AC Power Source

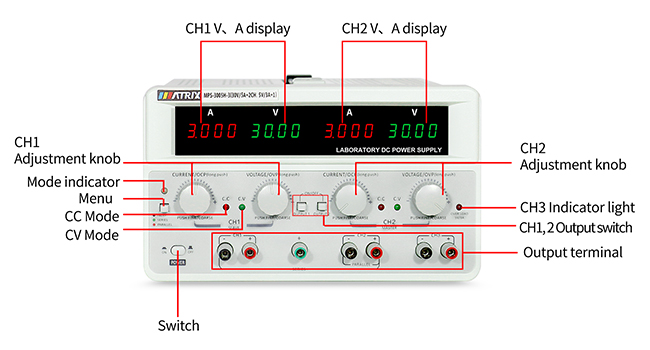

MATRIX MPS-H-3 Series Triple Channel Linear DC Power Supply

4 digits display, 10mV/1mA resolution
One-key series and parallel function; Current can be pre-set without short circuit
CH1 and CH2 can be controlled independently; Voltage and current range limit function
One-click to restore factory settings; The buzzer can be turned off
Save the output status and value before the last shutdown

MATRIX MPS-3010H-3 Triple Channel DC Variable Power Supply

	MPS-3010H-3	MPS-3005H-3	MPS-3003H-3	MPS-3010H-3C	MPS-3210	MPS-3010D+	MPS-3033X
Customer Reviews	—	—	—	—	—	—	—
Price	—	—	—	—	—	—	—
Resolution	10mV 1mA	10mV 1mA	10mV 1mA	10mV 1mA	10mV 1mA	100mV 10mA	1mV 1mA
Rated output	0~30V/0~10A2CH, 5V/3A1CH	0~30V/0~5A2CH, 5V/3A1CH	0~30V/0~3A2CH, 5V/3A1CH	0~30V/0~10A2CH, 5V/3A1CH	0~32V/0~10A*1CH	0~30V/0~10A*1CH	0~32V/0~3A2CH, 0~6V/0~3A1CH
Rated input voltage	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%
Load & Line regulation rate	=0.01%+8mV/=0.1%+5mA	=0.01%+5mV/=0.1%+5mA	=0.01%+5mV/=0.1%+5mA	=0.01%+8mV/=0.1%+5mA	=0.1%+10mV/<0.2%+5mA	=0.02%+10mV/<0.2%±1digits	=0.01%+3mV/=0.01%+3mA
Display	4-digit display	4-digit display	4-digit display	4-digit display	4-digit display	3-digit display	5-digit display
Ripple and Noise	=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=10mV(rms) =5mA(rms)	=3mVrms 10mArms	=2mV(rms) =5mA(rms)
Size(mm) / Weight(kg)	250150330 / 12	250150330 / 9	250150330 / 8	250150330 / 12	11596261 / 1.7	280130160 / 5.7	255110380 / 8.5
Has RS-232,RS-485 and USB	?	?	?	?	?	?	?
Coded Switch Knob	?	?	?	?	?	?	?
Programmable	?	?	?	?	?	?	?

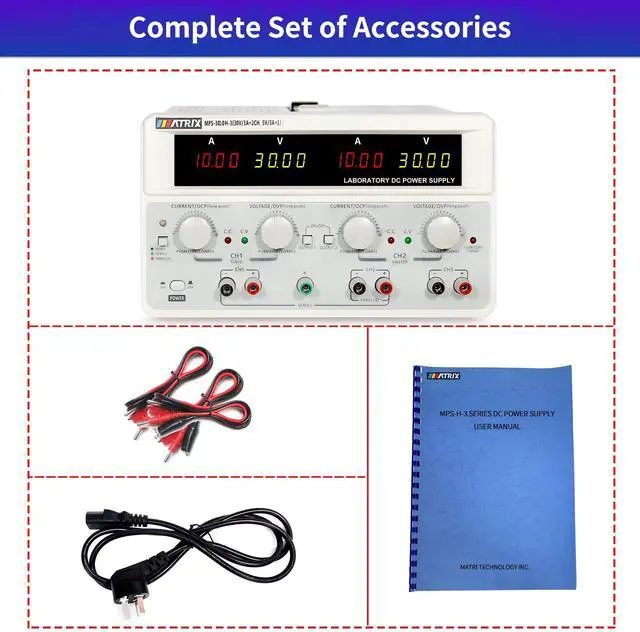

What you will get?

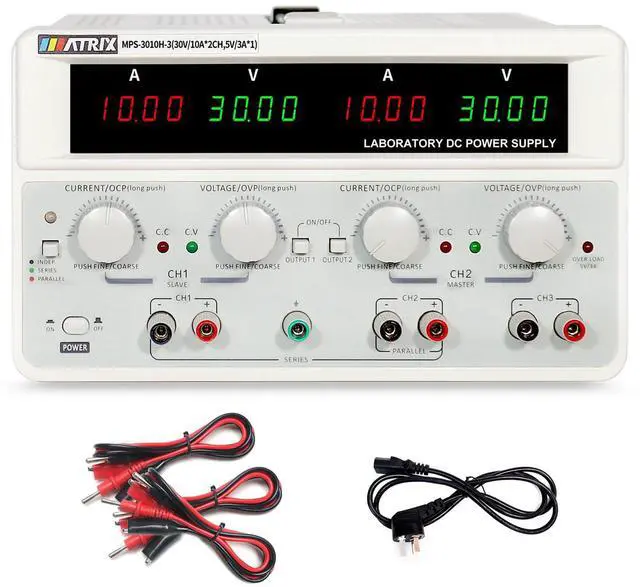

MPS-3010H-3 DC Power supply * 1, Test line * 3, Power cord * 1 and Instruction manual * 1

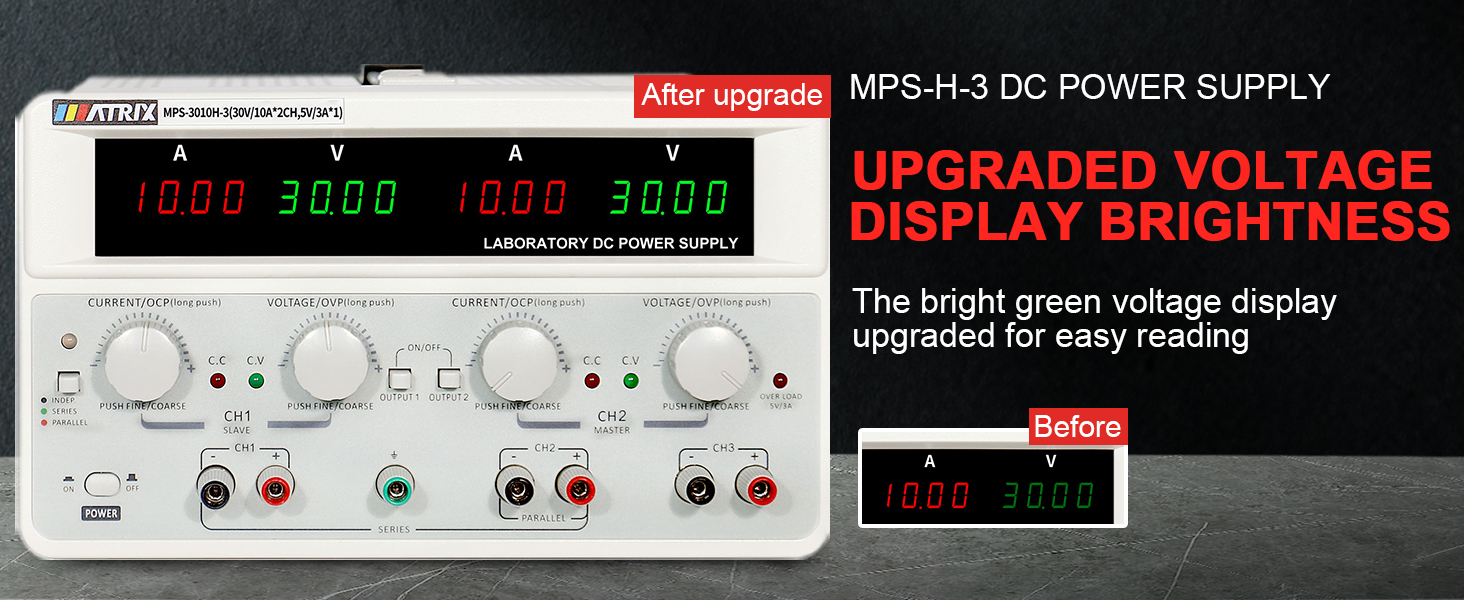

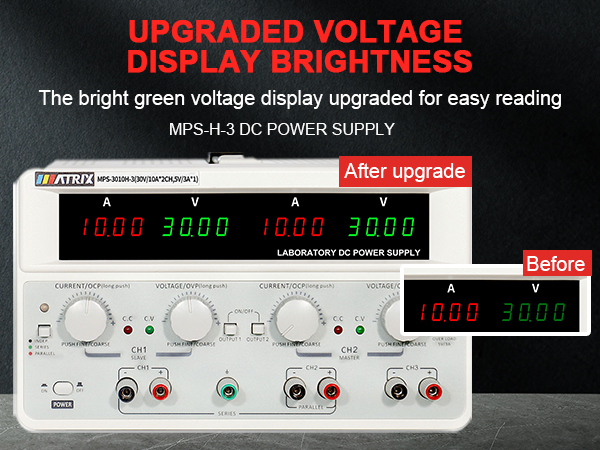

Has the green display brightness issue (too dim) been resolved?
Yes. We have upgraded the voltage display diodes to be brighter and easier to read. Any questions, please feel free to consult us, and we will surely provide a solution to your satisfaction.

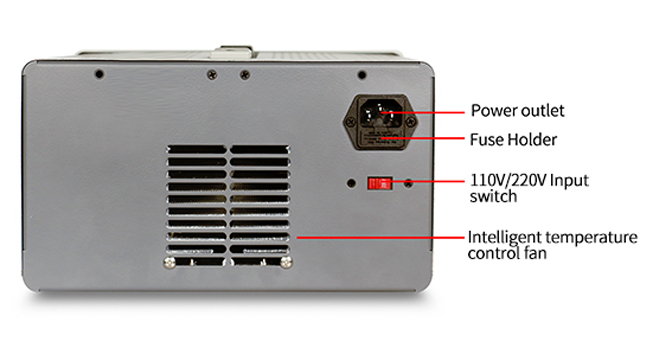

Can this be powered with 120V ac or only 220?
This dc power supply is 220/110V switched.

MATRIX MPS-H-3 Series Triple Channel Linear DC Power Supply

4 digits display, 10mV/1mA resolution
One-key series and parallel function; Current can be pre-set without short circuit
CH1 and CH2 can be controlled independently; Voltage and current range limit function
One-click to restore factory settings; The buzzer can be turned off
Save the output status and value before the last shutdown

MATRIX MPS-3010H-3 Triple Channel DC Variable Power Supply

MPS-3010H-3	MPS-3005H-3	MPS-3003H-3	MPS-3010H-3C	MPS-3210	MPS-3010D+	MPS-3033X
Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews
—	—	—	—	—	—	—
Price	Price	Price	Price	Price	Price	Price
—	—	—	—	—	—	—
Resolution	Resolution	Resolution	Resolution	Resolution	Resolution	Resolution
10mV 1mA	10mV 1mA	10mV 1mA	10mV 1mA	10mV 1mA	100mV 10mA	1mV 1mA
Rated output	Rated output	Rated output	Rated output	Rated output	Rated output	Rated output
0~30V/0~10A2CH, 5V/3A1CH	0~30V/0~5A2CH, 5V/3A1CH	0~30V/0~3A2CH, 5V/3A1CH	0~30V/0~10A2CH, 5V/3A1CH	0~32V/0~10A*1CH	0~30V/0~10A*1CH	0~32V/0~3A2CH, 0~6V/0~3A1CH
Rated input voltage	Rated input voltage	Rated input voltage	Rated input voltage	Rated input voltage	Rated input voltage	Rated input voltage
AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%	AC220V/110V±10%
Load & Line regulation rate	Load & Line regulation rate	Load & Line regulation rate	Load & Line regulation rate	Load & Line regulation rate	Load & Line regulation rate	Load & Line regulation rate
=0.01%+8mV/=0.1%+5mA	=0.01%+5mV/=0.1%+5mA	=0.01%+5mV/=0.1%+5mA	=0.01%+8mV/=0.1%+5mA	=0.1%+10mV/<0.2%+5mA	=0.02%+10mV/<0.2%±1digits	=0.01%+3mV/=0.01%+3mA
Display	Display	Display	Display	Display	Display	Display
4-digit display	4-digit display	4-digit display	4-digit display	4-digit display	3-digit display	5-digit display
Ripple and Noise	Ripple and Noise	Ripple and Noise	Ripple and Noise	Ripple and Noise	Ripple and Noise	Ripple and Noise
=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=2mV(rms) =5mA(rms)	=10mV(rms) =5mA(rms)	=3mVrms 10mArms	=2mV(rms) =5mA(rms)
Size(mm) / Weight(kg)	Size(mm) / Weight(kg)	Size(mm) / Weight(kg)	Size(mm) / Weight(kg)	Size(mm) / Weight(kg)	Size(mm) / Weight(kg)	Size(mm) / Weight(kg)
250150330 / 12	250150330 / 9	250150330 / 8	250150330 / 12	11596261 / 1.7	280130160 / 5.7	255110380 / 8.5
Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB	Has RS-232,RS-485 and USB
?	?	?	?	?	?	?
Coded Switch Knob	Coded Switch Knob	Coded Switch Knob	Coded Switch Knob	Coded Switch Knob	Coded Switch Knob	Coded Switch Knob
?	?	?	?	?	?	?
Programmable	Programmable	Programmable	Programmable	Programmable	Programmable	Programmable
?	?	?	?	?	?	?

What you will get?
MPS-3010H-3 DC Power supply * 1, Test line * 3, Power cord * 1 and Instruction manual * 1
Has the green display brightness issue (too dim) been resolved?
Yes. We have upgraded the voltage display diodes to be brighter and easier to read. Any questions, please feel free to consult us, and we will surely provide a solution to your satisfaction.
Can this be powered with 120V ac or only 220?
This dc power supply is 220/110V switched.

MATRIX

Reliable, durable, and stable power supply

ABOUT MATRIX
MATRIX is an innovative enterprise founded in 2003, that focuses on the research and development of DC power supplies, providing our users with more reliable, durable, and stable products. Certified by authoritative organizations such as CE, ROHS, and KC.
Our service
Matrix offers a 3-year of after-sales service for all MATRIX-branded products.
When did we start?
We dedicated in researching, developing, producing and selling of DC power supplies since 2003.
What makes our products unique?
Technologically, there are some new designs such as preset current without short circuits, intelligent temperature control fan, coded switch, independent control of each channel, and getting into series or parallel mode by pressing one key, etc.
Our philosophy
Value first, quality is fundamental, and customers are supreme.
DC Power Supply
High Power DC Power Supplies
Digital LCR Meter Power Meter
Programmable AC Power Source

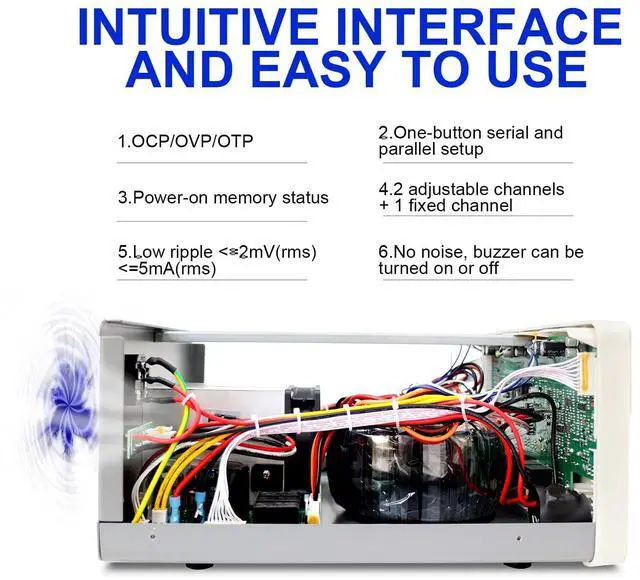

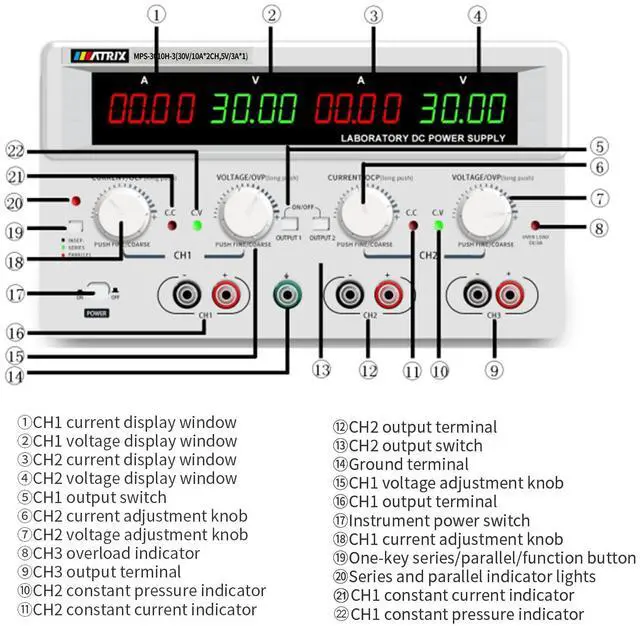

MPS-3010H-3 triple channel dc linear power supply, two adjustable channel and one fixed 5V 3A channel. The resolution is 10mV 1mA.

1. The current and voltage can be adjusted within a certain range.

2.The series-parallel mode directly displays the voltage and current.

3. The last output data and last output state can be saved.

4. Channel 1 and Channel 2 are independent switch control.

5. Four-digit display,10mV/1mA resolution.

Rated output

CH1,CH2: 0~30V, 0~10A(adjustable)

CH3: 5V/3A

Load regulation(CH1,CH2): 0.01%+8mV 0.1%+5mA

Line regulation(CH1,CH2): 0.01%+8mV 0.1%+5mA

Set/readback resolution: 10mV 1mA

Set/readback value accuracy

Voltage:0.03%+10mV

Current:0.1%+5mA

Paralle/Serial mode:

Power effect:0.01%+8mV

Load effect:0.01%+8mV

Ripple and noise: 2mV(rms) 5mA(rms)

Weight: 26.6lb

Product information

Model Name	MPS-3010H-3
Brand	MATRIX
Compatible Devices	Personal Computer
Connector Type	ATX
Output Wattage	30 Watts
Form Factor	ATX
Wattage	615 watts
Cooling Method	Air

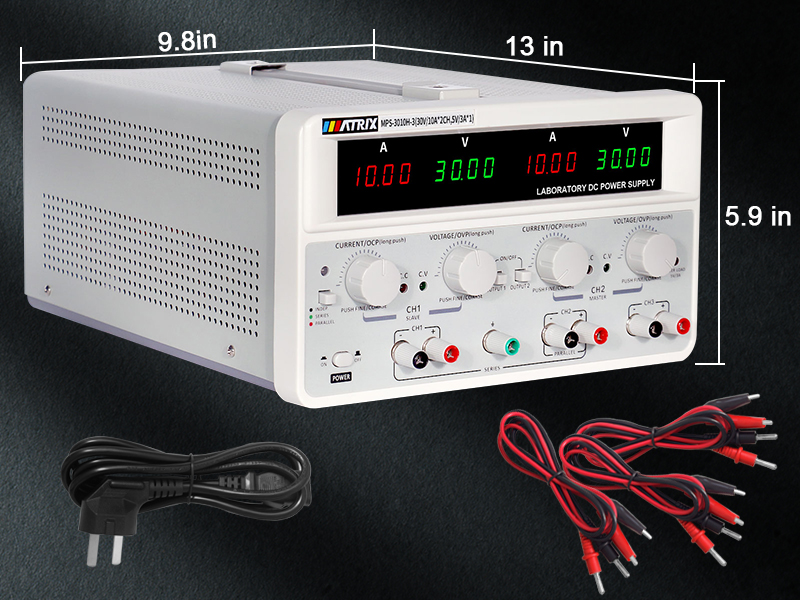

Item dimensions L x W x H	9.8 x 6 x 13 inches
Power Supply Design	External
Product Dimensions	9.8 x 6 x 13 inches; 29.2 Pounds
Item model number	MPS-3010H-3
Date First Available	March 24, 2021
Manufacturer	MATRIX TECHNOLOGY INC.
#96 in Lab Power Supplies	#96 in Lab Power Supplies
#195 in Life Science Supplies	#195 in Life Science Supplies

Additional Features

Easy to Use: MATRIX dc adjustable power supply has features like OCP/OVP/OTP protection and a quiet smart fan system. You can turn off the key sound for a noise-free experience. The benchtop power supply with switchable 110/220V input voltage can be used in all countries. Channels 1&2 can be controlled and output independently, and settings can be saved. You can set upper and lower limits within the rated range. The interface is user-friendly and easy to use once you get the hang of it.
Superior Quality & Warranty: MATRIX linear power supply is designed for a wide range of applications such as laboratory, electronic repair, DIY projects, communication equipment maintenance, product assembly lines, scientific research, and educational institutions. Each lab power supply undergoes rigorous quality testing and calibration before it leaves our factory, ensuring its exceptional quality. We offer a 3-year warranty and please reach out to us in case of any issues.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: non-replaceable
This item is covered by MATRIX TECHNOLOGY INC. Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Type	ATX
Maximum Power	30 watts, 615 watts
Main Connector	ATX
Output	30 watts
Input Frequency Range	not_applicable
Cable Spec	ATX
