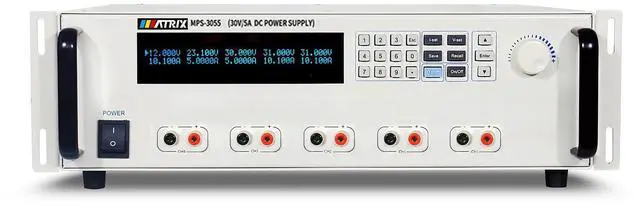

    MATRIX 5-Channel Programmable DC Power Supply 30V 5A, MPS-3055 Linear Power Supply 1mV, 0.1mA High Resolution, Variable Power Supply with 9 Groups Storage, RS232, Intelligent Fan System, List Output

    • 30V/5A Linear power supply, five channels are isolated, 5 in 1, easy to operate, small volume.
    • Voltage compensation function improves accuracy.
    • 1mV/0.1mA high resolution.
    • Linear power supply, low ripple, and noise.
    • Panel operation is convenient to be used independently.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Linear DC Power Supply MPS-3055 is a five-channel programmable DC power supply. The five channels can independently adjust the voltage and current. This series of products are equipped with RS232 communication interface, which has both desktop and system characteristics, and can be arbitrarily matched with other instruments, Integrated as a test system with special functions to complete the measurement requirements in different occasions. The upper computer program can be edited through the communication protocol, which brings great convenience to the user. It is a replacement product of the ordinary programmable power supply.

    Rated input voltage: AC220V/110V±10%
    Rated output: 0-30V 0-5A 5CH
    Load regulation rate: 0.02%+5mV 0.02%+5mA
    Line regulation: 0.02%+5mV 0.02%+5mA
    Setting value resolution: 1mV 0.1mA
    Readback value resolution: 1mV 0.1mA
    Setting accuracy(25±5°): 0.05%+5digits 0.05%+2mA
    Readback accuracy(25±5°): 0.05%+5digits 0.05%+2mA
    Ripple: 2mVrms 5mArms
    Interface: RS232
    Size(inch): 19x6x14.6
    Weight(lb): 55


    Product information

    Model Name MPS-3055
    Brand MATRIX
    Item dimensions L x W x H 19 x 14.6 x 6 inches
    Item Weight 66 Pounds
    Manufacturer MATRIX TECHNOLOGY INC.
    Product Dimensions 19 x 14.6 x 6 inches
    Item model number MPS-3055
    Date First Available January 15, 2024
