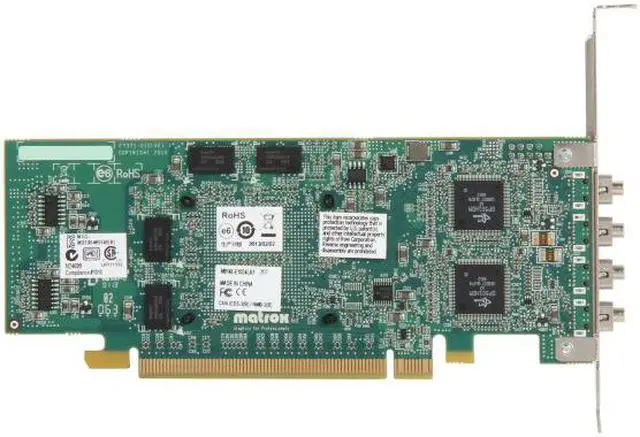

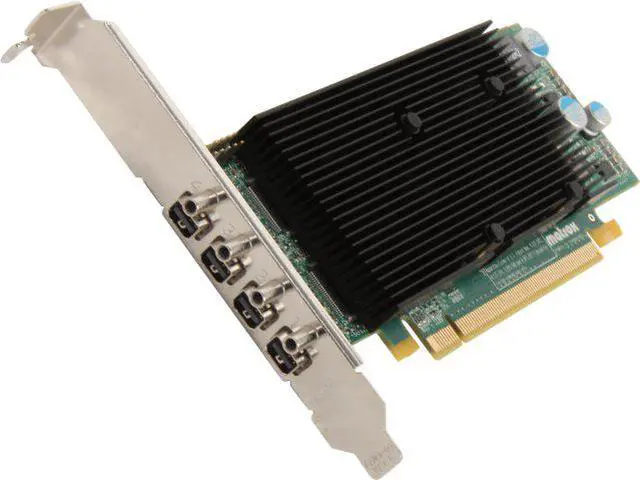

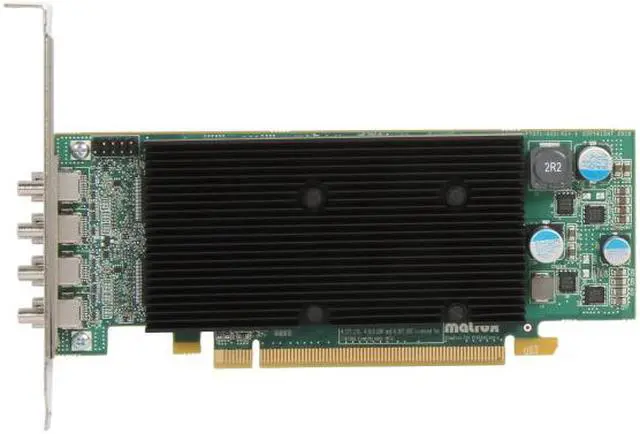

Matrox M9148-E1024LAF M9148 LP PCIe x16 1GB Memory Mini DP Port 4 Video Card
Learn more about the matrox M9148-E1024LAF
Model
Brand
Matrox
Model
M9148-E1024LAF
Interface
Interface
PCI Express x16
Chipset
Chipset Manufacturer
matrox
GPU
M9148
Memory
Memory Size
1GB
3D API
OpenGL
OpenGL 2.0
Ports
DisplayPort

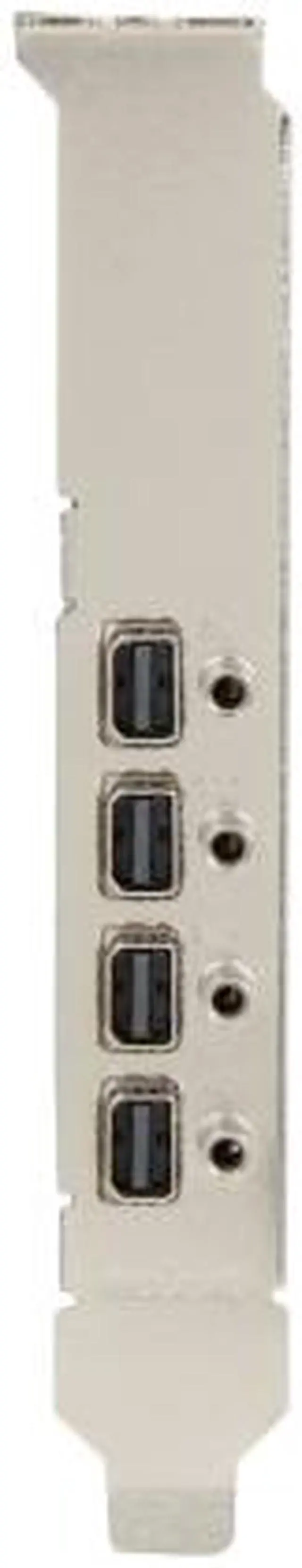

4 x Mini DisplayPort
Details
Digital Resolution
2560 x 1600
Max Displays Per Board
4
Cooler
Fanless
Operating Systems Supported
Windows 7 (32/64bit) Windows Vista (32/64bit) Windows XP (32/64bit) Windows Server 2003/2008 (32/64bit) Linux
Features
Features
High-resolution four DisplayPort monitor support -Support resolutions up to 2560 x 1600 per output Native PCI Express x16 performance -Maximum bandwidth to ensure best performance 1 GB of memory -For enhanced performance in demanding multi-monitor applications Low-profile form factor -To fit in a wide variety of systems; includes bracket for full-height ATX form factor Passive cooling and low power consumption -Fanless design eliminates noise and increases product reliability Stretched and independent desktop modes -Expand your desktop across multiple monitors or set each monitor independent of each other M-Series multi-card support1 -Add multiple Matrox M-Series cards into the same system to drive more monitors Joined graphics card mode1 -Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop Matrox Clone -View a copy of one display on the other displays Wide enterprise flexibility -Unified driver package compatible with other Matrox products Matrox PowerDesk software -Easily configure and manage program windows on multiple monitors Multiple operating system support -Display drivers for Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit), and Linux
Packaging
Package Contents

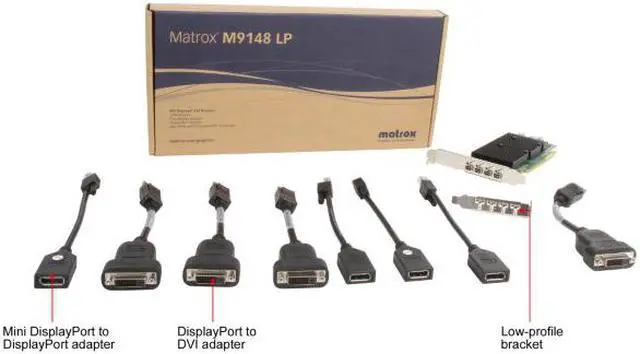

atrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box) Four miniDP to DP adapters Four DP to DVI connector adapters
Additional Information
First Listed on Newegg
July 26, 2021
