matrox Monarch HD Professional Video Streaming And Recording Appliance
- Record master quality video while streaming
- Ready to edit and upload with MP4 and MOV
- Robust and Practical Design
- Easily reach your audience
Specs
Reviews
Learn more about the matrox Monarch HD
| Brand | matrox |
|---|---|
| Model | Monarch HD |
| Type | Digital Media Streamer |
|---|---|
| Specifications | Scaler High Quality multi-tap 10 bit Down Scaler and De-Interlacer. Available to both streaming and recording operations. Recording File Format File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio. Recording Lengths: Maximum file length of 300 minutes - irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes. Storage Types for File Recording 2 x USB 2.0: Support for NTFS (3.1) and FAT32 file system. The Monarch HD will support writing to USB3 devices at USB2 speeds. Also note, there is a very high variability in the performance capabilities of "thumb" drives (even USB3 versions). Many are optimized for "read" operations while the Monarch HD requires sustained "write" capabilities. For best results, Matrox recommends using powered USB drives. If small portable media is required, SD cards may be more suitable. 1 x SD card Slot: Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended). Network Mapped Drive: Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for windows system) as well as NFS protocols (suitable for Mac and Linux systems). Dimensions: 5.60 in. long 4.30 in. deep excluding inserted SD-CARD 4.40 in. deep including inserted SD-CARD 1.22 in. high including rubber feet Weight: 0.66 lb. excluding power supply Power: Line Voltage: 100-240V AC, 0.5A Frequency: 50-60 Hz Input: External AC/DC adapter - IEC320-C8 Output: +5VDC, 3A max Total power consumption: 15 Watts DIN4 Locking Power Connector |
| Video Encoding | H.264/MPEG-4 Part 10 (AVC) Video Encoder Resolutions: Selectable encoding resolutions ranging from: 128x128 to 1920x1080 Bit Rates Ranges: Record Only Mode: 100 kbps to 30 Mbps Stream Only Mode: 100 kbps to 20 Mbps Independent Stream and Record Mode**: Recording: 100 kbps - 30 Mbps Streaming: 100 kbps - 10 Mbps Maximum combined total bitrate of 30 Mbps **Note that when both streaming and recording resolutions are above 1280x720, the encode parameters must be identical for both processes. Completely Independent recording and streaming settings are available when either the streaming or the recording resolution is 1280x720 or below. Encode Frame Rates: Encode frame rates representing 1:1, 1/2 and 1/4 of the input frames rates are supported Note that the maximum encode frame rate is 30 fps when encode resolution is 1920 x 1080 Encoding Profiles: Baseline, Main and High Encoding Controls: 2.0, 3.0, 3.1, 4.0, 4.1 Level Support GOP Size and Structure Variable bit rate support Average max/min data rate controls Deblocking Filter |
|---|
| Interface | RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing Protocols: RTMP, RTSP/RTP IPv4 Support Unicast and Multi Unicast (number of clients may vary from 3 to 10) |
|---|---|
| Audio | MPEG-4 AAC Audio Encoder Standard: AAC-LC Sample Frequency: 32, 44.1 and 48 kHz when digitized from analog source Channels: 2 channels Stereo (L/R) Bit Rates: Range from 32 kbps to 256 kbps |

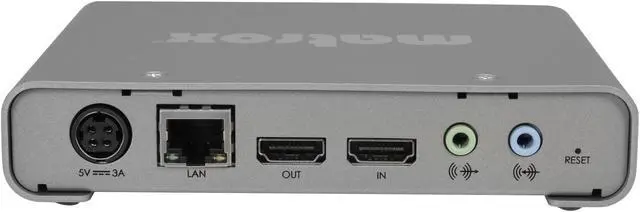

| Ports In | HDMI Video Input: Progressive 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second 1280x720 @ 60/59.94/50 Frames per second Interlaced 1920x1080i 29.97/25 frames per second Video Input Format is Auto-Detected Audio Input: Processes first two channels of audio embedded in HDMI input signal Unbalanced analog stereo input via 1/8" (3.5mm) jack Line Level |
| Ports Out | HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output Audio Output: Passthrough of all embedded audio channels in HDMI signal Unbalanced analog stereo output via 1/8" (3.5mm) jack - passthrough of input Line Level |
| Features | Professional Video Streaming and Recording Appliance Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers to stream a live event while simultaneously recording a higher, master quality version for post-event editing or archiving. Webcasting to YouTube and Facebook Live is made easy through its simplified set up for these popular platforms. All that's needed is to pair the device once with these accounts and it's automatically retained for subsequent streams. From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser. Easily Webcast to Your Audience Record Master Quality Video while Streaming Ready to Edit and Upload with MP4 and MOV Robust and Practical Design Stream and Record SDI Signals Record to Anything Presets and Profiles for Simple Configuration Remote Command and Control Integrate Matrox Monarch HD into Your Own Application or Environment Integrate with Crestron Install in a Rack |
|---|

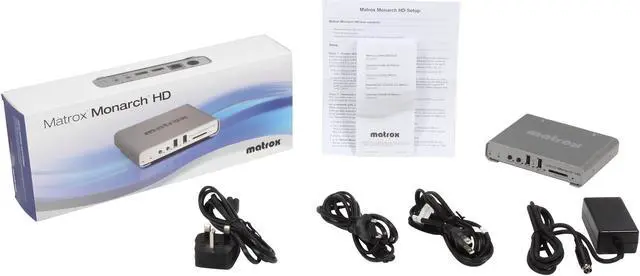

| Package Contents | Matrox Monarch HD device Matrox Monarch HD external power supply IEC-C8 power cords (US, GB and EU) |
|---|
| First Listed on Newegg | October 24, 2013 |
|---|
