Brand | NZXT |
---|---|
Series | H500 |
Model | CA-H500B-B1 |
Type | ATX Mid Tower |
---|---|
Color | Matte Black/Black |
Case Material | SECC Steel and Tempered Glass |
With Power Supply | No |

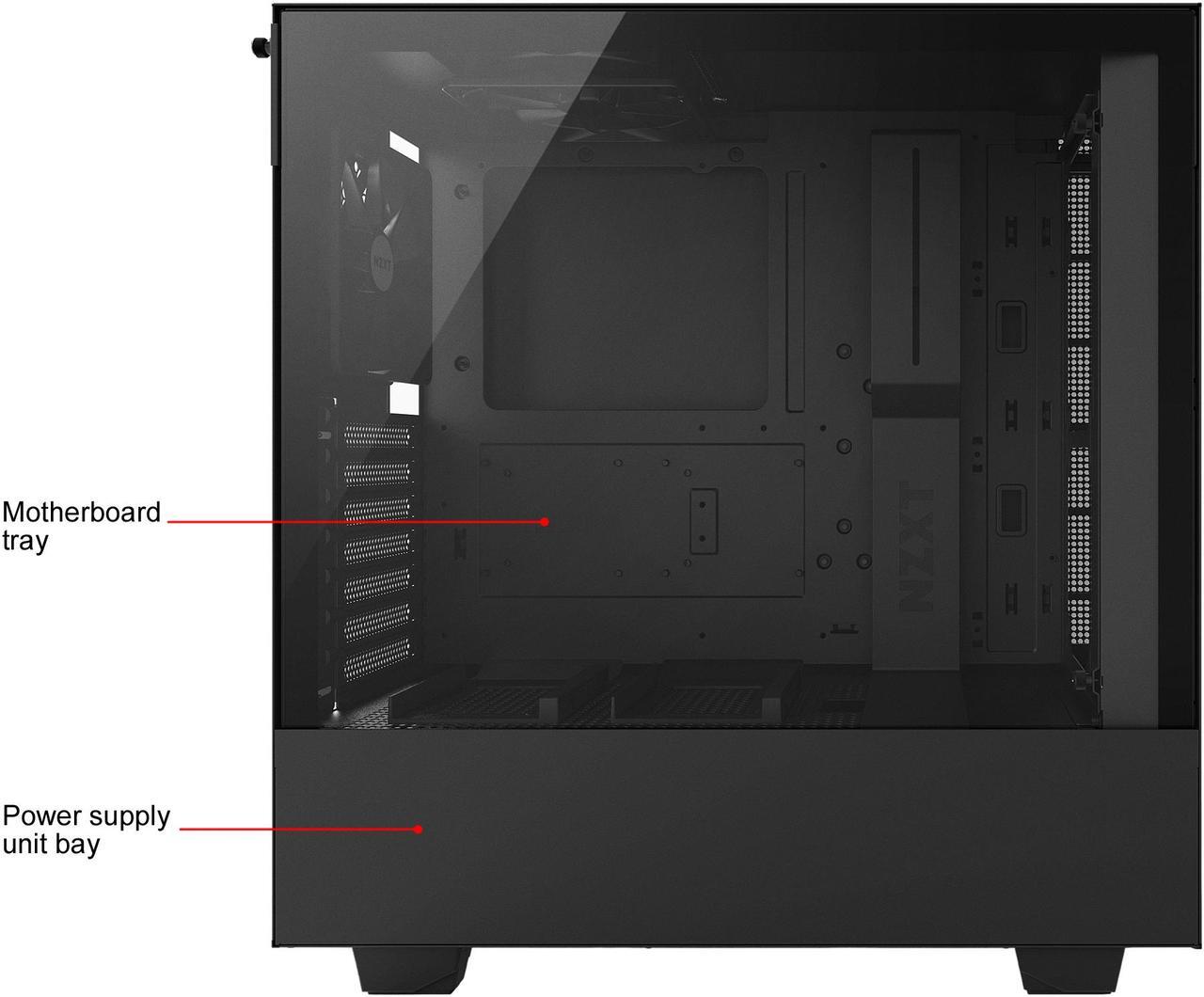

Power Supply Mounted | Bottom |
Motherboard Compatibility | Micro ATX / ATX / Mini-ITX |
Side Panel Window | Yes |
Dust Filters | Front right side panel, bottom front and PSU intake |
Internal 3.5" Drive Bays | 2+1 |
---|---|
Internal 2.5" Drive Bays | 2+1 |

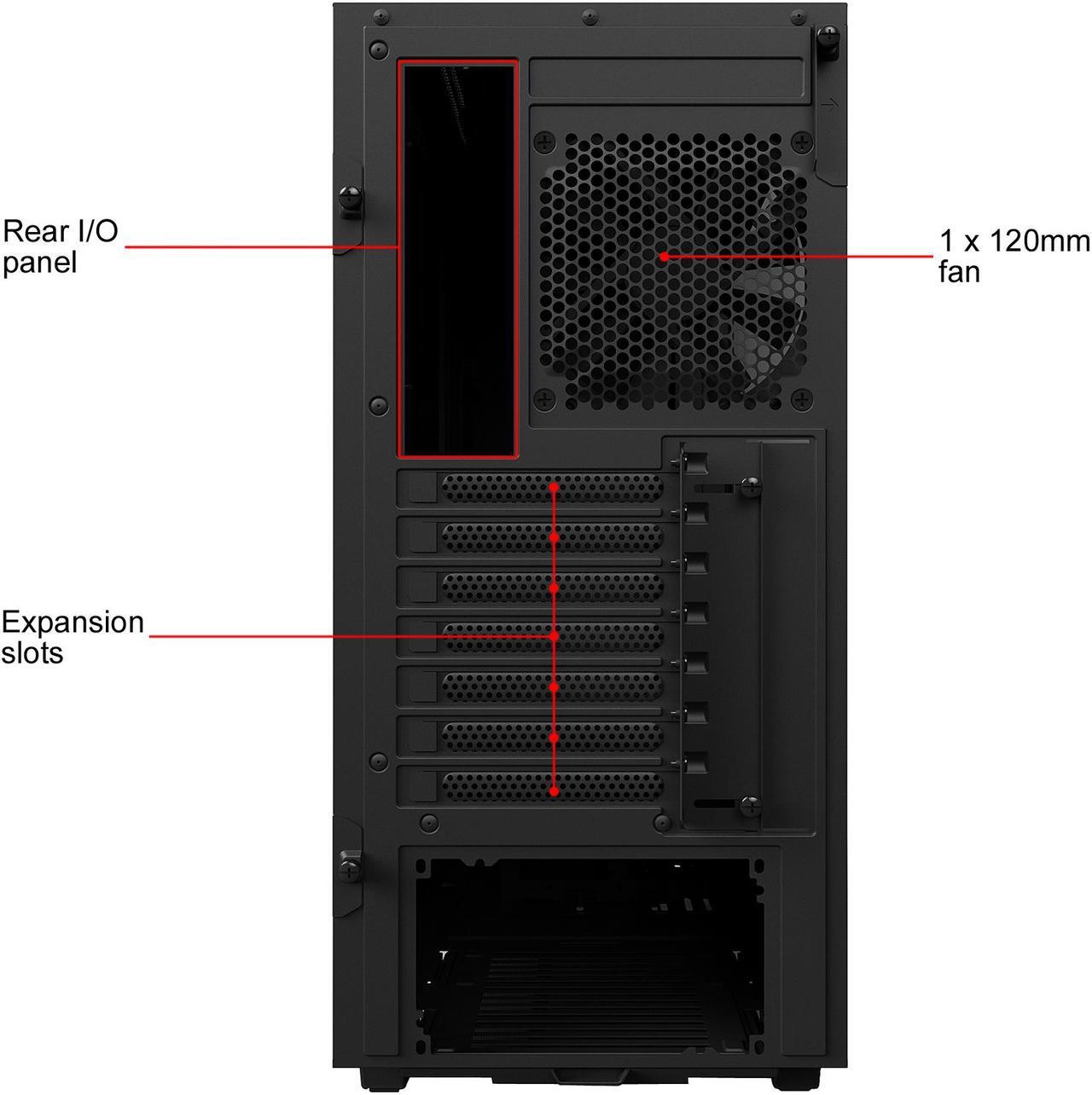

Expansion Slots | 7 |

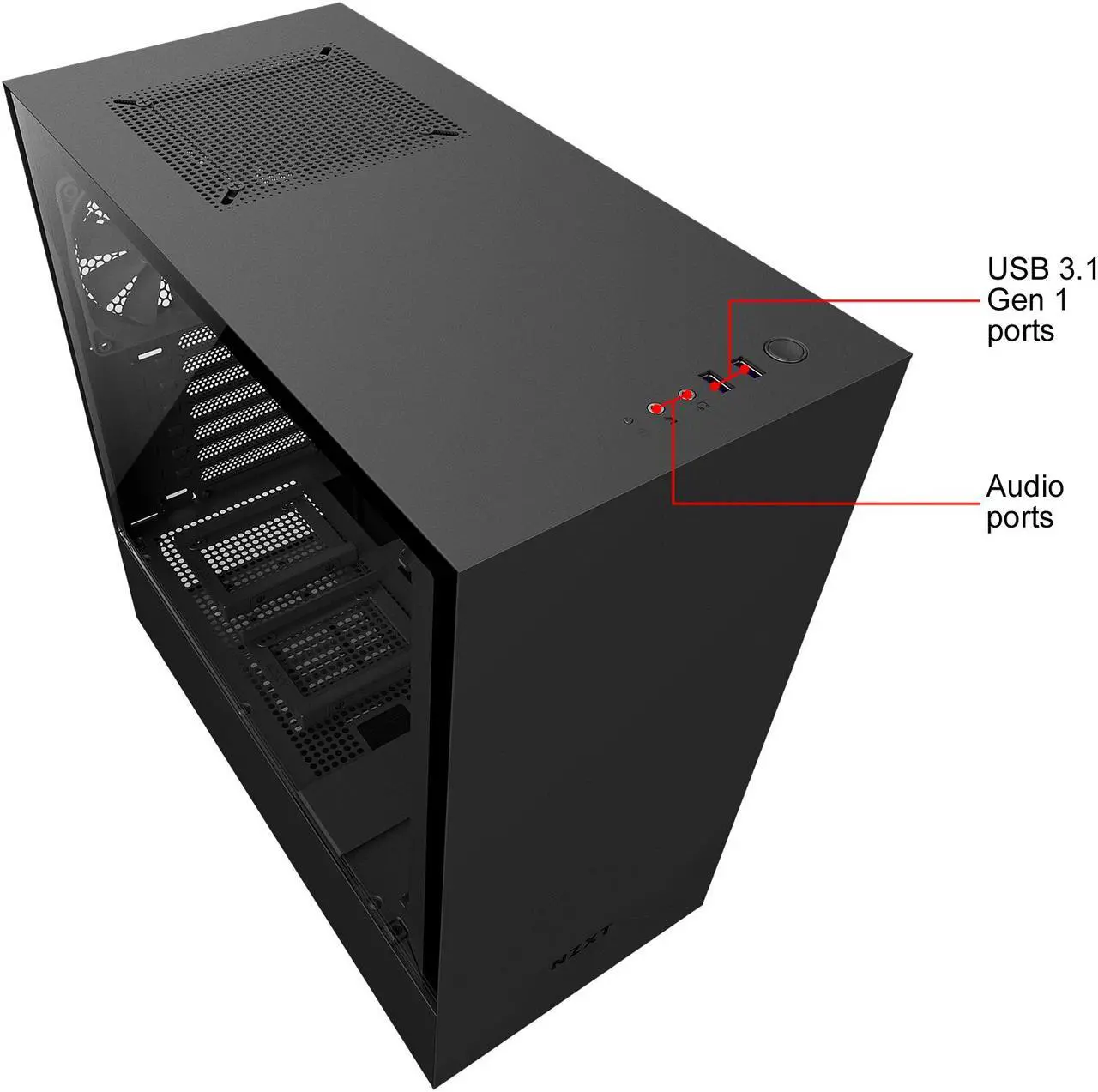

Front Ports | 2 x USB 3.1 Gen 1 / 1 x Audio/Mic |
---|
Fan Options | Front: 2 x 120mm / 2 x 140mm fan Top: 1 x 120mm (1 x 120mm Aer F120 Case Version included) / 1 x 140mm fan Rear: 1 x 120mm fan (1 x 120mm Aer F120 Case Version included) Aer F120 (Case Version) Speed: 1200 +/- 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
---|
Max GPU Length | 381 mm |
---|---|
Max CPU Cooler Height | 165 mm |
Max PSU Length | 311 mm |

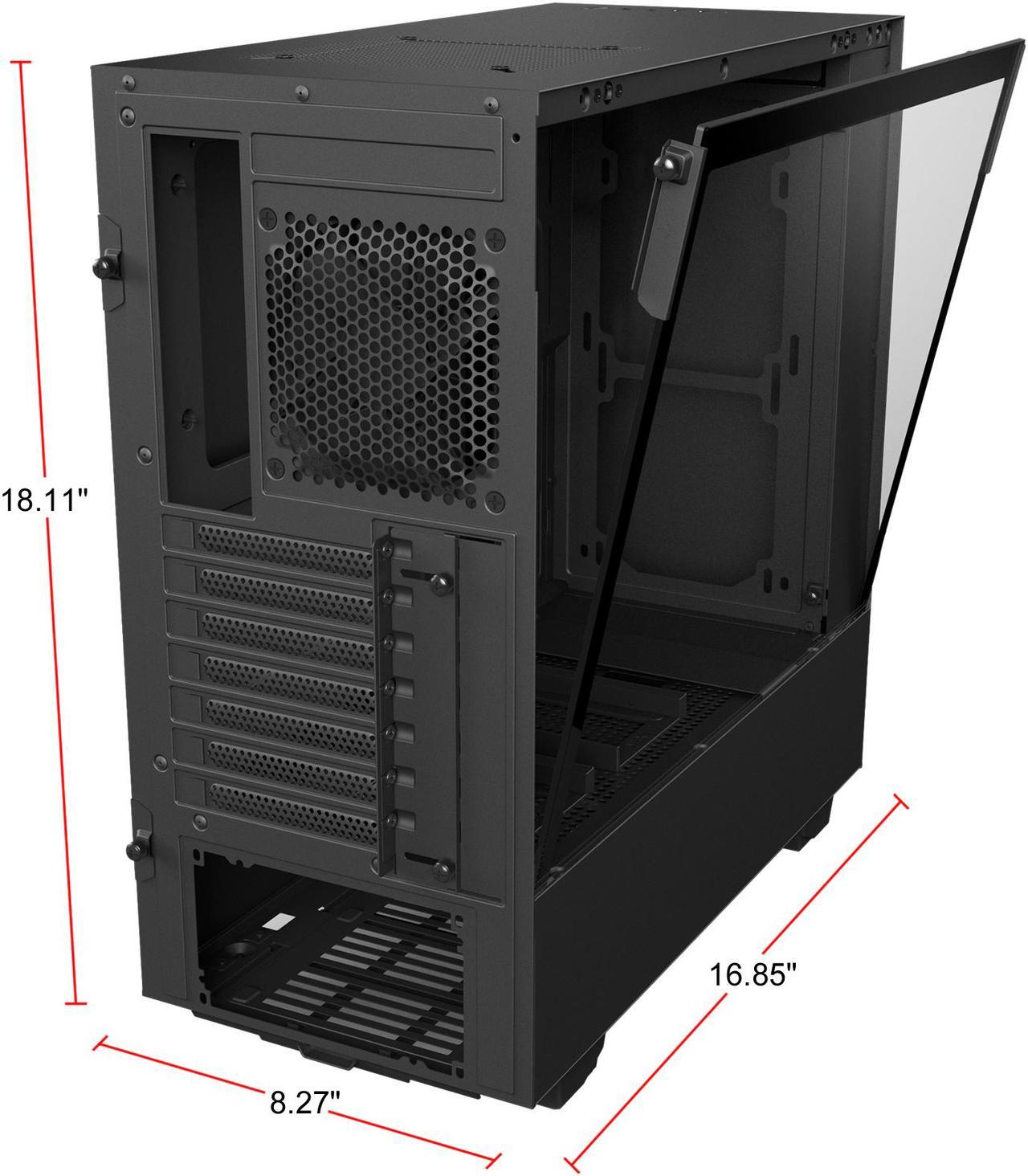

Dimensions (H x W x D) | 18.11" x 8.27" x 16.85" |
Weight | 15.43 lbs. |

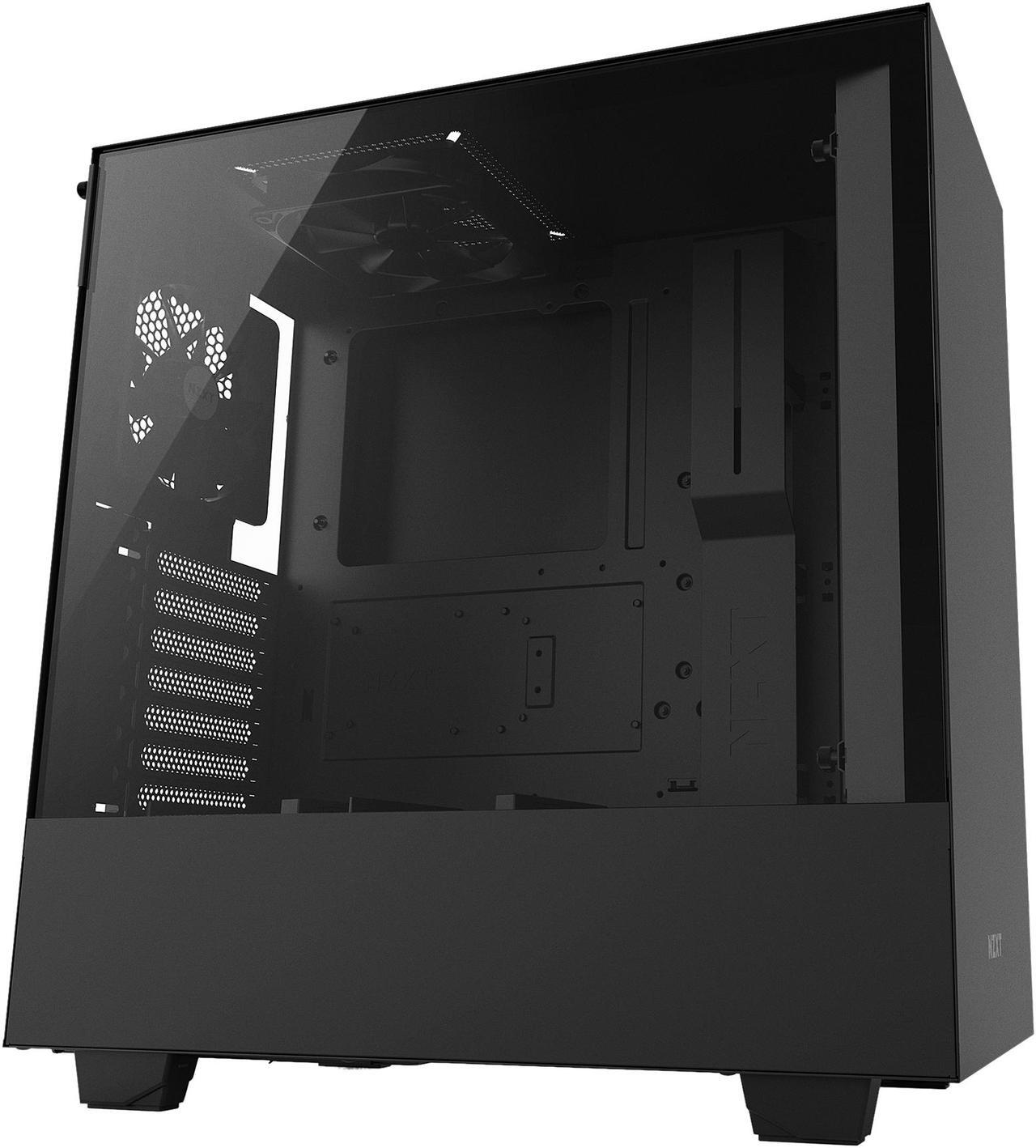

Features | The H500 showcases the signature design of the NZXT H Series cases. The elegant all-steel construction includes the iconic cable management system to streamline building and upgrading your system. You can easily build a powerful system with plenty of options for storage and cooling. The H500 includes two Aer F fans and a seamless tempered glass side panel. Premium, all-steel construction with the sleek H Series design; available in four color combinations Tempered glass panel showcases your build with crisp clarity System installation and expansion made easy with all-new cable management system Water-cooling installation simplified for both AIO and custom loop |
---|
Date First Available | June 27, 2018 |
---|
