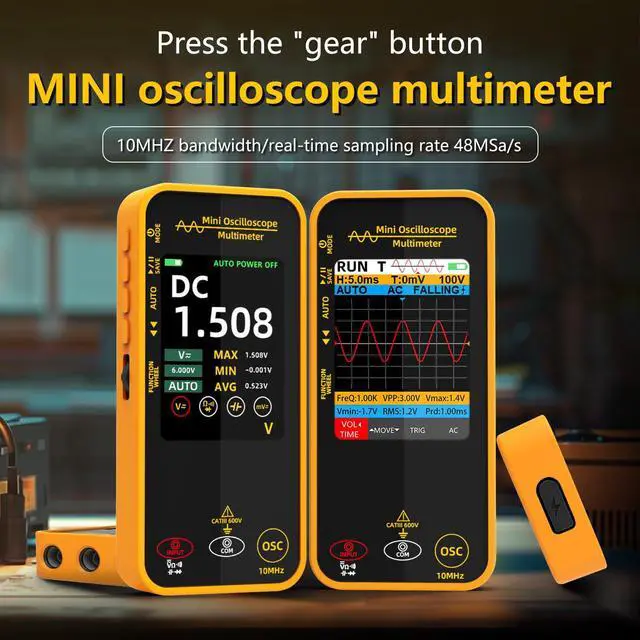

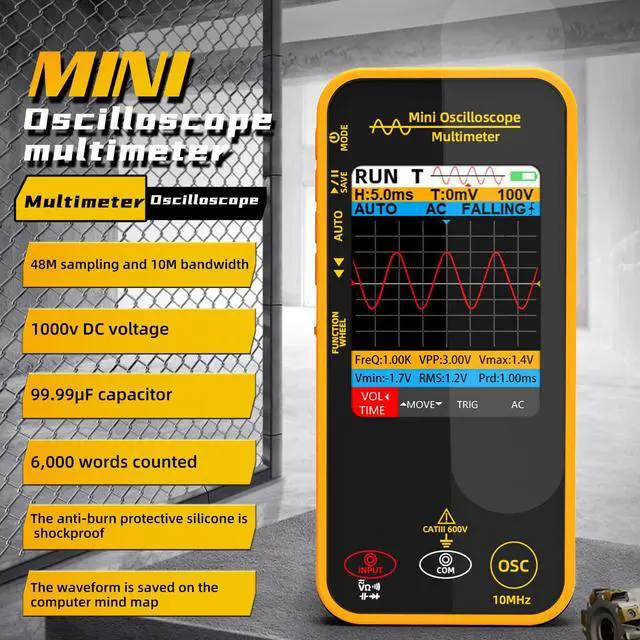

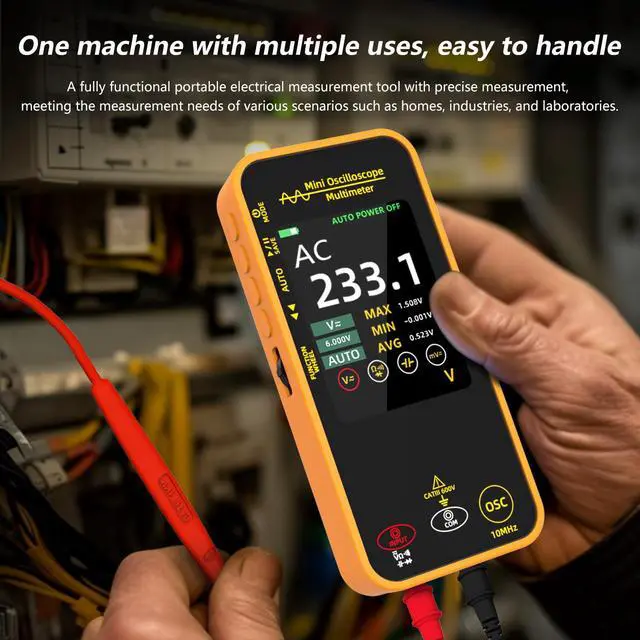

OS1 Digital Oscilloscope Multimeter 10MHz Bandwidth Handheld oscilloscope with 48MSa/s Sampling Rate 3.2 TFT LCD Rechargeable Multimeter Capacitance Diode Ohm Voltage Tester

Features:

2-in-1 oscilloscope multimeter

Portable color display voltmeter

Rechargeable graph scope tester

True rms digital multimeter tester

Measures capacitance, diode and continuity

Measures ac and dc voltage, resistance and live wire check

Tested data can be saved and exported to your computer

Low battery indication

Specifications:

MAX Display: 6000 counts

Screen Size: 3.2 inch

Bandwidth:

Sine wave: 10MHz

Square waves and other waveforms: 100KHz

Real-time sample rate: 48MSa/s

Input Impedance: 1M

Maximum input voltage: <300V (DC+AC peak)

Horizontal SEC range: 50ns/div -20s/div

Vertical sensitivity: 200mV/div -100V/div

DC voltage (V):

6.000V/0.001V/±(0.8%+3)

60.00V/0.01V/±(0.8%+3)

600.0V/0.1V/±(1.0%+5)

1000V/0.1V/±(1.0%+5)

DC voltage (mV):

60.00mV/0.01mV/±(1.0%+5)

600.0mV/0.1mV/±(0.8%+3)

AC voltage(V):

6.000V/0.001V//±(1.0%+3)

60.00V/0.01V/±(1.0%+3)

600.0V/0.1V/±(1.2%+5)

750V/1V/±(1.2%+5)

AC voltage (mV):

60.00mV/0.01mV/±(1.2%+5)

600.0mV/0.1mV/±(1.0%+3)

Resistance:

600.0Q/0.1/±(1.2%+5)

6.000k/0.001k/±(1.0%+3)

60.00k/0.01k/±(1.0%+3)

600.0k0/0.1k/±(1.0%+3)

6.000MQ/0.001M/±(1.2%+5)

60.00MQ/0.01M/±(1.5%+5)

Capacitance:

999.9nF/0.1nF/±(5.0%+20)

9.99uF/0.001F/±(4.5%+5)

999.9uF/0.01F/±(4.5%+5

99.99mF/0.001mF/±(5.0%+10)

Diode: Yes

Continuity: Yes

Power: 1200mA battery (rechargeable)

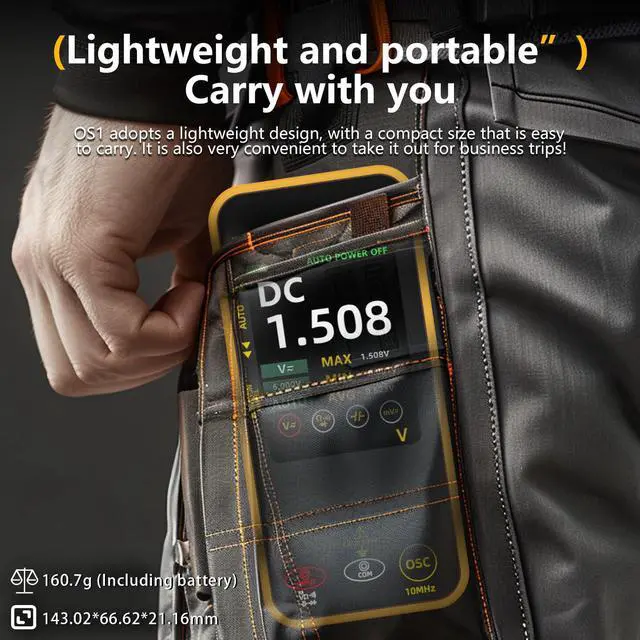

Size: 143 x 67 x 21 mm

Weight: 160.7g

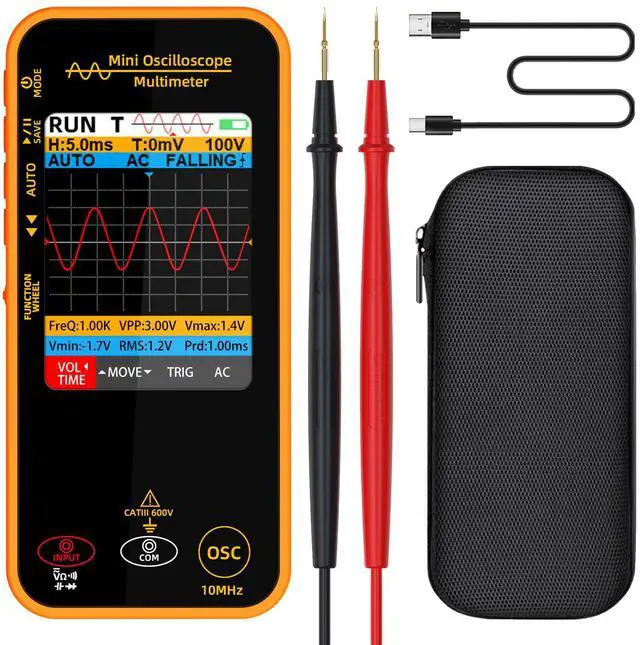

Package Includes:

1 x OS1 Oscilloscope Multimeter

1 x Test Leads

1 x Carrying Case

1 x Charging Cable

1 x User Manual
