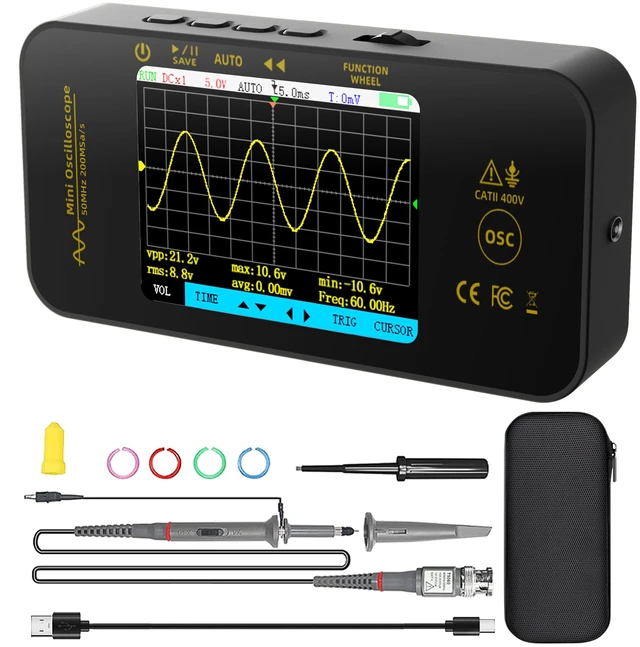

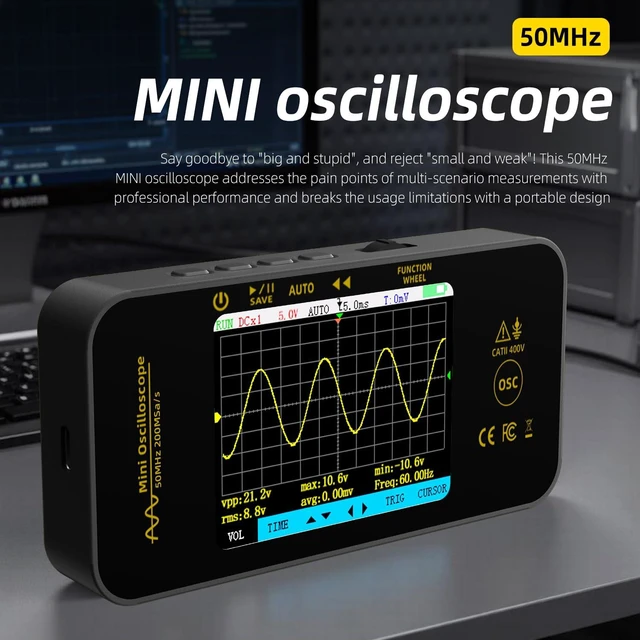

BSIDE OT5 Handheld Oscilloscope 50MHz Bandwidth Digital Oscilloscope | 3.2'' TFT Display Portable Automotive Oscilloscope 200MSa/s Sampling Rate Trigger Function Auto/Nomal/Single
- 50MHz bandwidth Handheld Oscilloscope: OT5 digital oscilloscope has a 50MHz bandwidth, a high sampling rate of 200MSa/s, and can measure voltages up to 400V.
- Professional design: Portable oscilloscopes with complete triggering capabilities (single/normal/automatic) for both periodic analog and non-periodic digital signals.
- 3.2 TFT color screen: This flat-panel oscilloscope's full-view display ensures that you can monitor signals more clearly, while intuitive buttons and menu navigation simplify operation.
- Thin and light body: This flat-panel oscilloscope is paired with a thin and light body, which is more compact and exquisite, and more convenient to use. Complimentary eva organizer bag, go out more portable.

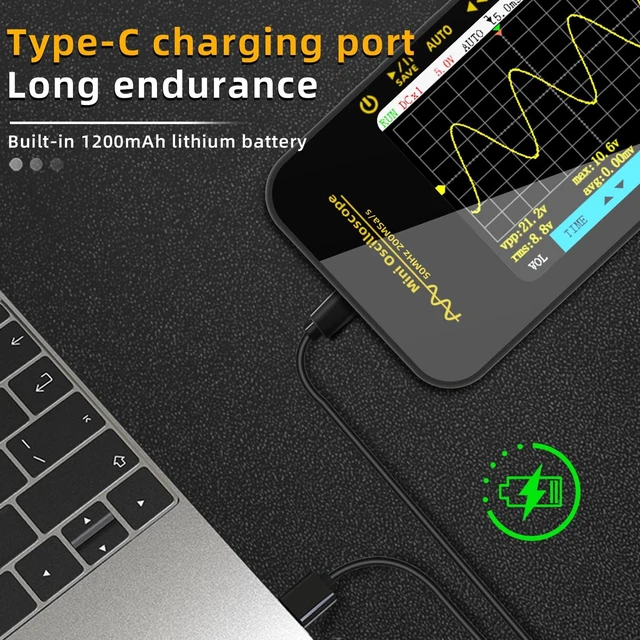

- Longer Battery Life: Automotive oscilloscope has a built-in 1200 mAh high-quality lithium battery, no need to replace the battery frequently. Type-C interface supports data transmission and charging, firmware upgrade
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features:
Support Chinese and English switching, auto range, true RMS value display, screen backlight, support data hold, low battery alert, formatting, can be set to automatic shutdown.
1200mA lithium battery lasting battery life
Ultra-thin body, the whole body is equipped with soft silicone cover, shockproof and drop-proof.
With high-end EVA storage bag, more portable.
Specification:

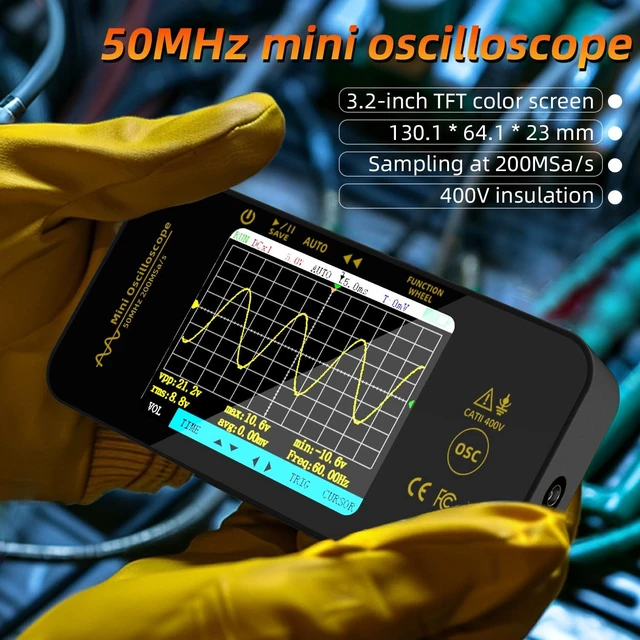

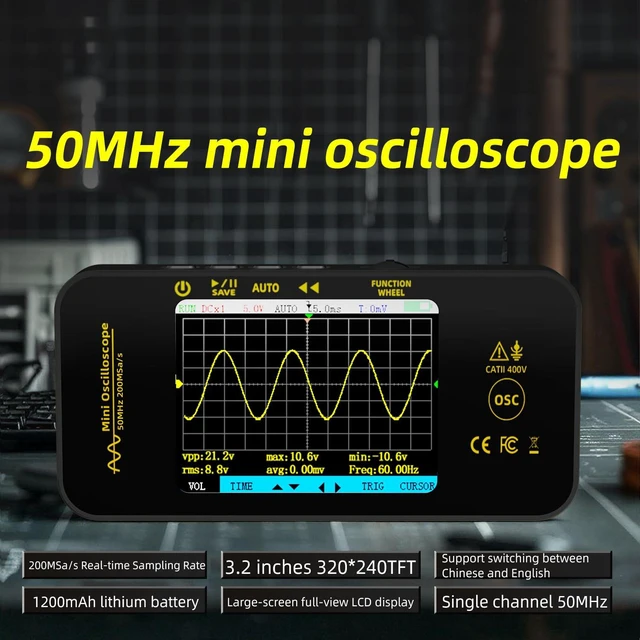

Display: 3.2-inch TFT color screen
Bandwidth: 50MHz real-time sampling
Real-time sampling rate: 200MSa/s
Number of channels: 1 channel DC AC
Input impedance: 1M, @16pF
Probe attenuation: ×1, ×10
Maximum input voltage: ×1 range ±40V, ×10 range ±400V (DC + AC peak)
Horizontal sampling rate range: 1.5Sa/s-200MSa/s
Vertical sensitivity: 20mV/div-10V/div

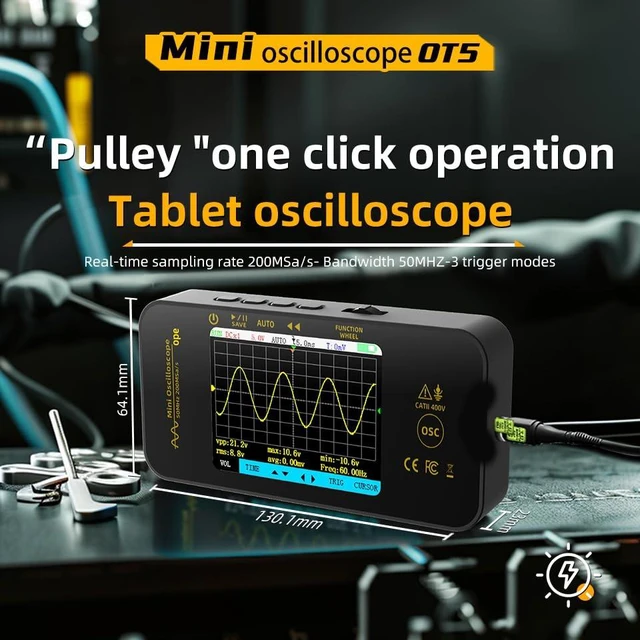

Size: 130.1*64.1*23mm

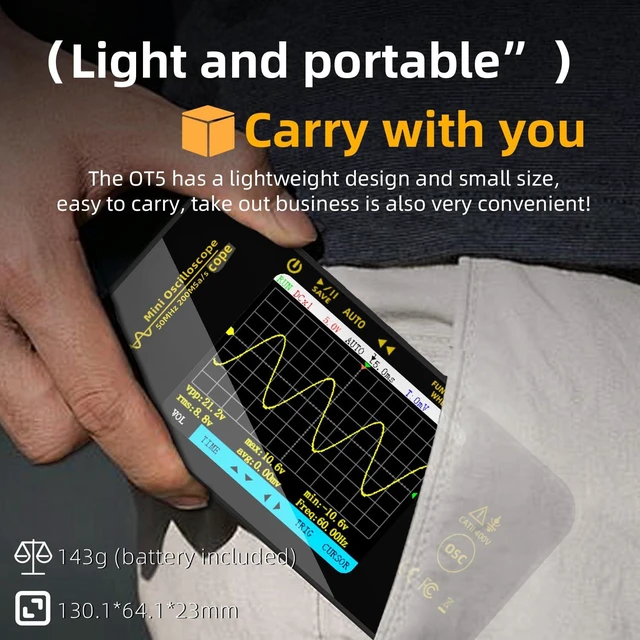

Weight: 143g
Package content:
1×OT5 portable oscilloscope
1×Oscilloscope probe
1×USB type-C data cable
1×EVA storage bag
1×User's manual
1×Regulating Rod
4×Color ring
