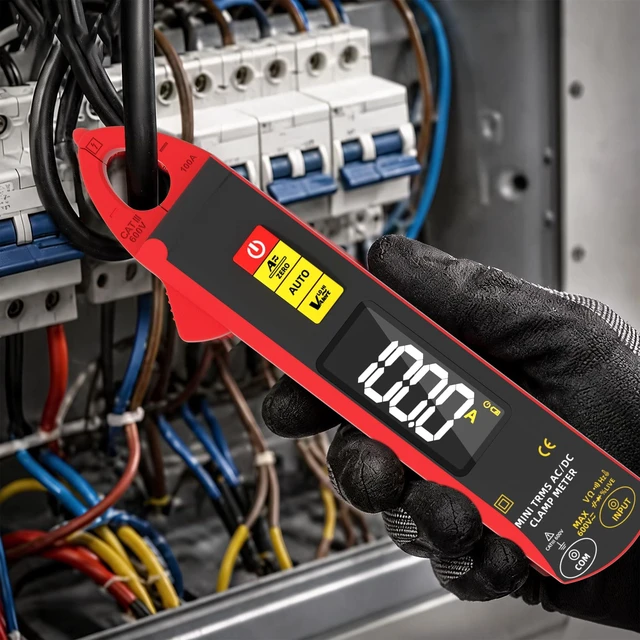

BSIDE UX1 Digital Clamp Meter 1mA AC/DC Current True RMS Auto-Ranging 6000 Counts Meter Hz Temperature Capacitance Live Check V-Alert Low Impedance Voltage Tester

Why choose BSIDE clamp meter?

With a wide range of test functions and features, it is a true clamp multimeter.

Not limited to vehicles also applicable homes.

1mA sensitivity when measures AC/DC current by clamp

Features:

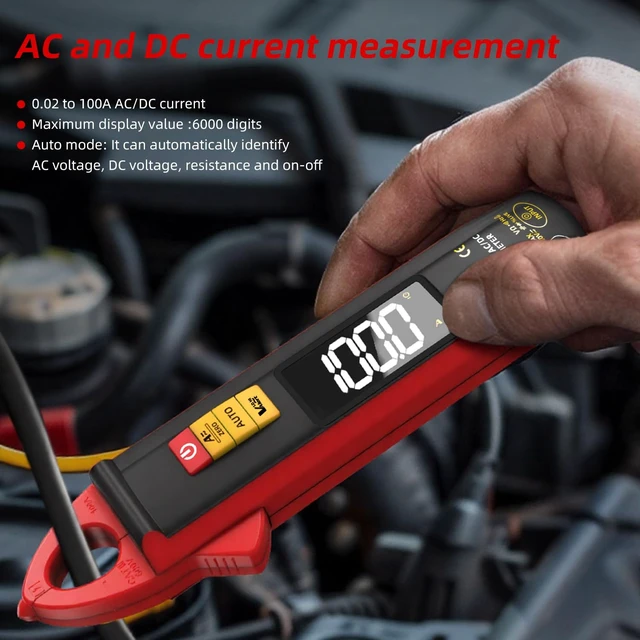

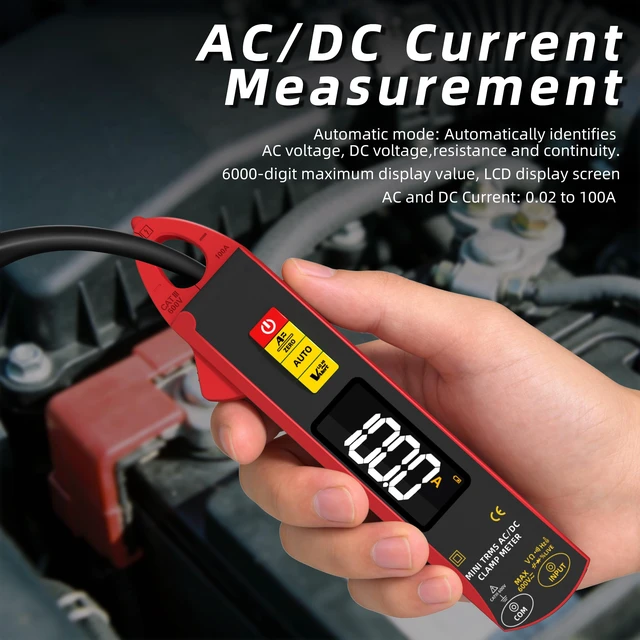

Measure microamps mA AC and DC current

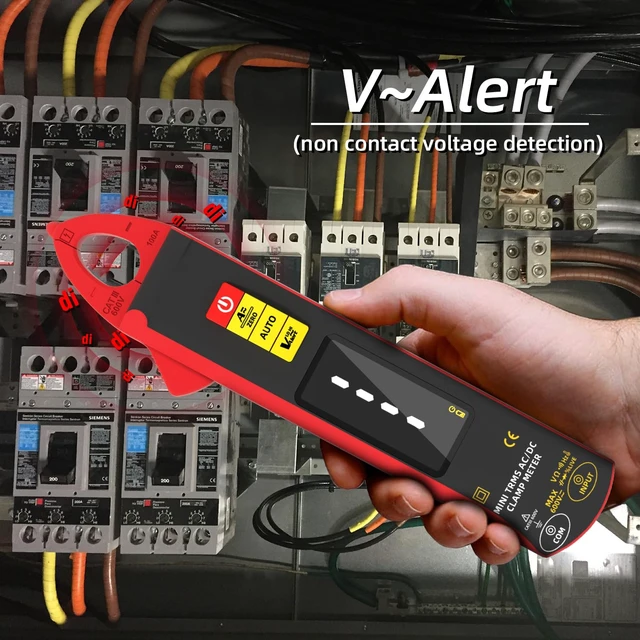

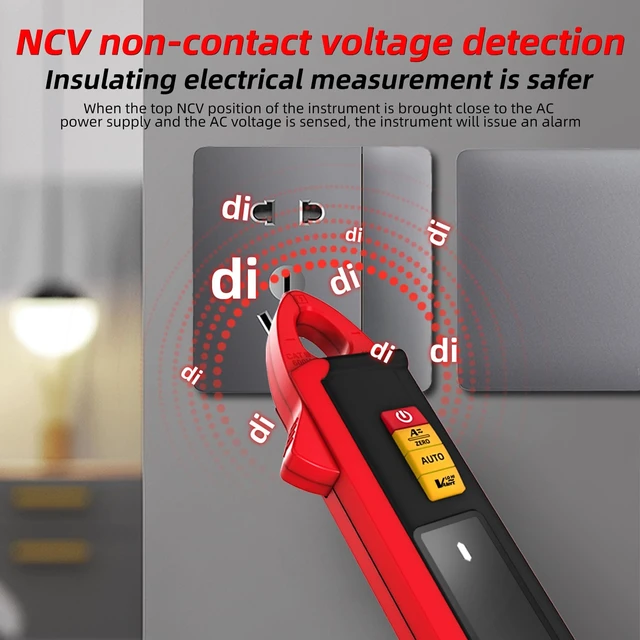

V-alert measurement, live-wire check, Diode

Measure AC and DC Voltage, frequency, temperature, resistance, continuity, Duty cycle and capacitance

Clamp on frequency function

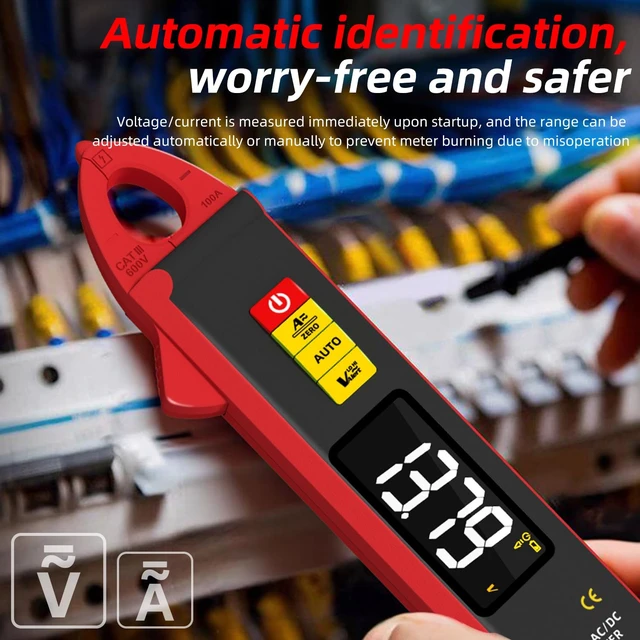

Auto range, Auto power off, low battery indication with Flashlight

Specifications:

Display: 6000 counts

DC current:

0.001A-5.999A/0.001A/±(3.0%+5)

6.00A-59.99A/0.01A/±(3.0%+6)

60.0A-109.9A/0.1A/±(3.0%+8);

AC current:

0.001A-5.999A/0.001A/±(3.0%+5)

6.00A-59.99A/0.01A/±(3.0%+6)

60.0A-109.9A/0.1A/±(3.0%+8)

DC voltage:

0.001V-5.999V/0.001V/±(0.8%+3)

6.00V-59.99V/0.01V/±(0.8%+3)

60.0V-599.9V/0.1V/±(1.0%+5)

600V-610V/1V/±(1%+5)

AC voltage:

0.050V-5.999V/0.001V/±(1.0%+3)

6.00V-59.99V/0.01V/±(1.0%+3)

60.0V-599.9V/0.1V/±(1.2%+5)

600V-610V/1V/±(1.2%+5)

Resistance:

0.1-599.9/0.1/±(1.2%+3)

0.600K-5.999K/0.001K/±(1.2%+3)

6.00K-59.99K/0.01K/±(1.2%+3)

60.0K-599.9K/0.1K/±(1.2%+3)

0.600M-5.999M/0.001M/±(2%+10)

6.00M-60M/0.01M/±(2%+10)

Capacitance:

0.010µF-5.999µF/0.001µF/±(3.5%+8)

6.00µF-59.99µF/0.01µF/±(3.5%+8)

60.0µF-599.9µF/0.1µF/±(3.5%+8)

0.600mF-5.999 mF/0.001mF/±(4.5%+10)

6.00mF-60mF/0.01mF/±(4.5%+10)

Frequency:(900mVrms-20Vrms)

1.000Hz-9.999Hz/0.001Hz/±(2%+10)

10.00Hz-99.99Hz/0.01Hz/±(2%+10)

100.0Hz-999.9Hz/0.1Hz/±(2%+10)

1.000KHz-9.9KHz/0.001KHz/±(2.5%+12)

10.00KHz-99.99KHz/0.01KHz/±(2.5%+12)

100.0KHz-999.9KHz/0.1KHz/±(2.5%+12)

1.000MHz-9.999MHz/0.001MHz/±(3%+15)

Duty Cycle:

10.0%-95.0% 0.1% ±3.0%

Buzzer: If the resistance is less than 50, the continuity beeper sounds

Temperature:

-50-0 1 ±(2.0%+3

0-50 1 ±(1.5%+2)

50-1000 1 ±(2.0%+3)

Size: 192x46.5x30.5mm

Weight: 102g

Package Includes:

1 x Digital Clamp Meter

1 x Test Leads

1 x Thermocouple

1 x Charging Cable

1 x Carrying Case

1 x User Manual

The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents.

We suggest you measure dc current as the follow suggestions.

1) Zero out the readings before each measurement.

2)Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it.

Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed.

3) Measures the dc current within 3 seconds, and you will get a accurate results.
