M-Flow Cooling System
The 4th gen hydromechanical fan can run in a lower noise but increase 18% airflow and 4% wind pressure at the same rpm.

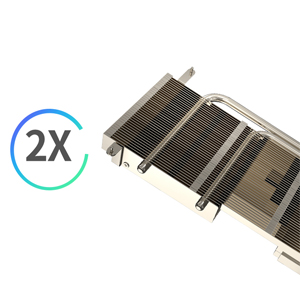

Reject High Temperature
2x pure copper heat pipes with huge mirror bottom heat sink and high density fins has high effective cooling efficiency.

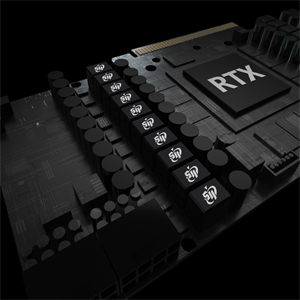

S.I.P Power System
The independent S.I.P digital power system has high conversion rate and output voltage, larger power supply current and more precise and powerful control signals to improve poewr supply stability for the MAXSUN RTX 40 iCraft graphics cards.
Specification
| GPU Core | NVIDIA GeForce RTX 4060 |
|---|---|
| GPU Architecture | Ada Lovelace |
| GPU Core Code | AD107 |
| CUDA | 3072 |
| GPU Core Process | 5nm |
| GPU Core Frequency | 1830MHz |
| GPU Core Boost Frequency | 2550MHz |
| Video Memory Frequency | 17000MHz |
| Video Memory Capacity | 8GB GDDR6 |
| Video Memory Bit Width | 128bit |
| Bus Interface Type | PCI Express 4.0 x8 |
| Display/Maximum Resolution | DP*3+HDMI2.1 / 7680x4320 Pixel |
| Power Connector | 8pin |
| TDP | 115W |
| System requirements | Windows 11, Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista, Linux, FreeBSD x86 |
| Features | Ray Tracing Cores(2nd Gen), Tensor Cores(3rd Gen), Microsoft DirectX 12 Ultimate, NVIDIA DLSS, Reflex, Broadcast, Resizable BAR, GeForce Experience, NVIDIA Ansel, FreeStyle, ShadowPlay, Highlights, G-SYNC, Game Ready Drivers, Studio Drivers, GPU Boost, Vulkan RT API, OpenGL 4.6, NVIDIA Encoder(7th Gen), Decoder(5th Gen), VR Ready, Simultaneous Multi-ProjectionVR, VRWorks Audio, HDCP2.3, PureVideo HD, PhysX, PureVideo HD, CUDA, NVIDIA REFLEX, MFAA, GeForce 3D Vision, GameWorks, GameStream-Ready. |
