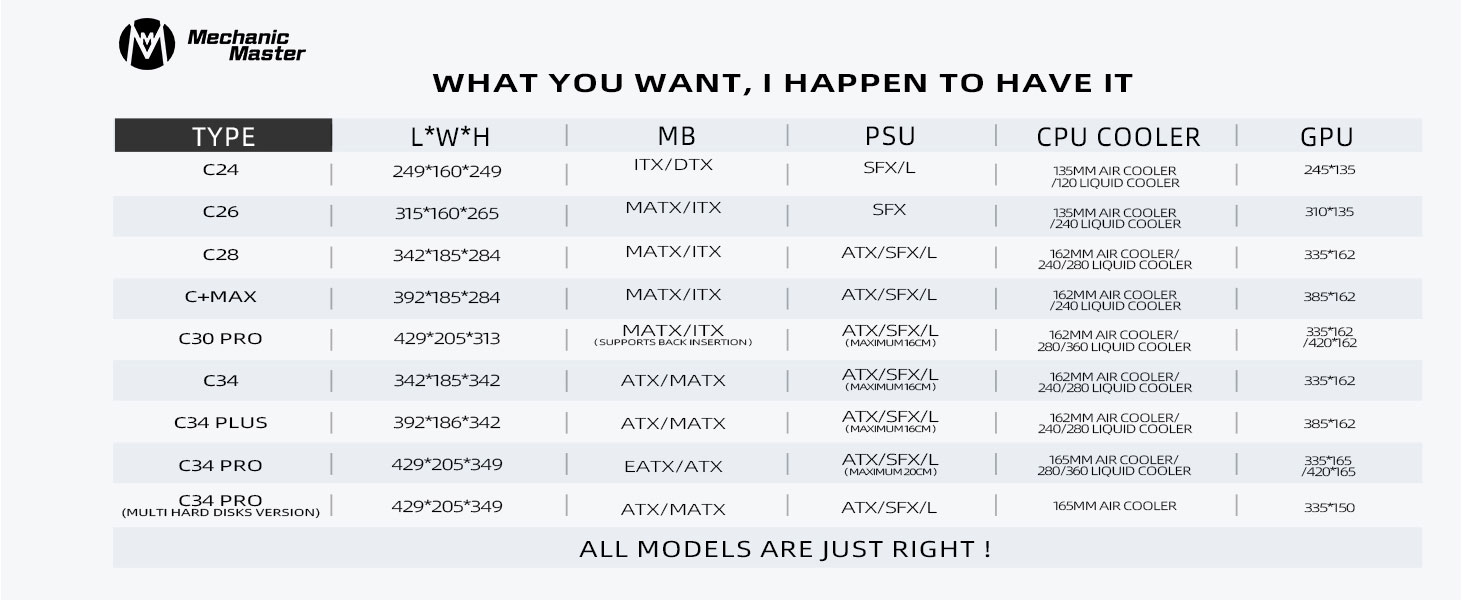

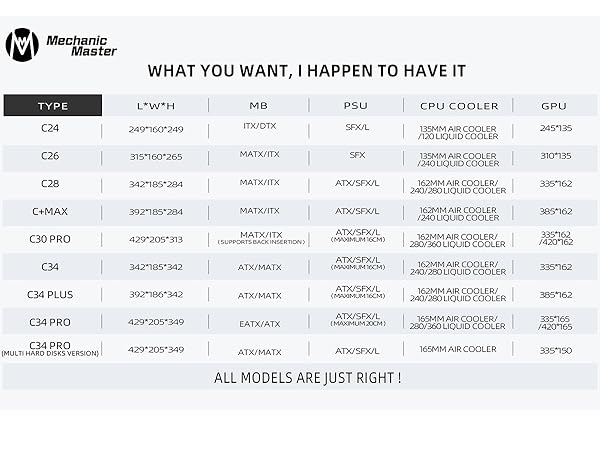

COOL CUBE SERIES
C24 Mini ITX PortableCase |
C25Plus Compact ITX |
C26 Compact Matx |
C28 240 AIO+SFX PSU |
|
|---|---|---|---|---|
|
Price
|
— | — | — | — |
|

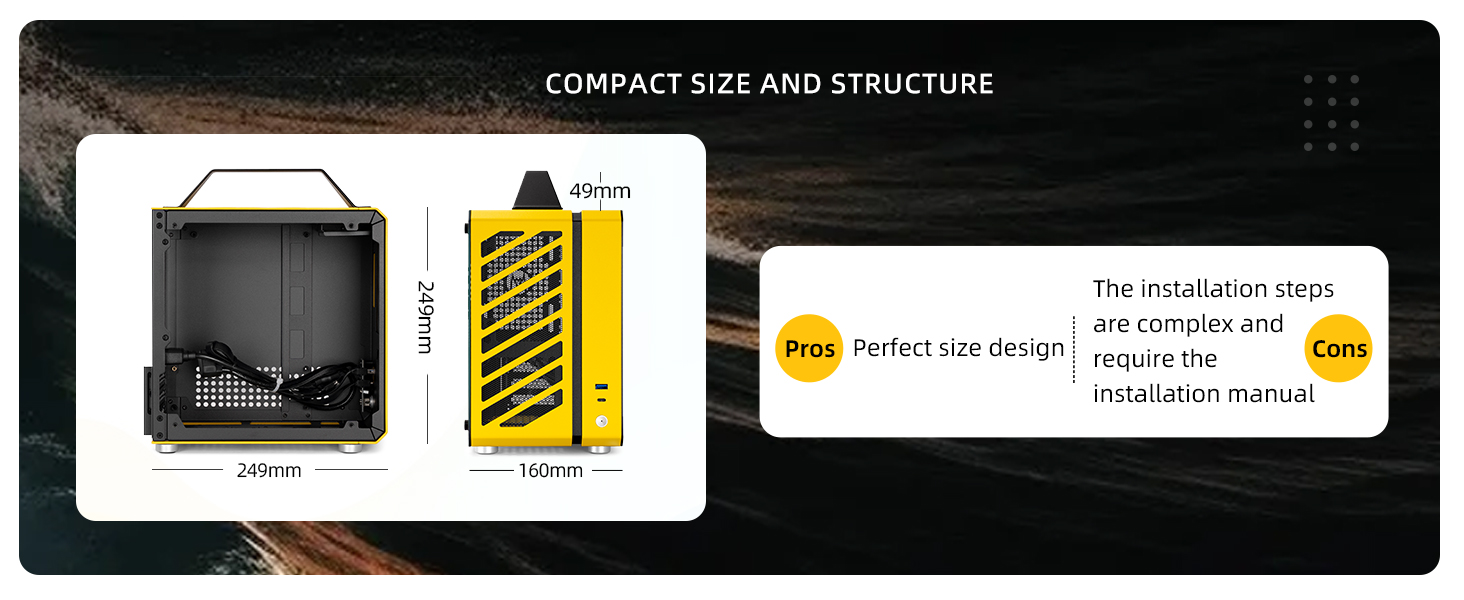

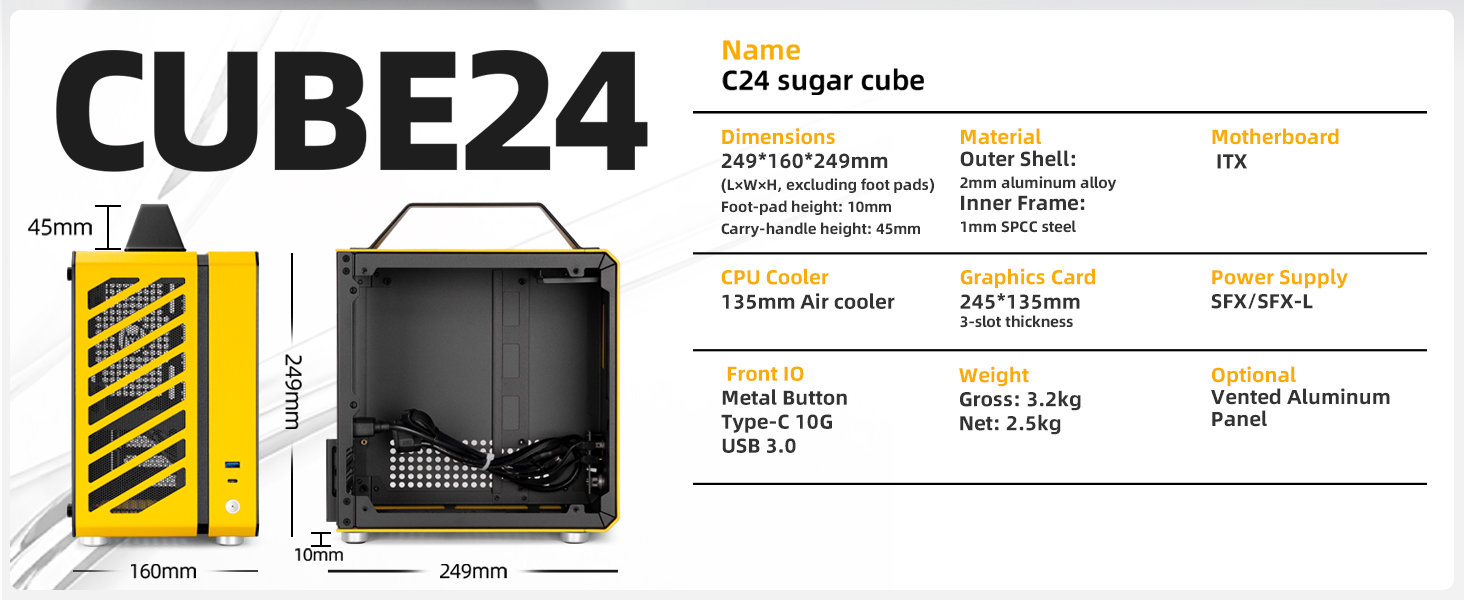

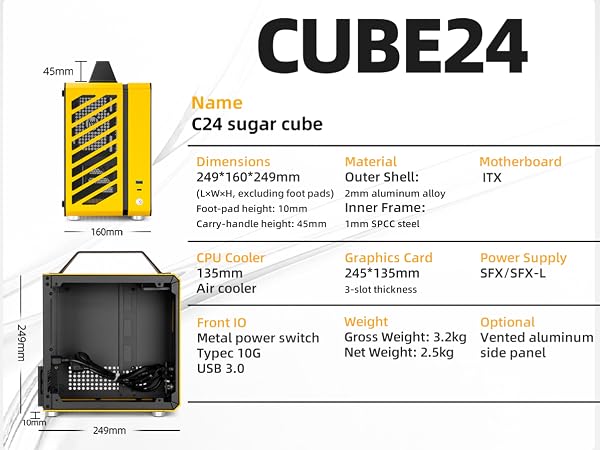

L*W*H
|
249*160*249 | 274*185*259 | 315*158*266 | 342*185*284 |
|
Motherboard type
|
ITX Within 172 * 172mm | ITX Within 172 * 172mm | MATX Within 245 * 245mm | MATX Within 245 * 245mm |
|

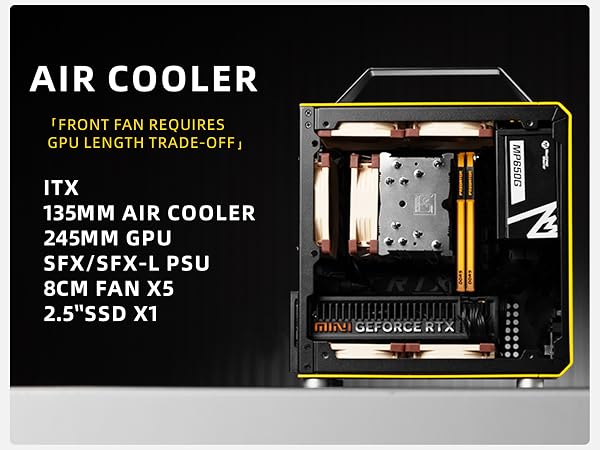

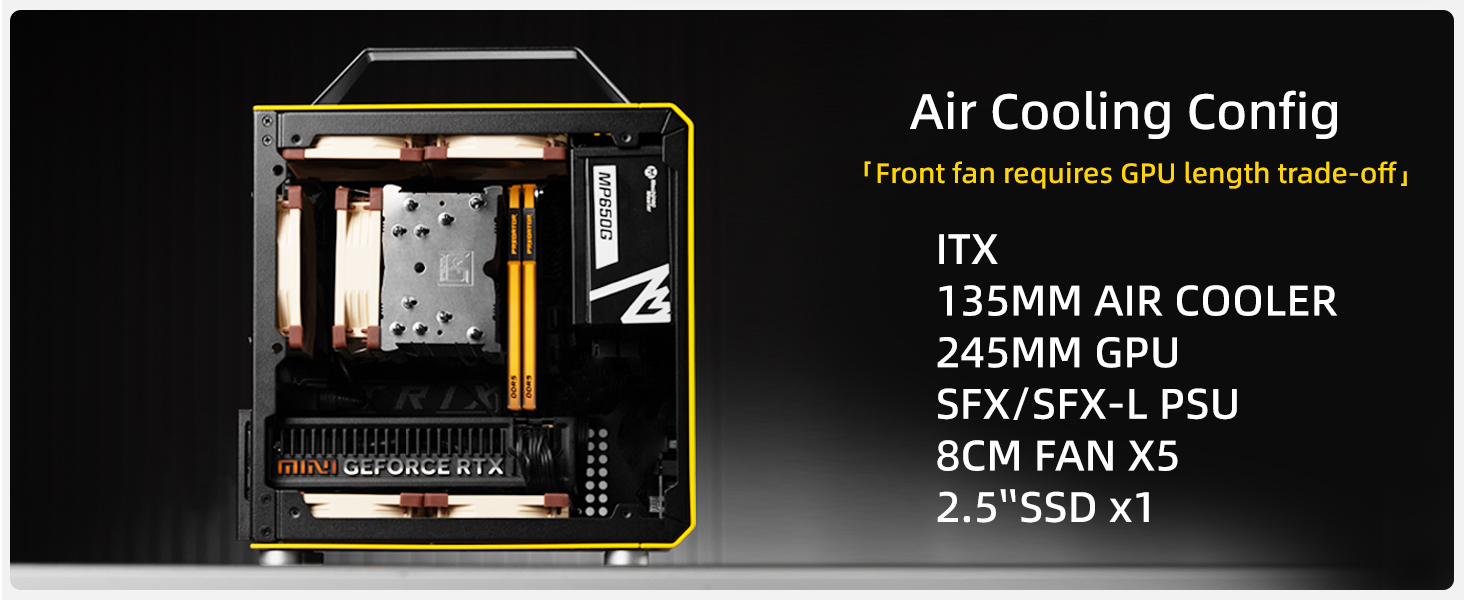

Air cooler
|
Height limit 135mm | Height limit 162mm | Height limit 135mm | Height limit 162mm |
|
Aio
|
Not Supported | 120 Aio | Not Supported | 120/240 Aio |
|
GPU
|
within L 245mm, w135mm | within L 269mm, w162mm | within L 310mm, w135mm | within L 335mm, w162mm |
|
PSU
|
SFX/SFX-L | SFX/L,ATX14cm | SFX | ATX14cm(Only air cooler)/SFX/L |
-

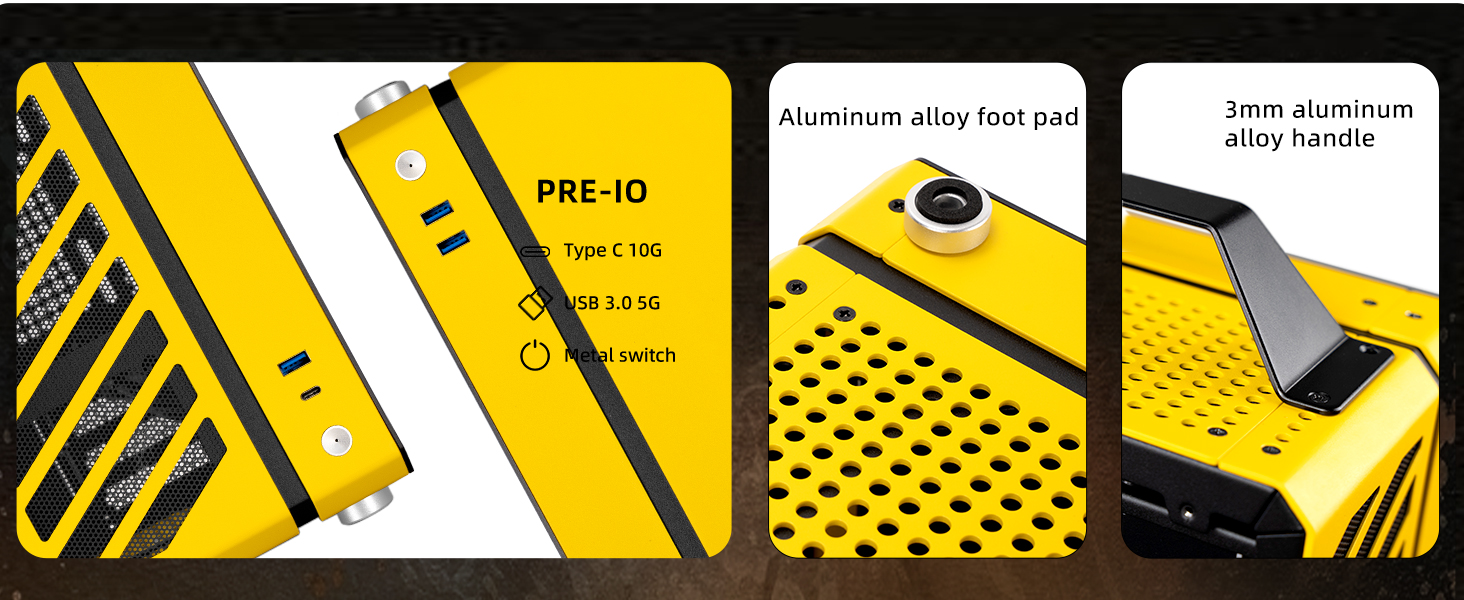

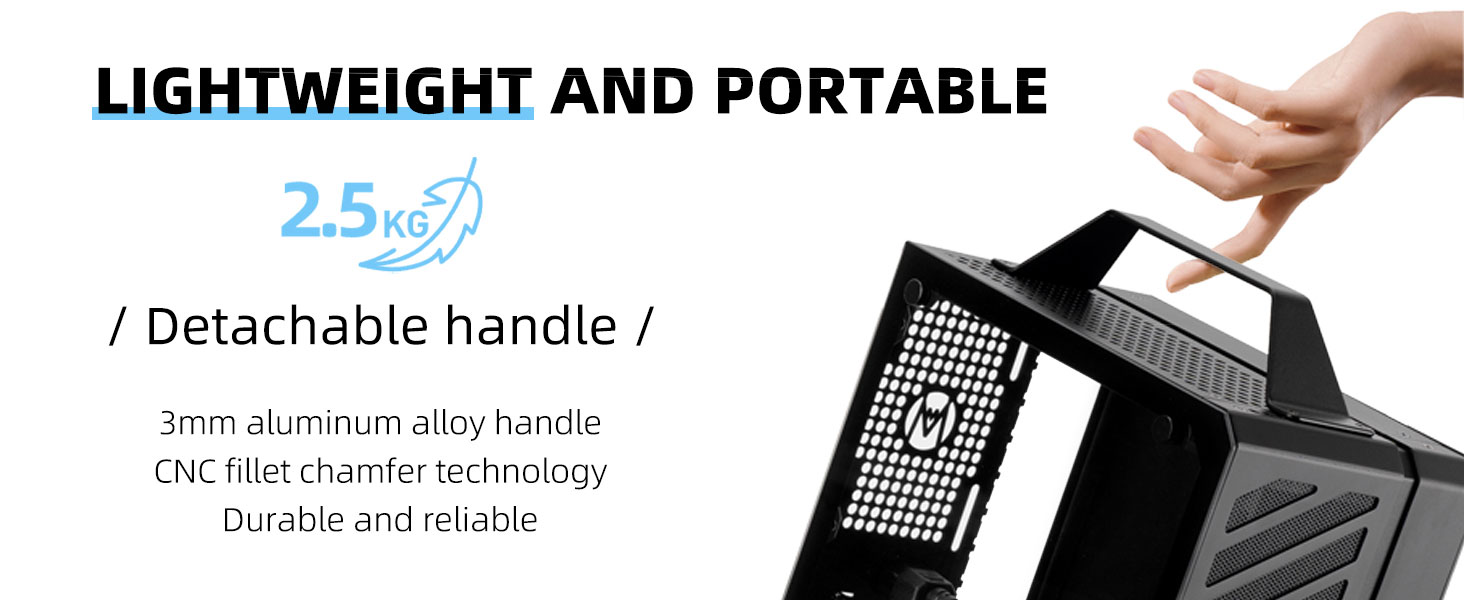

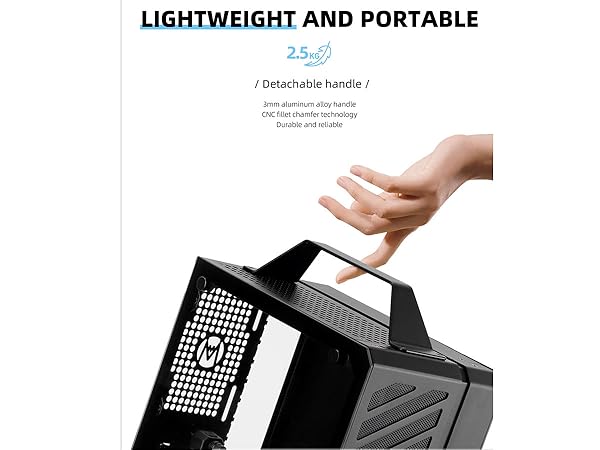

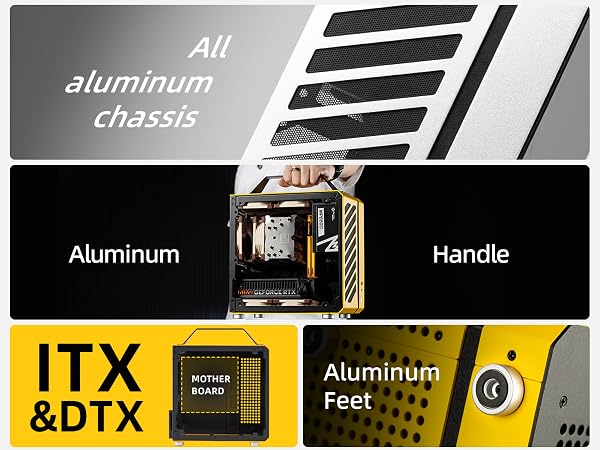

What materials are the handles and foot pads made of
All are made of aluminum alloy,handle can be safely used when case total weight is less than 30KG,Generally speaking, assembled C24 case weight about 6-7KG.
-

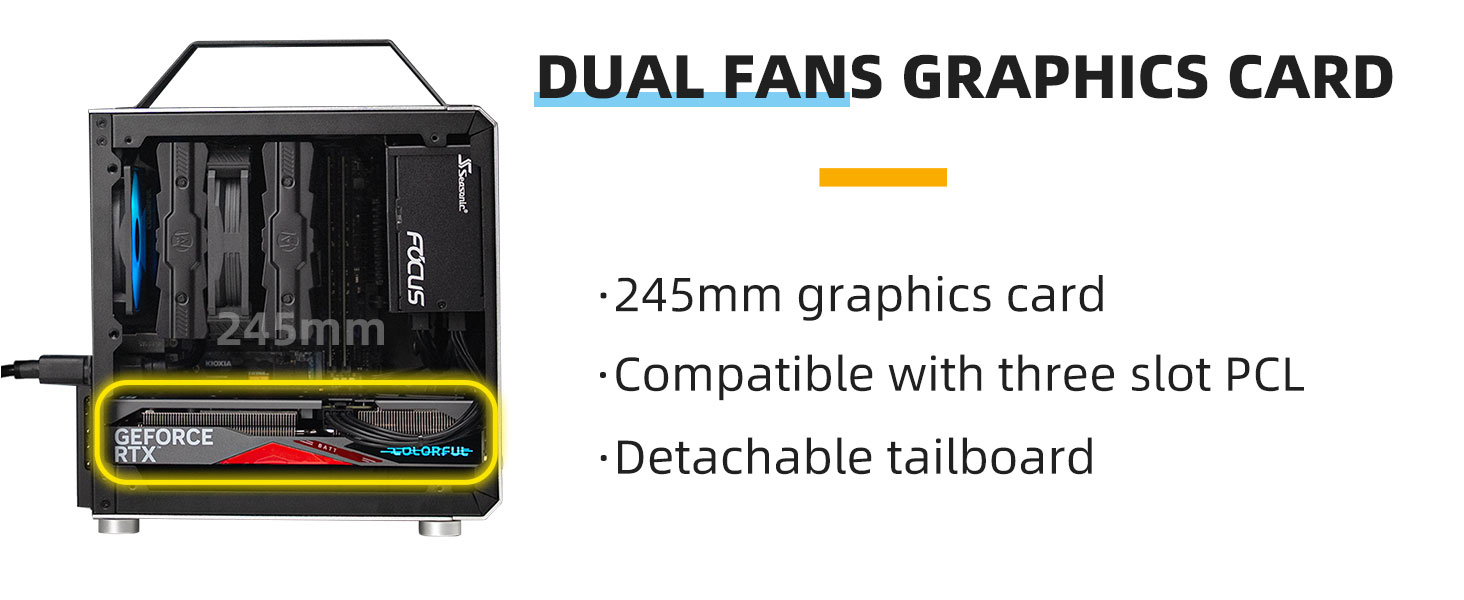

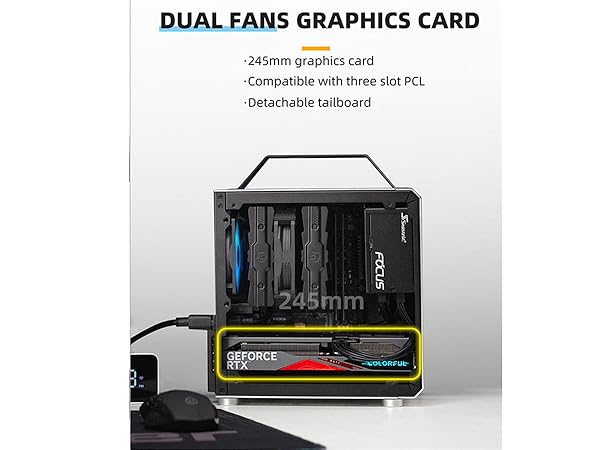

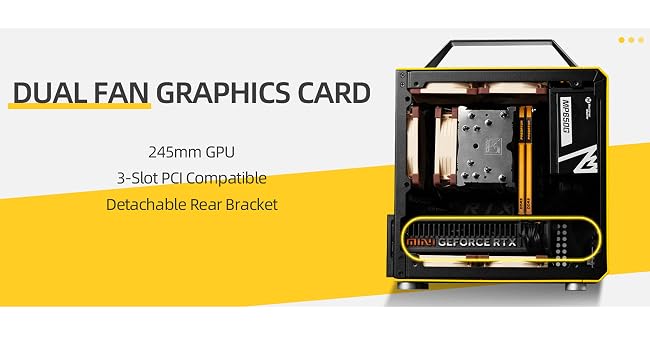

How many slots does C24 support at most

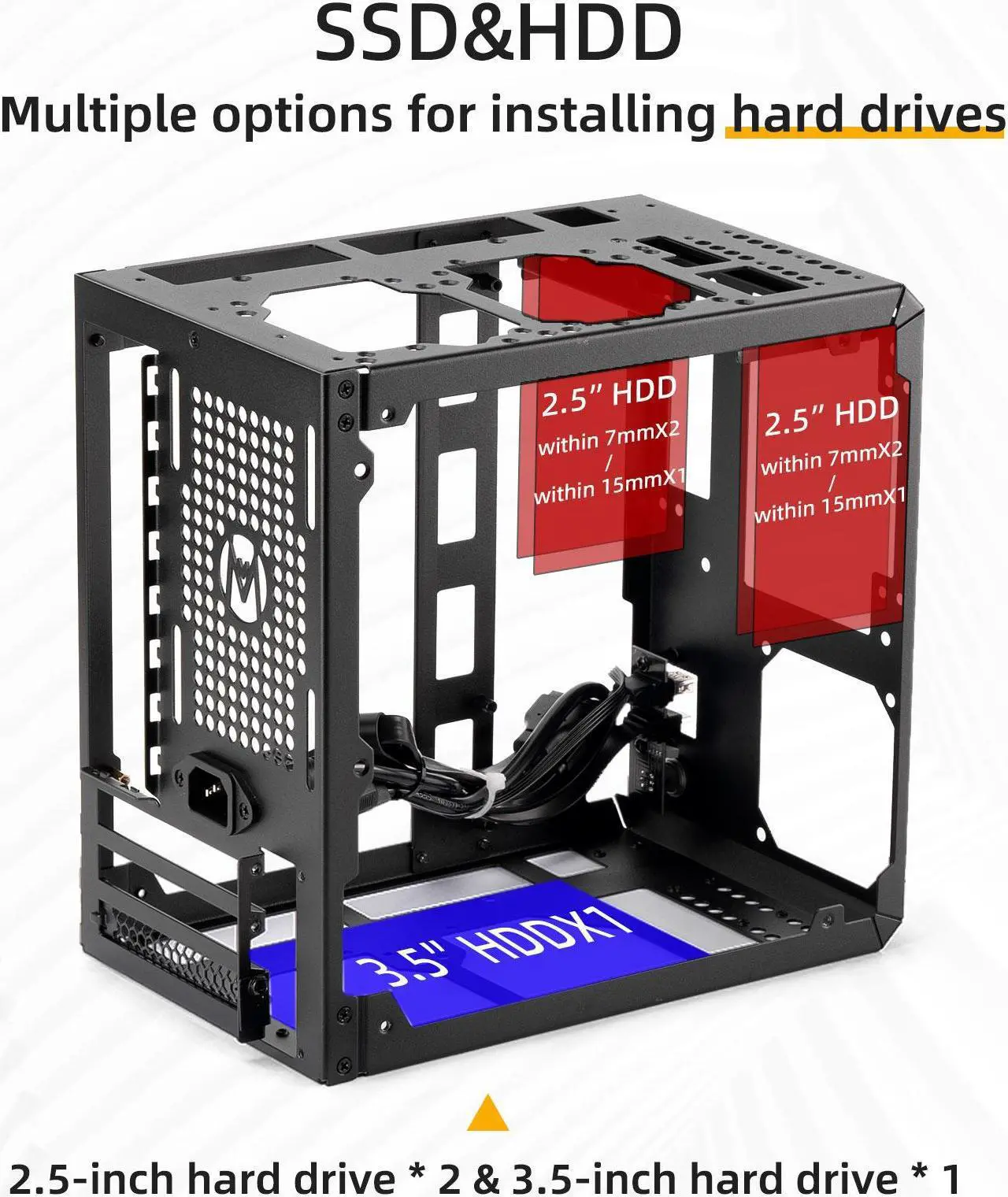

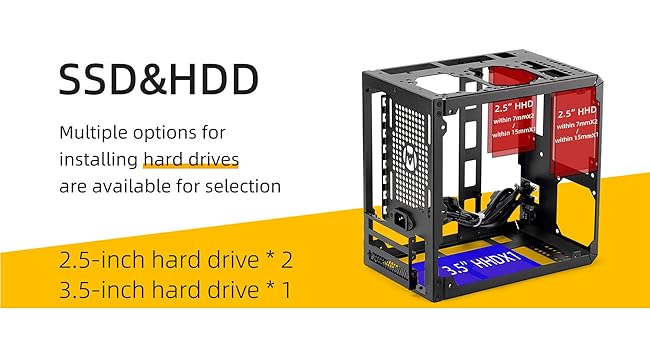

3 slots, GPU thickness exceeding 40mm, bottom cannot install 3.5HDD or 12025 fan
-

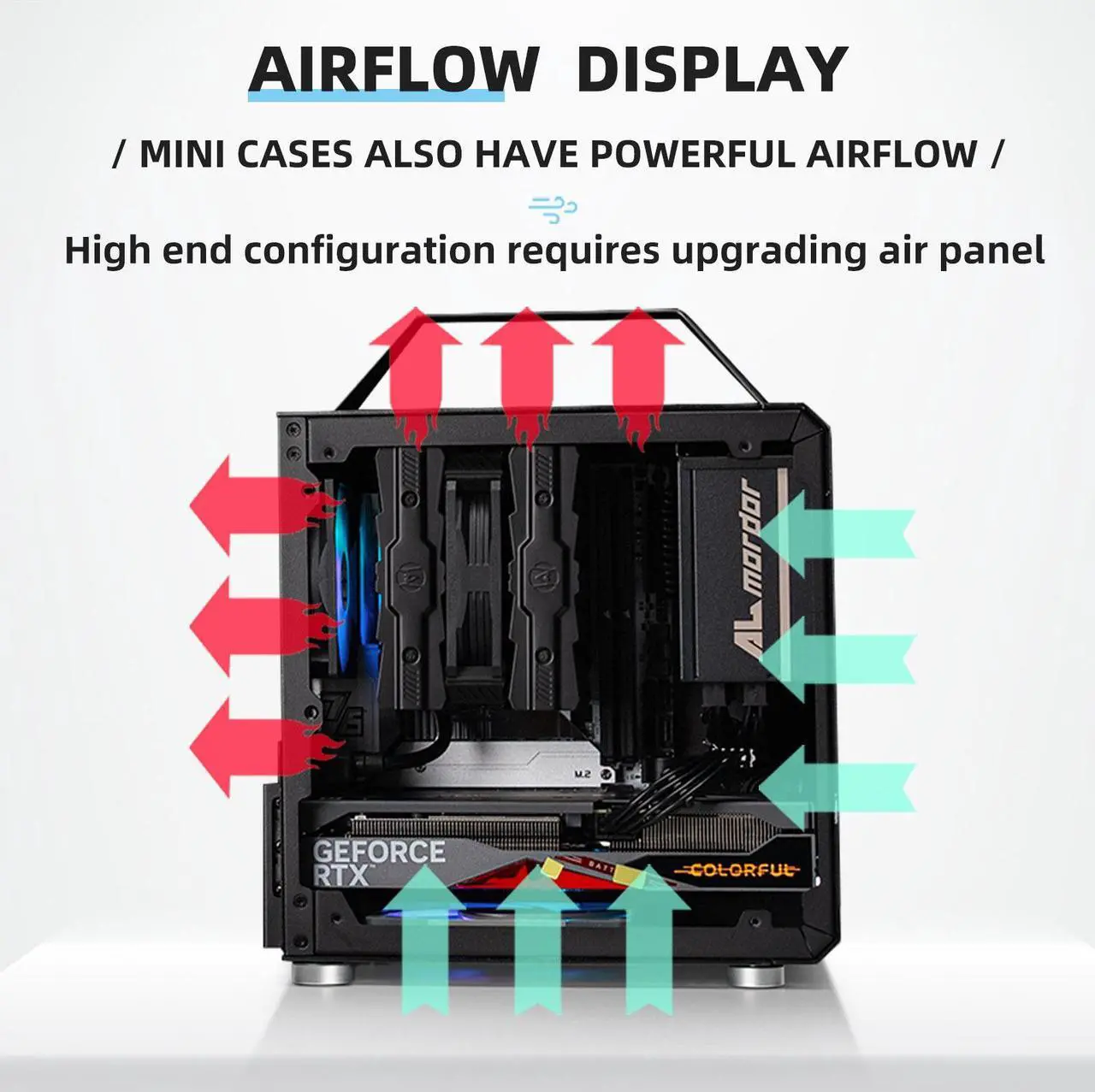

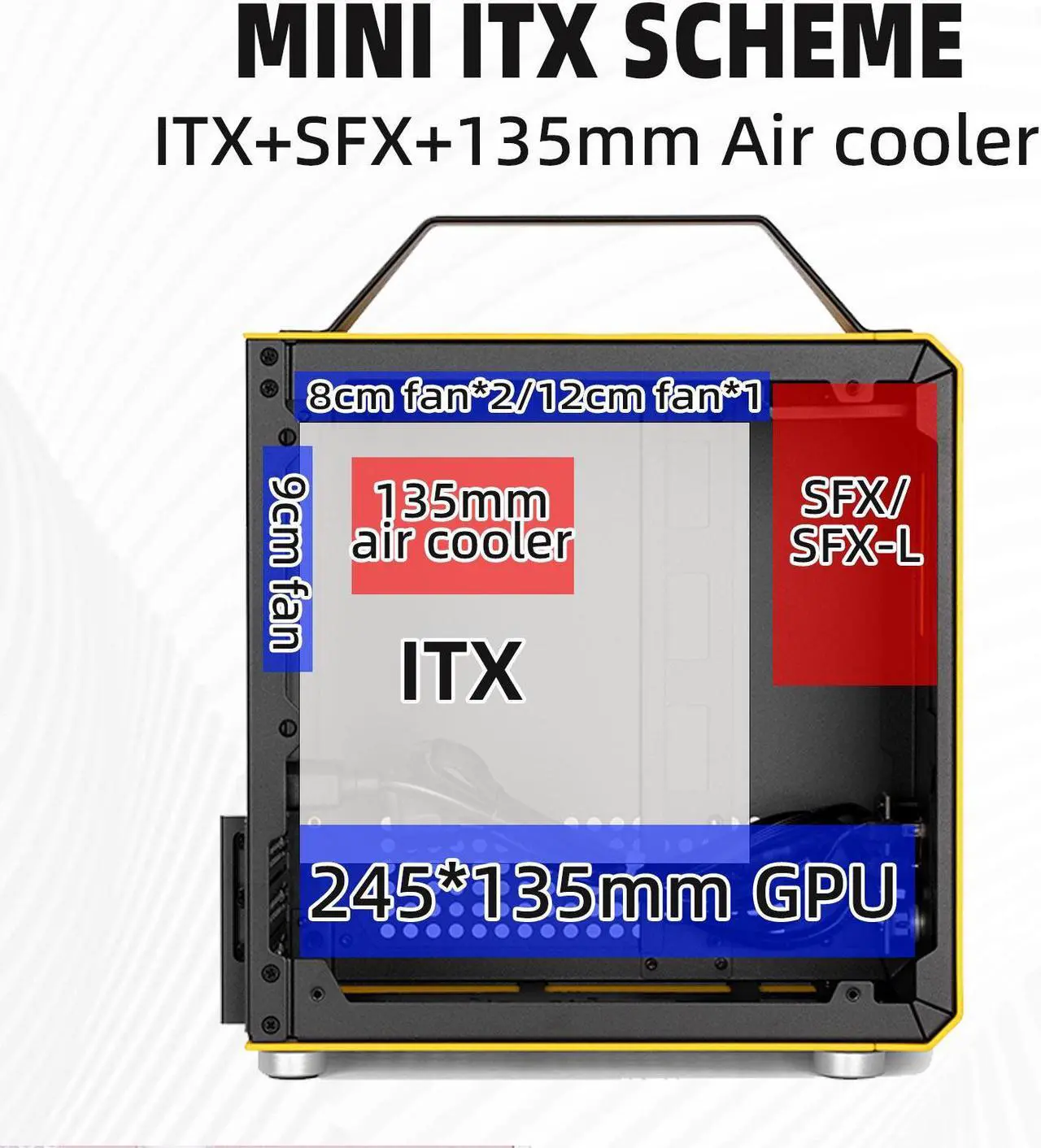

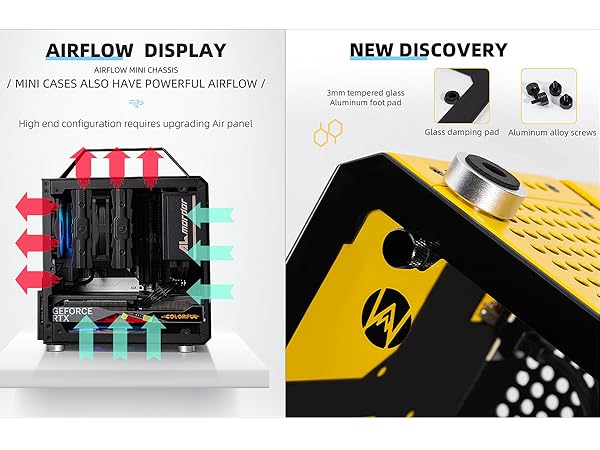

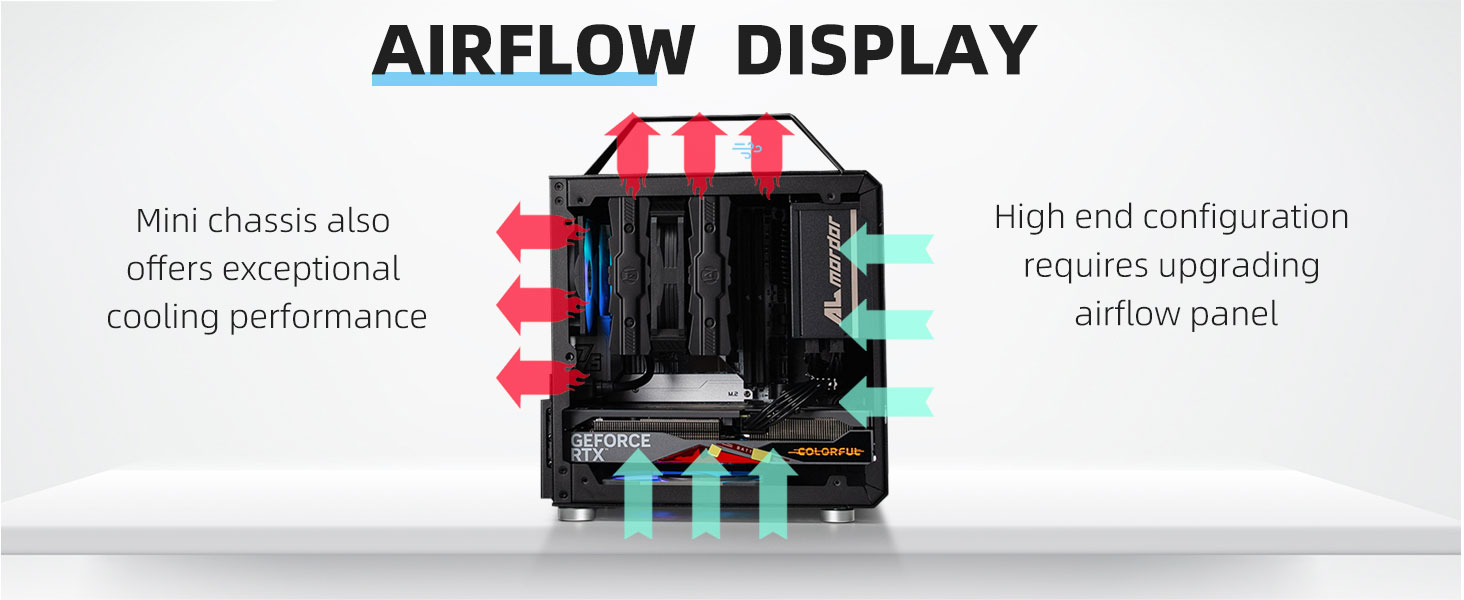

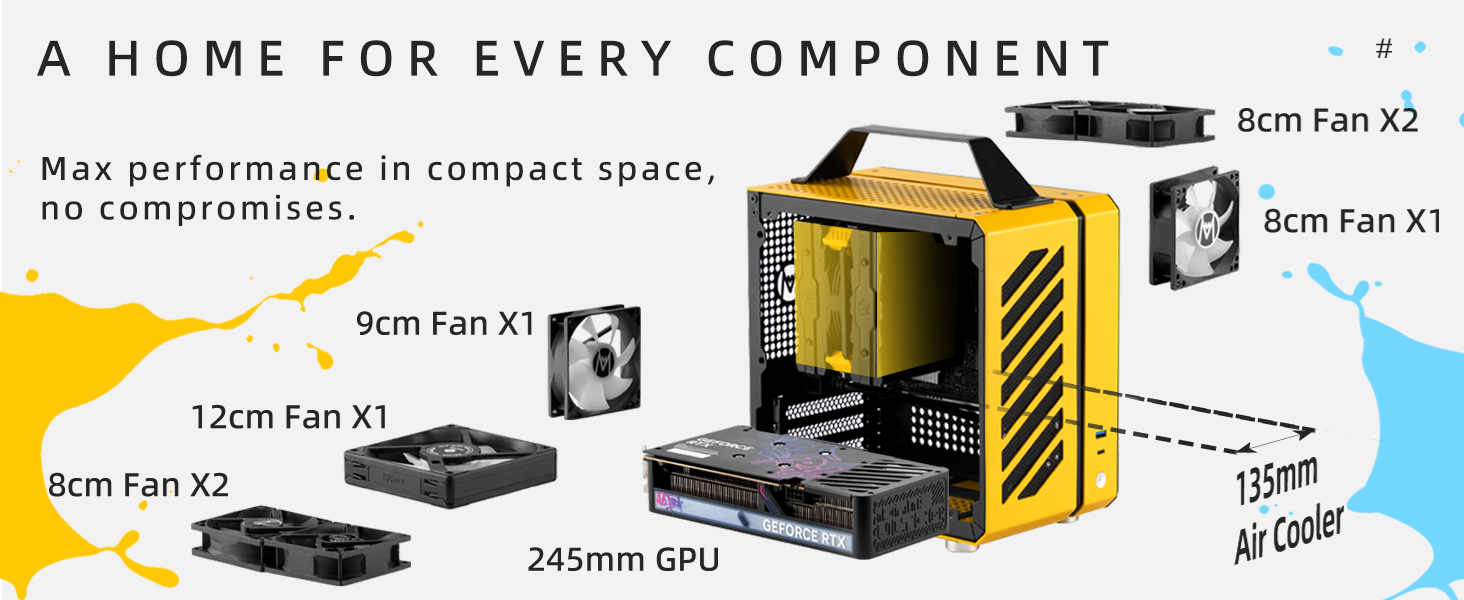

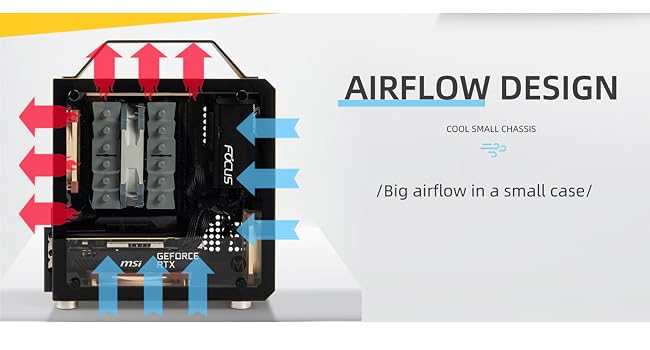

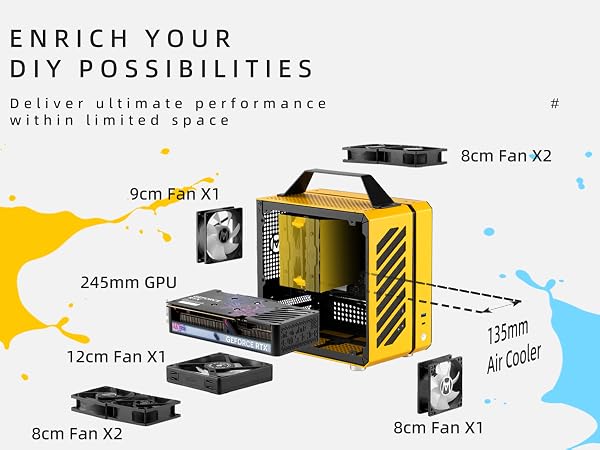

How many fans can be installed in C24
Top 80mm * 2/12015 * 1, tail 90mm * 1, bottom 80mm * 2/120mm * 1
-

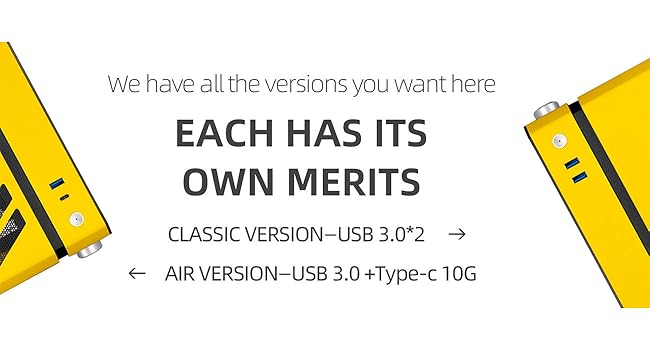

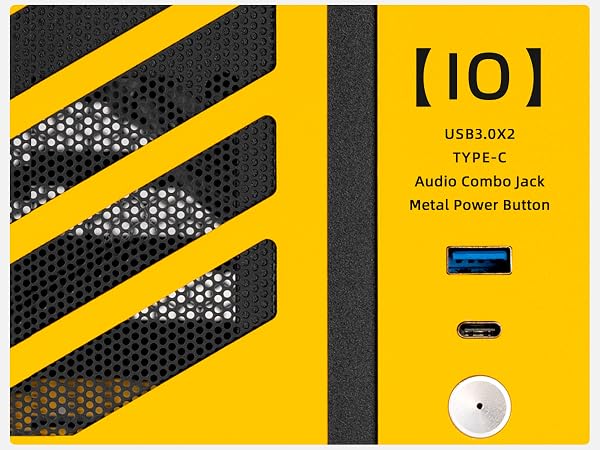

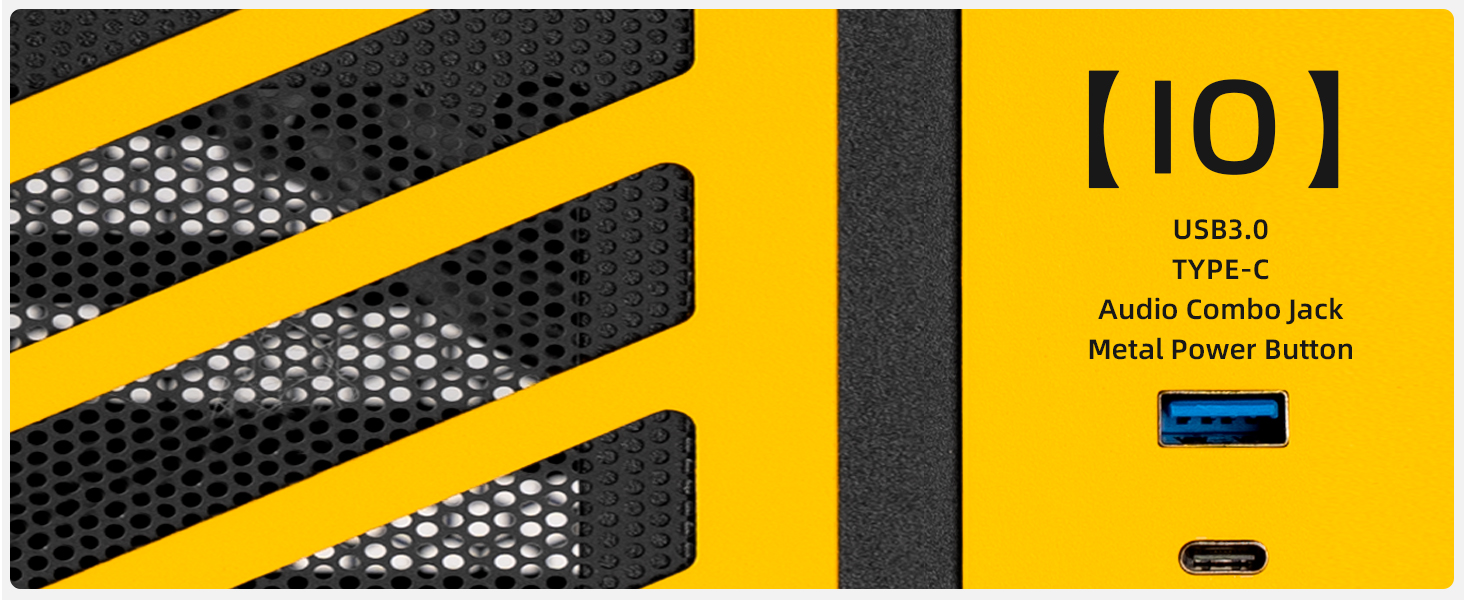

What is the difference between C24 Air Edition and Classic Edition?

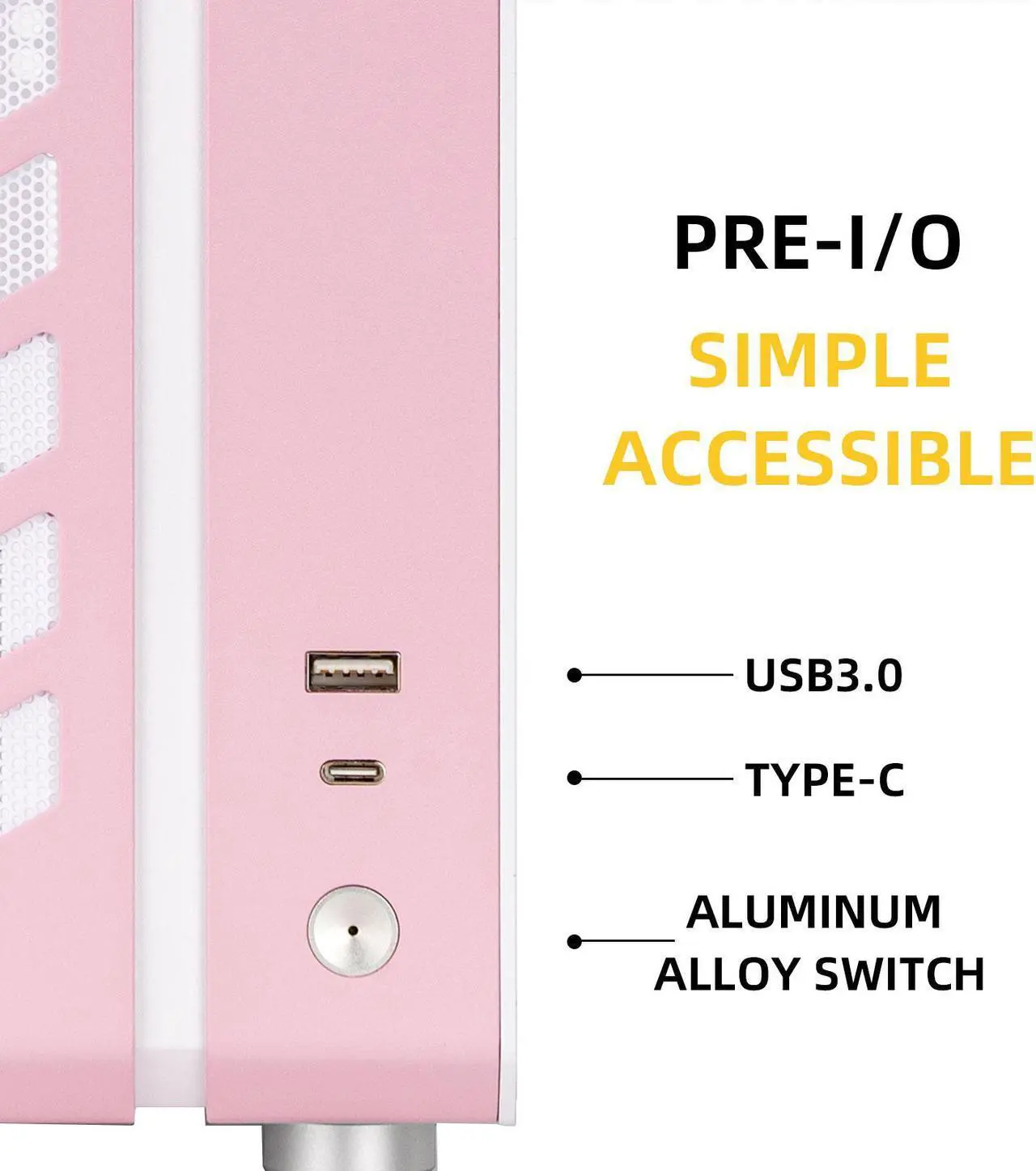

Air version front IO, USB 3.0+Type C (10G), Classic version front IO, USB 3.0 * 2, the difference in whether the front panel is ventilated
-

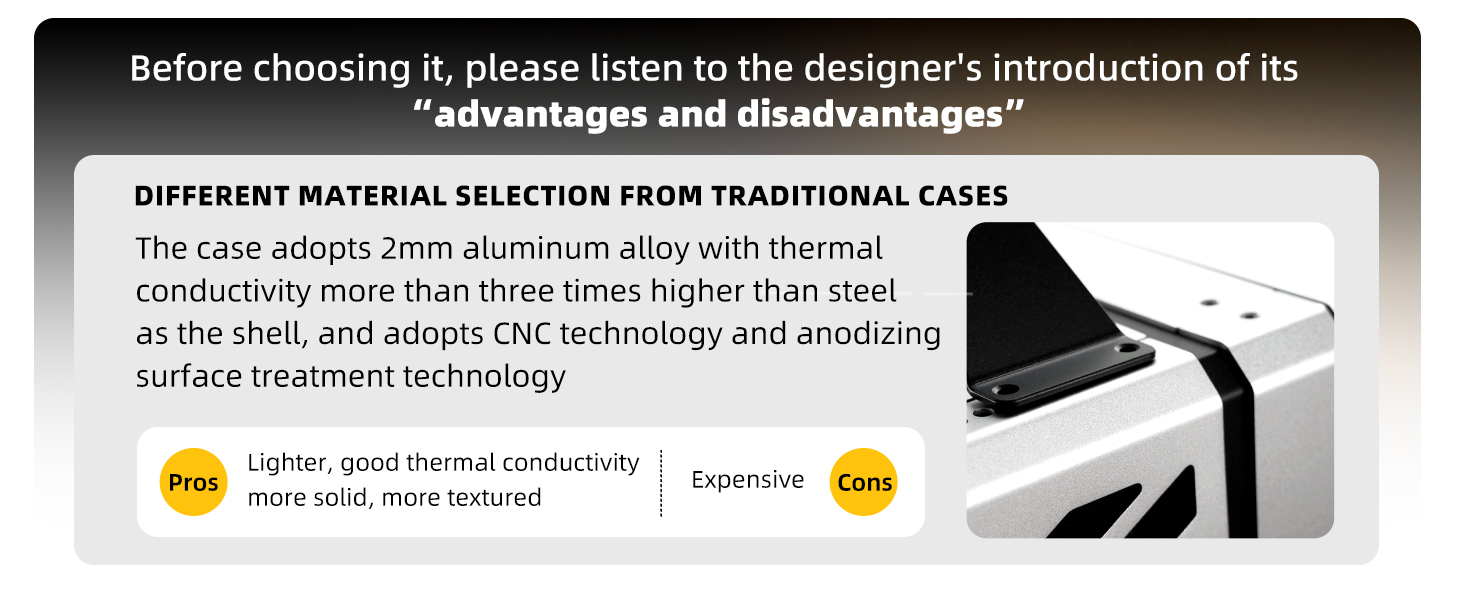

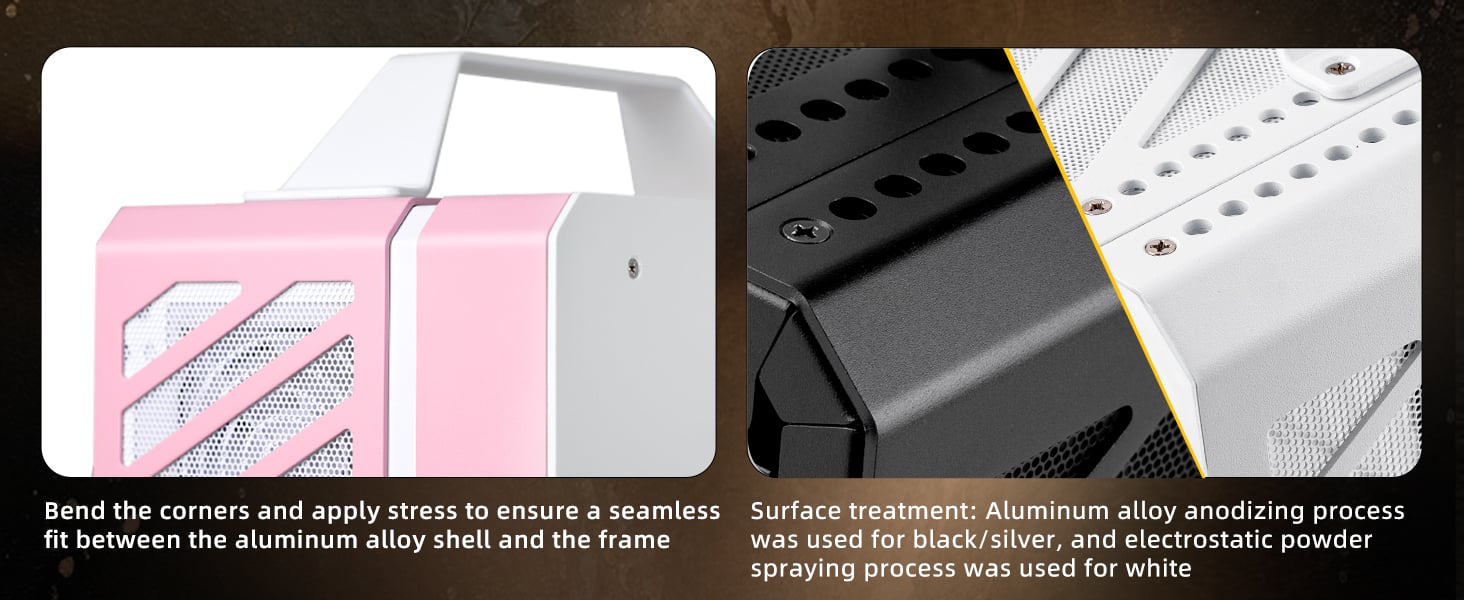

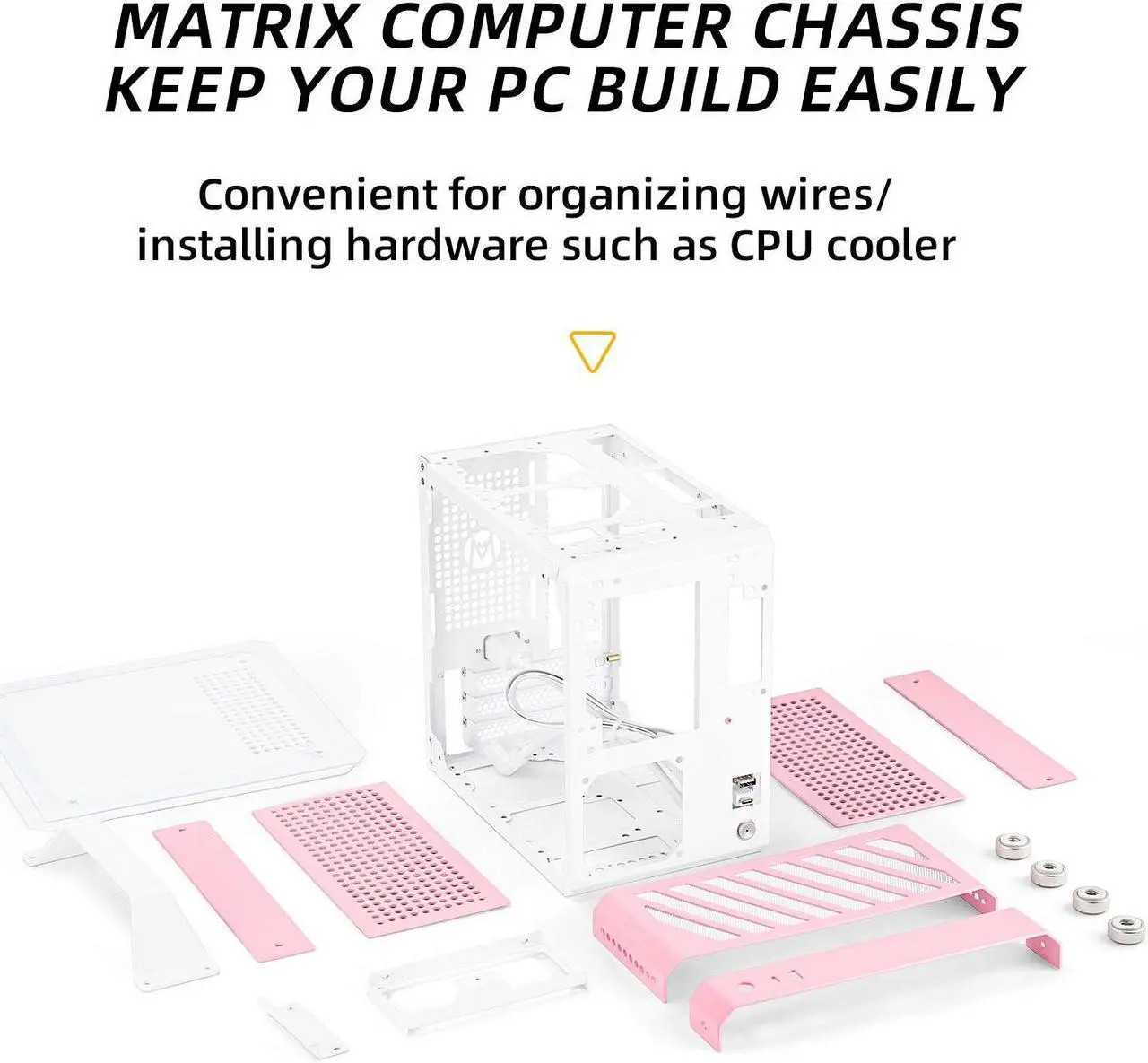

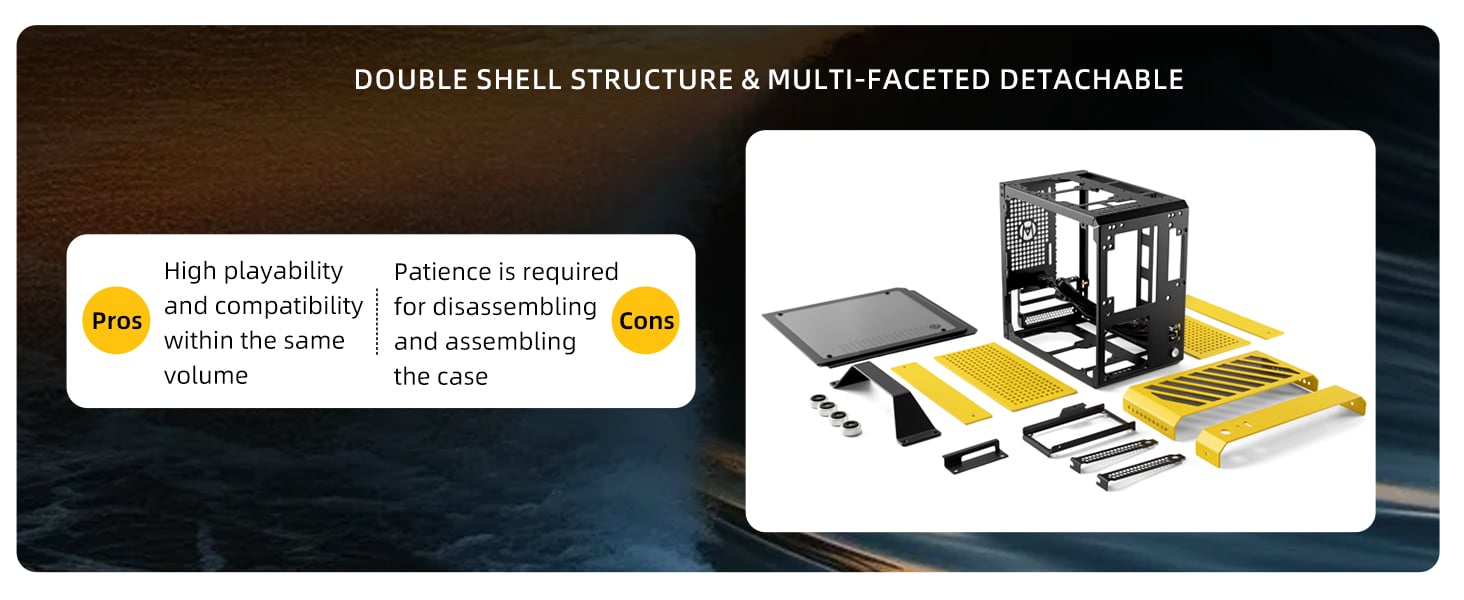

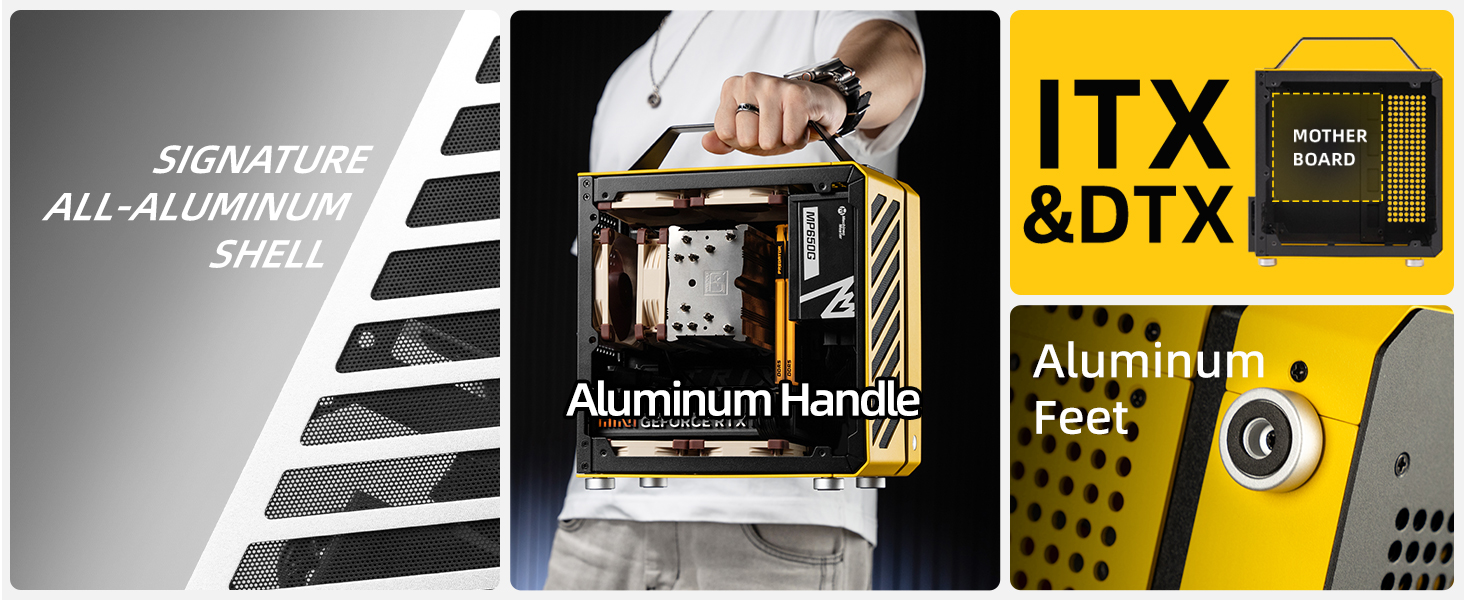

What materials are used in each location of the case?
The inner frame - steel, shell, handle, and foot pad are all made of aluminum alloy, so the dust filter is not magnetic and is fixed on the inside of the shell with simple adhesive tape
Player First, Innovation Ultimate

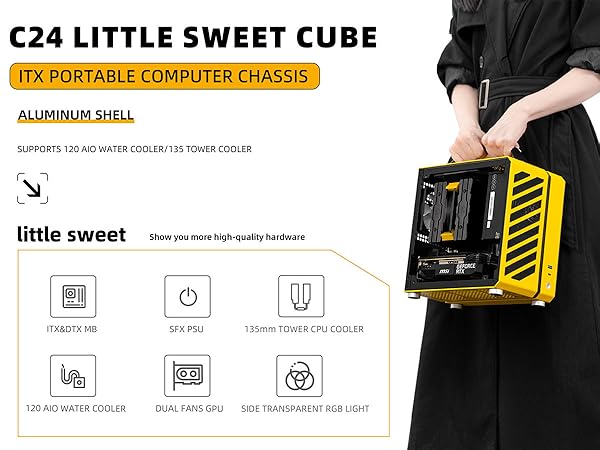

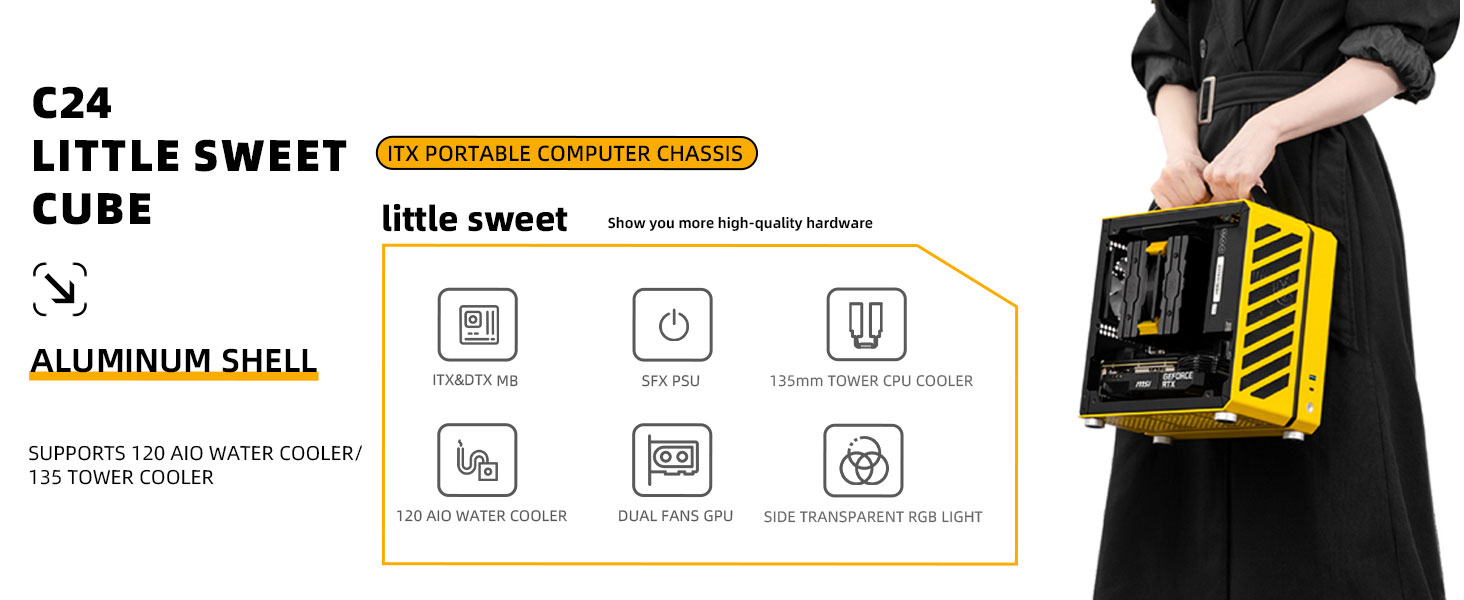

C24 is the first product of the Mechanical Master C series, with a volume of less than 10L. Designed for ITX, all positions are just right,
COOL CUBE SERIES
|
C24 Mini ITX PortableCase |
C25Plus Compact ITX |
C26 Compact Matx |
C28 240 AIO+SFX PSU |
|---|---|---|---|
| Price | |||
| — | — | — | — |
| L*W*H | |||
| 249*160*249 | 274*185*259 | 315*158*266 | 342*185*284 |
| Motherboard type | |||
| ITX Within 172 * 172mm | ITX Within 172 * 172mm | MATX Within 245 * 245mm | MATX Within 245 * 245mm |
| Air cooler | |||
| Height limit 135mm | Height limit 162mm | Height limit 135mm | Height limit 162mm |
| Aio | |||
| Not Supported | 120 Aio | Not Supported | 120/240 Aio |
| GPU | |||
| within L 245mm, w135mm | within L 269mm, w162mm | within L 310mm, w135mm | within L 335mm, w162mm |
| PSU | |||
| SFX/SFX-L | SFX/L,ATX14cm | SFX | ATX14cm(Only air cooler)/SFX/L |

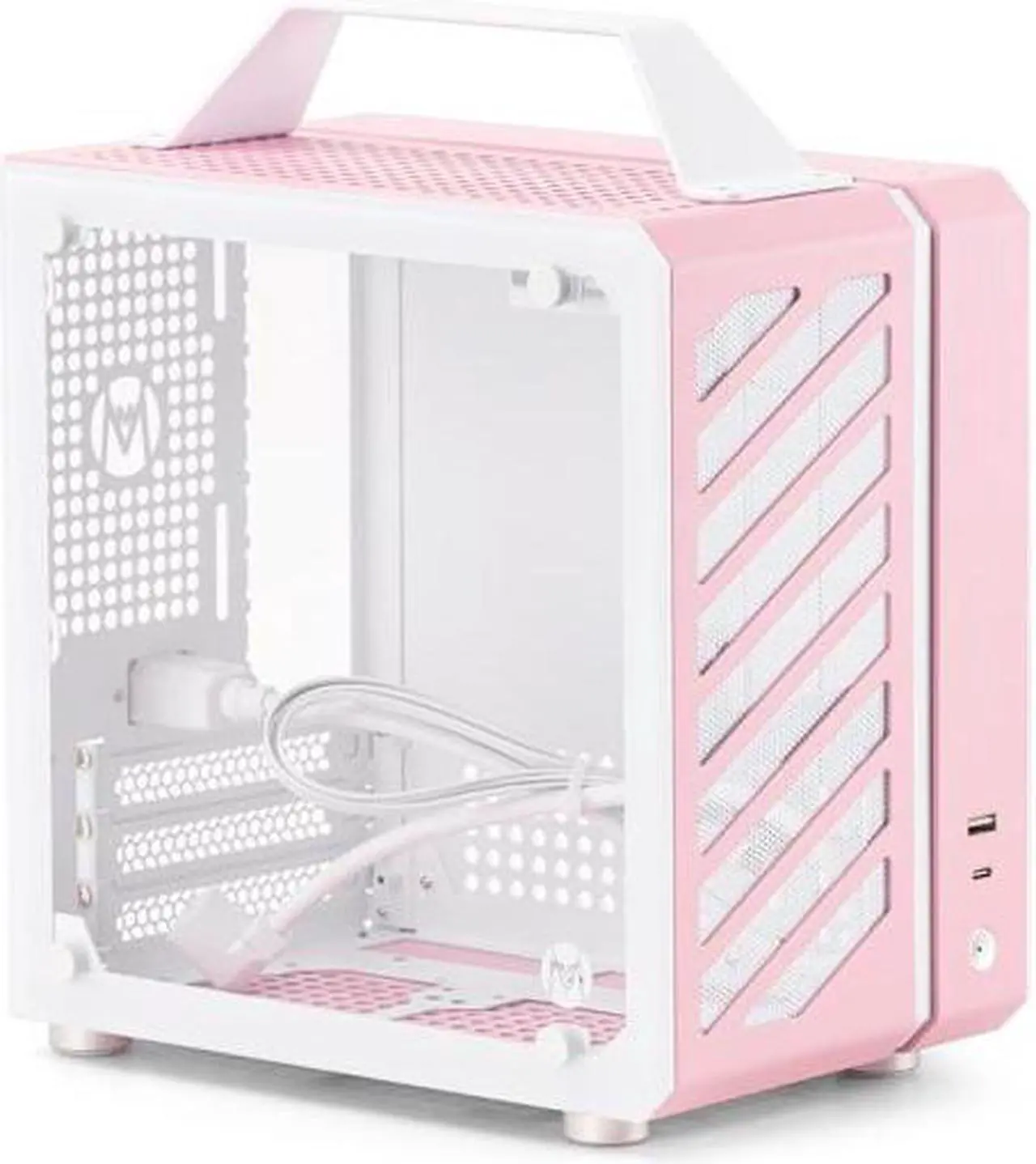

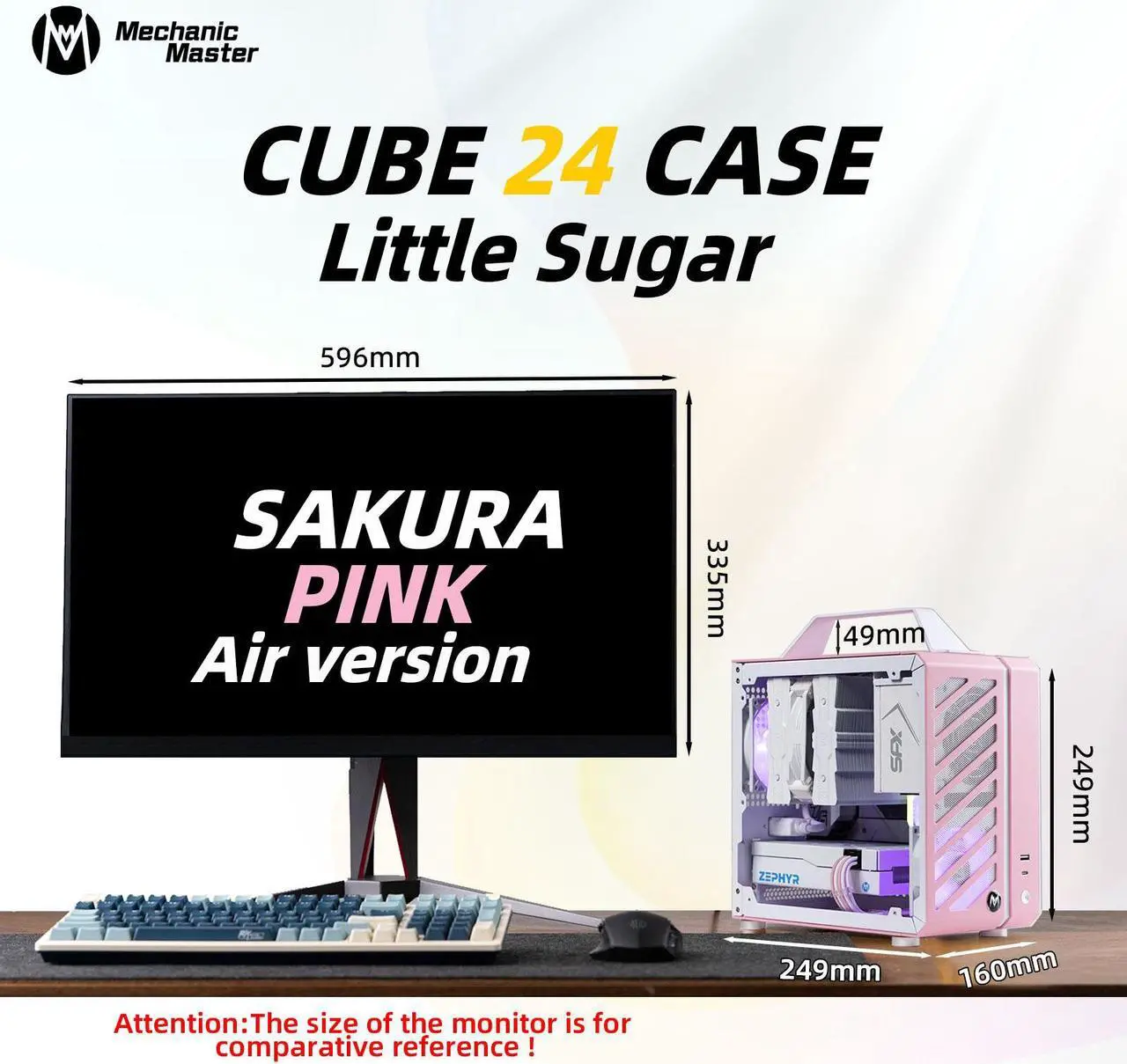

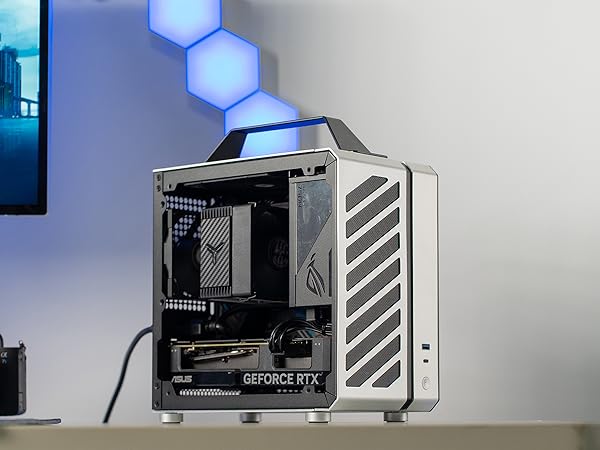

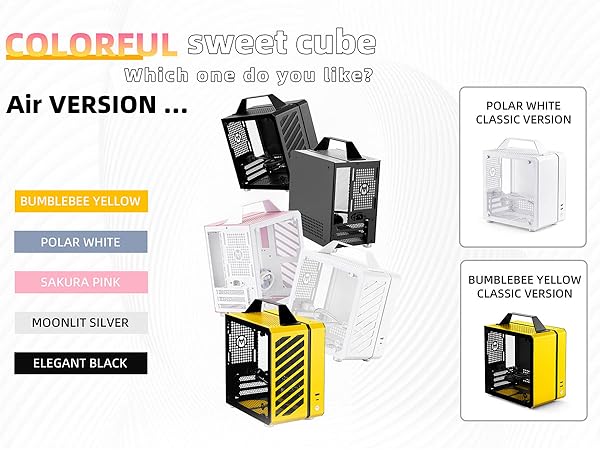

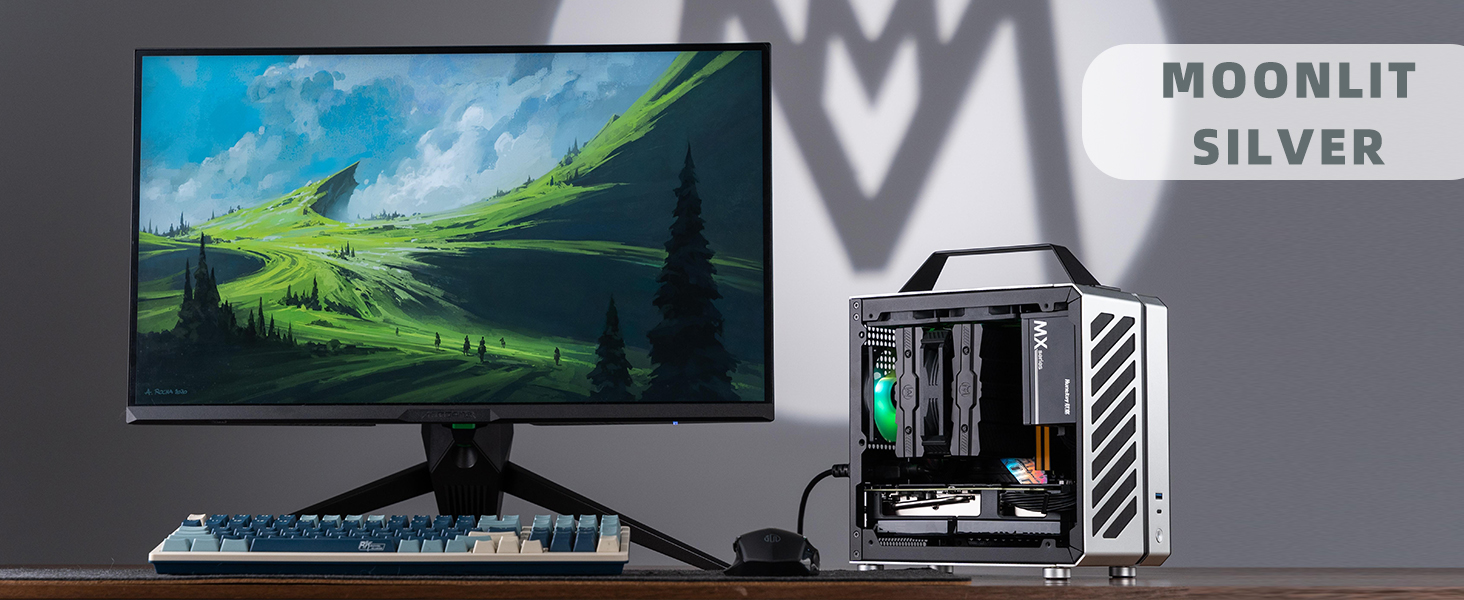

C24 Silver Air

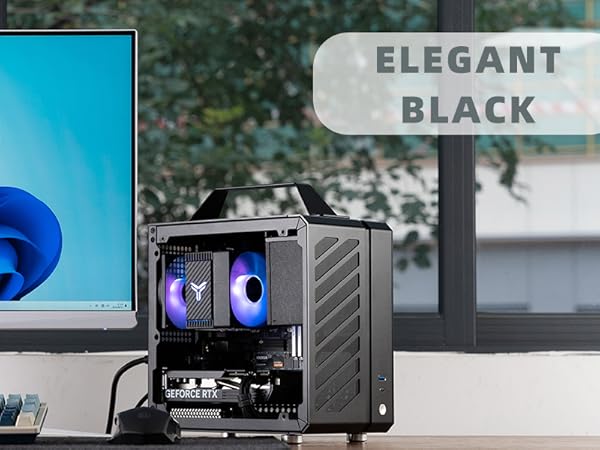

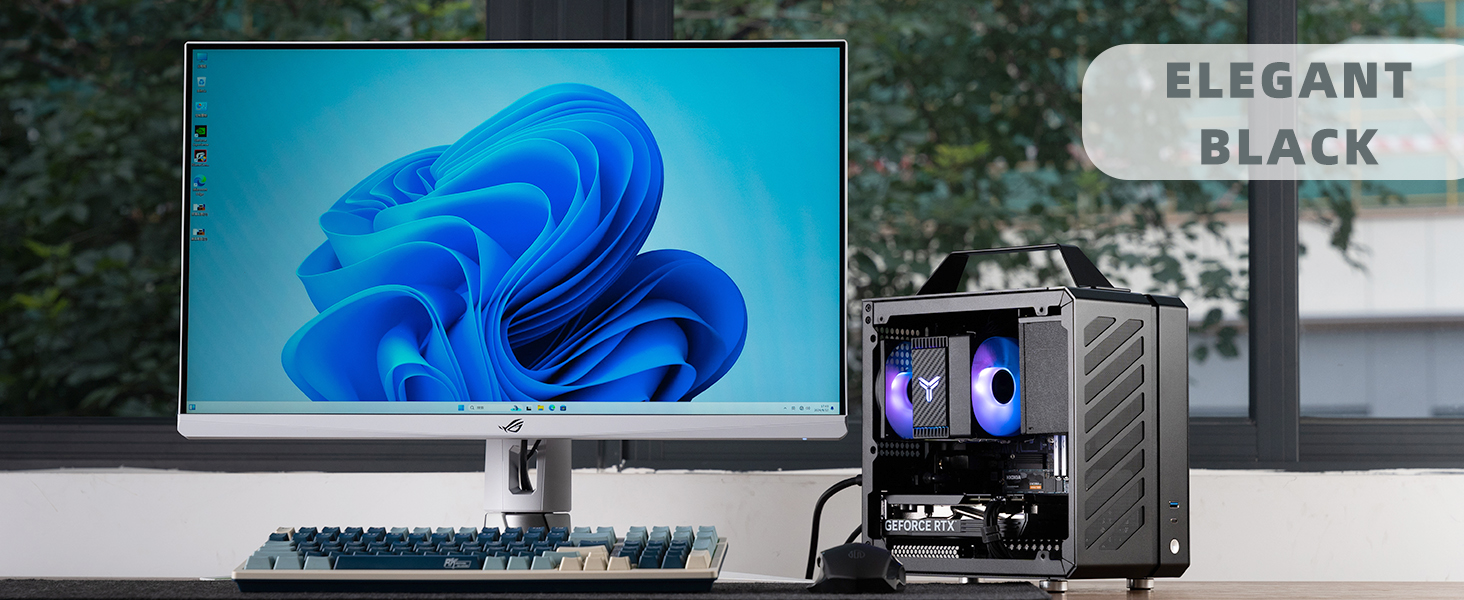

C24 Black Air

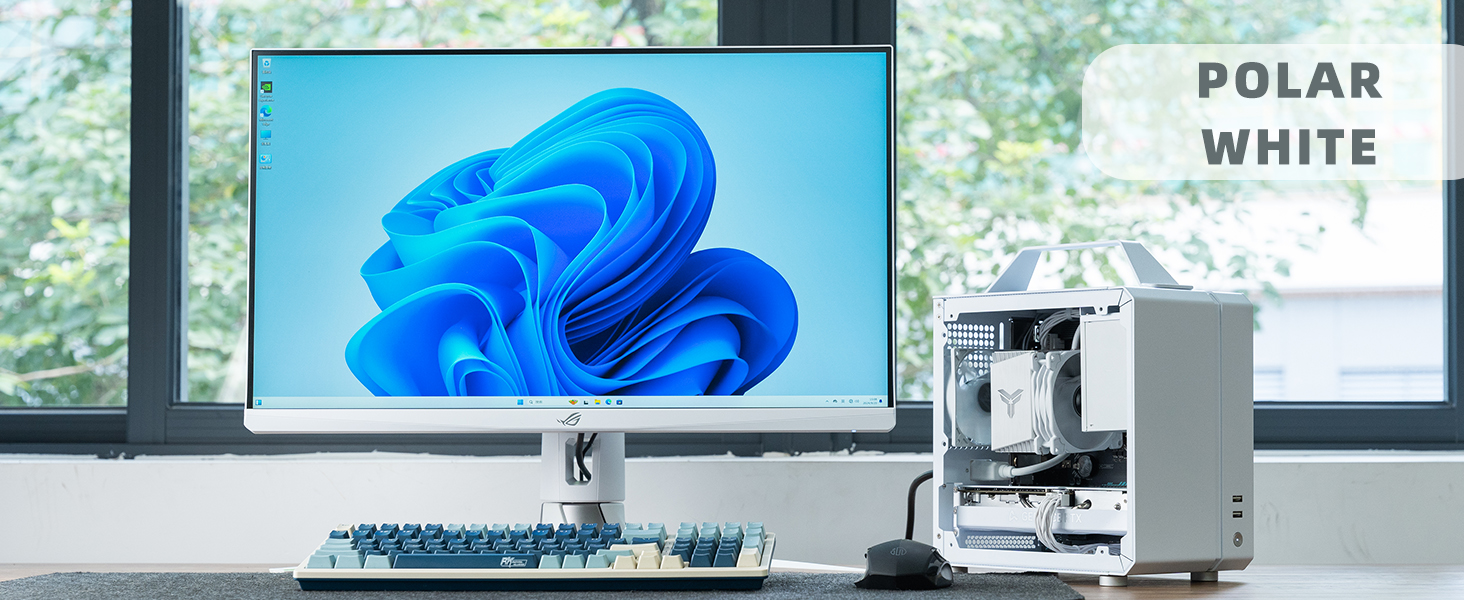

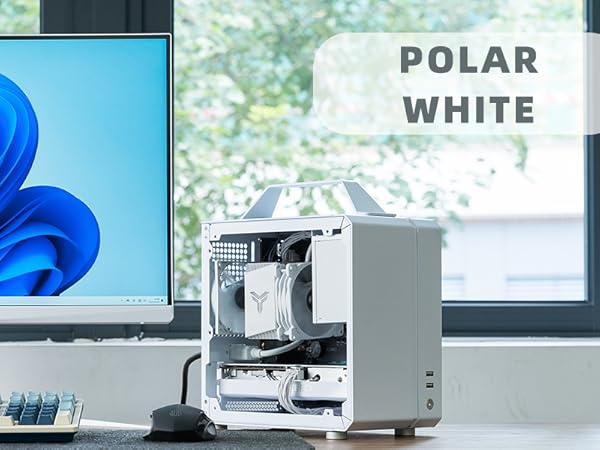

C24 White Classic

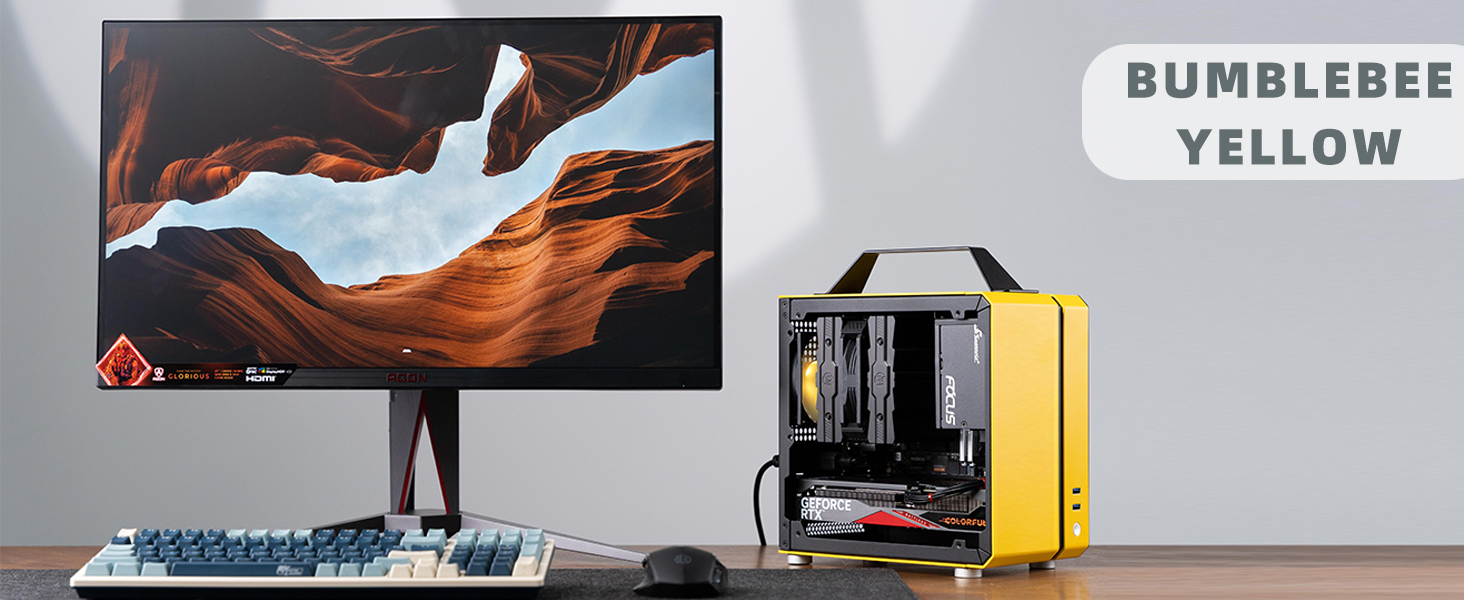

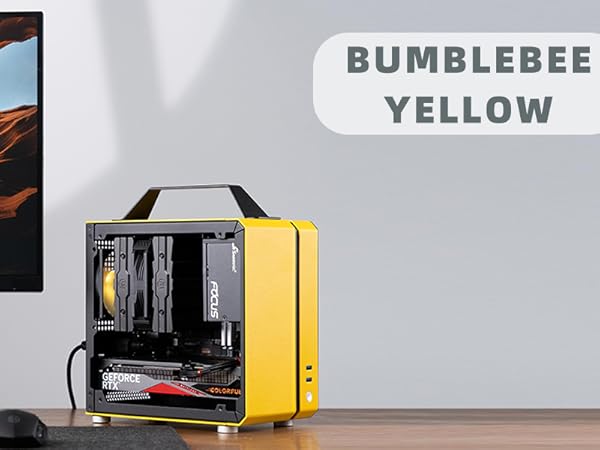

C24 Yellow Classic
-
What materials are the handles and foot pads made of
All are made of aluminum alloy,handle can be safely used when case total weight is less than 30KG,Generally speaking, assembled C24 case weight about 6-7KG.
-
How many slots does C24 support at most
3 slots, GPU thickness exceeding 40mm, bottom cannot install 3.5HDD or 12025 fan
-
How many fans can be installed in C24
Top 80mm * 2/12015 * 1, tail 90mm * 1, bottom 80mm * 2/120mm * 1
-

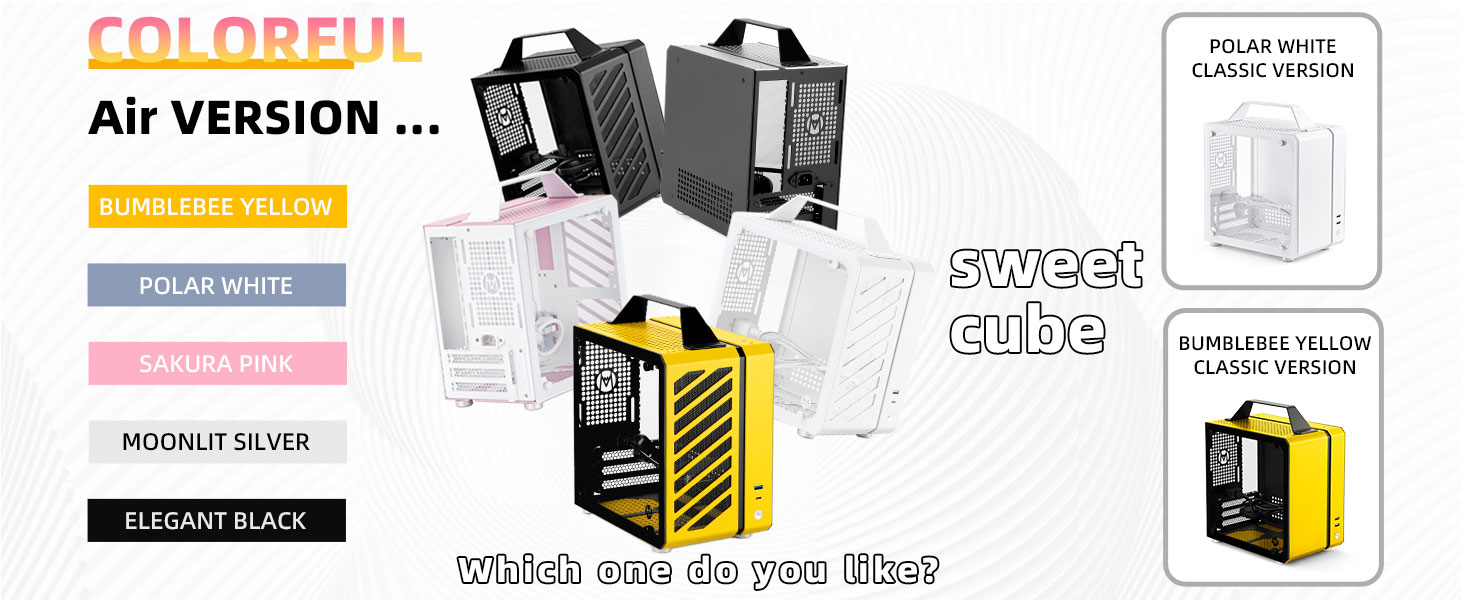

What is the difference between C24 Air Edition and Classic Edition?
Air version front IO, USB 3.0+Type C (10G), Classic version front IO, USB 3.0 * 2, the difference in whether the front panel is ventilated
-
What materials are used in each location of the case?
The inner frame - steel, shell, handle, and foot pad are all made of aluminum alloy, so the dust filter is not magnetic and is fixed on the inside of the shell with simple adhesive tape
Player First, Innovation Ultimate
C24 is the first product of the Mechanical Master C series, with a volume of less than 10L. Designed for ITX, all positions are just right,
-
