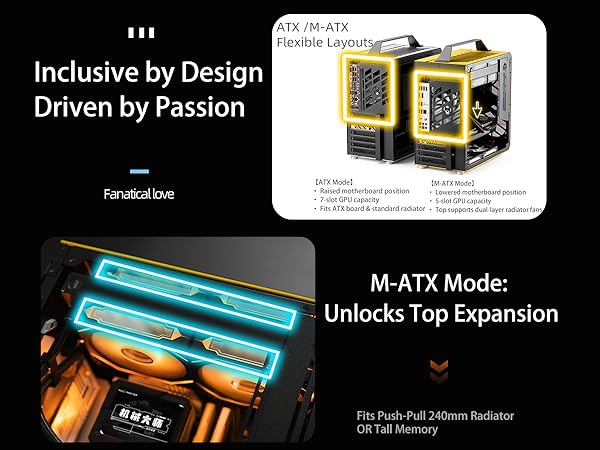

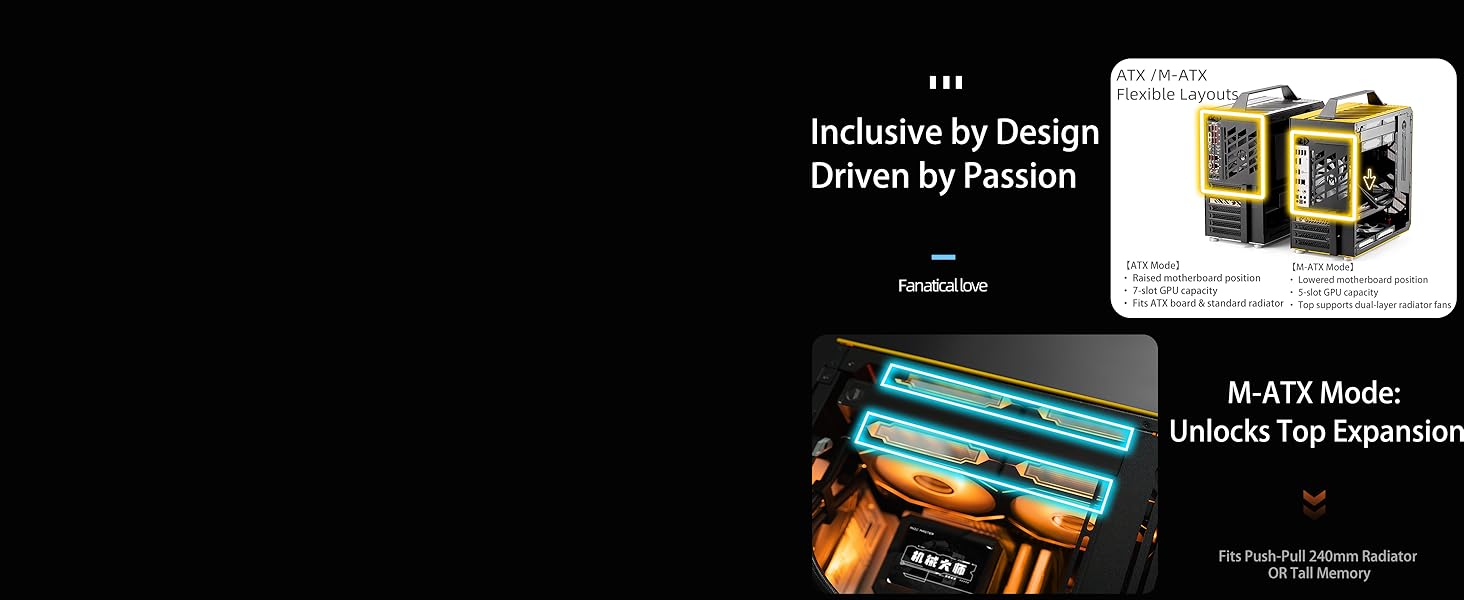

Interesting design
All three models of C34 have this design.
If you are using a MATX/ITX motherboard, switching to the 5-slot mode will bring about many changes.

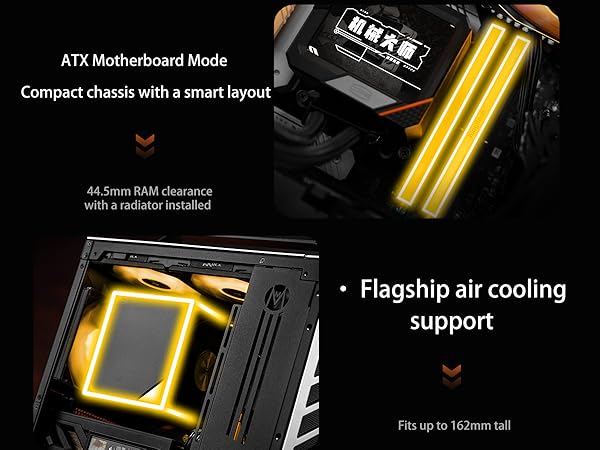

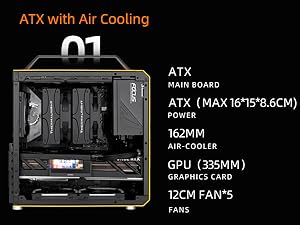

Air cooling / 240 Aio

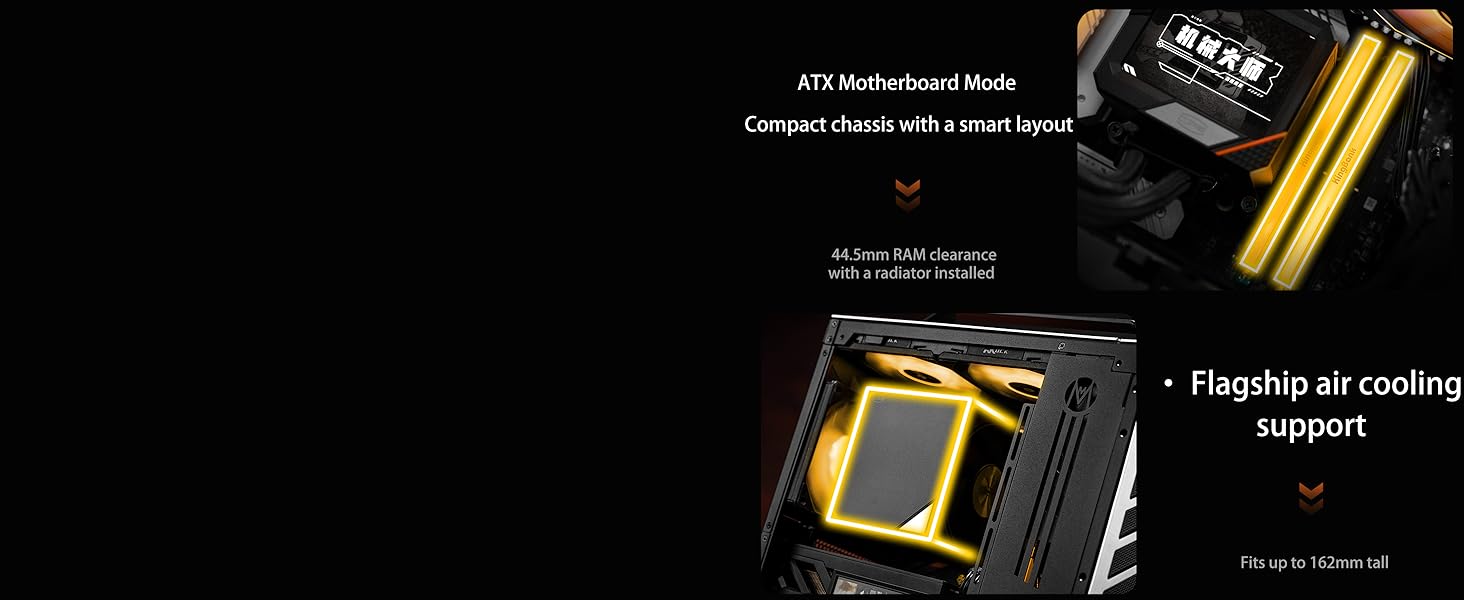

Air cooling 162mm / ATX,240 Aio. Note that the height of the RAM should be within 44.5mm.
The same as C28

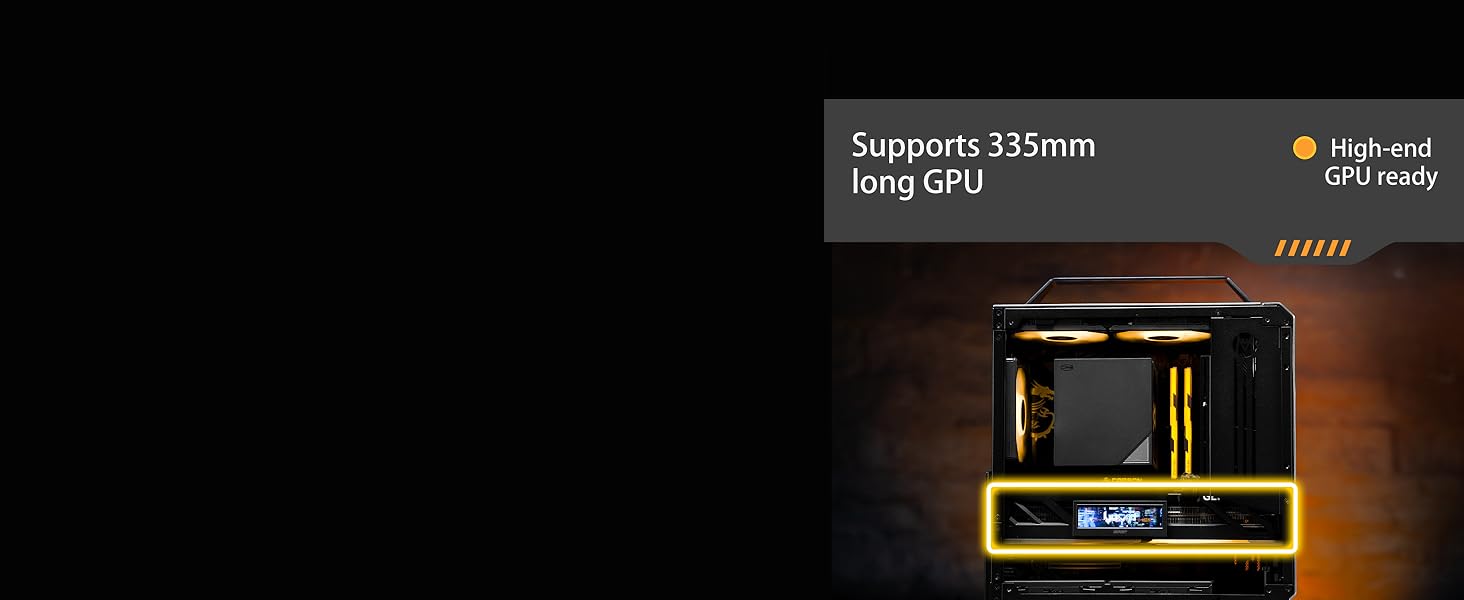

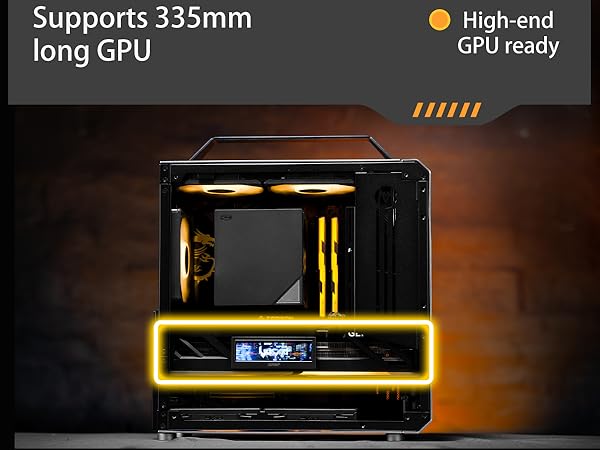

Within a length of 335mm
If the length exceeds 315mm, the module at the tail end of the case needs to be temporarily removed.

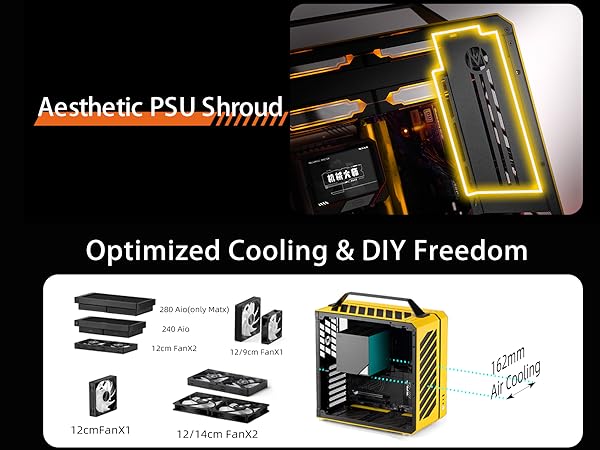

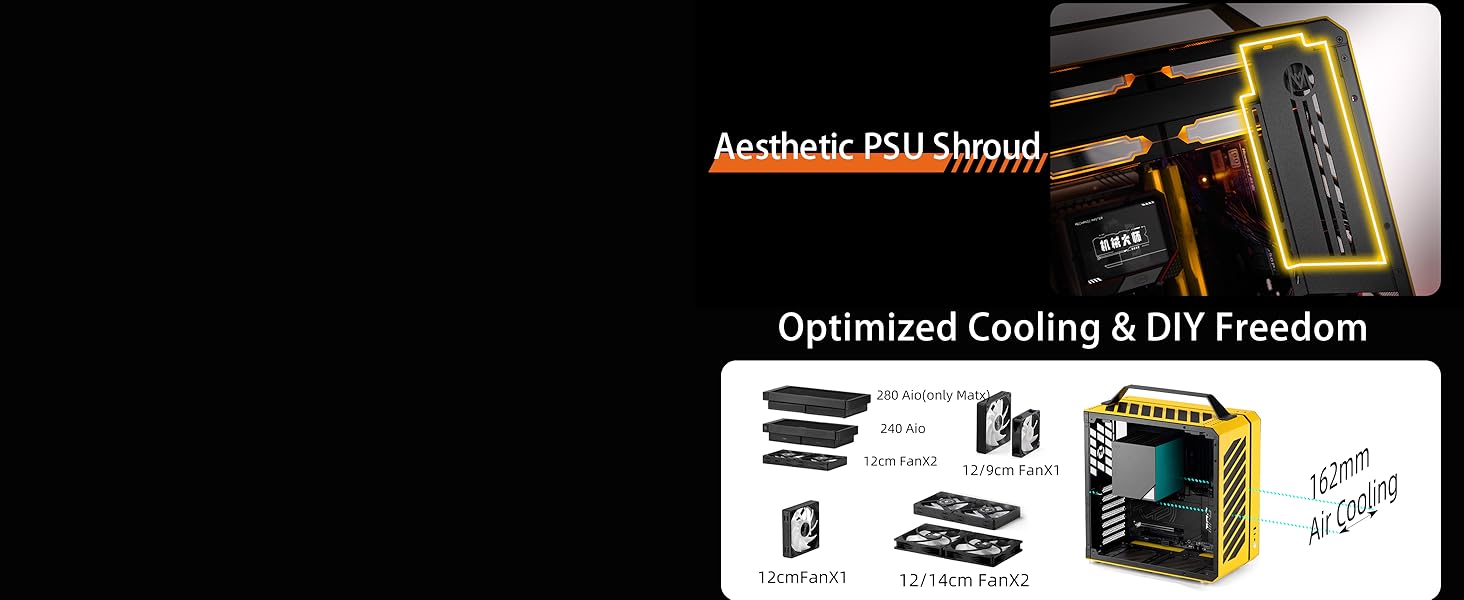

Select auxiliary cooling

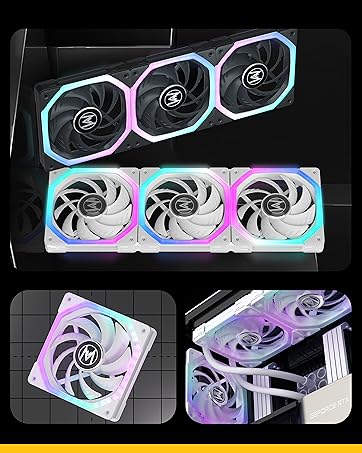

Fans at each position
Multiple fan positions, and basically unaffected by other hardware.

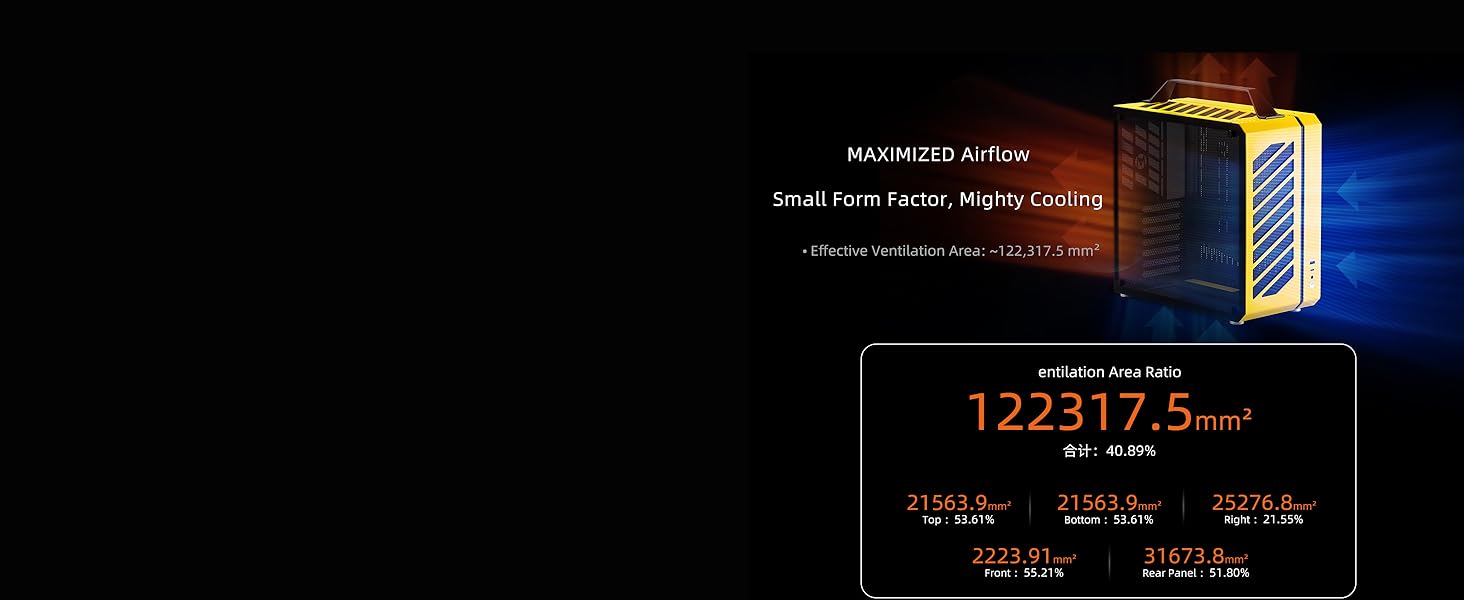

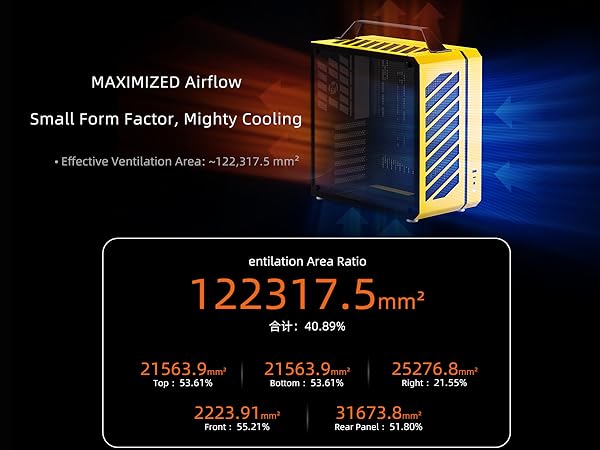

Max air
Choose better hardware

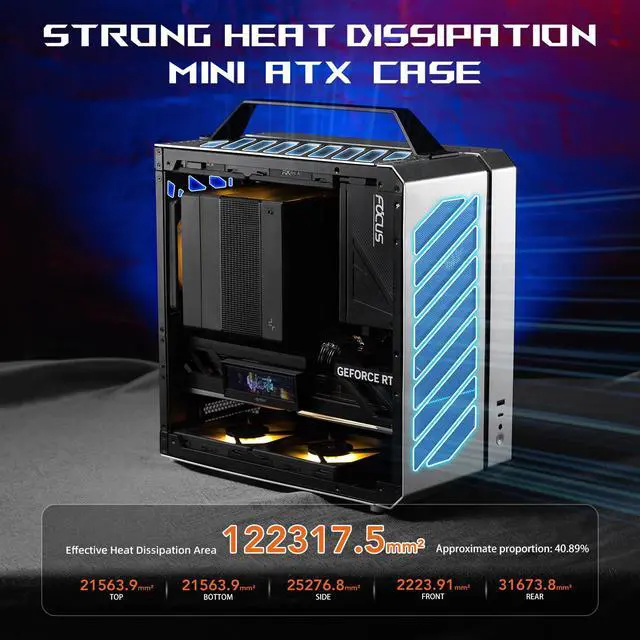

Whether it is air cooling or integrated water cooling, the small size offers better cooling space.
Three models of C34 comparison
 C34 |  C34Plus |  C34Pro |
|---|---|---|
Compact ATX case Maximum support for ATX motherboards (305*249mm) | Small ATX case + 240 Aio Maximum support for ATX motherboards (305*279mm) | ATX case + 360 Aio Maximum support for ATX motherboards (305*279mm) |

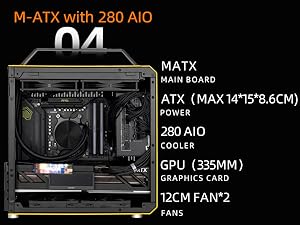

Radiator 162mm height air cooling / 240,280 Aio (only Matx) | Radiator 162mm height air cooling / 240,280 Aio (only Matx) | Radiator 165mm height air cooling / 240,360,280 Aio (only Matx) |
GPU size Within a length of 335mm | GPU size Within a length of 385mm | GPU size At different positions of PSU, the length of GPU is 335/400mm respectively. |
Regarding PSU cables Minimal rear cable clearance — SFX/L PSU or custom cables recommended. | Regarding PSU cables Tight rear clearance. Use SFX/L PSU, custom cables, or a shorter GPU. | Regarding PSU cables Rear cable space for flat PSU cables. Use SFX/L if center-mounted |
Recommended configuration Low-heat CPUs; mid-range GPUs; more PCIe; portable. | Recommended configuration Larger size; high-end GPUs. | Recommended configuration High-TDP CPUs (360 AIO); smaller PSUs; large GPU compatible. |
Recommend ATX 140/150/86mm PSU or smaller SFX/L.
Only supports ATX 140/150/86mm PSU, RAM height =44.5mm, 240 AiO thickness =55mm. SFX/L recommended.
In 5-slot mode: 240 AiO thickness 25+27+25mm, RAM =44.5mm, SFX/L only.
In 5-slot mode, same as option 2.
Interesting design
All three models of C34 have this design.

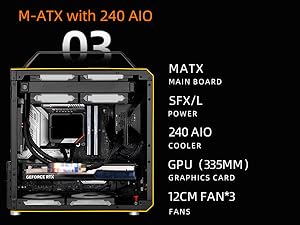

If you are using a MATX/ITX motherboard, switching to the 5-slot mode will bring about many changes.

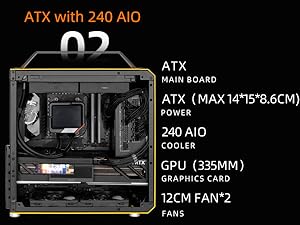

Air cooling / 240 Aio
Air cooling 162mm / ATX,240 Aio. Note that the height of the RAM should be within 44.5mm.
The same as C28
Within a length of 335mm
If the length exceeds 315mm, the module at the tail end of the case needs to be temporarily removed.
Select auxiliary cooling
Fans at each position
Multiple fan positions, and basically unaffected by other hardware.
Max air
Choose better hardware
Whether it is air cooling or integrated water cooling, the small size offers better cooling space.
Three models of C34 comparison
Recommend ATX 140/150/86mm PSU or smaller SFX/L.
Only supports ATX 140/150/86mm PSU, RAM height =44.5mm, 240 AiO thickness =55mm. SFX/L recommended.
In 5-slot mode: 240 AiO thickness 25+27+25mm, RAM =44.5mm, SFX/L only.
In 5-slot mode, same as option 2.

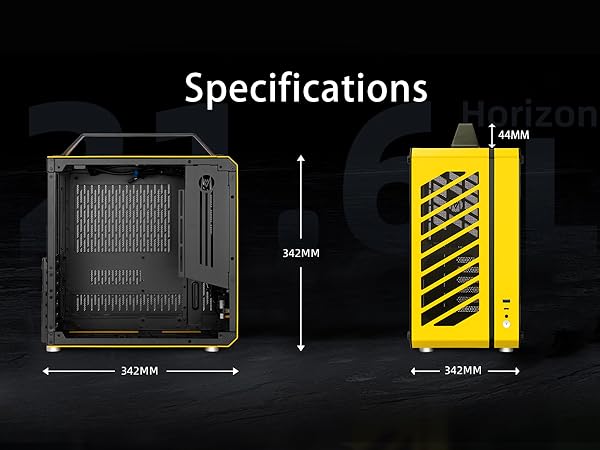

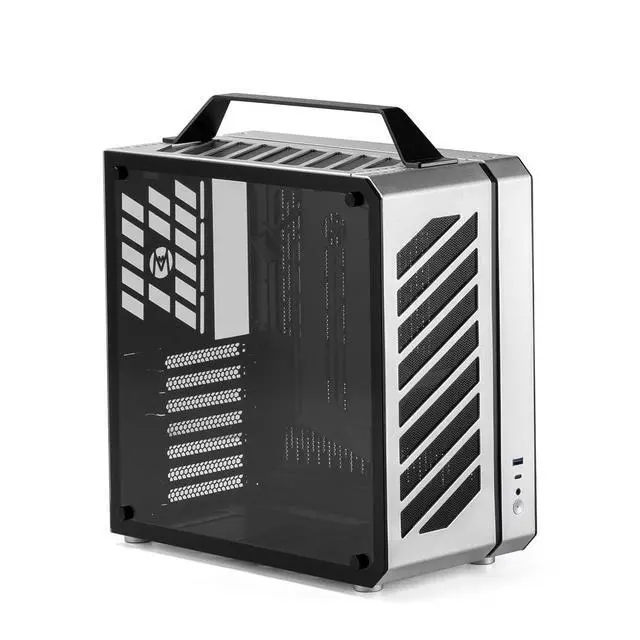

| Dimensions | 342 x 182 x 342 mm (L x W x H) |
|---|---|
| Motherboard Support | ITX, mATX, ATX |
| Materials | Outer Shell: 2mm Aluminum Alloy,Internal Frame: 1.2mm SPCC Steel |
| I/O Panel | Metal Power Button (with LED),Audio ,1x TYPE-C (10Gbps),1x USB 3.0 |
| Weight | Net: 4.45KG / Gross: 5.55KG |
| PCI-E Slots | 7 slots (default), switchable to 5 slots. |
| GPU | Max length 335mm (reduce by fan thickness when using front fan). |
| 2.5" Drive Bay | 1x on chassis rear (incompatible with 240 AiO setup). |
| 3.5" Drive Bay | 1x on bottom-right of chassis. |
| Standard Accessories | Removable handle, tempered glass side panel, dust filters, screw box. |
