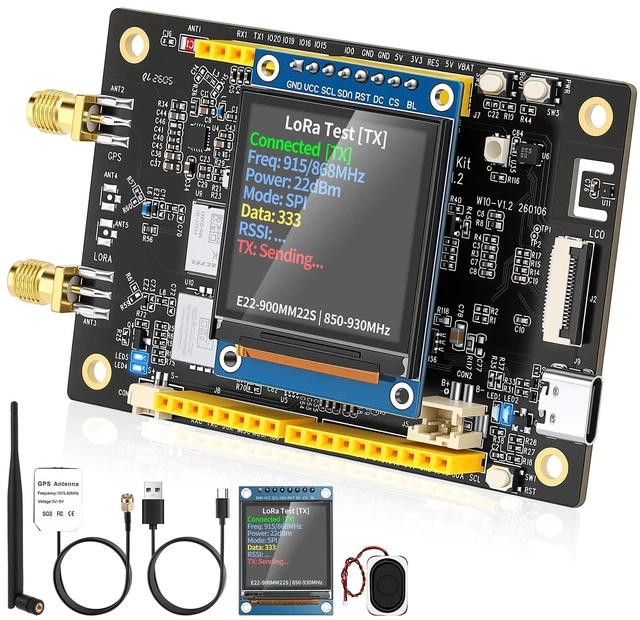

Meshnology LoRa ESP32-S3 Board - 915MHz W10 AIOT Dev Kit | GPS Blue tooth WiFi AI LoRaWAN Ar duino Compatible Perfect for Starter Maker Smart City Industrial Control Application

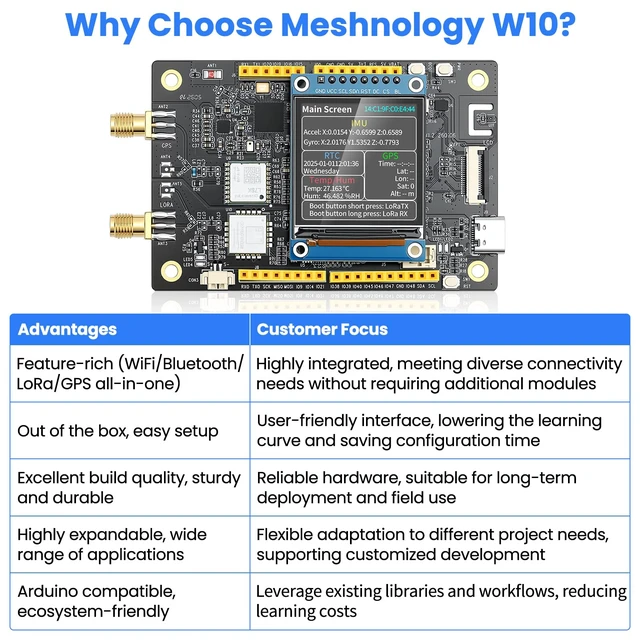

Compared to similar development boards on the market, this one offers richer functionality, integrating Xiaozhi voice AI dialogue, supporting visual recognition with a small camera model, LoRa support, and GPS positioning. The board's expansion ports are directly compatible with Ar duino.

Product Introduction:

This product provides IoT engineers and smart hardware developers with their first AIoT hardware development platform, facilitating software debugging, peripheral module expansion, and software performance testing.

It utilizes the mainstream ESP 32 S3 processor, paired with LoRa and GPS modules. It integrates commonly used IoT communication standards such as WiFi, Blue tooth, and LoRa, supports the 850-930MHz frequency band and the LoRaWAN protocol, and is compatible with Mesh networks, meeting the needs of smart city and industrial control scenarios.

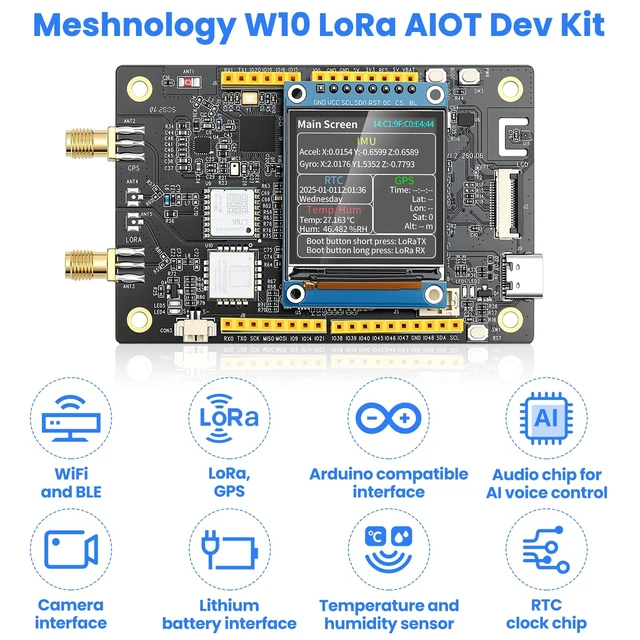

Product Features:

1. Employs an dual-core processor with a clock speed of up to 240MHz, featuring built-in WiFi and BLE functionality;

2. Integrates LoRa and GPS modules, easily enabling communication and data publishing in offline environments, as well as outdoor positioning and tracking;

3. Onboard IMU and temperature/humidity sensors enable motion and environmental detection, facilitating wireless synchronization and upload;

4. Onboard RTC clock chip provides clock, alarm, and perpetual calendar functionality, and can also serve as a timestamp standard for wireless communication;

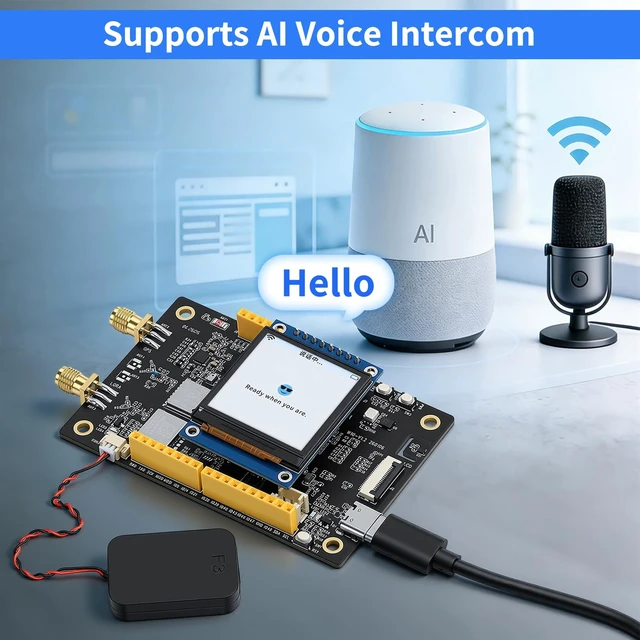

5. Equipped with an audio codec chip, compatible with mainstream LCD and OLED displays, easily enabling AI voice intercom and chat functions;

6. Features a camera interface supporting OV2640 and OV5640 cameras, enabling image and video capture, display, and upload;

7. Includes a lithium battery interface, allowing the product to operate even without a USB connection;

8. Expandable I/O compatible with Ar duino interfaces, adaptable to... Various modules and accessories for Ar duino;

Hardware Connection:

Power Connection: Connect a 5V/3A power supply via the USB Type-C interface, or connect a compatible lithium battery to the battery interface, ensuring the power indicator light is on.

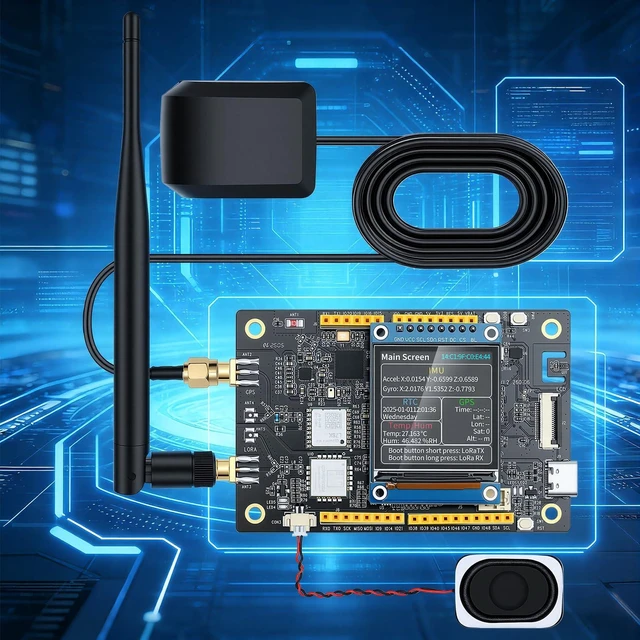

Antenna Connection: Tightly screw the SMA antenna to the corresponding interface on the motherboard, ensuring a secure connection (distinguish between LoRa and GPS module antennas to avoid confusion).

Peripheral Expansion: If connecting peripherals such as displays, cameras, and sensors, connect them according to their interface definitions (e.g., LCD FPC interface, CAM FPC interface, Ar duino expansion IO port). Pay attention to the insertion and removal direction to avoid damaging the pins.

Debugging Interface: For debugging, connect the JTAG interface to a debugger, or implement serial communication via the USB interface.

Software Preparation:

3.3.1 Development Environment Setup

Install the Ar duino IDE or ESP-IDF development framework, configure the development environment for the corresponding chip (ESP32-S3), and install the necessary drivers (USB serial driver, debug driver).

3.3.2 Firmware Burning

Select the corresponding firmware file and follow the development tool's instructions to complete the burning process. The device will automatically restart after successful burning. Multiple burning tools can be used.

The device comes pre-programmed with th
