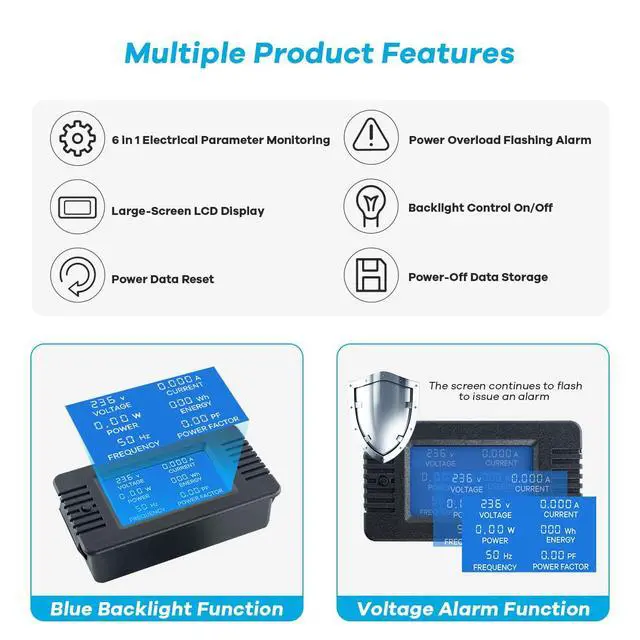

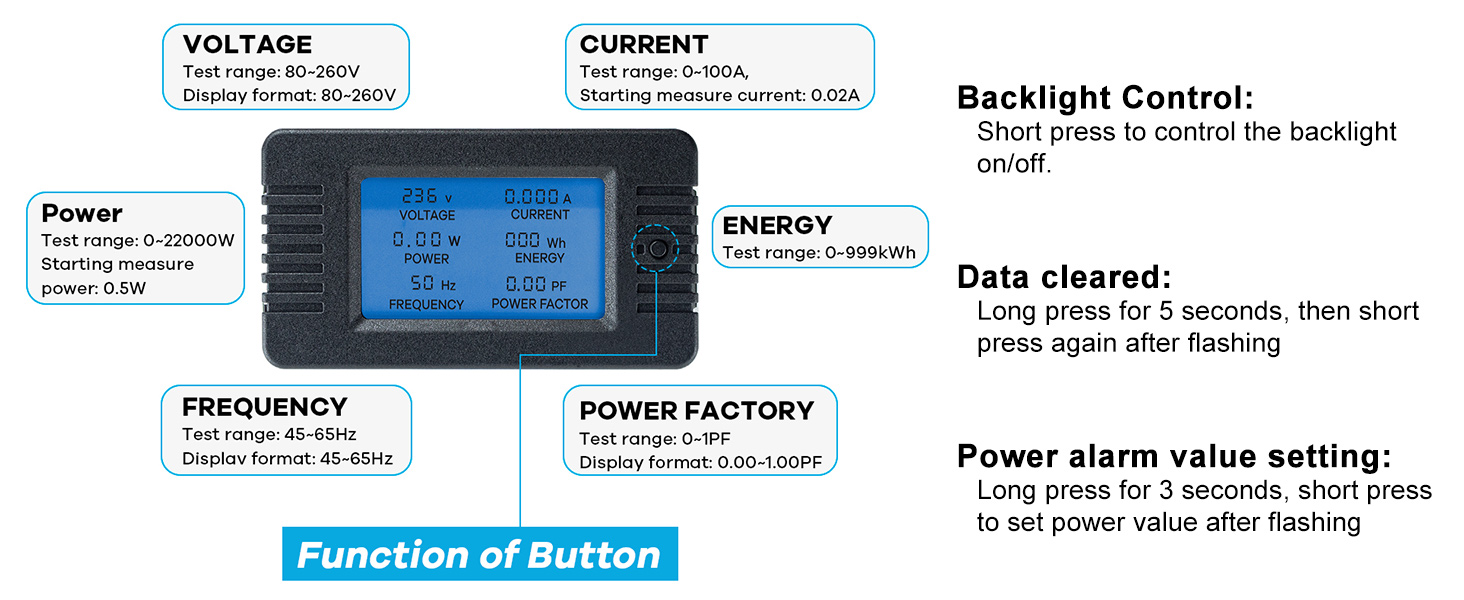

Backlight Control: The backlight can be turned on or off by short pressing the button, and the backlight status will be automatically saved when the power is off.
Does the current transformer need to distinguish between the L line and N line?
No, it doesn't. Just choose one of them. However, please do not pass both the neutral and live wires through it simultaneously.
Does the current transformer need to be adjusted according to the direction of current flow?
Not at all. This product is very user-friendly.
what is the inner diameter of the split core CT?
It's approximately 0.5 inches wide, which accommodates the vast majority of wire diameters that meet AWG specifications.
Can the wiring of the current transformer be extended?
It's not recommended to extend the wiring. When the current transformer's wire length exceeds 50 centimeters, it significantly reduces accuracy.
How long are the leads between the unit and the split transformer inductive pickup?
About 22 cm (8.6 inches). You can extend the line longer, but do not exceed 50 cm (19.6 inches). Too long will cause the accuracy to decrease.
Specification Parameters:

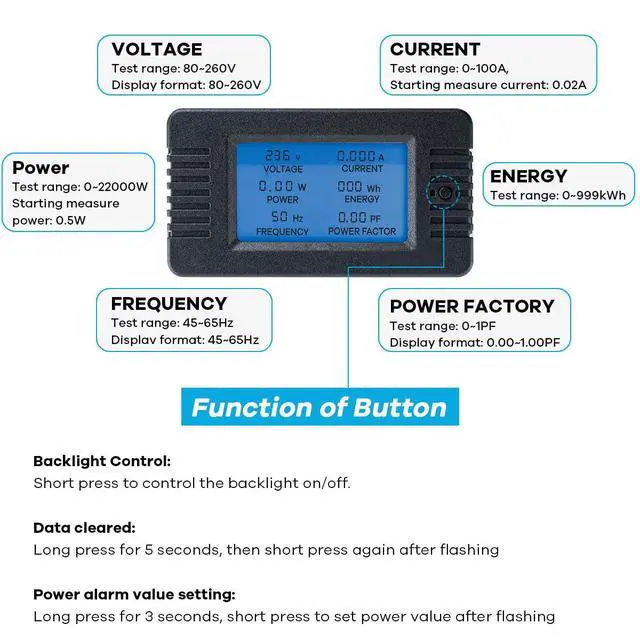

Large-screen LCD, Display six parameters at the same time
Backlight Control: The backlight can be turned on or off by short pressing the button, and the backlight status will be automatically saved when the power is off.

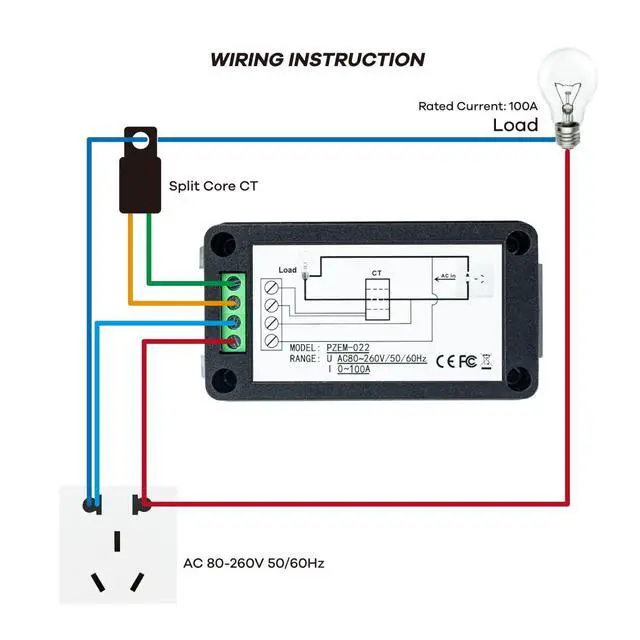

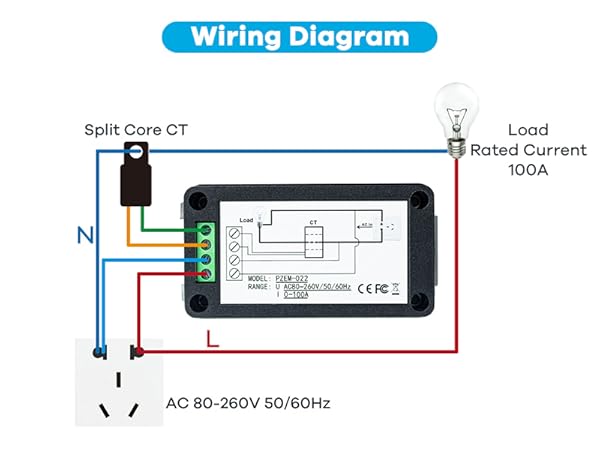

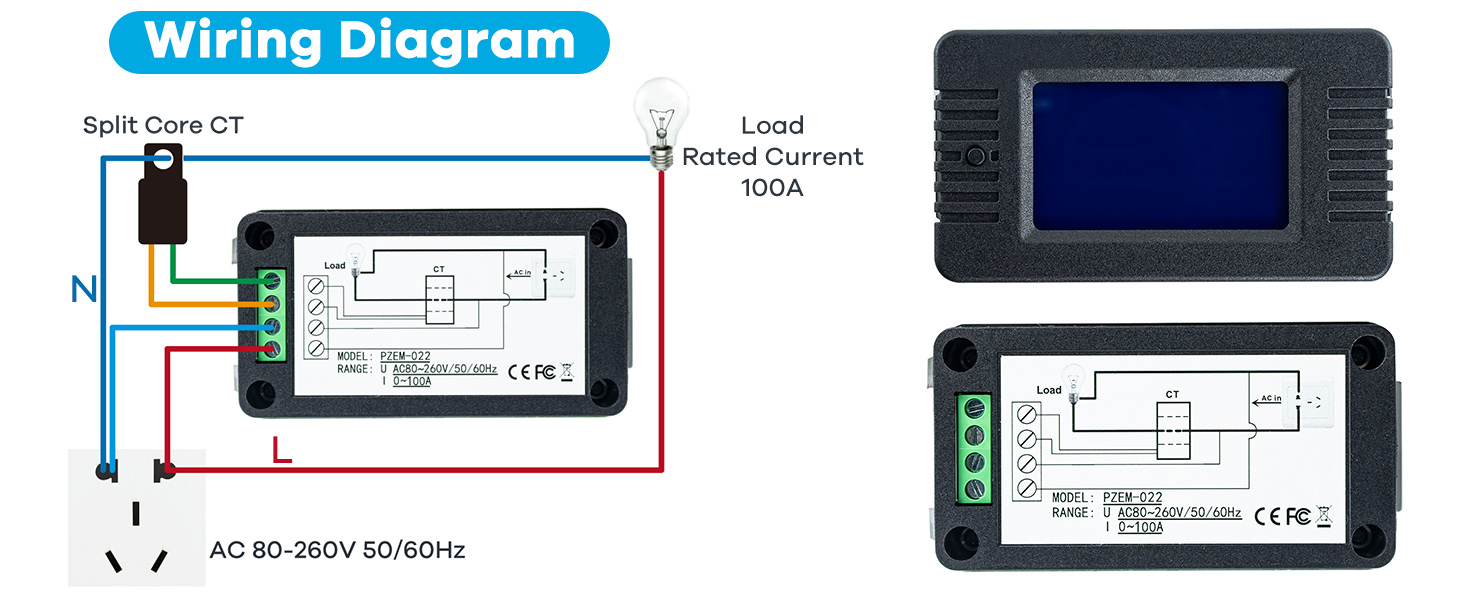

Does the current transformer need to distinguish between the L line and N line?
No, it doesn't. Just choose one of them. However, please do not pass both the neutral and live wires through it simultaneously.
Does the current transformer need to be adjusted according to the direction of current flow?
Not at all. This product is very user-friendly.

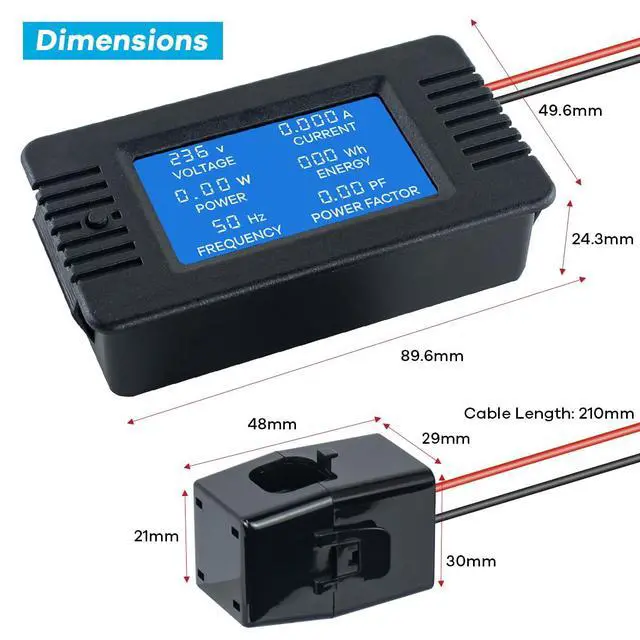

what is the inner diameter of the split core CT?
It's approximately 0.5 inches wide, which accommodates the vast majority of wire diameters that meet AWG specifications.
Can the wiring of the current transformer be extended?
It's not recommended to extend the wiring. When the current transformer's wire length exceeds 50 centimeters, it significantly reduces accuracy.
How long are the leads between the unit and the split transformer inductive pickup?
About 22 cm (8.6 inches). You can extend the line longer, but do not exceed 50 cm (19.6 inches). Too long will cause the accuracy to decrease.
Specification Parameters:
| Working voltage | 80 ~ 260VAC |
|---|---|
| Test voltage: | AC 80 ~ 260V |
| Rated power | 100A/22000W |
| Operating frequency | 45-65Hz |
| Measurement accuracy | 1.0 grade |

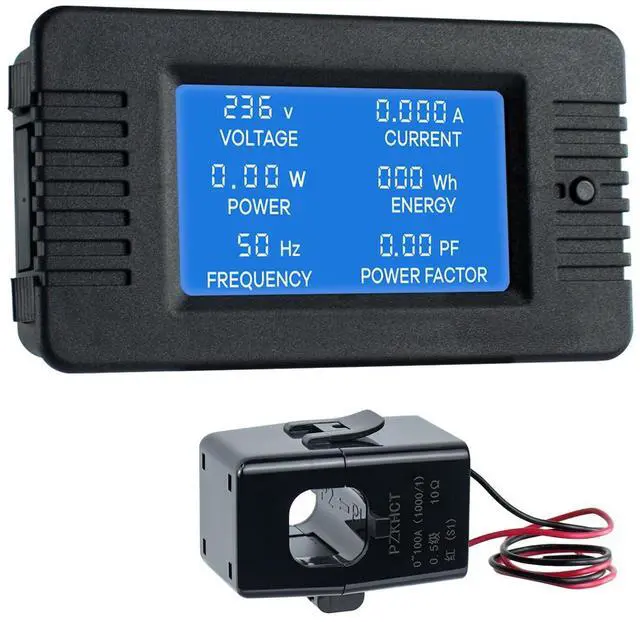

Large-screen LCD, Display six parameters at the same time

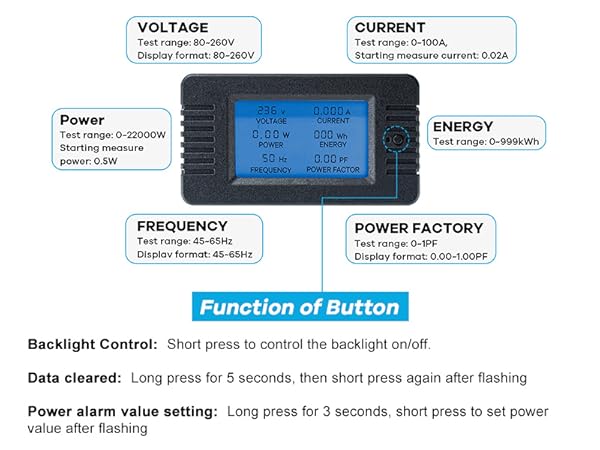

| Power | test range: 0~22000W, Starting measure power: 0.5W |
|---|---|
| Energy | test range: 0~999kWh |
| Voltage | test range: 80~260V |
| Current | test range: 0~100A,Starting measure current: 0.02A |
| Frequency | test range: 45~65Hz |
| Power factor | test range: 0~1PF |
