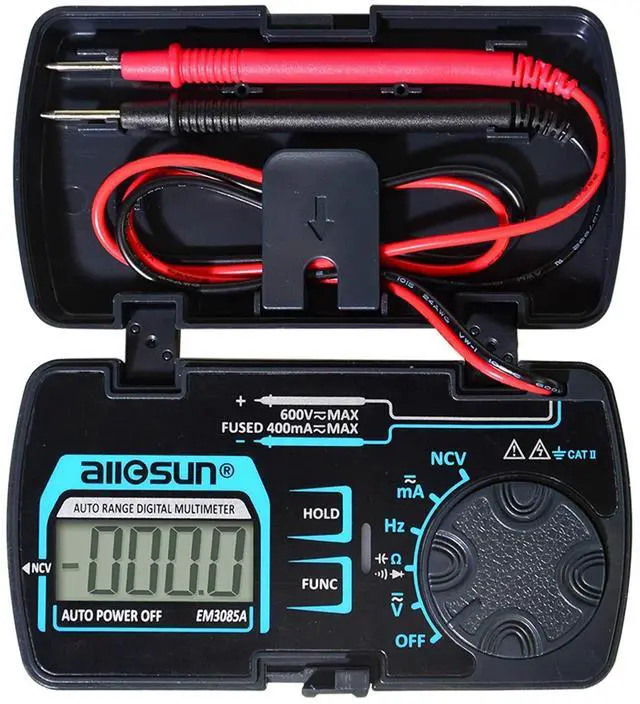

Auto Ranging Pocket Tiny Digital Multimeter, Mini Electrical Travel Meter AC/DC Ohm Volt NCV Amp Capacitance Frequency Diode Continuity

Accurately Measures: Pocket Multimeter Mini designed to measure DC and AC voltage, DC and AC current, resistance, continuity, diode, capacitance, and frequency, data hold, and automatic power-off. Sampling Rate is about 3 times/sec.

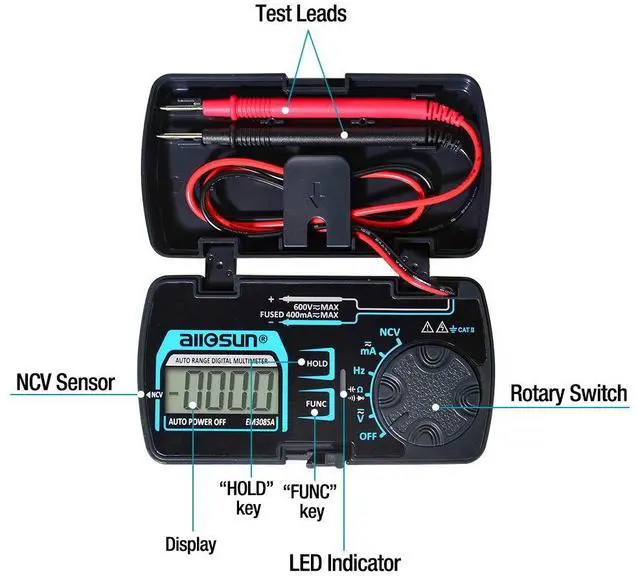

Non-Contact AC Vpltage Detection: Mini Tester NCV Sensor used in non-contact ac voltage detection. It is located at the mark " NCV " which is just beside the LCD display.
Safety Assurance: Pocket Electrical Meter built-in 500mA/250V Fuse. Overload Protection on all ranges. Max. Allowable Input Current: 400mA; Frequency Range: 40Hz to 400Hz.

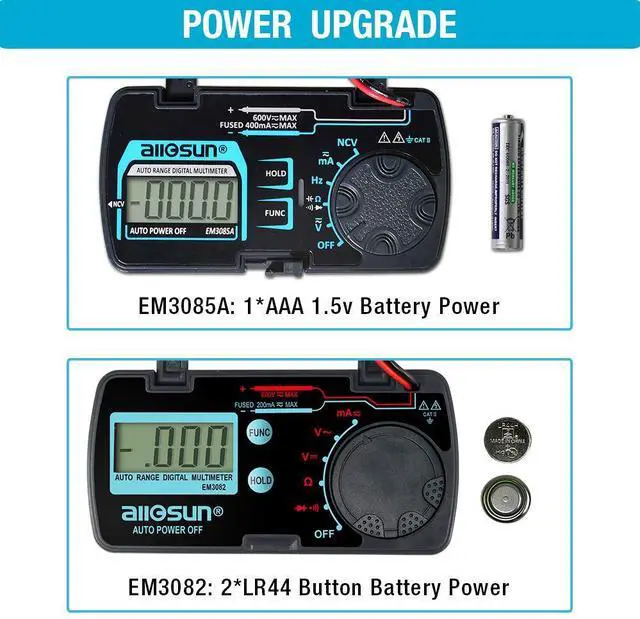

Power Supplied: Auto Ranging Multimeter powered by 1 pieces AAA 1.5V battery(NOT INCLUDE). Ideal Gifts For Your family & Friends to do some DIY at Home.
Widely Application: Digital Pocket Multimeter widely used in schools, laboratories, factories and any other machining industry. Not only suitable for home users, beginners, maintenance enthusiasts, but also for all the electrical testing troubleshoot and resolve electrical problems.

How to Install the battery?

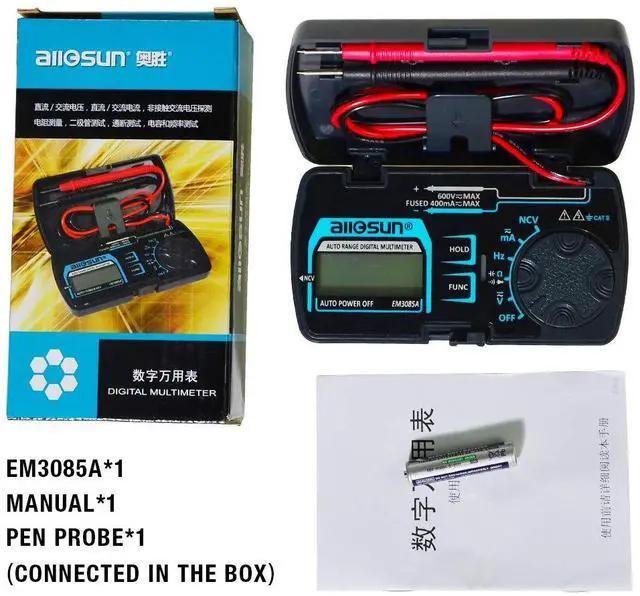

Please kindly note it, digital multimeter parcel NOT include 1 pc 1.5V AAA battery.

Very thanks for choosing allsun MINI DIGITAL MULTIMETER. The main products from allsun contain MINI DIGITAL MULTIMETER,Multi-meter,Digital Multimeters,Digital Clamp meter,Metal Detectors,Distance Measures,Infrared Thermometer,Voltage, Battery Tester,Digital Scale and multifunction sensor all of which have an advantage in domestic and overseas markets.

If you are now looking for a MINI DIGITAL MULTIMETER, exactly, just choose it!

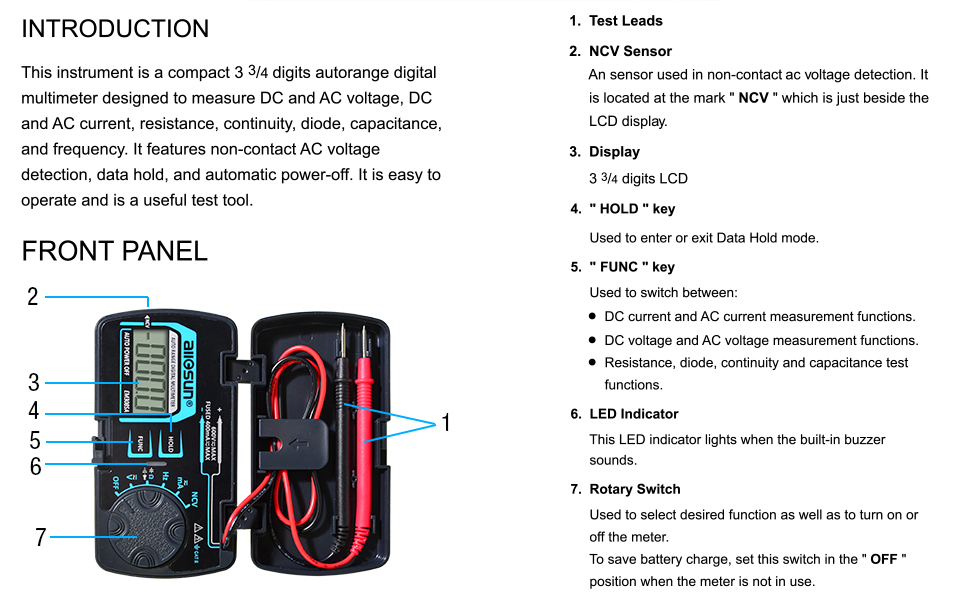

INTRODUCTION:MINI DIGITAL MULTIMETER

SAFETY INFORMATION

This meter has been designed according to IEC 61010 concerning electronic measuring instruments with a measurement category ( CAT II 600V ) and pollution degree 2.

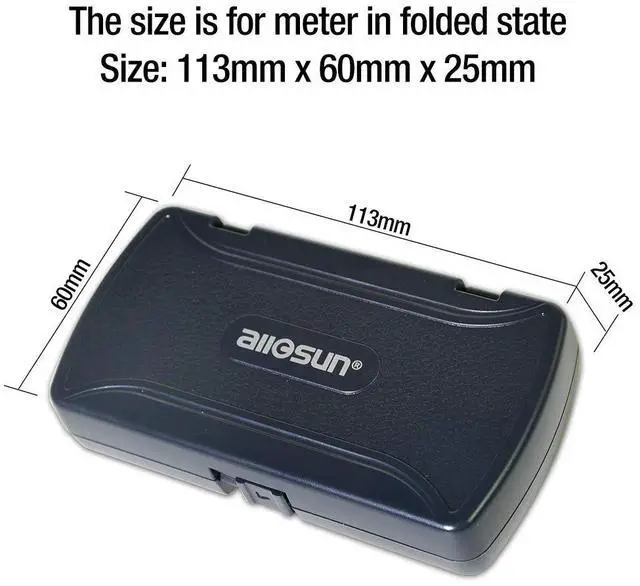

How to Fold and Unfold the meter

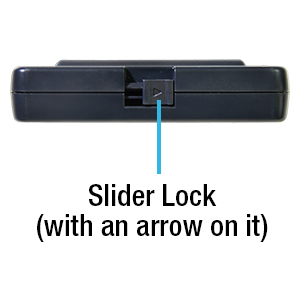

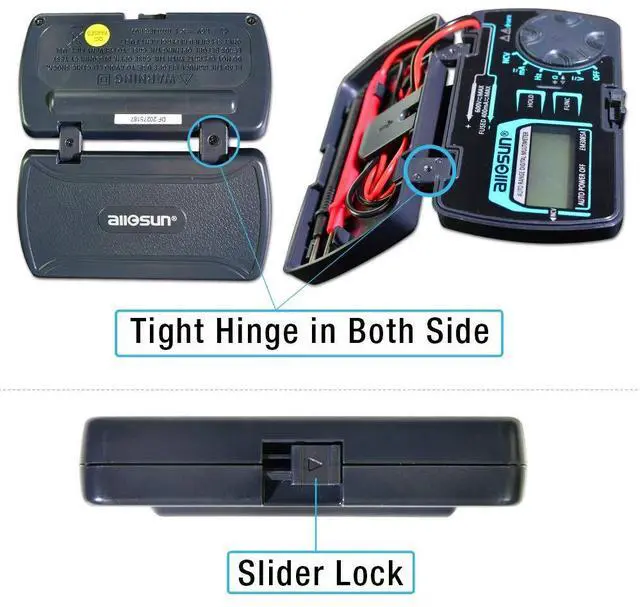

There is a slider lock at a side of the meter.

Before folding the meter, you must slide the slider lock in direction of the arrow on it, to the end.

Then fold the meter and then slide the slider lock gently in the opposite direction to lock the meter.

To unfold the meter, use the reverse procedure.

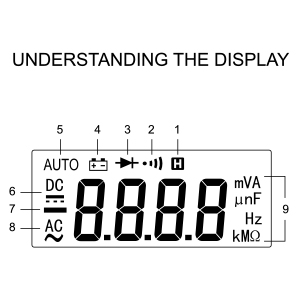

UNDERSTANDING THE DISPLAY

Explanations:

1. The meter is in Data Hold mode

2. Continuity test function is selected

3. Diode test function is selected

4. The battery is low and must be replaced immediately

5. Autorange mode is selected

6. DC

7. Negative sign

8. AC

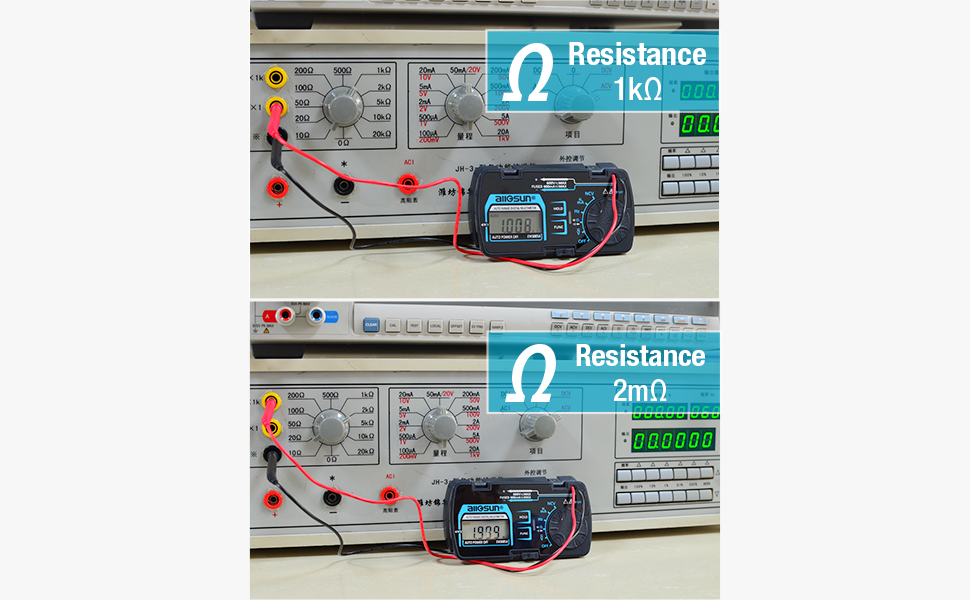

Measuring Resistance

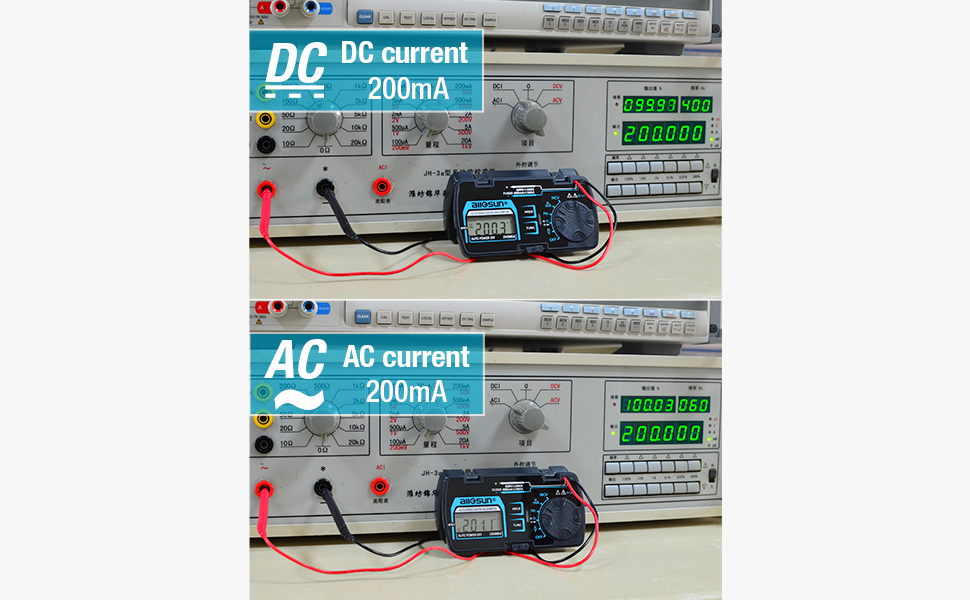

Measuring DC or AC Current
