    890Z Digital Multimeter, 6000 Counts TRMS Multimeter Tester, DC AC Voltmeter Ohmmeter, Measures Voltage Current Capacitance Diodes Continuity Resistance Transistor Temperature with NCV

    Be the first to review this product...

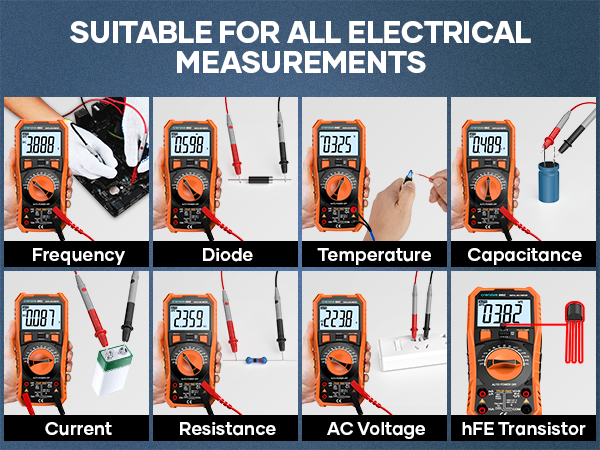

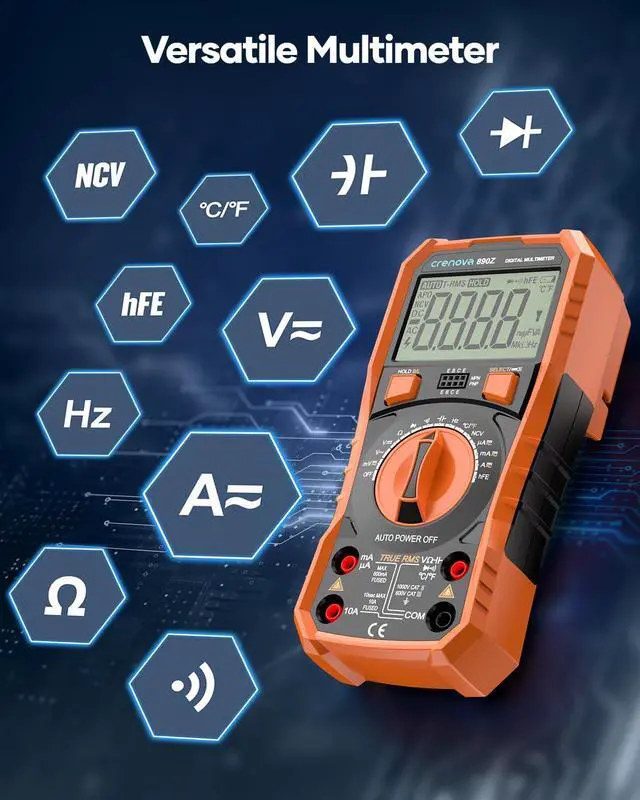

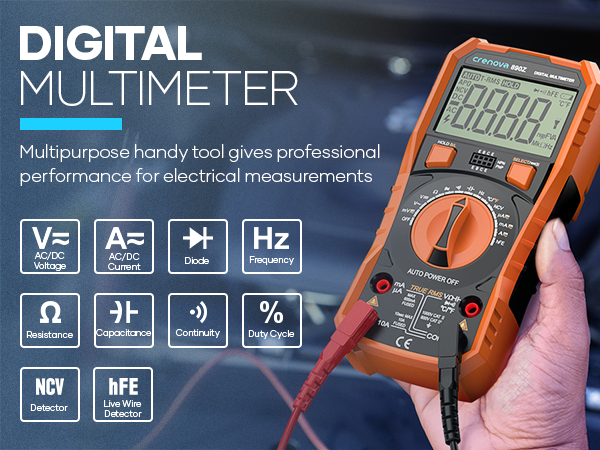

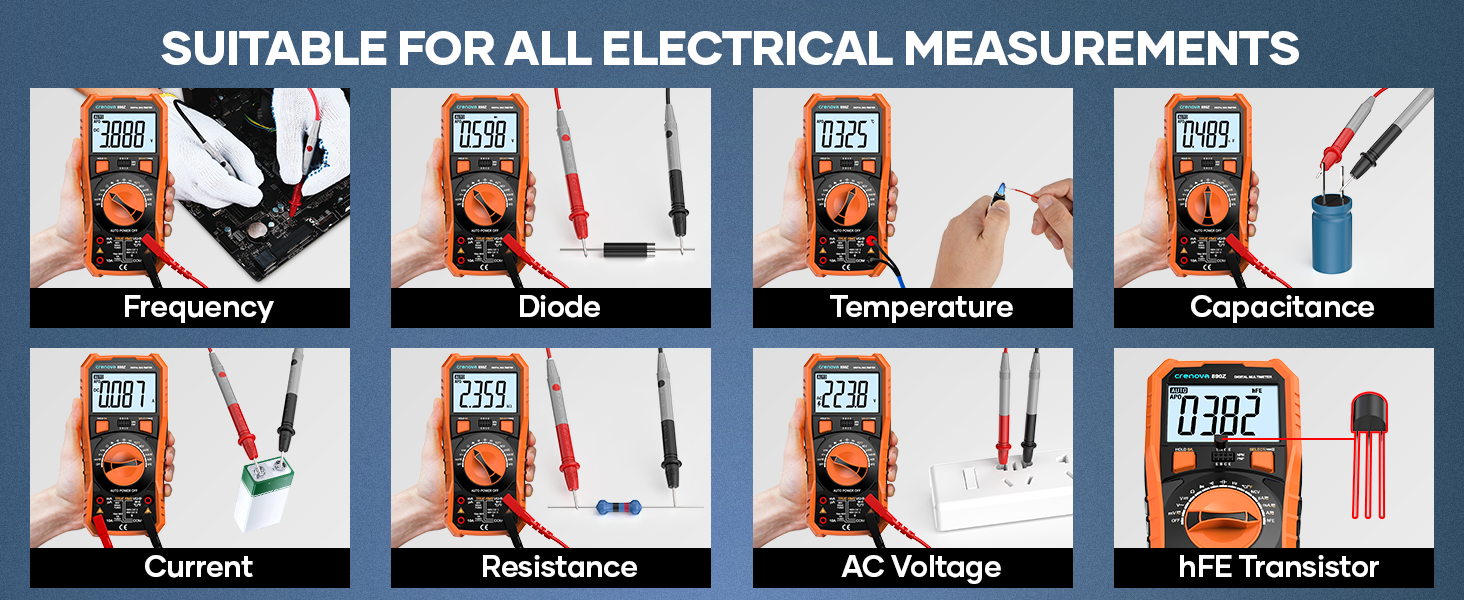

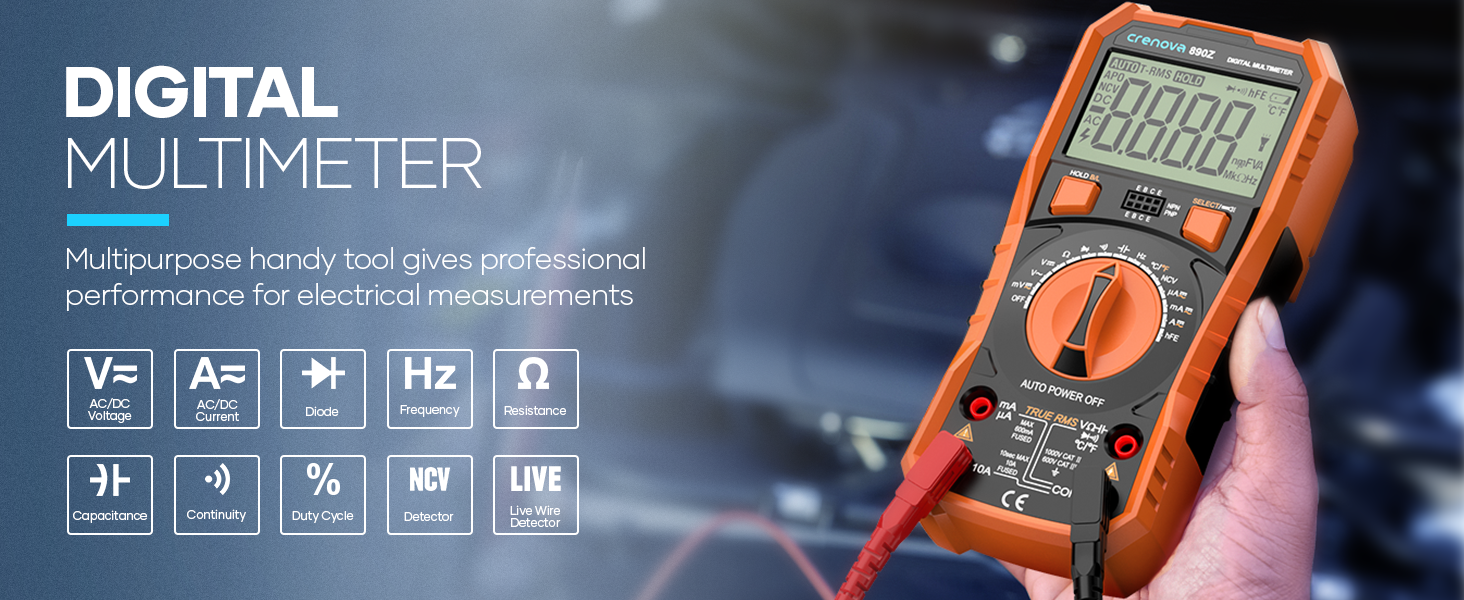

    • Multi-function Tool: 890Z Multimeter can measure AC/DC current, AC/DC voltage, resistance, frequency, capacitance, continuity, diode, transistor (hFE), and temperature. Suitable for industrial, household, automotive use.

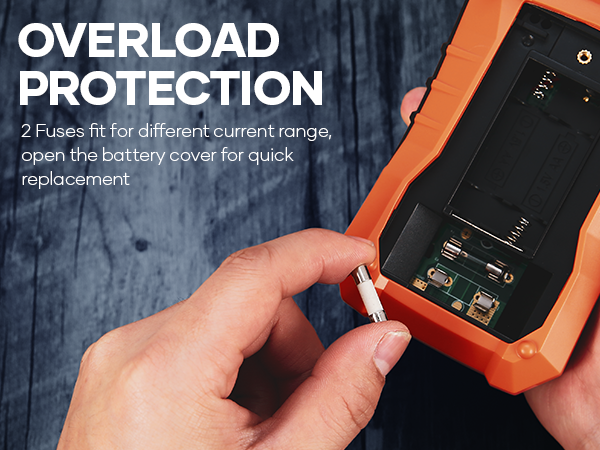

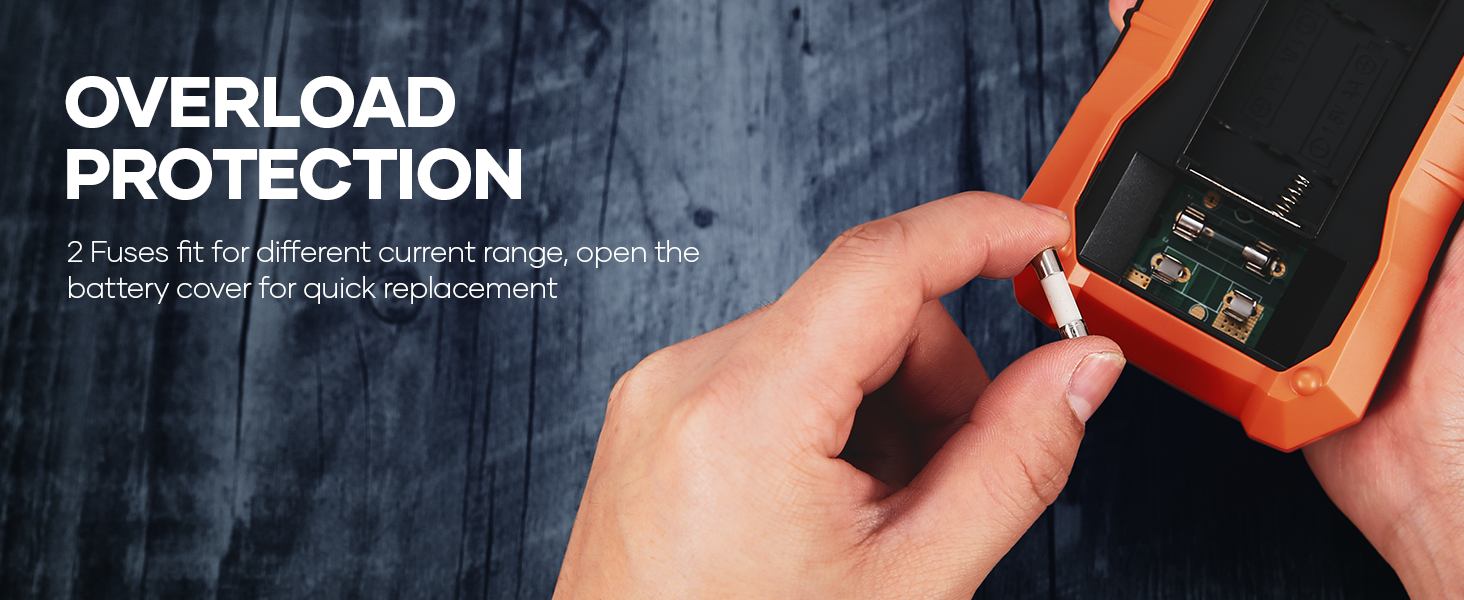

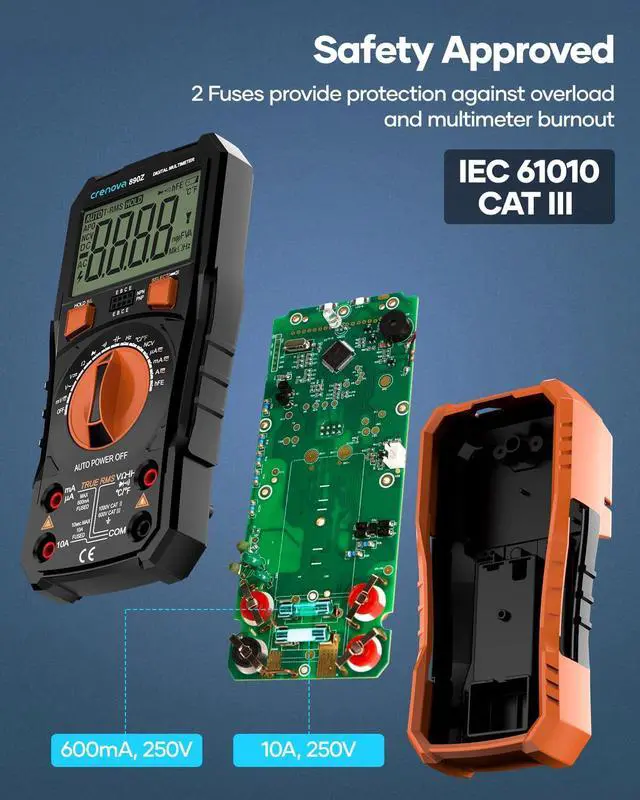

    • Operational Safety: Double fuse protection against burnout and overload. Silicone cover can protect the multimeter from damage and electric shock. When the battery is low, it will display low battery indication

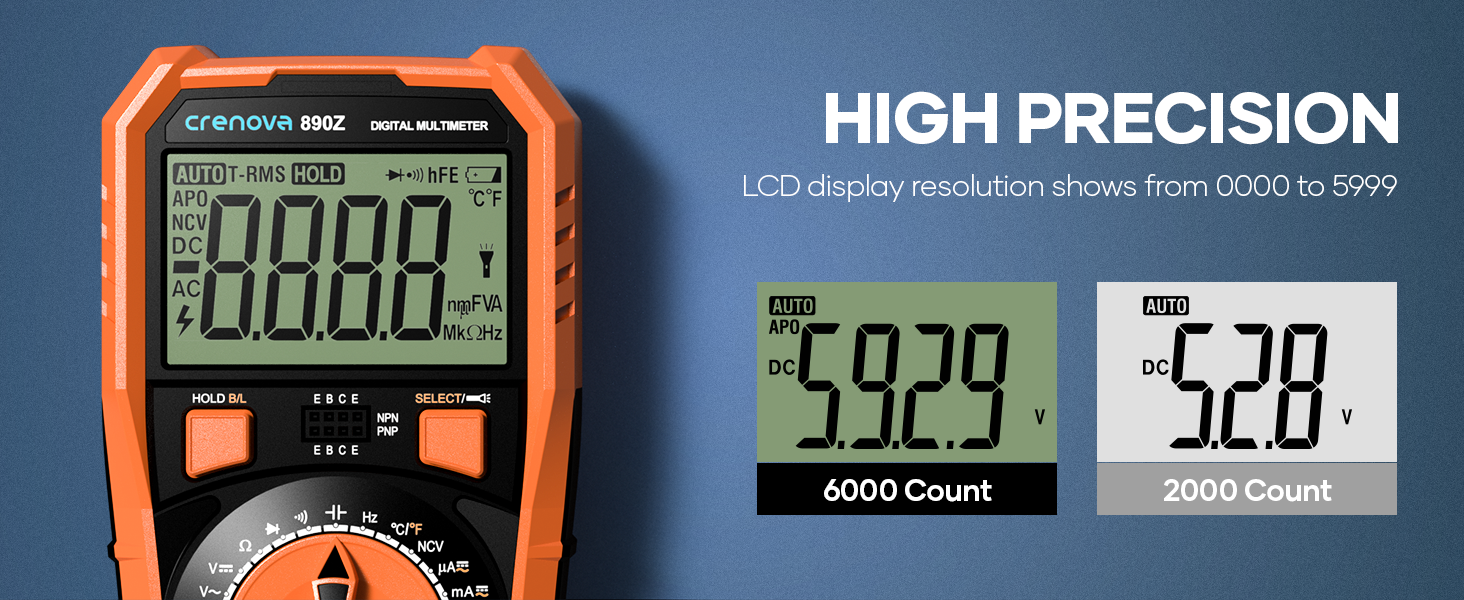

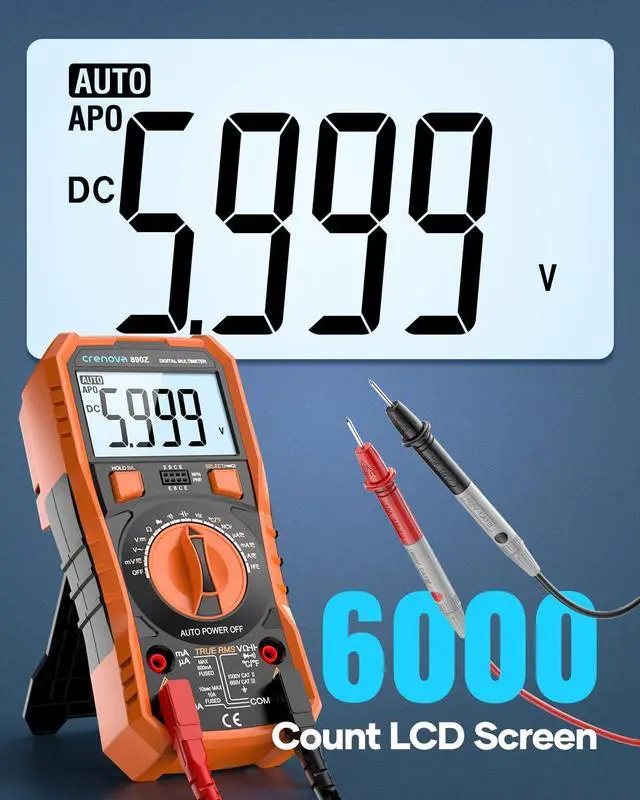

    • High-end Display: Designed with 6000 counts LCD display, Backlight function helps to see the readings in dimly-lit areas. And the build-in torch will light up the dark places.

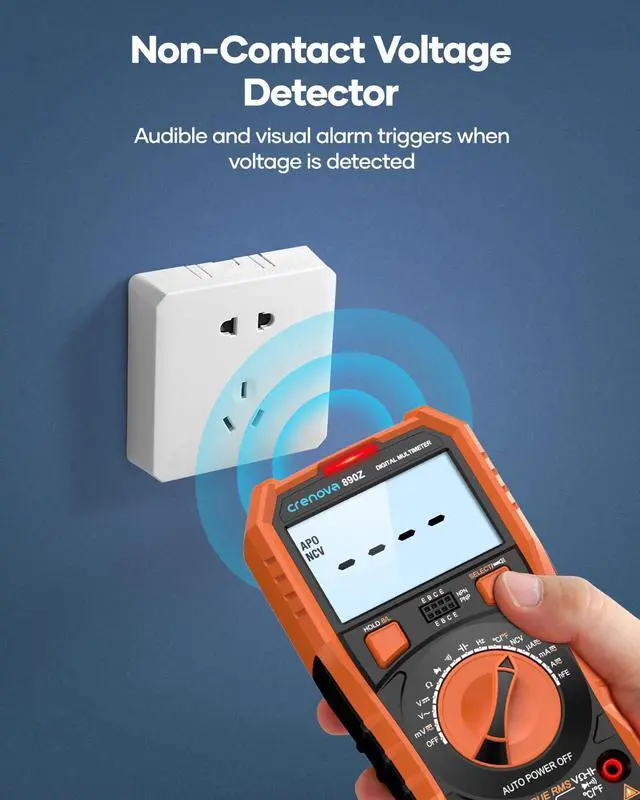

    • NCV Detection: Non-contact voltage detector is good for quick and precise sensing AC electric field without touching any wires. When AC voltage is detected, the buzzer beeps.

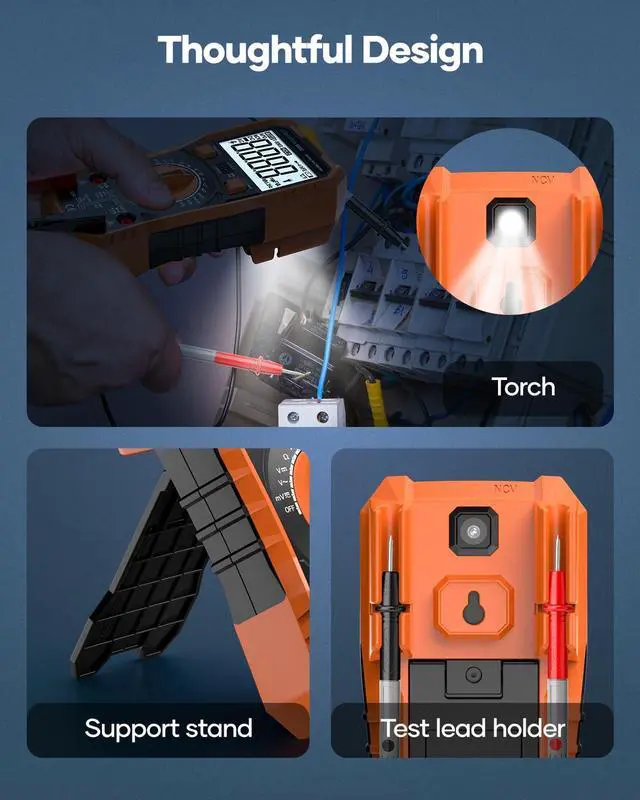

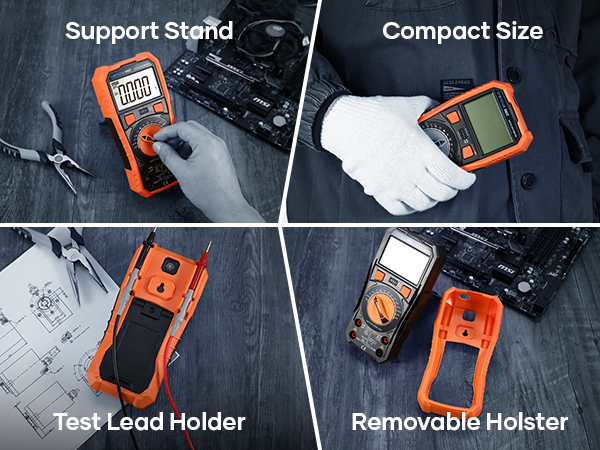

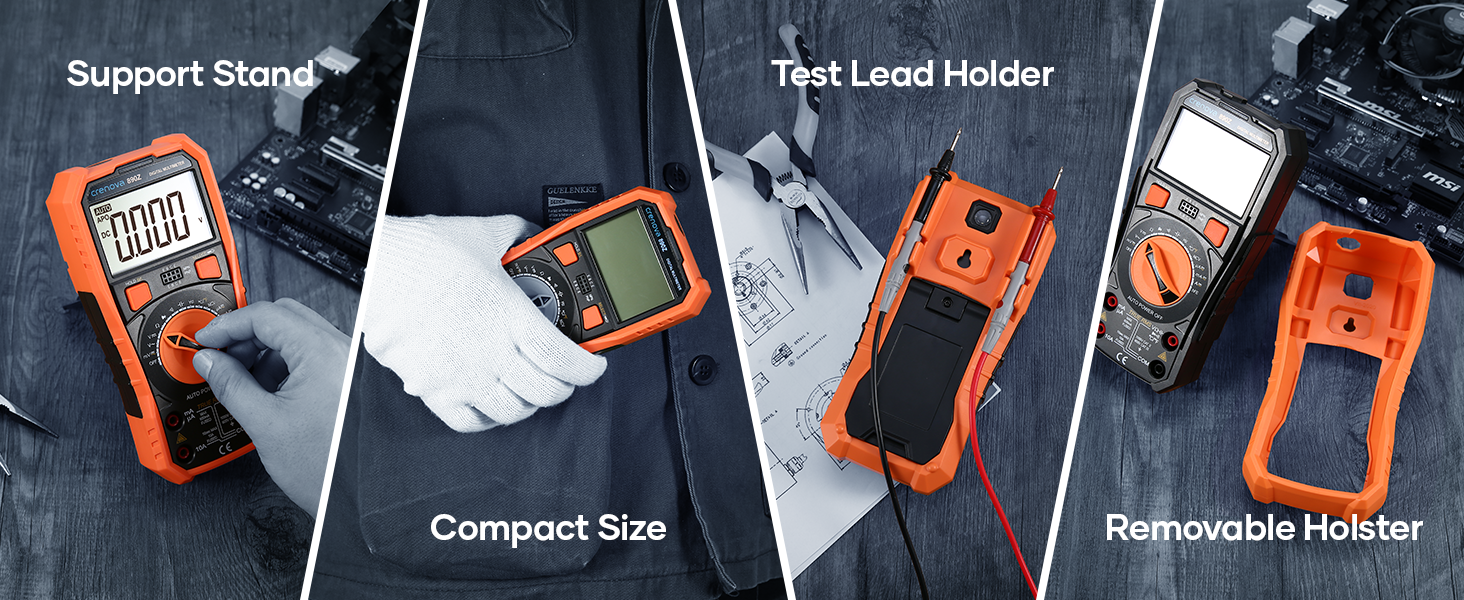

    • Thoughtful Design: This tool is equipped with many brilliant features, such as auto power off, data hold, large LCD backlit screen, support stand, test lead holder.
    • Wide Applications: The Digital Multimeter is designed safely and accurately, and suitable for electrician test, household use, automotive, industrial electrical problems.

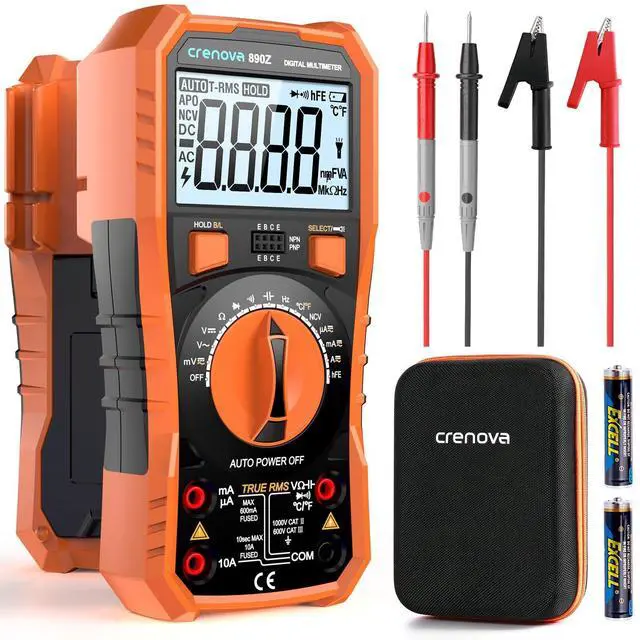

    • Full Equipment: Except for 890Z Multimeter, it comes with K-type thermocouple (1), probe test leads (1 pair), alligator clip test leads (1 pair), 1.5V LR6 AA batteries (2), carrying box (1), and manual (1).
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1
    1
    1
    1
    a
    1

    Electrical Specifications

    DC Voltage: 60mV/600mV±(0.5%+5); 6V/60V/600V±(0.5%+4); 1000V±(1.0%+6)
    AC Voltage: 60mV/600mV±(1.0%+6); 6V/60V/600V±(0.8%+10); 750V±(1.2%+10)
    DC Current: 600µA/6000µA±(1.0%+10); 60mA/600mA±(1.2%+8); 6A/10A±(1.2%+10)
    AC Current: 600µA/6000µA/60mA/600mA±(1.5%+10); 6A/10A±(2.0%+5)
    Resistance: 600O±(0.8%+5); 6kO/60kO/600kO/6MO±(0.8%+4); 60MO±(1.2%+10)
    Capacity: 1nF±(5.0%+40); 10nF/100nF/1µF/10µF/100µF±(3.5%+20); 1mF/20mF±(5.0%+10)
    Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz±(0.5%+10); 30MHz±(1.0%+10)

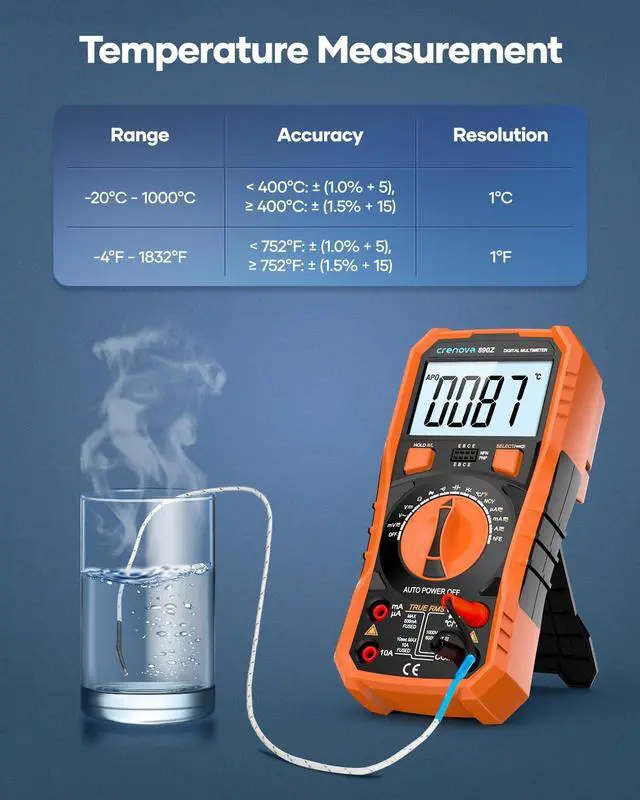

    Temperature: (-20-1000)?: <400?±(1.0%+5); =400?±(1.5%+15) / (-4~1832)?: <752?±(1.0%+5); =752?±(1.5%+15)
    Previous page
    2. https://m.media-amazon.com/images/S/aplus-media-library-service-media/74ca6010-e54a-4b84-80f1-b1af84c7faab.__CR0,0,315,145_PT0_SX315_V1___.jpg

      Crenova handheld battery-operated digital multimeters are double insulated and meet safety standard IEC61010-1 CAT II 600V. The auto-ranging design helps users select the correct measurement range when testing different types of circuits and appliances. With practical modes and customer-oriented features, our multimeter is widely used in various locations, such as home, school, laboratory, and factory.

    3. a
    4. a
    5. a
    Next page
    1
    1
    1
    1
    a
    1

    Electrical Specifications

    DC Voltage: 60mV/600mV±(0.5%+5); 6V/60V/600V±(0.5%+4); 1000V±(1.0%+6)
    AC Voltage: 60mV/600mV±(1.0%+6); 6V/60V/600V±(0.8%+10); 750V±(1.2%+10)
    DC Current: 600µA/6000µA±(1.0%+10); 60mA/600mA±(1.2%+8); 6A/10A±(1.2%+10)
    AC Current: 600µA/6000µA/60mA/600mA±(1.5%+10); 6A/10A±(2.0%+5)
    Resistance: 600O±(0.8%+5); 6kO/60kO/600kO/6MO±(0.8%+4); 60MO±(1.2%+10)
    Capacity: 1nF±(5.0%+40); 10nF/100nF/1µF/10µF/100µF±(3.5%+20); 1mF/20mF±(5.0%+10)
    Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz±(0.5%+10); 30MHz±(1.0%+10)
    Temperature: (-20-1000)?: <400?±(1.0%+5); =400?±(1.5%+15) / (-4~1832)?: <752?±(1.0%+5); =752?±(1.5%+15)
    1. https://m.media-amazon.com/images/S/aplus-media-library-service-media/74ca6010-e54a-4b84-80f1-b1af84c7faab.__CR0,0,315,145_PT0_SX315_V1___.jpg

      Crenova handheld battery-operated digital multimeters are double insulated and meet safety standard IEC61010-1 CAT II 600V. The auto-ranging design helps users select the correct measurement range when testing different types of circuits and appliances. With practical modes and customer-oriented features, our multimeter is widely used in various locations, such as home, school, laboratory, and factory.

    2. a
    3. a
    4. a
    890Z Digital Multimeter, 6000 Counts TRMS Multimeter Tester, DC AC Voltmeter Ohmmeter, Measures Voltage Current Capacitance Diodes Continuity Resistance Transistor Temperature with NCV
