A multimeter is not only professional electricians and electrical engineers would care about, it is also an indispensable asset to the home toolkit for the experienced do-it-yourself or hobbyist
The Digital Clamp Meter with 6000 counts,AC/DC automatic range.it has the functions of data hold, automatic range, temperature measurement, automatic shutdown, backlight, flashlight, full-range overload protection and battery under-voltage indication, battery included.
Whether used by professionals,factories,schools,enthusiasts or families,it is an ideal multi-functional instrument.
×Correct Measurement
Please measure in the correct way, otherwise the readings will not be accurate.We have attached a operation guide and notes to the manual for reference.
×ZERO Function
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
×VFD & LoZ Mode
The Clamp Multimeter has low Input Impedance (LoZ) and Variable Frequency Drive Filtering (VFD) modes, which can provide higher accuracy readings.
× Stylish and Robustness,prevents any damages or scratches caused by accidentally bumping,dropping, secures the device in good condition on travelling or outdoors.
× Weight & Size
Weight :195g. Size: 7.68 x 1.97 x1.38 inches.
Small and light, easy to carry when working.

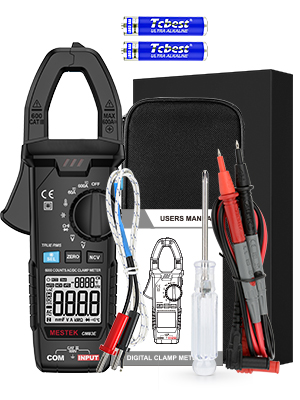

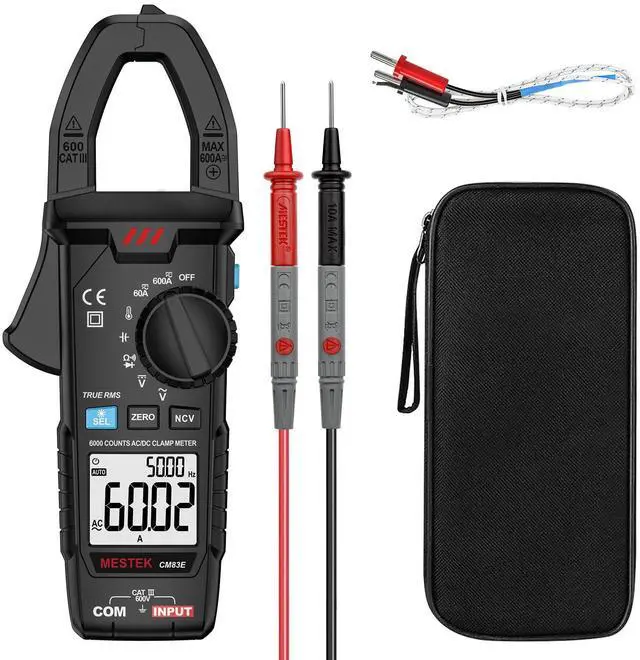

Package Included
- 1 x Digital Clamp Multimeter
- 1 x Color Box
- 1 x Carrying bag
- 1 x Temperature probe
- 1 x User Manual
- 2 x 1.5V AAA Battery
- 2 x Test Leads
- 1 x screwdriver

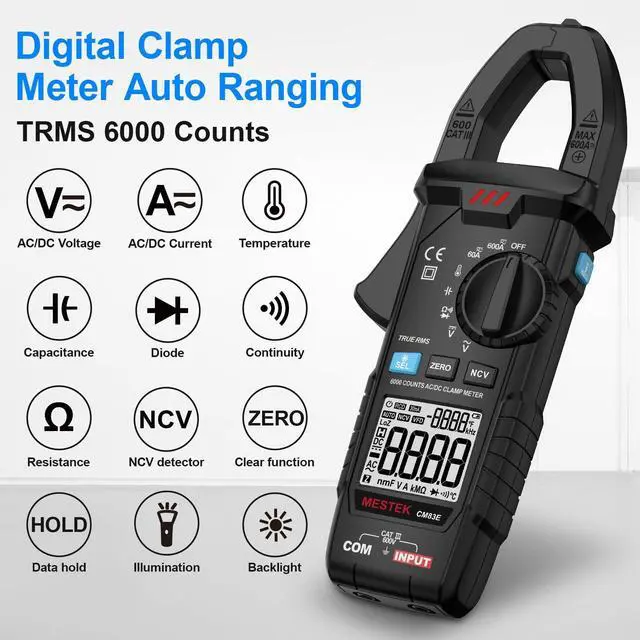

MESTEK 6000 Counts TRMS Clamp Meter
The MESTEK True RMS 6000 Counts Digital CLAMP METER is designed to be safely and accurately used by professionals and weekend DIYer’ s. It is suitable for commercial and household electrical problems. Accurately measures AC/DC Voltage, AC/DC Current, Frequency,Resistance, Capacitance Measurement and NCV Detection, Flashlight, Diode and Audible Continuity Testing.
- 600A AC/DC current measurement
- 600V AC/DC voltage measurement

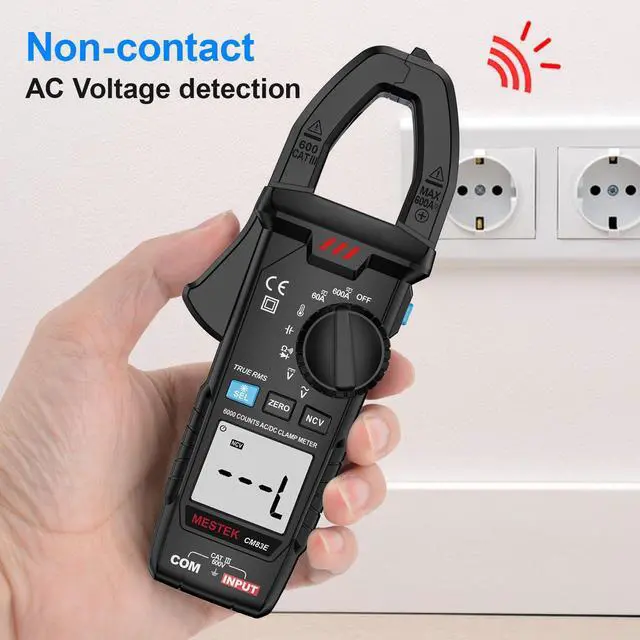

- Non-Contact Voltage (NCV)

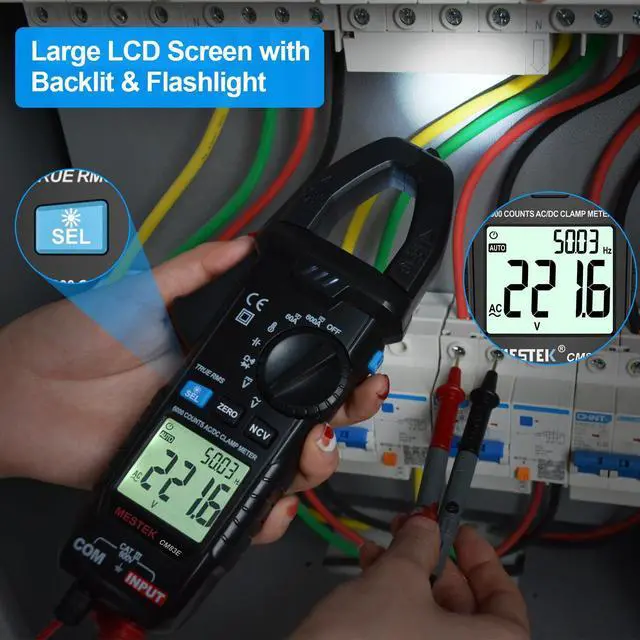

- Backlit LCD display and Flashlight
- Keeping the last measurement result (data Hold function)
- Automatic change of the measuring range (autoranging)
- CAT III 600V, Double insulation protection, CE, Ground
- It can be used on dangerous live conductors
Jaw Design
The jaws of the clamp meter can be opend up to 35mm (1.37 inch) suittable for various wire measurements,easily measure current,voltage.
Multi-Function

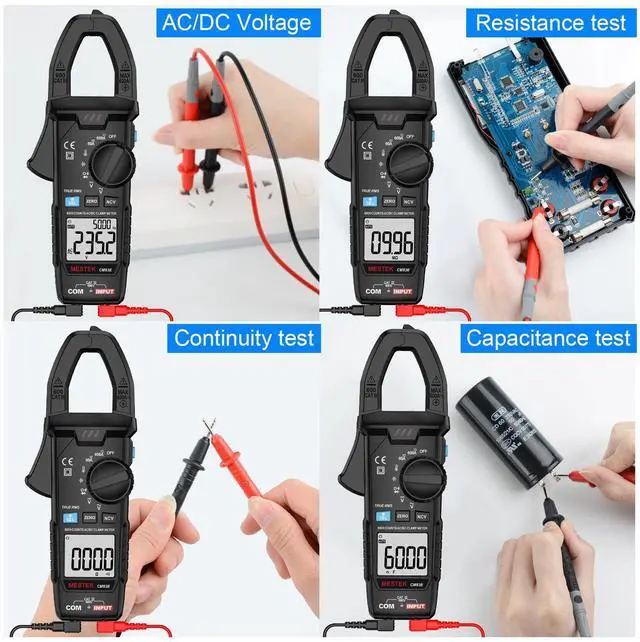

Accurately measure resistance, diode, continuity. Easy to use in laboratory factories and homes.
Test AC/DC Voltage, AC/DC Current
The CM83E Clamp Meter can accurately measure AC/DC Voltage, AC/DC Current,
Use the test leads to get the reading quickly and accurately.
Diode Tester
This clamp meter can measure resistance.
The measuring range of Diode is 0.15V~2.5V,Accuracy: 0.001V.
HOLD Function
"HOLD"can “freeze” the readings so you can record them. If you need to write down the readings for later use, a hold button is indispensable.
Auto Power Off
After being idle for more than 10 minutes, the instrument will enter automatically in standby mode in order to save power.
How to turn off this auto shutoff feature?
Turn off the meter and turn it back on while you press the HOLD key.
Low Battery Indicator
When the low battery indicator appears on the LCD, it means that the battery is low,then the batteries need to be changed.
ZERO Function
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
AC/DC Current Clamp Meter
The measuring range of AC current is 60A~600A,Accuracy: ±(3%+10).
The measuring range of DC current is 0A~600A,Accuracy: ±(3%+10).

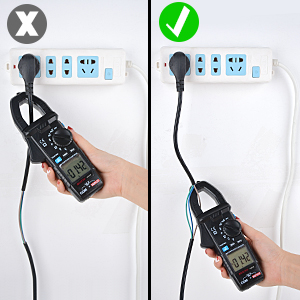

To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires canceling each other, therefore the meter reads 0 A.
Technical Indicators
MESTEK is specialing in the research,manufacture and sale of industrial and home products.Especially in laser range finder,thermometer,we make good achievements.
Self-leveling Laser Level brings you accurate and fast measurement with latest technology which is designed for your works indoors and outdoor
We have special team work for after sales services 7*24 to help you solve any kind of problem
MESTEK STORE
MESTEK STORE
MESTEK STORE
A multimeter is not only professional electricians and electrical engineers would care about, it is also an indispensable asset to the home toolkit for the experienced do-it-yourself or hobbyist
The Digital Clamp Meter with 6000 counts,AC/DC automatic range.it has the functions of data hold, automatic range, temperature measurement, automatic shutdown, backlight, flashlight, full-range overload protection and battery under-voltage indication, battery included.
Whether used by professionals,factories,schools,enthusiasts or families,it is an ideal multi-functional instrument.
×Correct Measurement
Please measure in the correct way, otherwise the readings will not be accurate.We have attached a operation guide and notes to the manual for reference.
×ZERO Function
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
×VFD & LoZ Mode
The Clamp Multimeter has low Input Impedance (LoZ) and Variable Frequency Drive Filtering (VFD) modes, which can provide higher accuracy readings.
× Stylish and Robustness,prevents any damages or scratches caused by accidentally bumping,dropping, secures the device in good condition on travelling or outdoors.
× Weight & Size
Weight :195g. Size: 7.68 x 1.97 x1.38 inches.
Small and light, easy to carry when working.
MESTEK 6000 Counts TRMS Clamp Meter
Package Included
- 1 x Digital Clamp Multimeter
- 1 x Color Box
- 1 x Carrying bag
- 1 x Temperature probe
- 1 x User Manual
- 2 x 1.5V AAA Battery
- 2 x Test Leads
- 1 x screwdriver
The MESTEK True RMS 6000 Counts Digital CLAMP METER is designed to be safely and accurately used by professionals and weekend DIYer’ s. It is suitable for commercial and household electrical problems. Accurately measures AC/DC Voltage, AC/DC Current, Frequency,Resistance, Capacitance Measurement and NCV Detection, Flashlight, Diode and Audible Continuity Testing.
- 600A AC/DC current measurement
- 600V AC/DC voltage measurement
- Non-Contact Voltage (NCV)
- Backlit LCD display and Flashlight
- Keeping the last measurement result (data Hold function)
- Automatic change of the measuring range (autoranging)
- CAT III 600V, Double insulation protection, CE, Ground
- It can be used on dangerous live conductors
Jaw Design
The jaws of the clamp meter can be opend up to 35mm (1.37 inch) suittable for various wire measurements,easily measure current,voltage.
Multi-Function
Accurately measure resistance, diode, continuity. Easy to use in laboratory factories and homes.
Test AC/DC Voltage, AC/DC Current
The CM83E Clamp Meter can accurately measure AC/DC Voltage, AC/DC Current,
Use the test leads to get the reading quickly and accurately.
Diode Tester
This clamp meter can measure resistance.
The measuring range of Diode is 0.15V~2.5V,Accuracy: 0.001V.
HOLD Function
"HOLD"can “freeze” the readings so you can record them. If you need to write down the readings for later use, a hold button is indispensable.
Auto Power Off
After being idle for more than 10 minutes, the instrument will enter automatically in standby mode in order to save power.
How to turn off this auto shutoff feature?
Turn off the meter and turn it back on while you press the HOLD key.
Low Battery Indicator
When the low battery indicator appears on the LCD, it means that the battery is low,then the batteries need to be changed.
ZERO Function
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
AC/DC Current Clamp Meter
The measuring range of AC current is 60A~600A,Accuracy: ±(3%+10).
The measuring range of DC current is 0A~600A,Accuracy: ±(3%+10).
To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires canceling each other, therefore the meter reads 0 A.
Technical Indicators
| AC Voltage | 6V/60V/600V ±(0.8%+5dgt) |
| DC Voltage | 600mV/6V/60V/600V ±(0.5%+3dgt) |
| AC Current | 60A/600A ±(3.0%+10dgt) |
| DC Current | 60A/600A ±(3.0%+10dgt) |
| Resistance | 600O/6KO/60KO/600KO/6mO ±(1.0%+3dgt), 60mO ±(2.0%+5dgt) |
| Capacitance | 600nF/6uF/60uF/600uF/6mF/60mF ±(4%+10dgt) |

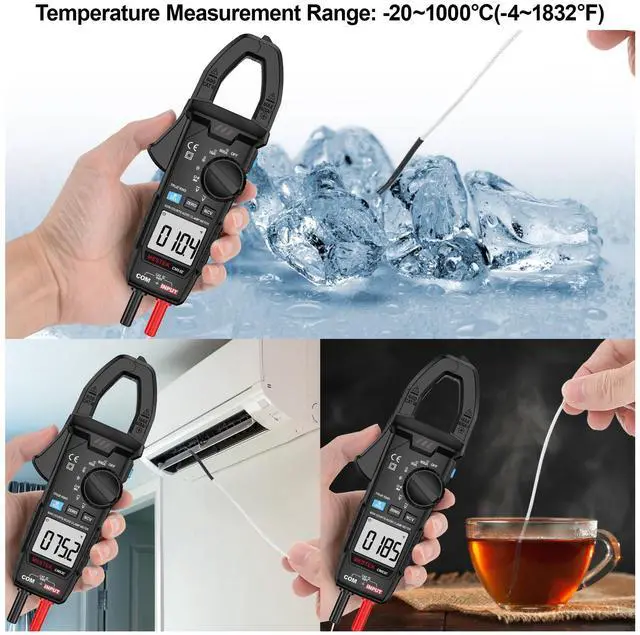

| Temperature | -20?~1000? ±(2.0%+2dgt), -4~1832? ±(2.0%+4dgt) |
| Maximum Display Value | 5999 |
| Continuity Test | If the resistance of the tested circuit is less than 50, the indicating light is always and the buzzer will sound |
| Diode Test | the meter displays the forward voltage drop of the diode under test |
| Overrange display | OL or -OL |
| Automatic range | Yes |
