Why is there no flow data when liquid passes through the flow meter?
We will check in three steps: 1. Remove the flow meter from the pipeline. 2. Blow air at the turbine to check for blockage. 3. If it spins, check the display. If there’s data, the flow is too low; if not, the chip may be faulty and needs replacement.

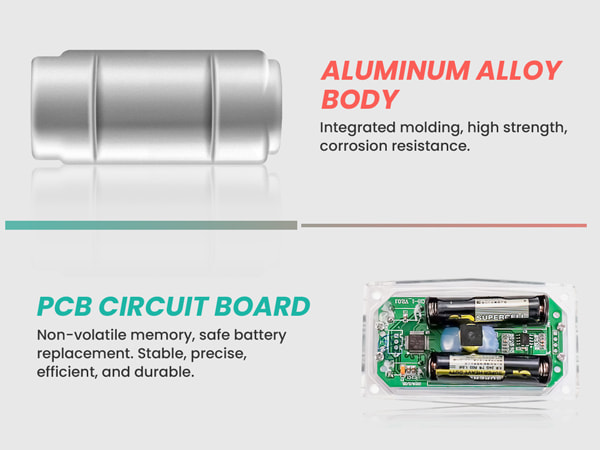

If the flow meter runs out of power, do I need to remove it from the pipeline?

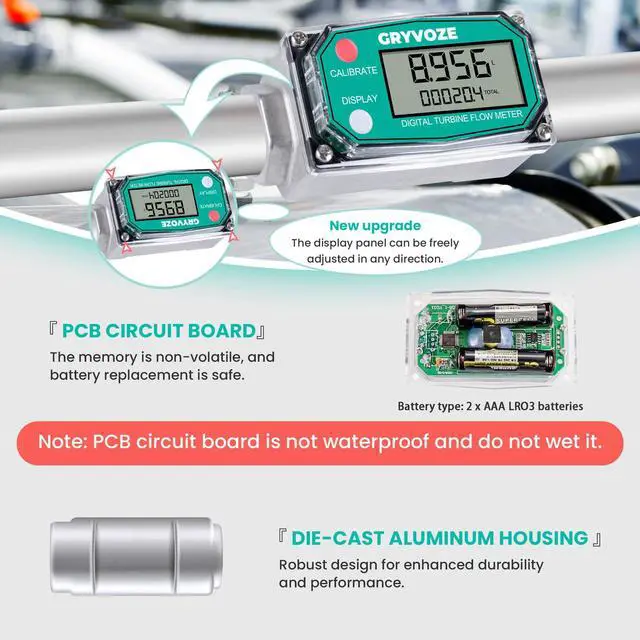

No, you only need to unscrew the screws and remove the display panel to replace the battery inside. There's no need to remove the entire flow meter, and no data will be lost during the battery replacement process.

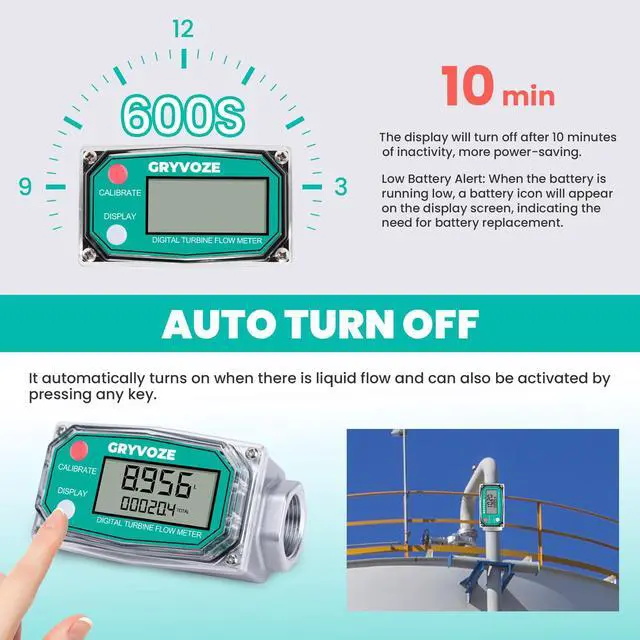

How long can I maintain the flowmeter after receiving a low battery warning?
Under normal conditions, after the low battery warning appears, it is expected to last for about a week to a month. We recommend replacing the battery as soon as possible.
Why is my digital display not working or displaying incorrectly?
Please check the auto-sleep function and try replacing the battery. If neither works, the flowmeter might have water damage, which can harm the PCB. If you need a waterproof model, we recommend purchasing our waterproof flowmeter.
Why does my newly purchased flow meter have errors when measuring water?

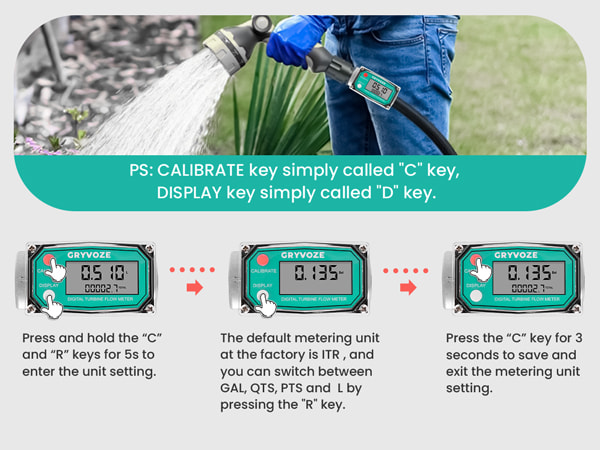

Our flow meters are factory calibrated for fuel. If you are using it for tap water, you can manually adjust the coefficient to 1080. The adjustment steps can be found in our manual. For more precise data, you can perform a calibration.

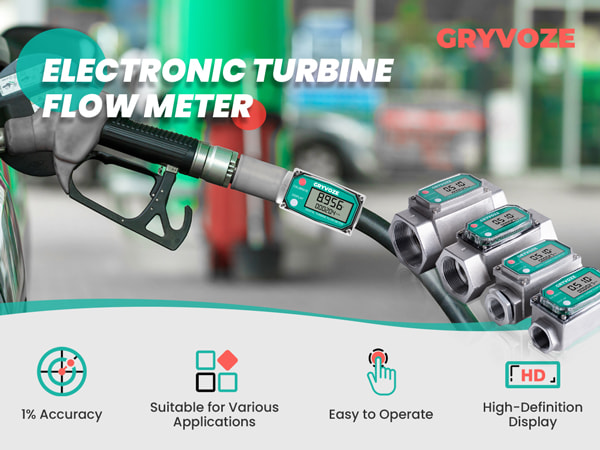

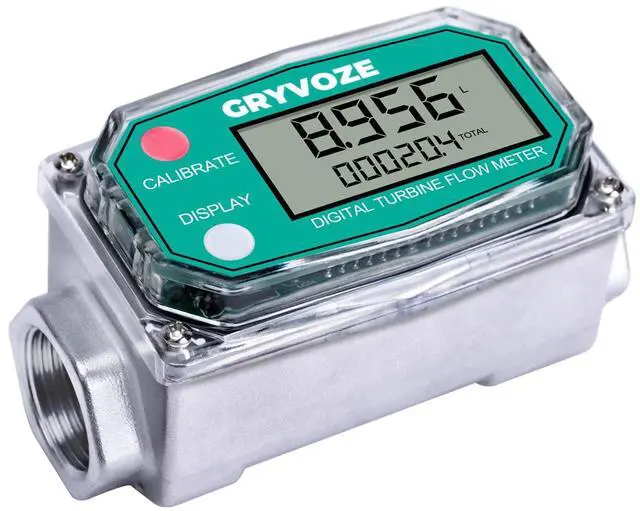

GRYVOZE Digital Turbine Flow Meter
 3/4 Inch Flow Meter |  1 Inch Flow Meter |  1 Inch PVC Flow Meter |  1.5 Inch Flow Meter |  2 Inch Flow Meter |  3 Inch Flow Meter |  1 Inch Flow Meter | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Body Material | Aluminum | Aluminum | Corrosion-resistant PVC | Aluminum | Aluminum | Aluminum | Aluminum |
Flow Range | 0.8-13 GPM (3-50 LPM) | 2.6-26 GPM (10-100 LPM) | 2.4-26 GPM (9-100 LPM) | 10.5-74 GPM (40-280 LPM) | 16-132 GPM (60-500 LPM) | 21-264 GPM (80-1000 LPM) | 2.4-26 GPM (9-100 LPM) |

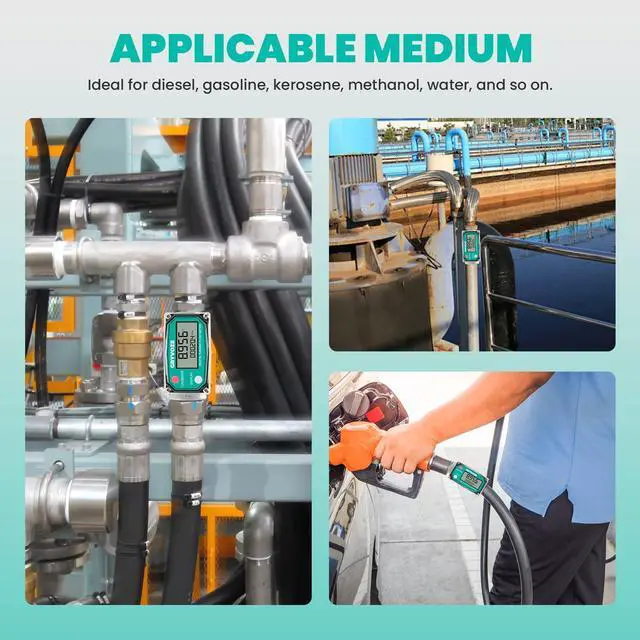

Applicable Medium | Fuel, Diesel, Water... | Fuel, Diesel, Water... | Acidic and alkaline liquids | Fuel, Diesel, Water... | Fuel, Diesel, Water... | Fuel, Diesel, Water... | Fuel, Diesel, Water... |
Corrosive liquid | Not supported | Not supported | Supports low-corrosive liquids | Not supported | Not supported | Not supported | Not supported |

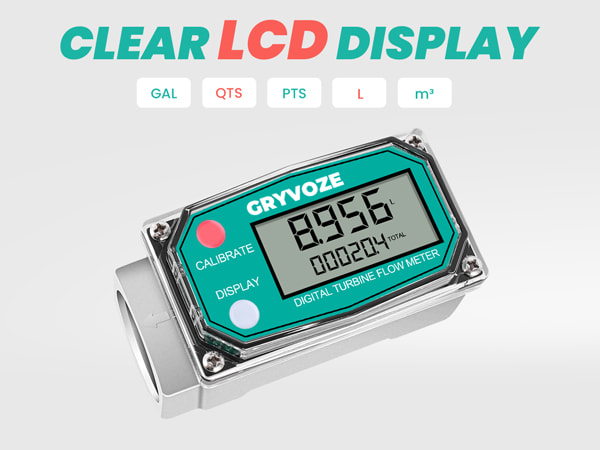

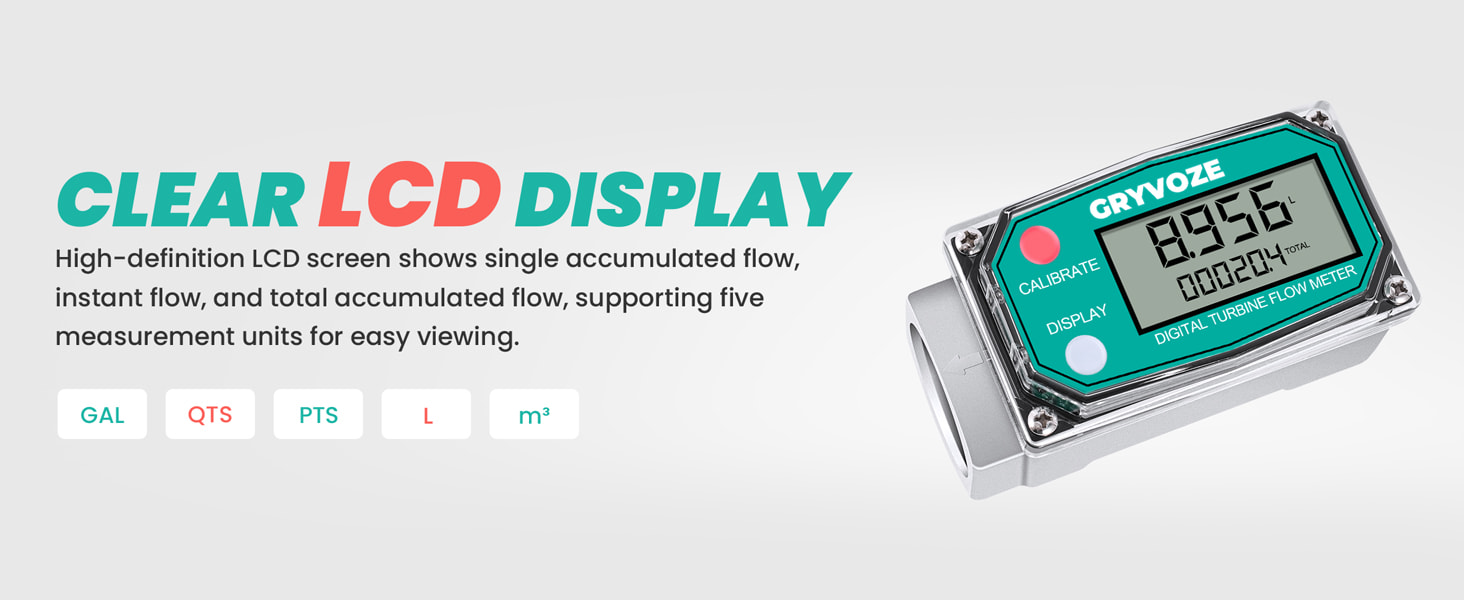

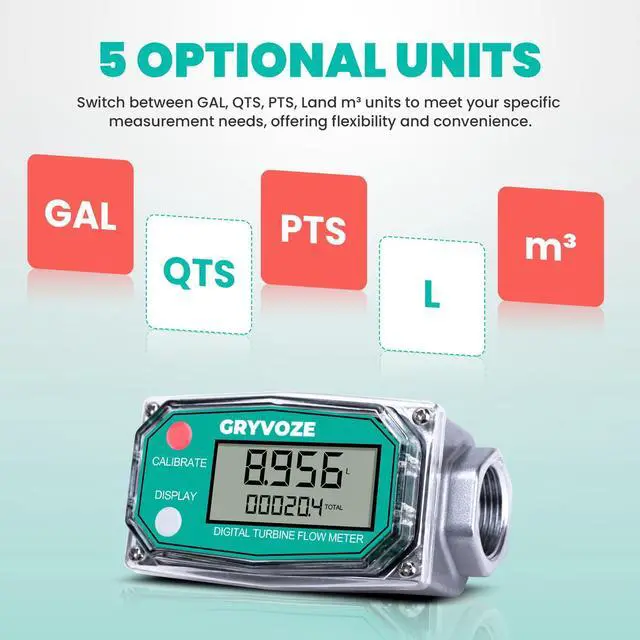

Measurement Units | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US) |
Waterproof | ? | ? | ? | ? | ? | ? | ? |

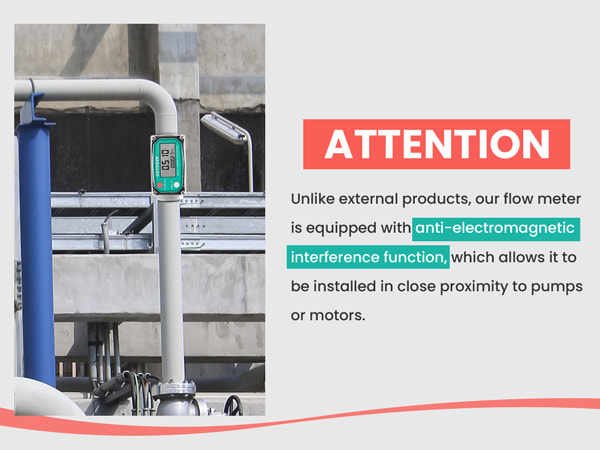

EMI Protection | ? | ? | ? | ? | ? | ? | ? |
Accessory | None | 3/4 inch Adapters | None | None | None | None | 3/4 inch Adapters |
Single count range | 99999 | 99999 | 99999 | 99999 | 99999 | 99999 | 99999 |
Total cumulative count range | 29999999 | 29999999 | 29999999 | 29999999 | 29999999 | 29999999 | 29999999 |
Why is there no flow data when liquid passes through the flow meter?
We will check in three steps: 1. Remove the flow meter from the pipeline. 2. Blow air at the turbine to check for blockage. 3. If it spins, check the display. If there’s data, the flow is too low; if not, the chip may be faulty and needs replacement.
If the flow meter runs out of power, do I need to remove it from the pipeline?
No, you only need to unscrew the screws and remove the display panel to replace the battery inside. There's no need to remove the entire flow meter, and no data will be lost during the battery replacement process.
How long can I maintain the flowmeter after receiving a low battery warning?
Under normal conditions, after the low battery warning appears, it is expected to last for about a week to a month. We recommend replacing the battery as soon as possible.
Why is my digital display not working or displaying incorrectly?
Please check the auto-sleep function and try replacing the battery. If neither works, the flowmeter might have water damage, which can harm the PCB. If you need a waterproof model, we recommend purchasing our waterproof flowmeter.
Why does my newly purchased flow meter have errors when measuring water?
Our flow meters are factory calibrated for fuel. If you are using it for tap water, you can manually adjust the coefficient to 1080. The adjustment steps can be found in our manual. For more precise data, you can perform a calibration.
GRYVOZE Digital Turbine Flow Meter
3/4 Inch Flow Meter | 1 Inch Flow Meter | 1 Inch PVC Flow Meter | 1.5 Inch Flow Meter | 2 Inch Flow Meter | 3 Inch Flow Meter | 1 Inch Flow Meter |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Body Material | ||||||
| Aluminum | Aluminum | Corrosion-resistant PVC | Aluminum | Aluminum | Aluminum | Aluminum |
| Flow Range | ||||||
| 0.8-13 GPM (3-50 LPM) | 2.6-26 GPM (10-100 LPM) | 2.4-26 GPM (9-100 LPM) | 10.5-74 GPM (40-280 LPM) | 16-132 GPM (60-500 LPM) | 21-264 GPM (80-1000 LPM) | 2.4-26 GPM (9-100 LPM) |
| Applicable Medium | ||||||
| Fuel, Diesel, Water... | Fuel, Diesel, Water... | Acidic and alkaline liquids | Fuel, Diesel, Water... | Fuel, Diesel, Water... | Fuel, Diesel, Water... | Fuel, Diesel, Water... |
| Corrosive liquid | ||||||
| Not supported | Not supported | Supports low-corrosive liquids | Not supported | Not supported | Not supported | Not supported |
| Measurement Units | ||||||
| QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US), m3 | QTS, PTS, L, GAL(US) |
| Waterproof | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| EMI Protection | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| Accessory | ||||||
| None | 3/4 inch Adapters | None | None | None | None | 3/4 inch Adapters |
| Single count range | ||||||
| 99999 | 99999 | 99999 | 99999 | 99999 | 99999 | 99999 |
| Total cumulative count range | ||||||
| 29999999 | 29999999 | 29999999 | 29999999 | 29999999 | 29999999 | 29999999 |
