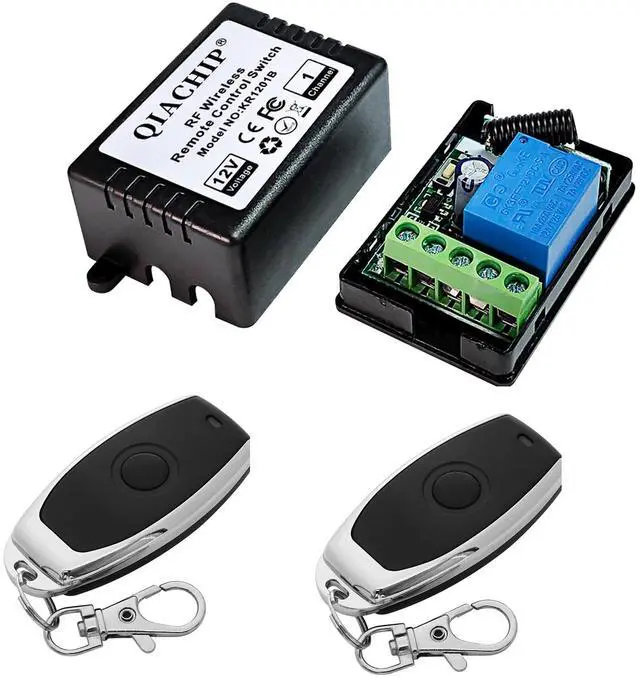

DV 12V 1-CH Wireless Remote Control Switch 10A
Supply voltage: 12V.
RF frequency: 433MHz.
RF working mode: superheterodyne.
Receive sensitivity: > 97 dBm.
Transmission distance: 50m (open space).
Remote storage: 15 units.
Remote Control Type: Learning Code EV1527
Working mode: momentary, toggle, close, time delay (5s, 10s, 15s).

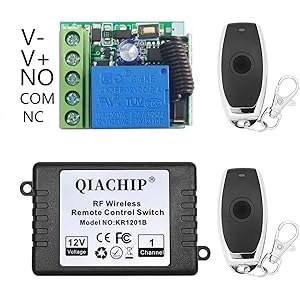

Output terminal: NC, COM,NO
PCB Dimension: 35 x 30 x 18mm (L x W x H)
Remote control
Operating Frequency: 433MHz
Powered by 3V button battery (battery included).
Operating Current: 12mA
Transmission Power: 10mW
Modulation mode: ASK (AM).
Coding type: learning code.
Transfer Distance: 50m
Size: 59*28*8mm.
Decoding mode: MCU software decoding.

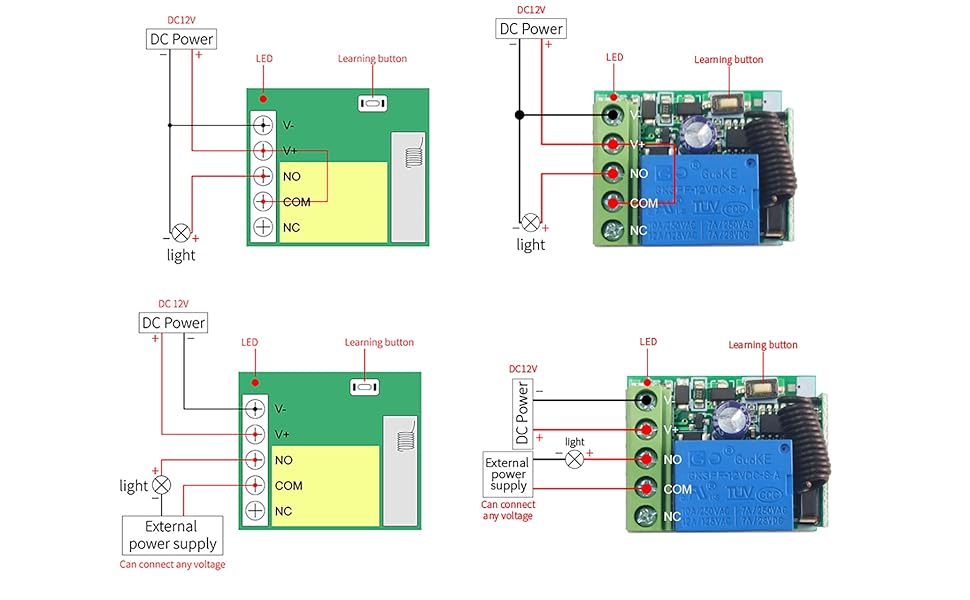

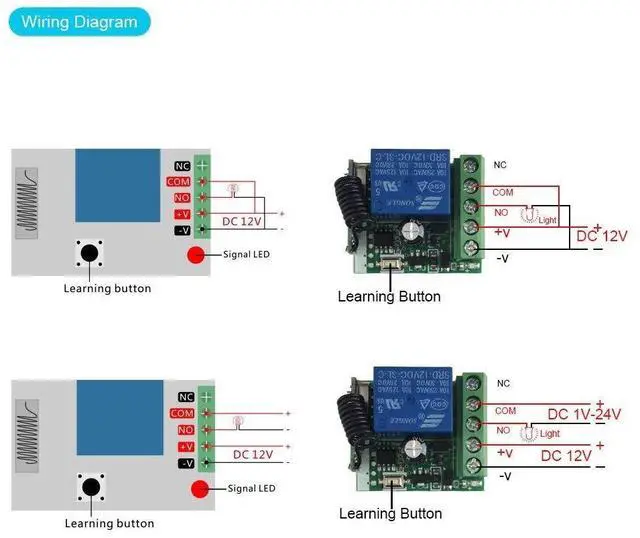

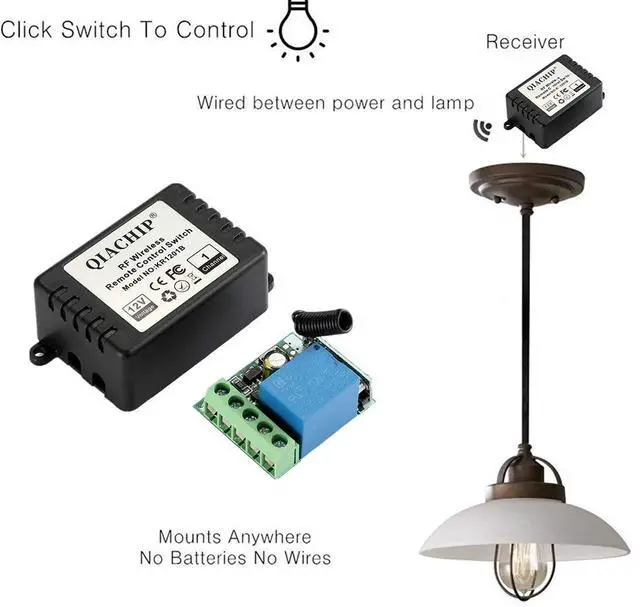

Wiring Diagram
This RF433 receiver is powered by DC 12V input and features dry contact (passive switch) output.
- Input voltage: DC 12V
- Output: Dry contact (passive switch signal)
- Remote control pairing required
For the 12V 10A 1CH receiver unit, we recommend using a 12V regulated DC power supply to ensure long-term stable operation—dry batteries are only suitable for temporary emergency or testing use!

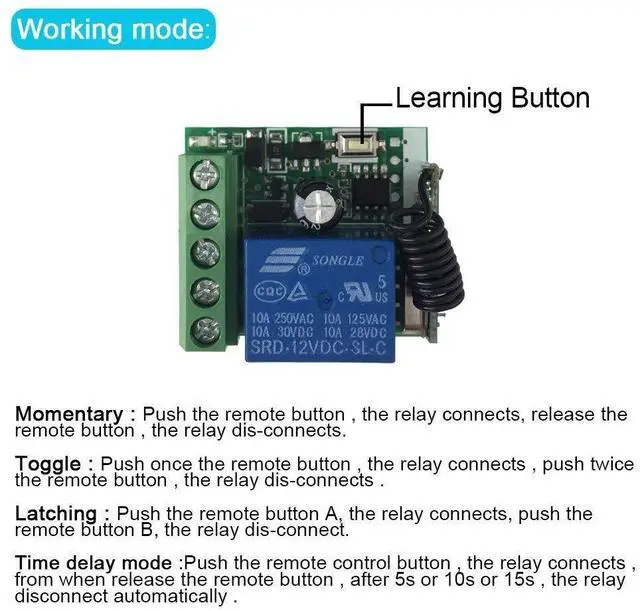

Operating Mode
Momentary Mode
press and hold the remote button, the relay connects, release the remote button, the relay disconnects.
How to Set?
- Press the learning button 1 times (on the receiver).
- Press one button on the remote control. To succeed.
Toggle Mode
press the remote button once, the relay connects, press the remote button again, the relay disconnects.
How to Set?
- Press the learning button 2 times (on the receiver).
- Press one button on the remote control. To succeed.
Latched Mode
Press remote button A, the relay connects, press remote button B, the relay disconnects.
How to Set?
- Press the learning button 3 times (on the receiver).
- Press the "A" button on the remote control. Wait 2 seconds.
- Press the "B" button on the remote. To succeed.

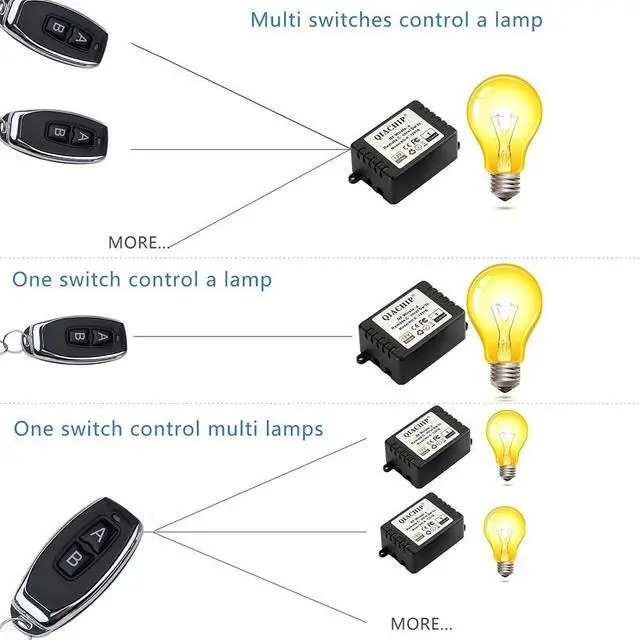

This mode can be achieved using two single-button remote controls, or directly using a remote control with two or more buttons.
delay-off mode
press the remote control button, the relay connects, from when you release the remote button, after 5 seconds, 10 seconds, 15 seconds or 20 seconds, the relay automatically disconnects.
How to Set?
- Press the learning button 4 times(or 5/6/7 times) on the receiver.
- Press one button on the remote control. To succeed.
