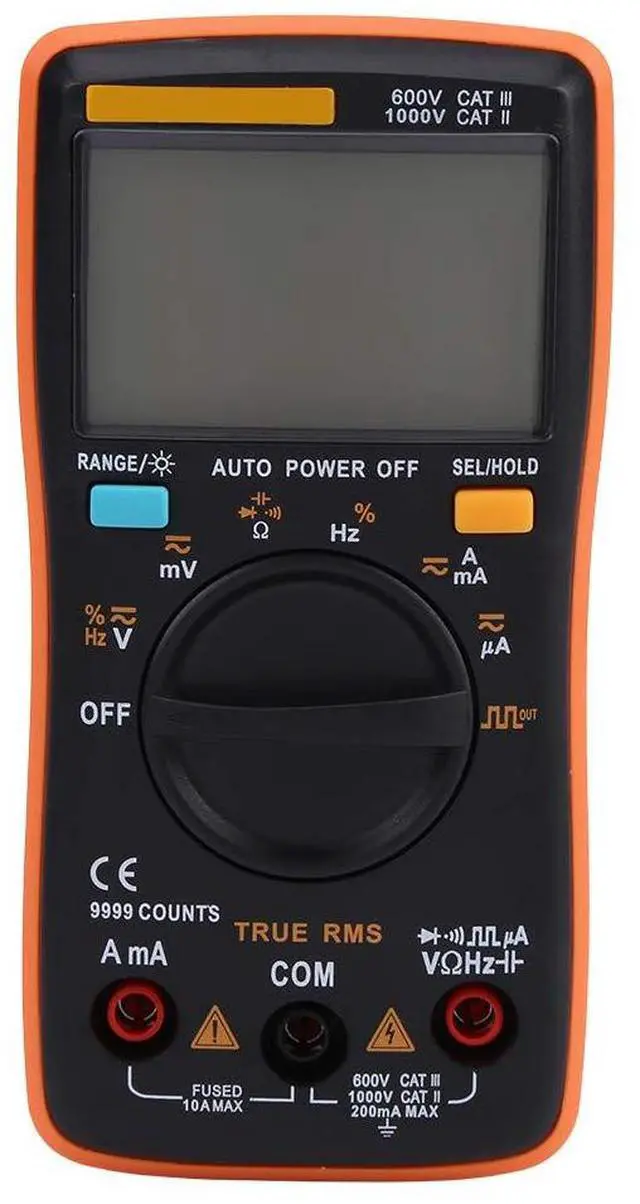

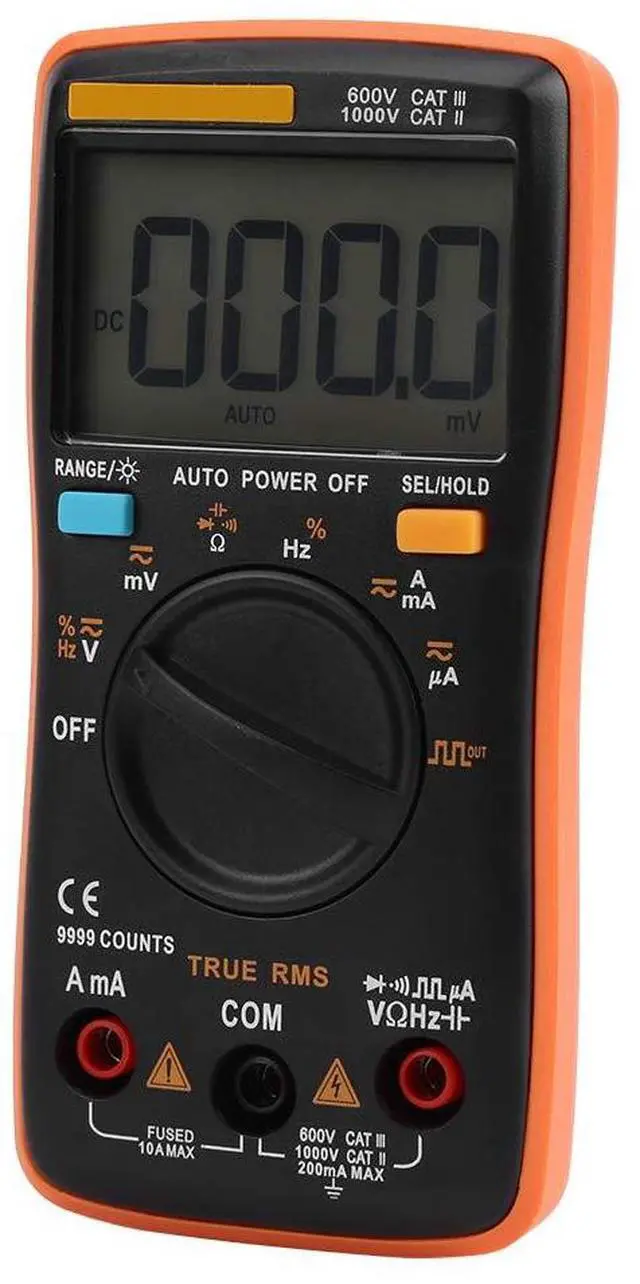

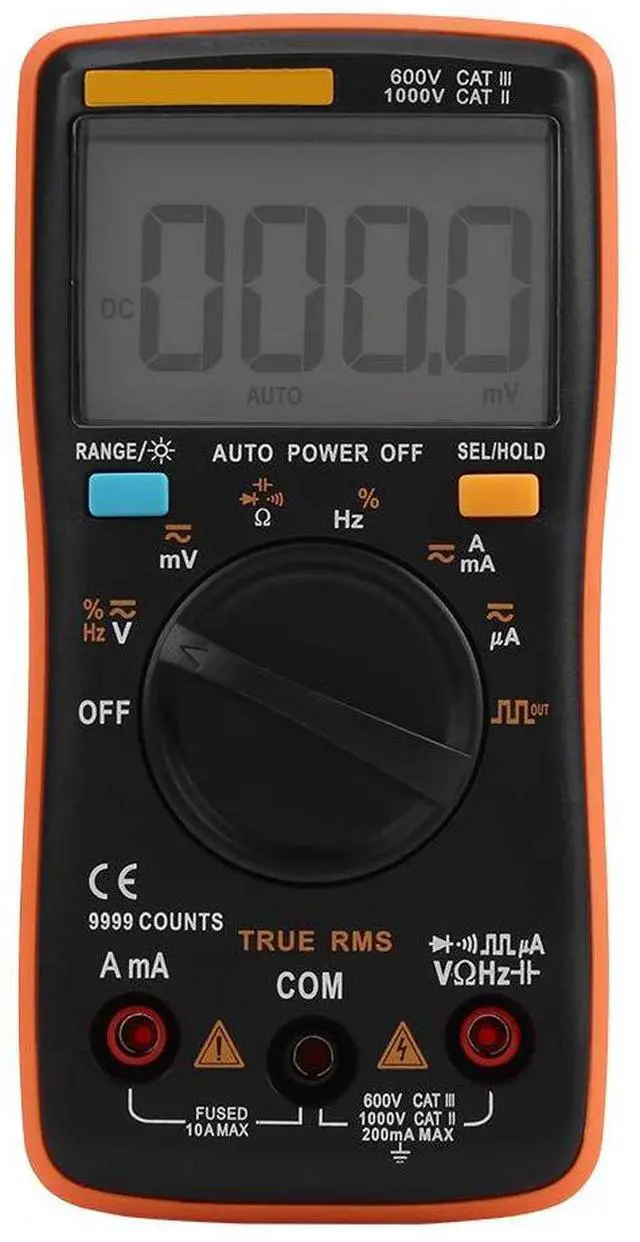

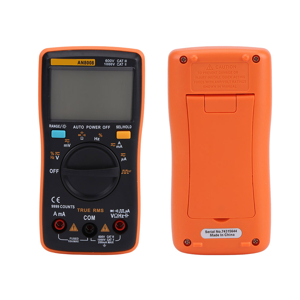

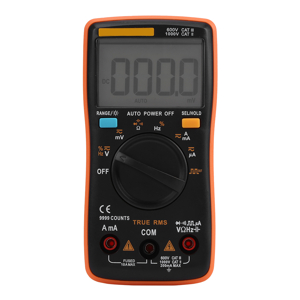

Aneng AN8008 True RMS Digital Multimeter AC DC Voltage Ammeter Current Ohm Meter Aneng An870 Aneng Q1
aneng 870, MULTI FUNCTION: The digital multimeter supports continuity testing, testing, diode testing.

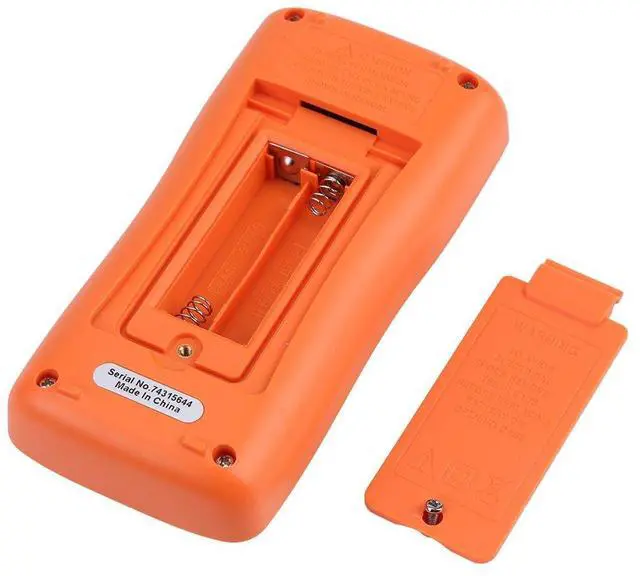

AUTOMATIC POWER OFF The multimeter uses 2 pieces 1.5V AAA batteries not included as power supply and support auto power off function to save power
Designed to safely and accurately solve a variety of automotive and household electrical problems., multimeter test s kit, multimeter aneng an8008
Specifications:
Function Range Resolution Accuracy . Value Other
DC Voltage (V) 999.9mV 0.1mV ±(0.5%+3) 999.9V
9.999V 0.001V
99.99V 0.01V
999.9V 0.1V
DC Voltage (mV) 9.999mV 0.001mV 99.99mV
99.99mV 0.01mV
AC Voltage (V) 999.9mV 0.1mV ±(1.0%+3) 750V 40Hz-1kHz
9.999V 0.001V
99.99V 0.01V
750.0V 0.1V
AC Voltage (mV) 9.999mV 0.001mV 99.99mV
99.99mV 0.01mV
DC Current (mA&A) 999.9mA 0.1mA ±(1.0%+3) 9.999A
9.999A 0.001A
DC Current (uA) 99.99uA 0.01uA ±(0.8%+3) 999.9uA
999.9uA 0.1mA
AC Current (mA&A) 999.9mA 0.1mA ±(1.2%+3) 9.999A 40Hz-1kHz
9.999A 0.001A
AC Current (uA) 99.99uA 0.01uA ±(1.0%+3) 999.9uA
999.9uA 0.1uA
? 0.01? ±(1.0%+3) 9.999M?
? 0.1? ±(0.5%+3)
9.999k? 0.001k?
99.99k? 0.01k?
999.9k? 0.1k?
9.999M? 0.001M? ±(1.5%+3)
Capacitance 9.999nF 0.001nF ±(5.0%+20) 9.999mF
99.99nF 0.01nF
999.9nF 0.1nF
9.999uF 0.001uF ±(2.0%+5)
99.99uF 0.01uF
999.9uF 0.1uF
9.999mF 0.001mF ±(5.0%+5)
Frequency 99.99Hz 0.01Hz ±(0.1%+2) 9.999MHz
999.9Hz 0.1Hz
9.999kHz 0.001kHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
9.999MHz 0.001MHz
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Diode Yes
Continuity Yes
Output 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/900Hz/1000Hz/2000Hz/3000Hz/4000Hz/5000Hz
Display (LCD) Counts
Ranging Auto/Manual
Material ABS
Update Rate 3Times/Second
Ture RMS Yes
Back Light Yes
Data Hold Yes
Low Battery Indication Yes
Auto Power Off Yes

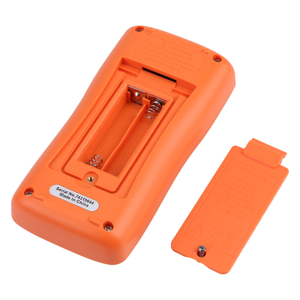

Battery Type 1.5V AAA Batteries * 2 (NOT included)
Operating Temperature 0~40?
Humidity
Storage Temperature -20?~60?
Humidity

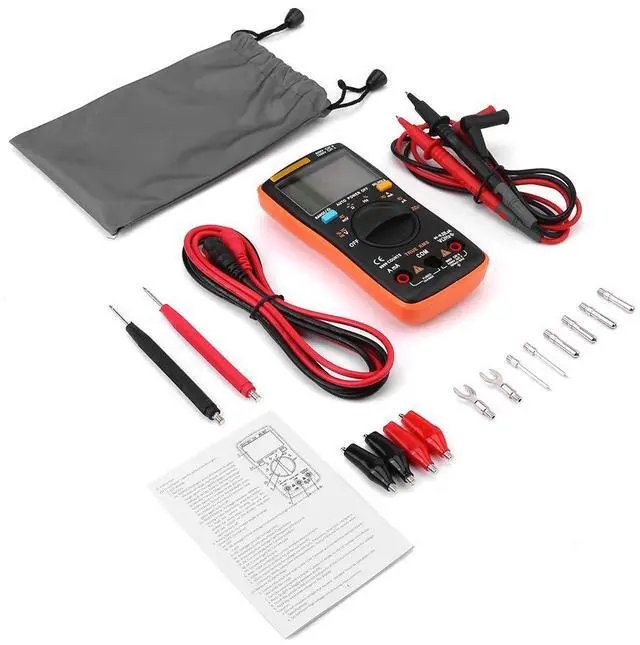

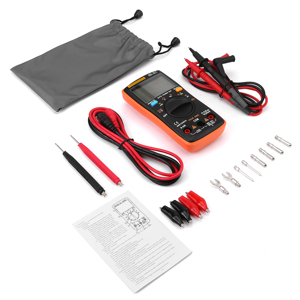

Package Includes:
1 x Multimeter (Batteries are NOT included)

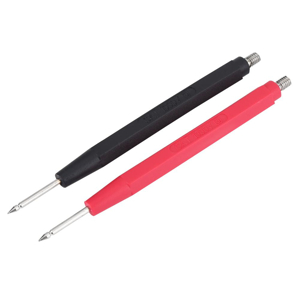

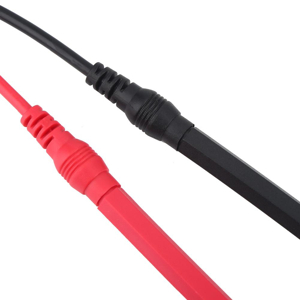

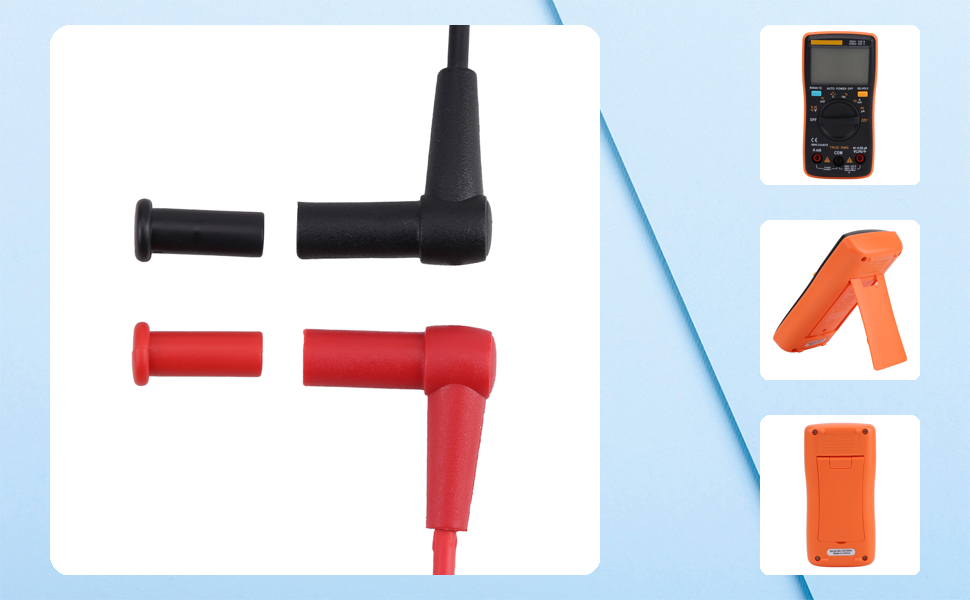

1 set x Text Probes and Cables
1 x Bag
1 x User Manual
