PINTECH AC/DC Current Clamp Probe for Oscilloscope 200kHz Bandwidth, 0.4A-10A, 10A-60A Test Range, Current Probe with BNC Connector, PT-2710

  • Test Range: PINTECH PT-2710 current clamp measure currents between 0.4A and 60A. RMS value can be measured with AC/DC signals.
  • The current probe is designed according to Faraday's principle, measuring magnetic ring of a wire's interfering current signal.
  • PINTECH AC/DC current probe's bandwidth up to 200KHz, ±2%+5mV accuracy, featuring with low battery indication, low noise level, and high detection accuracy.

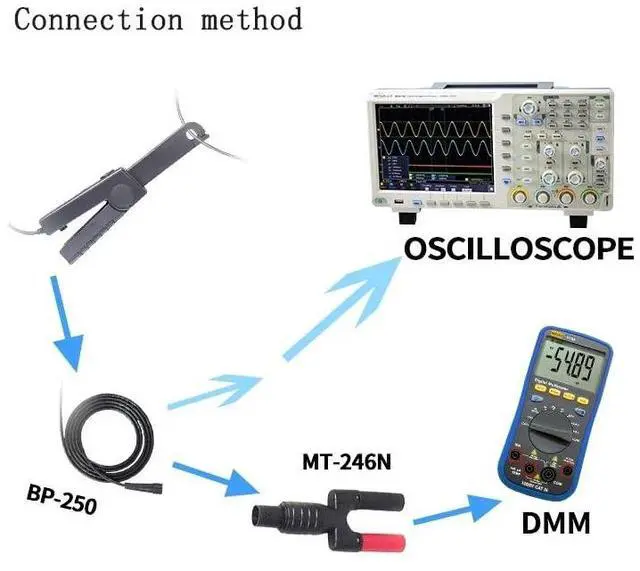

  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes. With a MT-246N adapter, the probe can also be used for multimeter.
  • The DC/AC current probe meter is small and delicate, easy to carry, can be widely used in motor drive, power frequency, inverter, power supply and avionics.
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

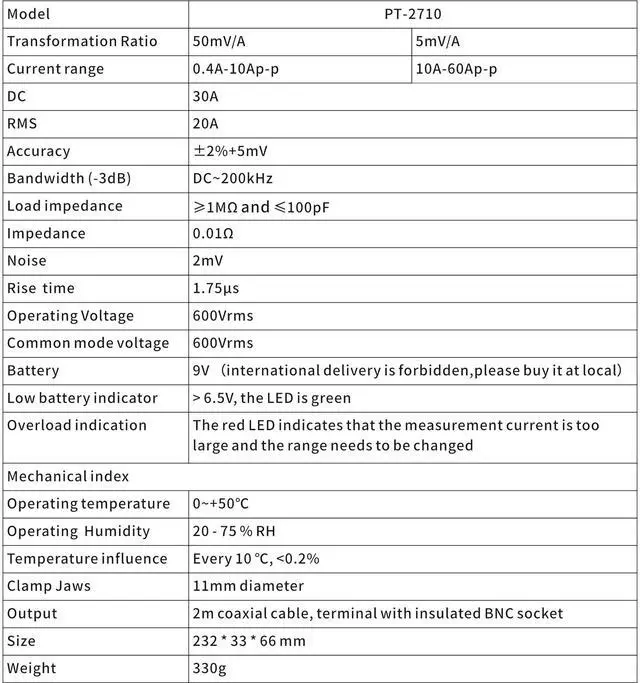

MODEL: PT-2710


Bandwidth (-3dB): DC-200kHZ


Transformation Ratio: 50mV/A; 5mV/A


Current Range: 0.4A-10Ap-p; 10A-60Ap-p


DC Current: 30A


RMS: 20A


Output Signal Percentage Error: ±2%+5mV


Load Impedance: 1 M and 100 p F


Impedance: 0.01


Noise:2mV


Rise Time: 1.75s


Operating Voltage: Max 600 Vrms


Common Mode Voltage: Max 600 Vrms


Battery: 9V(NOT INCLUDED)

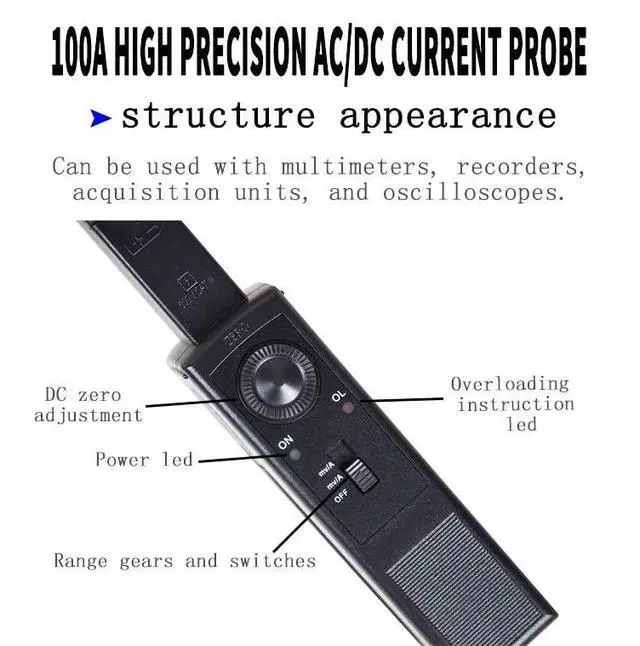

Low Battery Indication: >6.5V, LED is green


Overload Indication: The red LED indicates that the measured current is too high and that the measuring range needs to be changed


Max Clamp Diameter: 11mm/0.43in


Output: 2 metre coaxial cablem, terminated with insulated BNC socket


Size: 232 x 33 x 66 mm


Weight: 330g/0.73lb


Product information
Product Dimensions 9.09 x 2.64 x 1.42 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number PT-2710
Is Discontinued By Manufacturer No
Date First Available May 10, 2021
