Vaccine Digital Data Logger
Reusable Data Logger
Cold chain monitor (CCM)
Real-time Monitor
Over 27 years, Elitech has developed from a small hardware company to a global cold chain corporation. Offering high quality refrigeration products and advanced monitoring since 1996.
Elitech temperature and humidity data loggers are suitable for a wide range of scenarios such as transportation of sensitive products like foodstuff and medication, supermarket's freezer, and fridge, including cold chain management.
How did we get our start?
Elitech is dedicated to researching and developing the manufacture of products for the frozen and refrigeration industry.

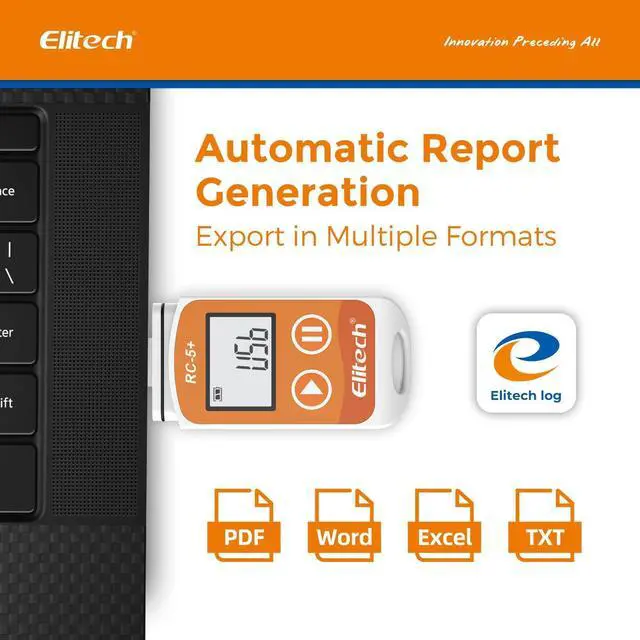

Auto-generated PDF & CSV
More products are waiting for you to explore
 RC-5+TE |  RC-5+ |  RC-5 |  RC-5+TE ISO Certified |  RC-5+ ISO Certified |  RC-5 ISO Certified | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Certified by | Factory | Factory | Factory | ISO 17025 | ISO 17025 | ISO 17025 |
Sensor Type | External Temp | Internal Temp | Internal Temp | External Temp | Internal Temp | Internal Temp |
Temperature Logging | ? | ? | ? | ? | ? | ? |
Temperature Range(?) | -40~85? | -30~70? | -30~70? | -40~85? | -30~70? | -30~70? |
Temperature Range(?) | -40~185? | -22~158? | -22~158? | -40~185? | -22~158? | -22~158? |
Record Capacity | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) |
Data Export | Automatic PDF report | Automatic PDF&CSV report | Via Software | Automatic PDF report | Automatic PDF&CSV report | Via Software |
Logging Interval | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h |
Response Time | 5min | 5min | 5min | 5min | 5min | 5min |
Protection Class | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Repeat Start | ? | ? | ? | ? | ? | ? |
Mark Event | ? | ? | ? | ? | ? | ? |
How to use the data logger for the first time?
1. Install Elitechlog software. Insert the device into a computer USB port.
2. Click ""set parameter"" and then click ""save parameter"" to exit.

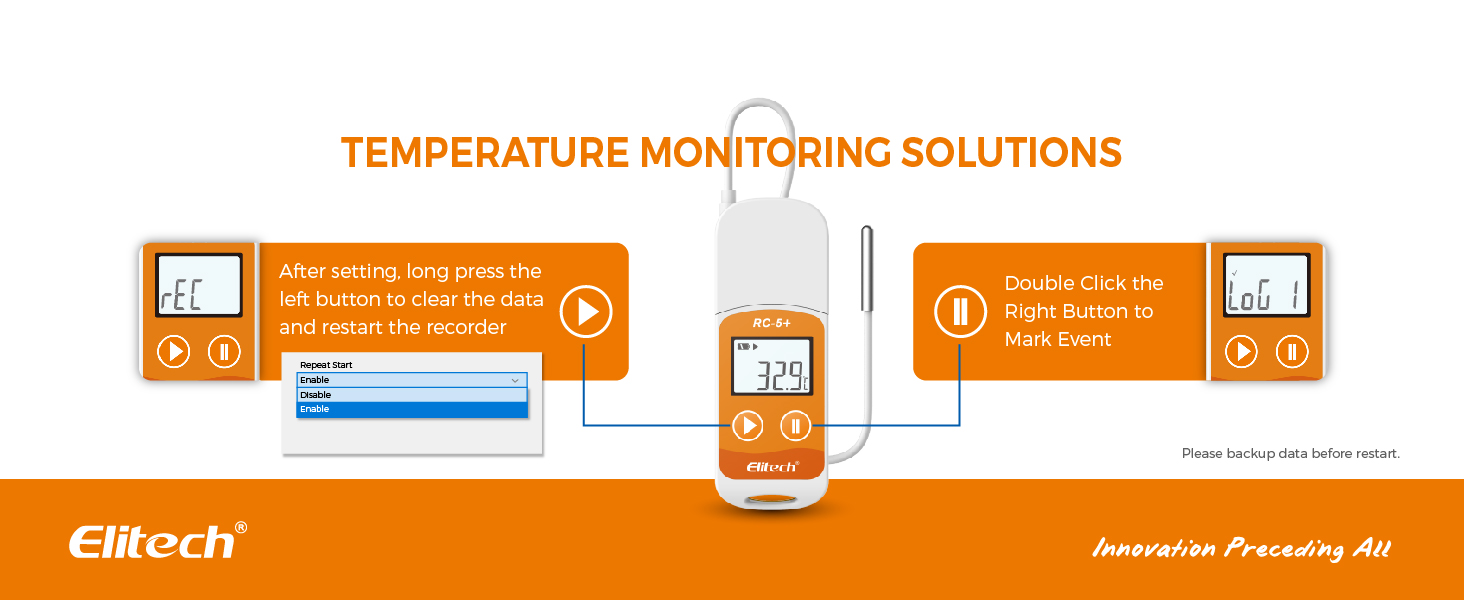

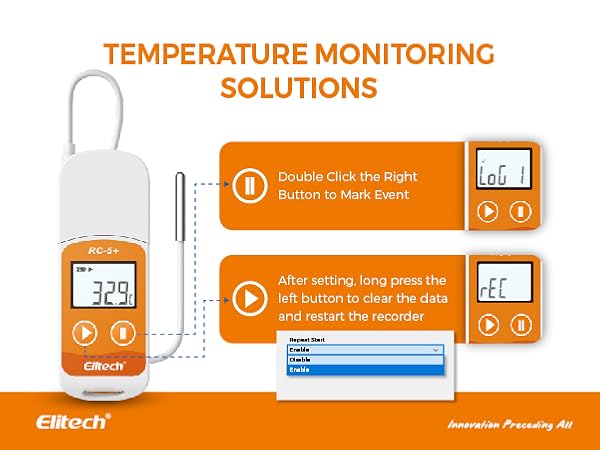

3. Press and hold the left button for more than 4 seconds to start recording.
How to Reset & Reuse the Logger?
Click "Quick Reset" to reset the original parameters settings. Disconnect the device from your computer to start using it again.
Note: Please read and save the historical data before parameter settings or the data will be clear.
How to clear the recorded data?
The recorded data can be cleared by the data management software by setting parameters.
How to obtain recorded data?
1. Plug the data logger to a computer USB port, the icon will light in the screenafter connection.The green LED indicator will light at the same time.
2. Open the data management software, the data logger will connectautomatically and upload data.
How to download and install the data management software Elitechlog?
Please download and install the free ElitechLog software (macOS and Windows) from Elitech US: elitechus.com. Search 'Elitechlog' in the APP store to obtain MAC software.
Auto-generated PDF & CSV
More products are waiting for you to explore
RC-5+TE | RC-5+ | RC-5 | RC-5+TE ISO Certified | RC-5+ ISO Certified | RC-5 ISO Certified |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Certified by | |||||
| Factory | Factory | Factory | ISO 17025 | ISO 17025 | ISO 17025 |
| Sensor Type | |||||
| External Temp | Internal Temp | Internal Temp | External Temp | Internal Temp | Internal Temp |
| Temperature Logging | |||||
| ? | ? | ? | ? | ? | ? |
| Temperature Range(?) | |||||
| -40~85? | -30~70? | -30~70? | -40~85? | -30~70? | -30~70? |
| Temperature Range(?) | |||||
| -40~185? | -22~158? | -22~158? | -40~185? | -22~158? | -22~158? |
| Record Capacity | |||||
| 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) | 32,000 (MAX) |
| Data Export | |||||
| Automatic PDF report | Automatic PDF&CSV report | Via Software | Automatic PDF report | Automatic PDF&CSV report | Via Software |
| Logging Interval | |||||
| 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h | 10s ~ 24h |
| Response Time | |||||
| 5min | 5min | 5min | 5min | 5min | 5min |
| Protection Class | |||||
| IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Repeat Start | |||||
| ? | ? | ? | ? | ? | ? |
| Mark Event | |||||
| ? | ? | ? | ? | ? | ? |

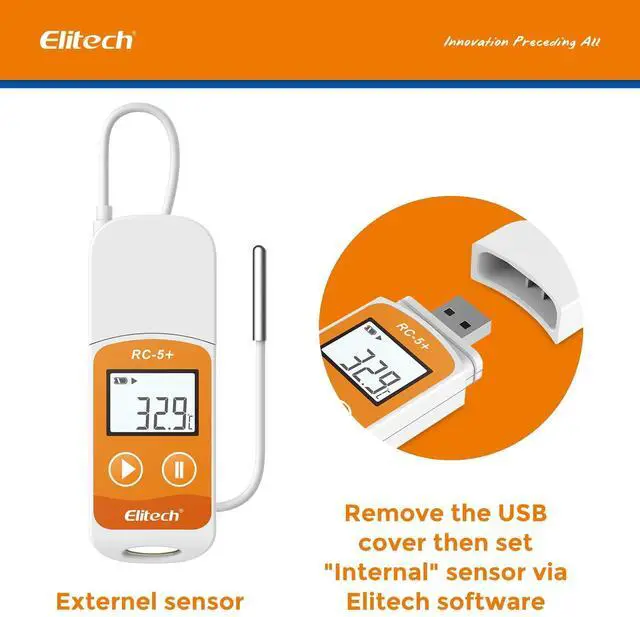

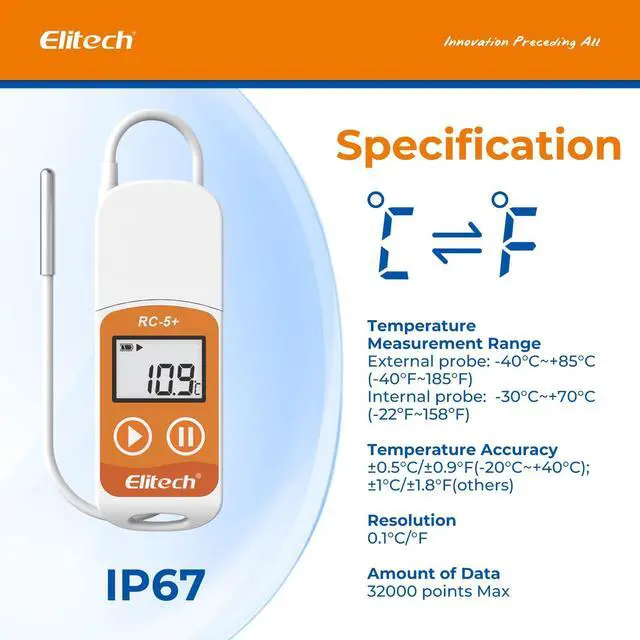

| Sensor Type | External Temp |
|---|---|
| Temp Range | -40?~185?(-40°C ~85°C) |
| Temp Accuracy | ±0.5(-20°C/+40°C);±1.0(other range) |
| Humi Range | / |
| Humi Accuracy | / |
| Resolution | 0.1°C/°F |
| Data Interface | USB |
| Memory Capacity | 32,000 (MAX) |
| Logging Interval | 2 minutes (standard) |

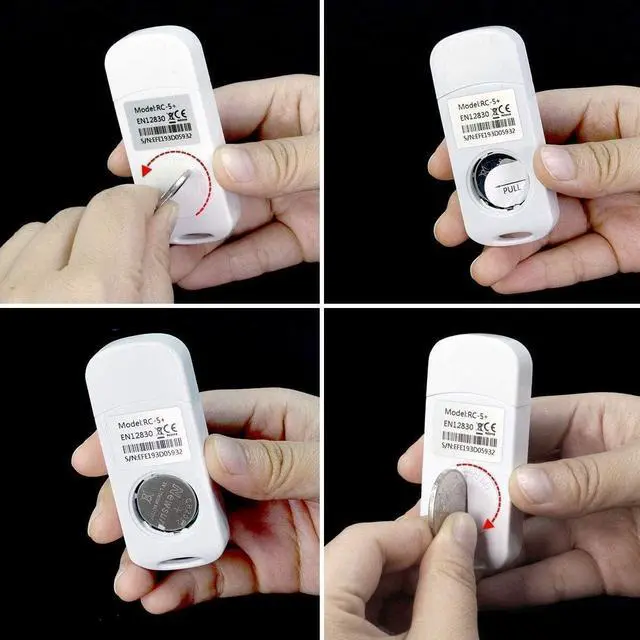

| Power supply | CR2032 button cell |
| Software | ElitechLog, for macOS & Windows system |
| Report Format | Automatic PDF report; PDF/EXCEL/TXT*via software |
| Logging Mode | Stop when full; Circular logging |
| Alarm Configuration | LCD display |

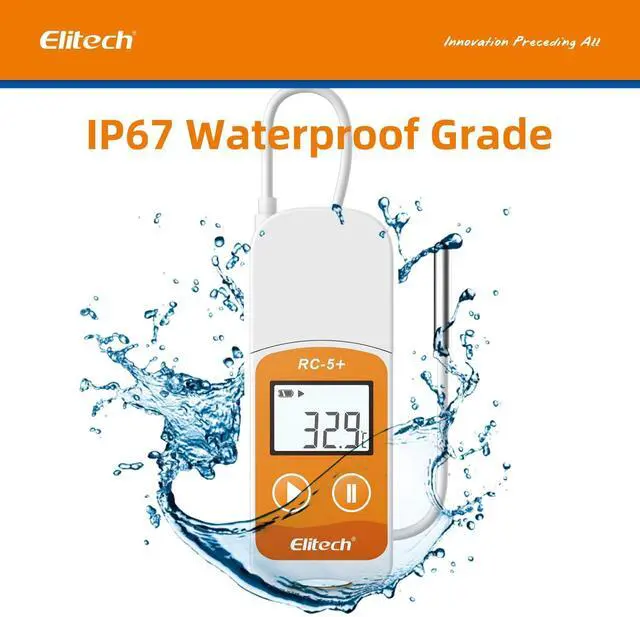

| Protection Class | IP67 |
| Certification | EN12830, CE, RoHS |
How to use the data logger for the first time?
1. Install Elitechlog software. Insert the device into a computer USB port.
2. Click ""set parameter"" and then click ""save parameter"" to exit.
3. Press and hold the left button for more than 4 seconds to start recording.
How to Reset & Reuse the Logger?
Click "Quick Reset" to reset the original parameters settings. Disconnect the device from your computer to start using it again.
Note: Please read and save the historical data before parameter settings or the data will be clear.
How to clear the recorded data?
The recorded data can be cleared by the data management software by setting parameters.
How to obtain recorded data?
1. Plug the data logger to a computer USB port, the icon will light in the screenafter connection.The green LED indicator will light at the same time.
2. Open the data management software, the data logger will connectautomatically and upload data.
How to download and install the data management software Elitechlog?
Please download and install the free ElitechLog software (macOS and Windows) from Elitech US: elitechus.com. Search 'Elitechlog' in the APP store to obtain MAC software.
