Features
- CMOS integrated circuit and dual slope A/D conversion, auto zero and select polarity
- It will auto turn off after starting up 25 minutes
- High reliable measure range and 32 gears are more effective to avoid false operation
- Support transistor and Diode test
- Newest design and high quality

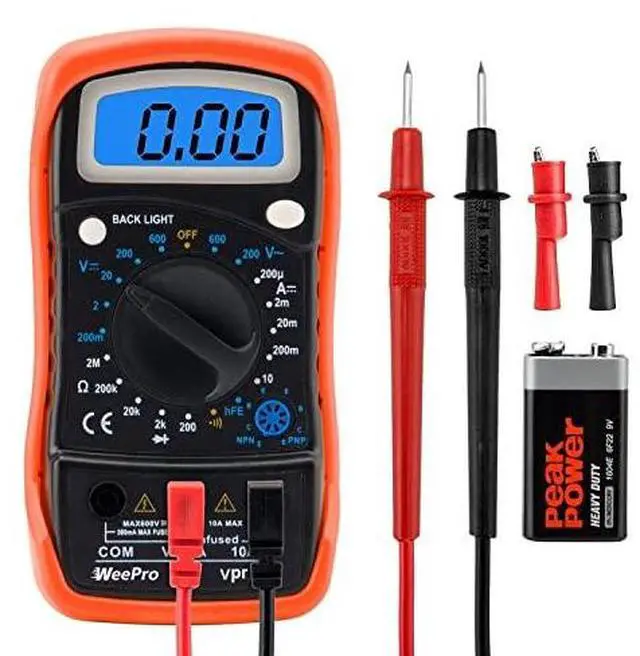

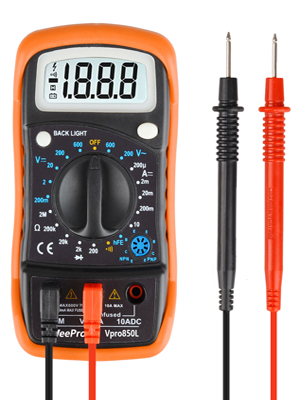

WeePro Vpro850L Digital Multimeter
Electrical Troubleshooting Necessities

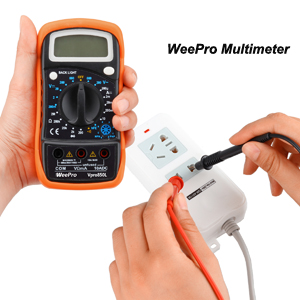

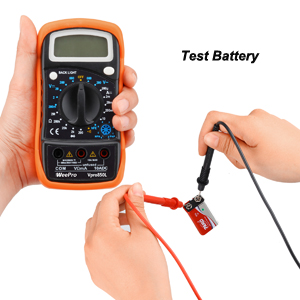

The multimeter is a basic assistant to test & troubleshoot a variety of automotive and household electrical problems safely and accurately. This WeePro Digital Multimeter Voltmeter Ohmmeter Ammeter meets your demands. Adopting durable material, it is tough enough to be used for a long time. Besides, it can be used in measuring remaining capacity of the rechargeable battery, so as to check whether the battery is fully-charged. Don't hesitate to bring it home now!
TECHNNICAL SPECIFICATION
- Accuracy: ±a% of reading: ± N0 digits guaranteed for l year.
- Environmental temperature : 23?±2?.
- Relative Humidity: <75%.

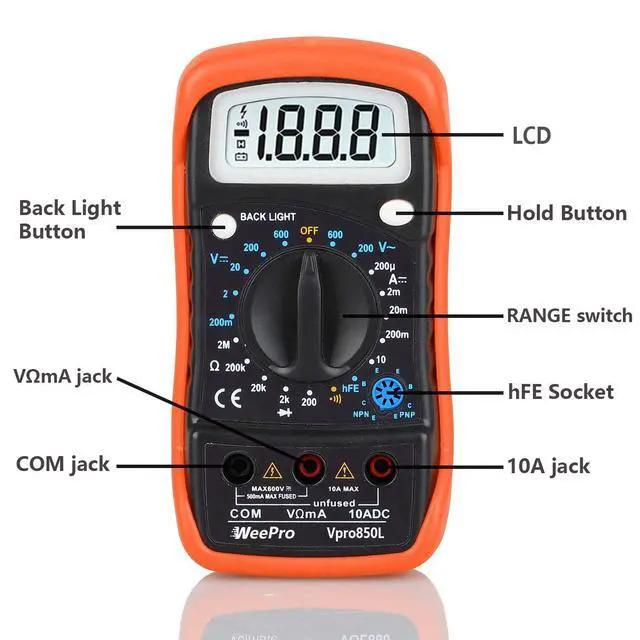

INTRODUCTION
PART 1
- DISPLAY: 3½ digit LCD.
- FUNCTION & RANGE SWITCH
Our CMM adopt rotational switch which situated at the middle of the front case. It is used for the selection of FUNCTION and RANGE .
- POWER ON-OFF
In order to save energy, please turn the switch to "OFF" position when not in use.
PART 2
- "COM" jack -- Common jack.
- " VOmA" jack -- Voltage, resistance, not more 200mA current, temperature and battery input test jack.
- "10ADC"jack -- For the input of more than 200mA current.
Specifications:
- 1. DC Voltage: 200mV-600V ±(0.5%±2dgts)
- 2. AC Voltage: 200/600V ±(1.2%±10dgts)
- 3. DC Current: 200uA-10A ±(1.0%+2dgts)
- 4. Resistance: 200O-2MO ±(0.8%±3dgts)
- 5. Power supply: 9V,6F22
- 6. Max. display: 1999

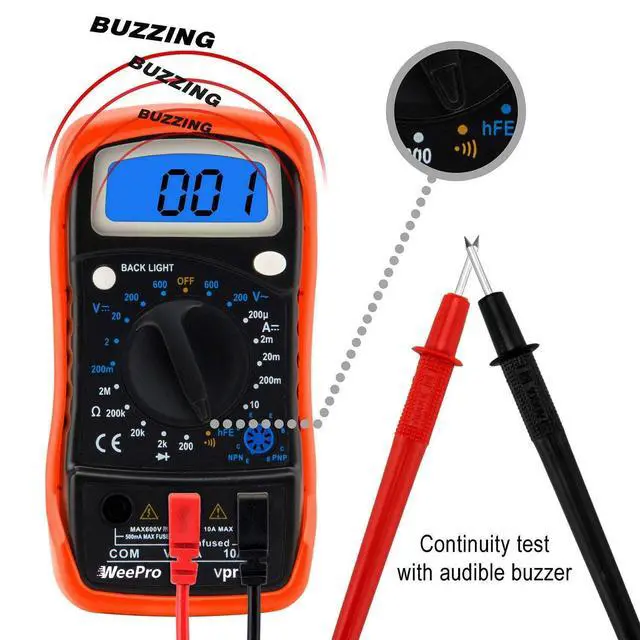

- 7. Diode: Yes; Dynatron: Yes; LCD Backlight: Yes; Continuity Buzzer: Yes; Low Battery Indication:Yes; Data Hold: Yes
- 8. Input Impedance for DCV: 1MO
- 9: Sample Rate: 3times/S
- 10: LCD Size: 70 x 40mm

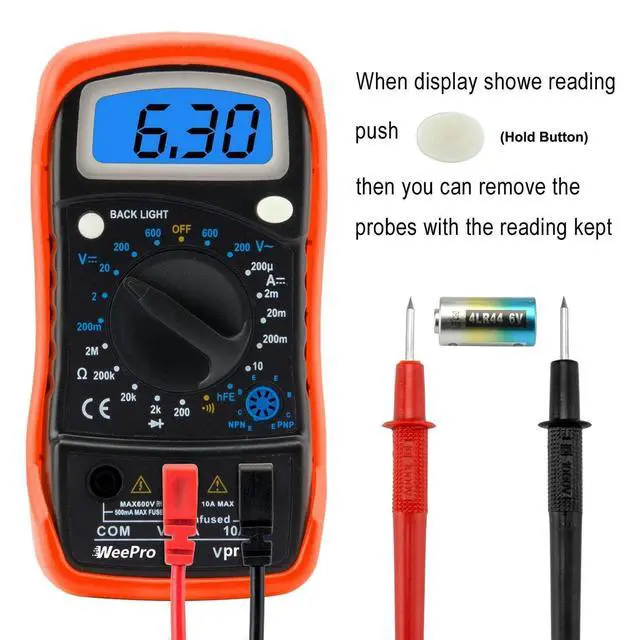

DATA HOLD
The switch is used to hold the display reading when the instrument is disconnected from whatever was being measured.

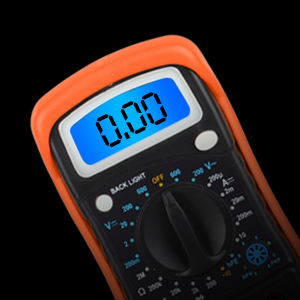

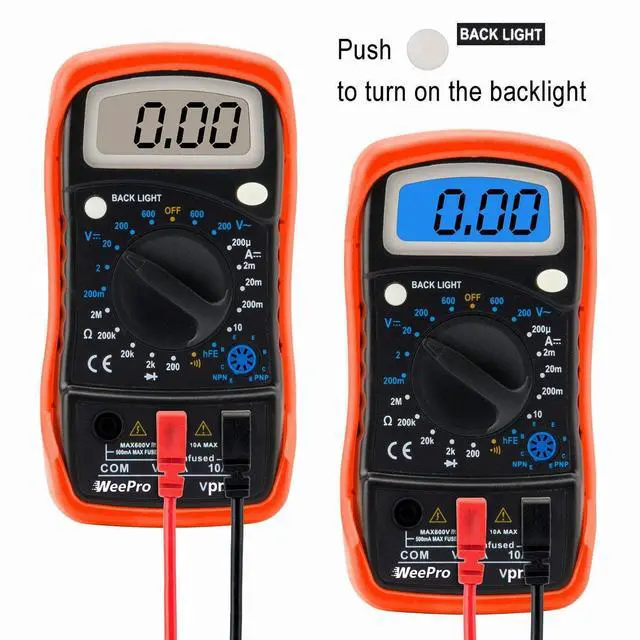

BACKLIT LCD
Large digital display with backlit LCD for visibility in dimly light areas.When BACK LIGHT is turned on. It needs to be turned off by user manually. (This function was revised according to our lovely customers' suggestion, it is more practical and safer in fact. Thank you all.)

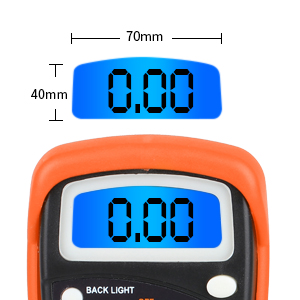

Large LCD Screen
70 x 40mm big lcd screen, word size up to 25mm.The best display visual angle is approx 70°
WeePro Vpro850L Digital Multimeter
Features
- CMOS integrated circuit and dual slope A/D conversion, auto zero and select polarity
- It will auto turn off after starting up 25 minutes
- High reliable measure range and 32 gears are more effective to avoid false operation
- Support transistor and Diode test
- Newest design and high quality
Electrical Troubleshooting Necessities
The multimeter is a basic assistant to test & troubleshoot a variety of automotive and household electrical problems safely and accurately. This WeePro Digital Multimeter Voltmeter Ohmmeter Ammeter meets your demands. Adopting durable material, it is tough enough to be used for a long time. Besides, it can be used in measuring remaining capacity of the rechargeable battery, so as to check whether the battery is fully-charged. Don't hesitate to bring it home now!
TECHNNICAL SPECIFICATION
- Accuracy: ±a% of reading: ± N0 digits guaranteed for l year.
- Environmental temperature : 23?±2?.
- Relative Humidity: <75%.
INTRODUCTION
PART 1
- DISPLAY: 3½ digit LCD.
- FUNCTION & RANGE SWITCH
Our CMM adopt rotational switch which situated at the middle of the front case. It is used for the selection of FUNCTION and RANGE .
- POWER ON-OFF
In order to save energy, please turn the switch to "OFF" position when not in use.
PART 2
- "COM" jack -- Common jack.
- " VOmA" jack -- Voltage, resistance, not more 200mA current, temperature and battery input test jack.
- "10ADC"jack -- For the input of more than 200mA current.
Specifications:
- 1. DC Voltage: 200mV-600V ±(0.5%±2dgts)
- 2. AC Voltage: 200/600V ±(1.2%±10dgts)
- 3. DC Current: 200uA-10A ±(1.0%+2dgts)
- 4. Resistance: 200O-2MO ±(0.8%±3dgts)
- 5. Power supply: 9V,6F22
- 6. Max. display: 1999
- 7. Diode: Yes; Dynatron: Yes; LCD Backlight: Yes; Continuity Buzzer: Yes; Low Battery Indication:Yes; Data Hold: Yes
- 8. Input Impedance for DCV: 1MO
- 9: Sample Rate: 3times/S
- 10: LCD Size: 70 x 40mm
DATA HOLD
The switch is used to hold the display reading when the instrument is disconnected from whatever was being measured.
BACKLIT LCD
Large digital display with backlit LCD for visibility in dimly light areas.When BACK LIGHT is turned on. It needs to be turned off by user manually. (This function was revised according to our lovely customers' suggestion, it is more practical and safer in fact. Thank you all.)
Large LCD Screen
70 x 40mm big lcd screen, word size up to 25mm.The best display visual angle is approx 70°
