ASUS Prime AP201 Micro-ATX/Mini-ITX Mesh Computer Case, White, USB 3.2 Gen 2 Type-C, 360mm Radiator Support
- Cooling Support: Top radiator support for 360mm, 280mm, 240mm, 140mm, and 120mm sizes, with up to six fan positions
- Graphics Clearance: Supports graphics cards up to 338 mm long and CPU coolers up to 170 mm high
- Mesh Panels: White steel and plastic chassis with quasi-filter mesh panels, airflow-focused design, and tool-free side-panel access
- Front I/O: 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, and audio ports
- Storage Capacity: 3 internal 3.5-inch drive bays and 1 internal 2.5-inch drive bay
- Compact Layout: Micro ATX Tower supports Micro ATX and Mini ITX motherboards, ATX PSUs up to 180 mm, and 4 expansion slots
Combo Up Savings Up To $400+
The more you add, the more you'll save!Any questions? Ask CelesteSM will help you find out quickly.
Overview

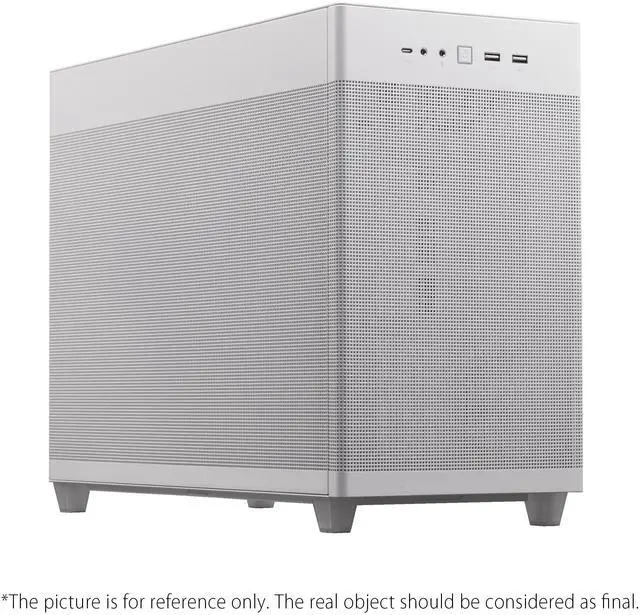

The ASUS Prime AP201 is a white Micro ATX Tower computer case for Micro ATX and Mini ITX builds. Its mesh-panel design, compact 33-liter space, broad radiator support, and graphics card clearance provide a flexible platform for DIY PC builds.
Key Features

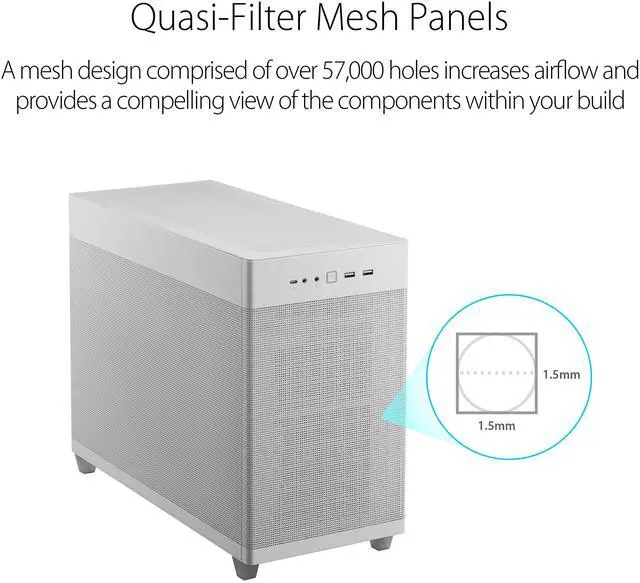

- Quasi-filter mesh panels with over 57,000 precision-machined 1.5mm holes support airflow and provide a view of installed components.
- Top radiator support accommodates 360mm, 280mm, 240mm, 140mm, and 120mm sizes.

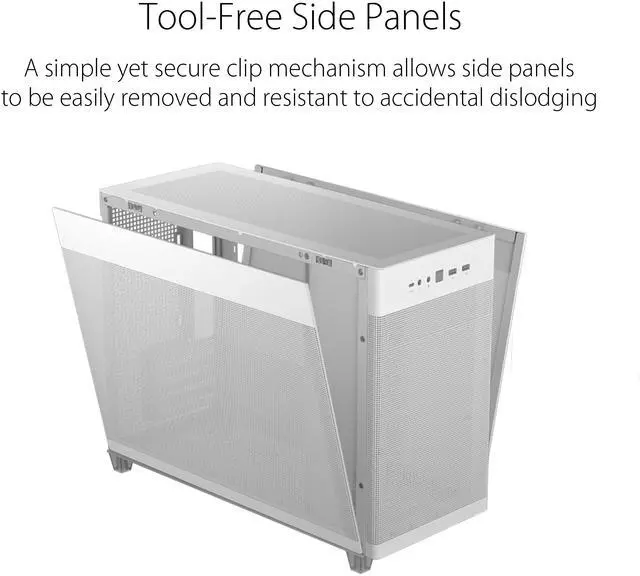

- Tool-free side panels use a clip mechanism for easy removal and resistance to accidental dislodging.

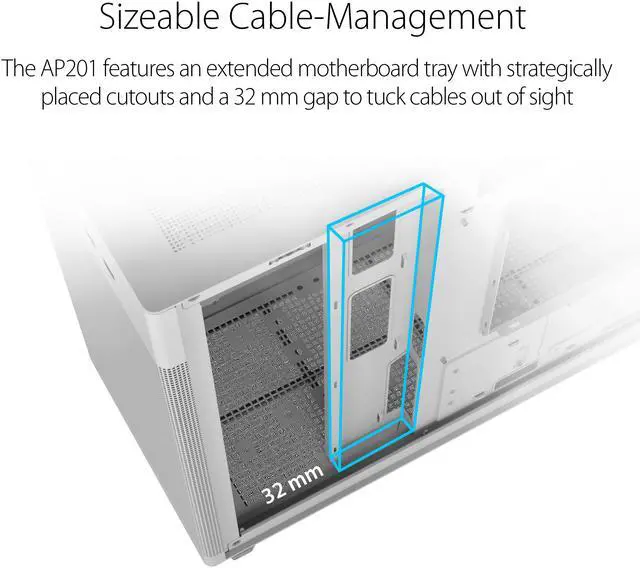

- An extended motherboard tray, strategically placed cutouts, and a 32 mm gap provide cable-management space.

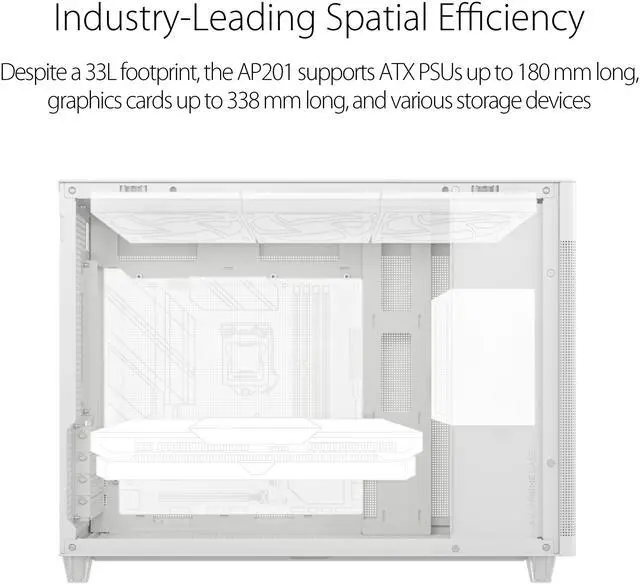

- The chassis supports graphics cards up to 338 mm long, CPU coolers up to 170 mm high, and ATX PSUs up to 180 mm long.
Performance
The AP201 supports up to six fan positions: three 120mm or two 140mm fans at the top, one 120mm fan at the rear, and two 120mm fans at the bottom. One 120mm rear fan is included. Top radiator options include 360mm, 280mm, 240mm, 140mm, and 120mm sizes; the rear supports a 120mm radiator.
Design
The white chassis uses steel and plastic construction and has side panels without a side window. Dimensions are 18.1" x 8.1" x 13.8", and weight is 12.79 lbs.
Connectivity & Compatibility

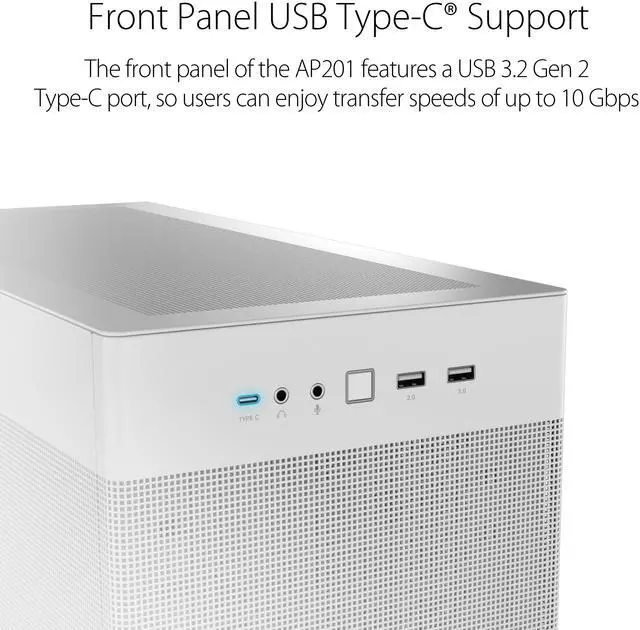

The front panel provides 2 x USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 2 Type-C port, and audio. The case is compatible with Micro ATX and Mini ITX motherboards.
Specifications
- Brand: ASUS
- Series: Prime
- Model: AP201 ASUS PRIME CASE MESH WHITE EDITION
- Type: Micro ATX Tower
- Color: White
- Case Material: Steel / Plastic
- Power Supply: Not included
- Internal 3.5" Drive Bays: 3
- Internal 2.5" Drive Bays: 1
- Expansion Slots: 4
- Max GPU Length: 338 mm
- Max CPU Cooler Height: 170 mm
- Max PSU Length: 180 mm
- Dimensions: 18.1" x 8.1" x 13.8"
- Weight: 12.79 lbs.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-510-739-3777
- Support Website
- View other products from ASUS
The white ASUS Prime AP201 is a compact Micro-ATX tower for builders who want strong airflow and room for high-performance components, with mesh panels, support for up to six fans, and top radiators up to 360 mm.
Recommended For

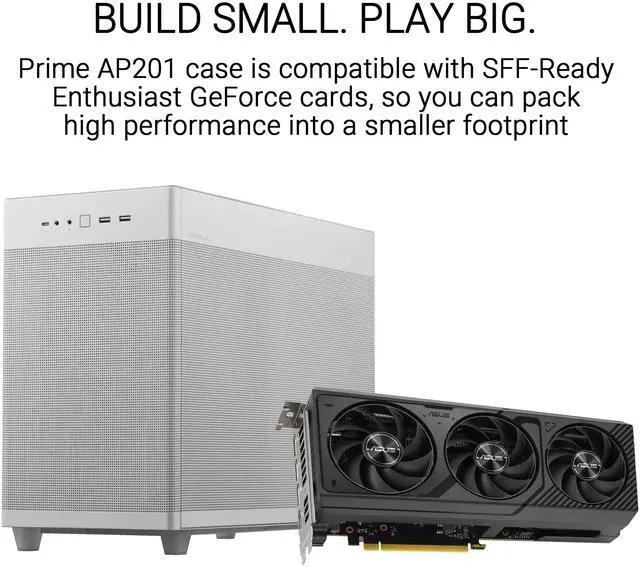

- Micro-ATX or Mini-ITX gaming builders who want a smaller case footprint without giving up room for a long graphics card or full-size ATX power supply; check the combined GPU, PSU, and radiator clearances for your parts.
- Builders using a top-mounted 280 mm or 360 mm radiator who want a compact Micro-ATX system with flexible cooling options; professional testing found the mesh design supports strong CPU and GPU cooling, though fan placement and component fit still matter.
- DIY builders who want tool-free panel access and a straightforward Micro-ATX installation, with cable-routing space for a tidy everyday gaming or work PC; reviewers describe the case as easy to build in and manage.
- Builders who prefer a restrained white, mesh-panel look and want to see components through the perforations rather than through a conventional glass side window.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Compact Micro-ATX or Mini-ITX builds with flexible air or liquid cooling and room for multiple storage drives |
| Motherboard And Expansion | Micro-ATX tower supporting Micro-ATX and Mini-ITX motherboards, with 4 expansion slots |
| Cooling Support | Up to six fan positions: top 3 × 120 mm or 2 × 140 mm, rear 1 × 120 mm, and bottom 2 × 120 mm; top radiators up to 360 mm, plus a 120 mm rear radiator. One rear 120 mm fan is included |
| Component And Power Supply Clearance | Supports graphics cards up to 338 mm long, CPU coolers up to 170 mm high, and power supplies up to 180 mm long; no power supply included |
| Storage Capacity | Three internal 3.5-inch bays and one internal 2.5-inch bay |
| Front I/O | Two USB 3.2 Gen 1 ports, one USB 3.2 Gen 2 Type-C port, and audio ports |
| Chassis Design And Materials | White steel-and-plastic chassis with quasi-filter mesh panels and a side panel without a window |
| Dimensions And Weight | 18.1 × 8.1 × 13.8 inches; 12.79 lb |
| Model Identifiers | ASUS Prime AP201 mesh white edition; model number AP201/WHT/MESH// |
