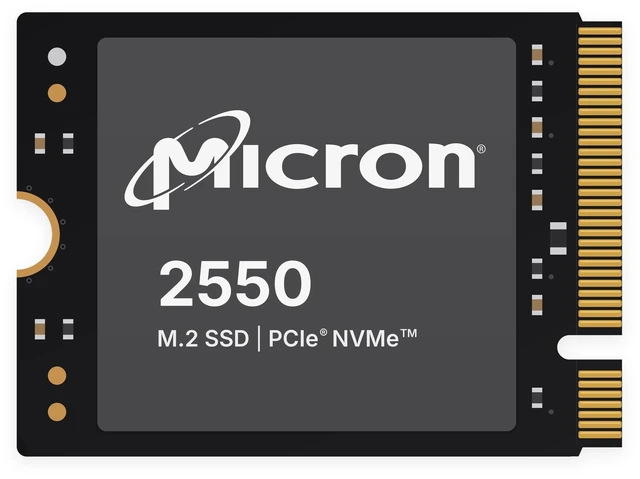

Micron 2550 256GB M.2 2230 NVMe PCIe Gen4 x4 OEM Internal SSD - Up to 4,500 MB/s, 232-Layer TLC NAND, DRAM-less HMB

Micron 2550 256GB M.2 2230 NVMe SSD (OEM) - Micron P/N MTFDKBK256TGE-1BL1AABDA, Dell P/N 07DN0M

Big Gen4 speed in the smallest M.2 size. The Micron 2550 packs a PCIe Gen4 x4 NVMe drive onto a 22 x 30 mm card, made for systems with an M.2 2230 slot such as handheld gaming PCs, thin-and-light laptops, 2-in-1 tablets and mini PCs.

Gen4 performance
Up to 4,500 MB/s sequential read and 2,000 MB/s sequential write, with up to 380,000 / 400,000 random 4K read/write IOPS. Typical latency is 50 µs read and 12 µs write, so boots, app launches and game loads feel instant compared with SATA or eMMC storage.

232-layer NAND technology
Micron built the 2550 on its 232-layer TLC NAND, the first 232-layer NAND in a client SSD. Micron's six-plane design raises read and write bandwidth per die over its previous NAND generation, and Predictive Cache Optimization keeps the most active data in the fast SLC cache.

Efficient DRAM-less design
Host Memory Buffer (HMB) lets the drive use a small slice of system memory for its mapping tables, which keeps the card small and the power draw low: under 150 mW active idle, under 2.5 mW in PS4 sleep, and under 5.5 W during active reads. That means better battery life in portable devices, and the drive is designed for Intel Modern Standby platforms.

Reliability
Endurance is rated at 150TB written (TBW) with a 2,000,000-hour MTTF. Also included: RAIN data protection, S.M.A.R.T. monitoring, power-loss protection for data at rest, and Micron Storage Executive support.

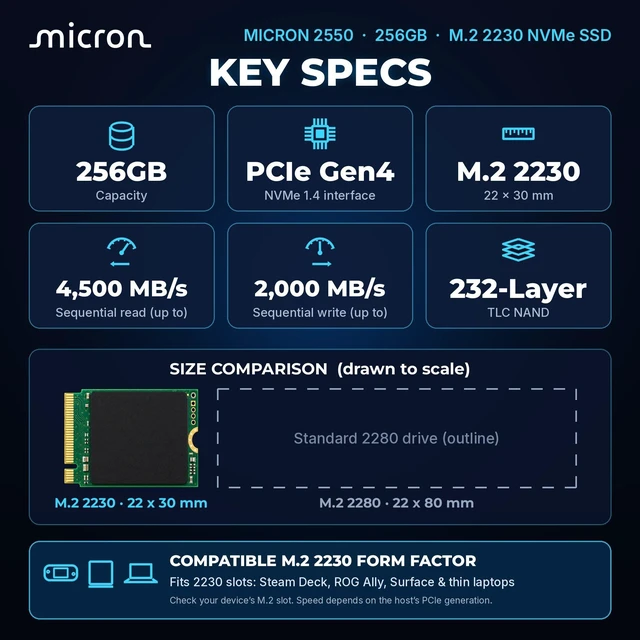

Specifications

• Brand / Model: Micron 2550 NVMe SSD


• Capacity: 256GB


• Form factor: M.2 2230 (22 x 30 mm), M-key


• Interface: PCIe Gen4 x4, NVMe 1.4 (backward compatible with PCIe Gen3 x4 at Gen3 speeds)


• NAND: Micron 232-layer 3D TLC


• DRAM: DRAM-less with Host Memory Buffer (HMB)


• Sequential read / write: up to 4,500 / 2,000 MB/s


• Random 4K read / write: up to 380K / 400K IOPS


• Endurance: 150TBW


• MTTF: 2 million hours


• Power: <5.5 W active read, <150 mW active idle, <2.5 mW PS4 sleep


• Part number: MTFDKBK256TGE-1BL1AABDA (Dell P/N 07DN0M)


• Condition / packaging: New, OEM (bare drive, no retail box, cables or software)

Please confirm your device takes an M.2 2230 NVMe SSD before you buy.
