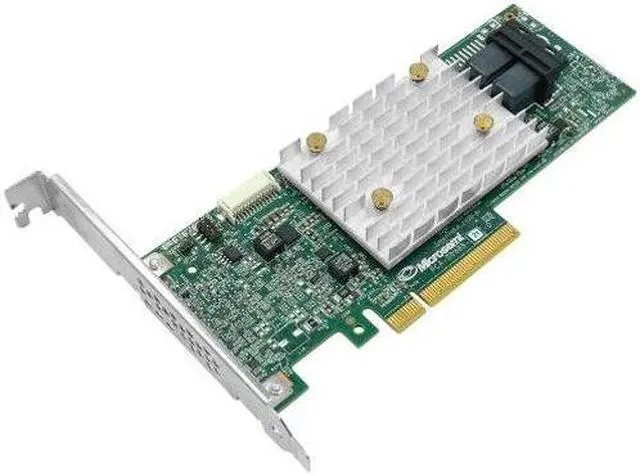

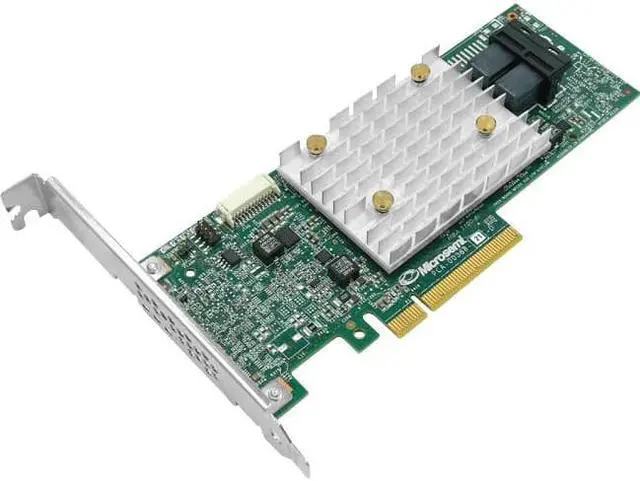

Microsemi 2293200-R 8 Port HBA 1100-8I 12 Gbps SAS / SATA Host Bus Adapter

The HBA 1100 delivers enterprise resiliency with its broadly deployed Smart Storage stack. Based on the PM8222 8x12G SmartIOC 2100 SAS/SATA protocol controller, the HBA 1100 Series provides a robust and stable solution that can handle the toughest system workloads and configurations. It offers over 40 percent power savings compared to previous generations, and significant power advantages versus competing solutions. It is fully tools-compatible with existing and future Microsemi HBA, RAID, and expander solutions. Optimized for New Devices and New Use Cases The HBA 1100 supports SMR HDDs and their specific command sets (ZAC/ZBC for SAS/SATA SMR drives), enabling cost-efficient solutions for warm and cold storage applications.

It also supports the latest SAS and SATA SSDs. The HBA 1100 is also optimized for software-defined storage solutions, such as Microsoft Storag...
Host Interface: PCI Express 3.0 x8Controller
Type: 12Gb/s SAS
Total Number of
SAS Ports: 12Number of
SAS Ports (Internal): 8Number of
SAS Ports (External): 4SAS
Connector Details: 2 SFF-8643SAS
Connector Details: 1
SFF-8644Height: 2.5W
idth: 6.6"F orm
Factor: Plug-in
CardPackage Contents: HBA 1100-8i Adapter Additional Low Profile Vented Bracket
Platform Supported: PCPlatform
Supported: LinuxEnvironmentally
Friendly: YesEnvironmental
Certification: RoHSLimited
Warranty: 3 YearPackage Contents HBA 1100-8i Adapter Additional Low Profile Vented Bracket "
