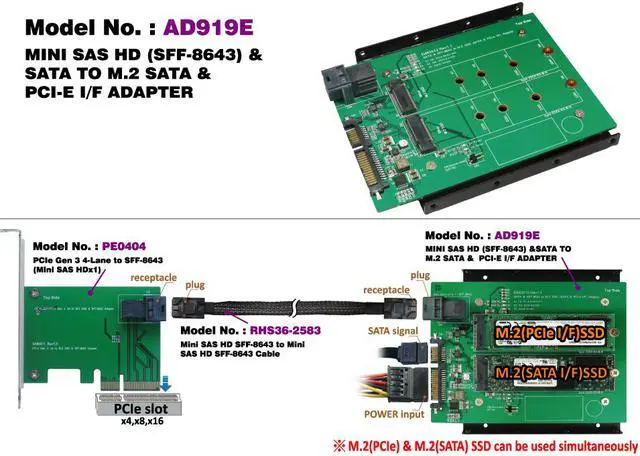

Mini SAS HD (SFF-8643) to M.2 NVMe SSD & SATA III to M.2 (SATA Interface) SSD Adapter with 3.5" Frame Bracket
- AD919E
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
M.2 (PCI-e I/F) to Mini SAS HD(SFF-8643)PCI-e convert
M.2 (SATA I/F) to SATA III convert

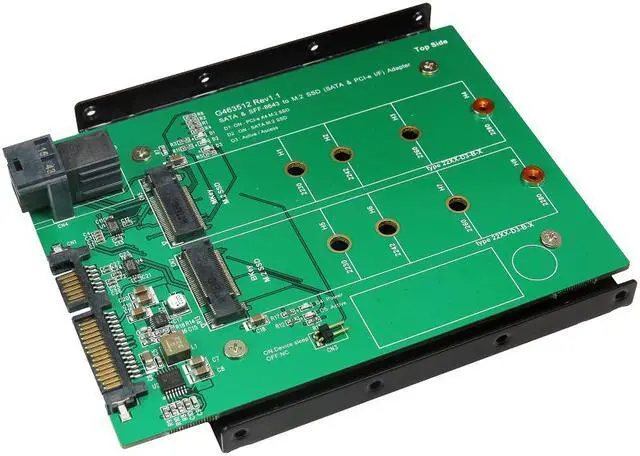

Build in Mini SAS HD(SFF-8643) Female connector
Build in SATA 7+15pin connector
Build in M.2 (NGFF) M-key Female connector
Build in M.2 (NGFF) B-key Female connector
D1 on indicates M.2 / PCI-e 4 Lanes device power OK
D2 on indicates M.2 / SATA III device power OK
D1 / off & D2 / off indicates M.2 / PCI-e 2 Lanes device power OK
D3 indicates M.2 (PCI-e I/F) active status
Compliance
NVM ExpressTM 1.0
Support SATA Reversion 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express® Base Specification Rev 3.0
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
SFF-8643 Specification Rev 3.5
Build in M.2 (NGFF) B-key Female connector
D4 on indicates M.2 / SATA III device power OK
D5 indicates M.2 (SATA I/F)active status
Power
PWM synchronous buck converter Power IC for M.2(PCIe I/F) Device
?4A maximum output current
PWM synchronous buck converter Power IC for M.2(SATA I/F) Device
?3A maximum output current
M.2 (SATA I/F) to SATA III convert
Build in Mini SAS HD(SFF-8643) Female connector
Build in SATA 7+15pin connector
Build in M.2 (NGFF) M-key Female connector
Build in M.2 (NGFF) B-key Female connector
D1 on indicates M.2 / PCI-e 4 Lanes device power OK
D2 on indicates M.2 / SATA III device power OK
D1 / off & D2 / off indicates M.2 / PCI-e 2 Lanes device power OK
D3 indicates M.2 (PCI-e I/F) active status
Compliance
NVM ExpressTM 1.0
Support SATA Reversion 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express® Base Specification Rev 3.0
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
SFF-8643 Specification Rev 3.5
Build in M.2 (NGFF) B-key Female connector
D4 on indicates M.2 / SATA III device power OK
D5 indicates M.2 (SATA I/F)active status
Power
PWM synchronous buck converter Power IC for M.2(PCIe I/F) Device
?4A maximum output current
PWM synchronous buck converter Power IC for M.2(SATA I/F) Device
?3A maximum output current
