Question 1

does this come with the CPU?

Accepted Answer

Yes.  The CPU and wireless card come pre-installed.  You will need to purchase a laptop hard drive and RAM.

Question 2

Does this system come with the hard drive or memory?

Accepted Answer

No this unit does not come with a Hard drive or Memory. You must purchase a 2.5" SDD drive as well as specific type of memory. It has to be 1.35V DDR3 SO-DIMM.

Question 3

We currently install IP cameras for security, and need a pc to view camera feeds on monitor. I am not clear on how these mini pcs work regarding system software... do they have an operating system installed? Can you install software (eg. IP Camera monitoring software) on these?  This pc ONLY is used to connect to the internet and local network for viewing camera feeds... Thanks!

Accepted Answer

hi there rick, this computer is a barebone- means it only have motherboard, cpu(intel), wifi, bluetooth. you still have to purchase addition to this a " ram , and hard drive or SSD ". once you install your HD or SSD. you can choice to install Windows 7/8/xp, or linux on it, it will not work for mac-os-x. so its almost like having a regular pc. the ip camera your using is just software, but the input would have to be in usb , as this computer will only receive usb 2.0/3.0 . you can connect to the internet via ethernet - or wifi . if your ip camera can be plug in to the ethernet hub than you can probably access it from there. w/o direct connections to the NUC. the pro of this is you can run this 24/7 and it draws only 35watts on full power. hope this helps. good luck

Question 4

Is this the N2820 Celeron or the N2830 as Intel said they would update to?

Accepted Answer

cat cpuinfo
vendor_id       : GenuineIntel
cpu family      : 6
model           : 55
model name      : Intel(R) Celeron(R) CPU  N2820  @ 2.13GHz
stepping        : 3
microcode       : 0x321
cpu MHz         : 1800.500
cache size      : 1024 KB

It's working perfectly as a mythtv frontend, running Linux, Fedora 20.

Question 5

Hi , i having problem to with pc . won't boot at all.
i may have wrong ram i did use 1.35 v ddr3l and still won't boot no video signal?
can some one just post which ram will work . thanks

Accepted Answer

This worked for me:
Crucial 4GB 204-Pin DDR3 SO-DIMM DDR3 1600 (PC3 12800) Laptop Memory Model CT51264BF160B

Are you getting a power light without it blinking? I tried two different monitors and could not get into the BIOS or even see anything on the screen. It was not until I hooked it up to a TV that I saw the F2, F7, F10 screen, but even then when I hit any of those keys it would not react. I went ahead and let it boot to a USB drive with Win8 on it and installed to internal SSD then within Win8 I flashed to the latest.
As long as the power light is on and not flashing try hooking up to as many monitors or TV's that you can. The older BIOS that ships with these NUC's needs a display that is a certain format. The newer BIOS fixed that so you just need to get past that point.

Question 6

can you load the operating system with an external usb dvd drive rather than rufus?

thanks

Accepted Answer

you guys that are using an usb external dvd drive, what unit are you guys using?  my friend and I have tried 2 different ones and the bios doesn't recognize them at all.  ended up using rufus, which worked fine.  just curious.  thanks

Question 7

Are there any internal USB headers...either in use by the current USB setup or unused?

Accepted Answer

Not in this model, as I know.
You can check on Intel site for more info: http:// www intel com/p/en_US/support/category/dsktpboards/dk-dn2820fyk/doc_guide?format-type=Technical+Documents

There is also photos on this site: http:// forum hardware fr/hfr/Hardware/minipc/intel-unit-computing-sujet_923709_33.htm
And I don't see any free header...

Question 8

does it come with a HARD DRIVE,MEMORY and an OPERATING SYSTEM?

Accepted Answer

No, it's a "Barebone" system.  It consists of the chassis, motherboard, CPU and power supply.

You must provide RAM, Hard drive and OS.

Question 9

Does this come with a CPU a memory included?

Accepted Answer

It comes with a CPU and (integrated GPU) but not memory.  You have to supply memory and some form of storage (probably a 2.5" SATA drive).  Wireless is included, but I upgraded mine to 802.11ac.

Question 10

Can I use any 2.5" SSD?  SATA, SATA II, or SATA III?

Accepted Answer

I'm using a SATA II drive in this now.

Features and Configurations
Processor	Intel® Celeron® processor N2820 (up to 2.4GHz dual-core, 1MB cache, 7.5W TDP)
Memory	1 DDR3L SODIMM 1.35V, 1333 / 1600MHz (down-clocked to 1066MHz), 8GB maximum
Graphics	Intel® HD Graphics (up to 756MHz) 1 x HDMI* 1.4a
Audio	Up to 7.1 surround audio via HDMI interface Back panel headphone/microphone jack
Peripheral Connectivity	1 x USB 3.0 port on the front panel 2 x USB 2.0 ports on the back panel Front panel consumer IR sensor
Storage	Internal support for 2.5" HDD or SSD
Networking	10/100/1000Mbps Ethernet port Intel® Wireless-N 7260BN pre-installed, including wireless antennas (IEEE 802.11bgn, Bluetooth* 4.0, Intel® Wireless Display built-in)
Enclosure	Silver aluminum ring with diamond cut around black top Dimensions: 4.6 x 4.4 x 2 inches (116.6 x 112 x 51.5mm)
Power Adapter	12V, 36W Wall-mount AC adapter Multi-country plugs (IEC types A/C/G/I)
Additional Features	Intel® Visual BIOS Intel® Visual Boot Manager Windows* 8.1 and 8 Logo Compatible with Linux* VESA mount bracket (75 x 75mm and 100 x 100mm compatible) Half-length PCIe* mini-card slot (used by pre-installed wireless card) Low-acoustics active cooling design Kensington lock support 3-year advanced warranty replacement
Included in the Box	Intel® NUC board DN2820FYB integrated in enclosure VESA mount bracket, with screws 12V, 36W wall-mount AC adapter with multi-country AC plugs (IEC types A/C/G/I) Intel Celeron brand sticker Integration guide

Memory slot	1 x 204Pin SO-DIMM
Memory Type Supported	DDR3L 1333/1066 (1.35V)
Max Memory Supported	8GB

Max LAN Speed	1Gbps
Wireless LAN	802.11b/g/n
Bluetooth	Bluetooth 4.0

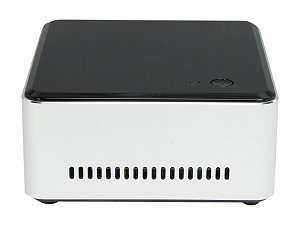

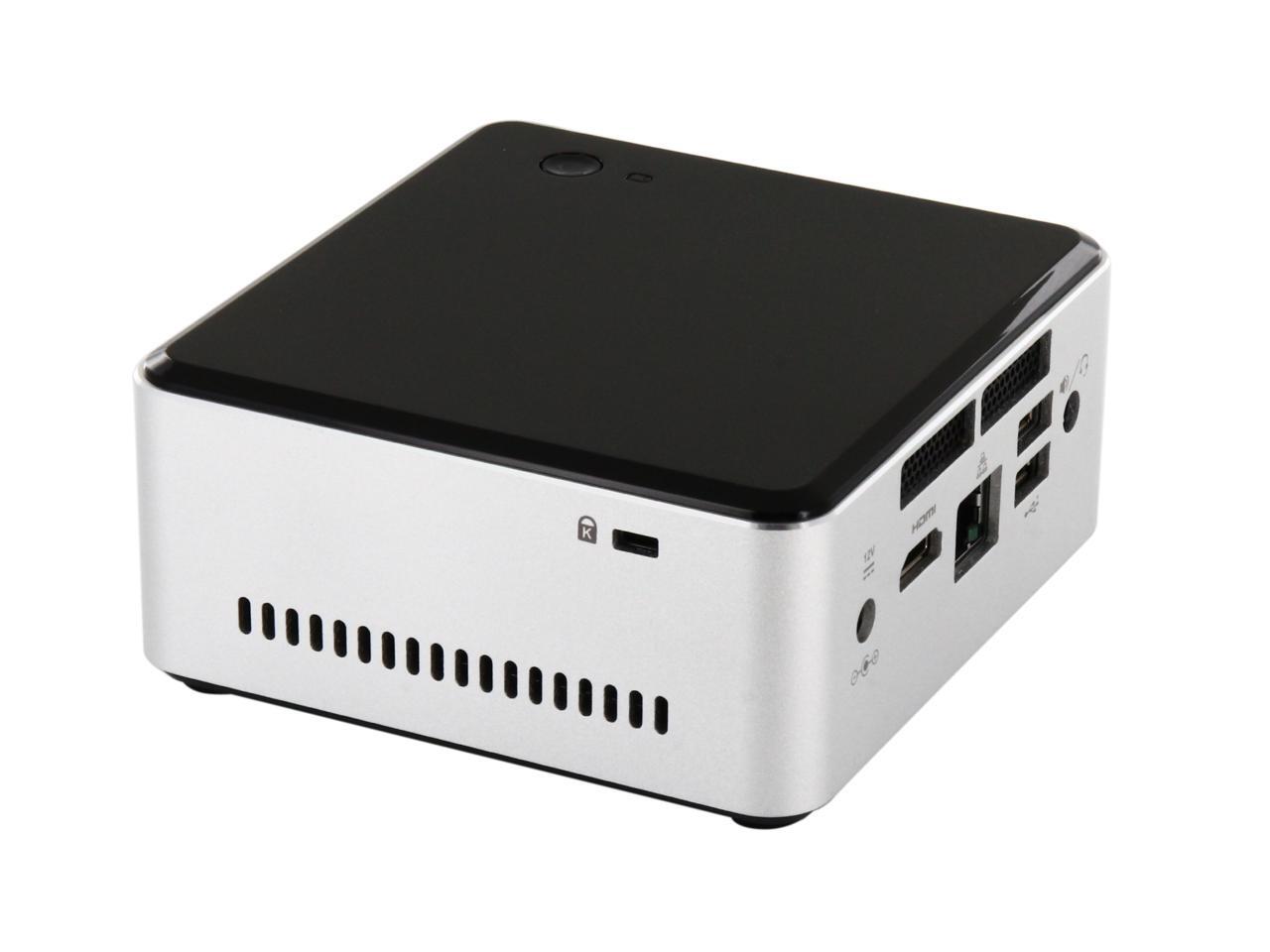

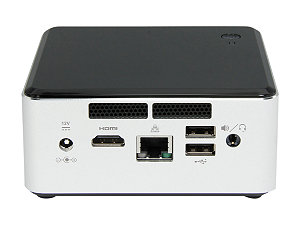

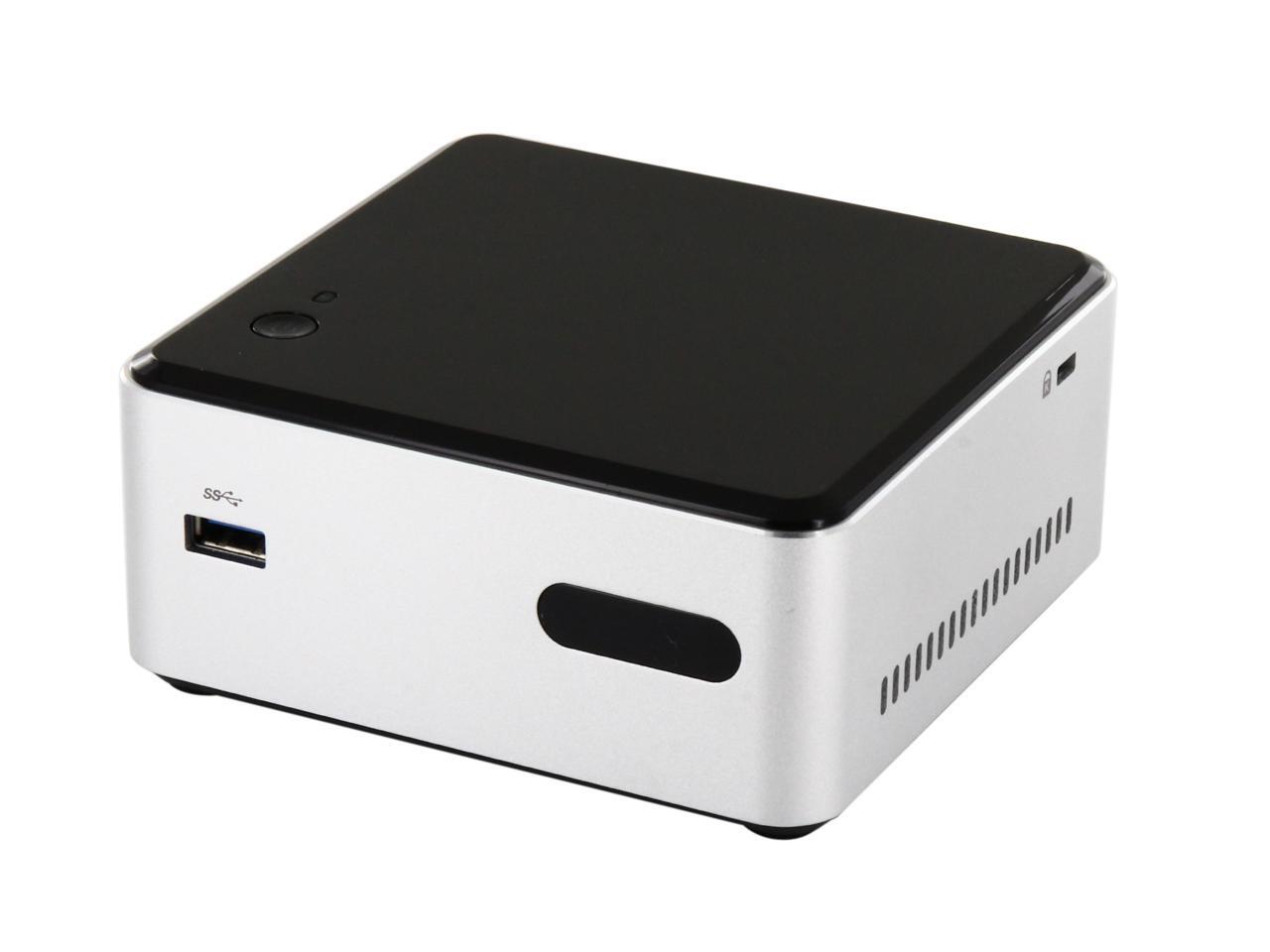

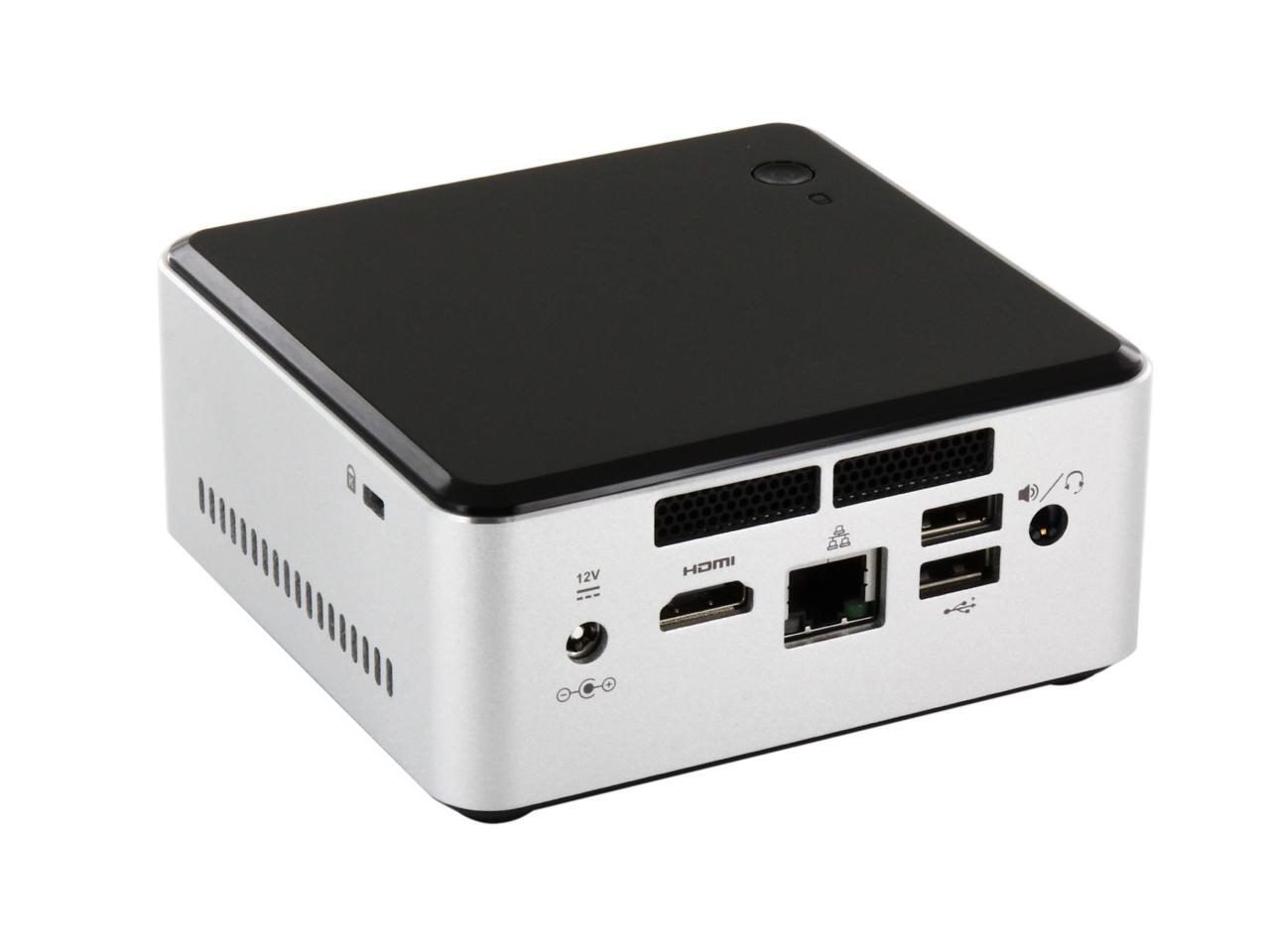

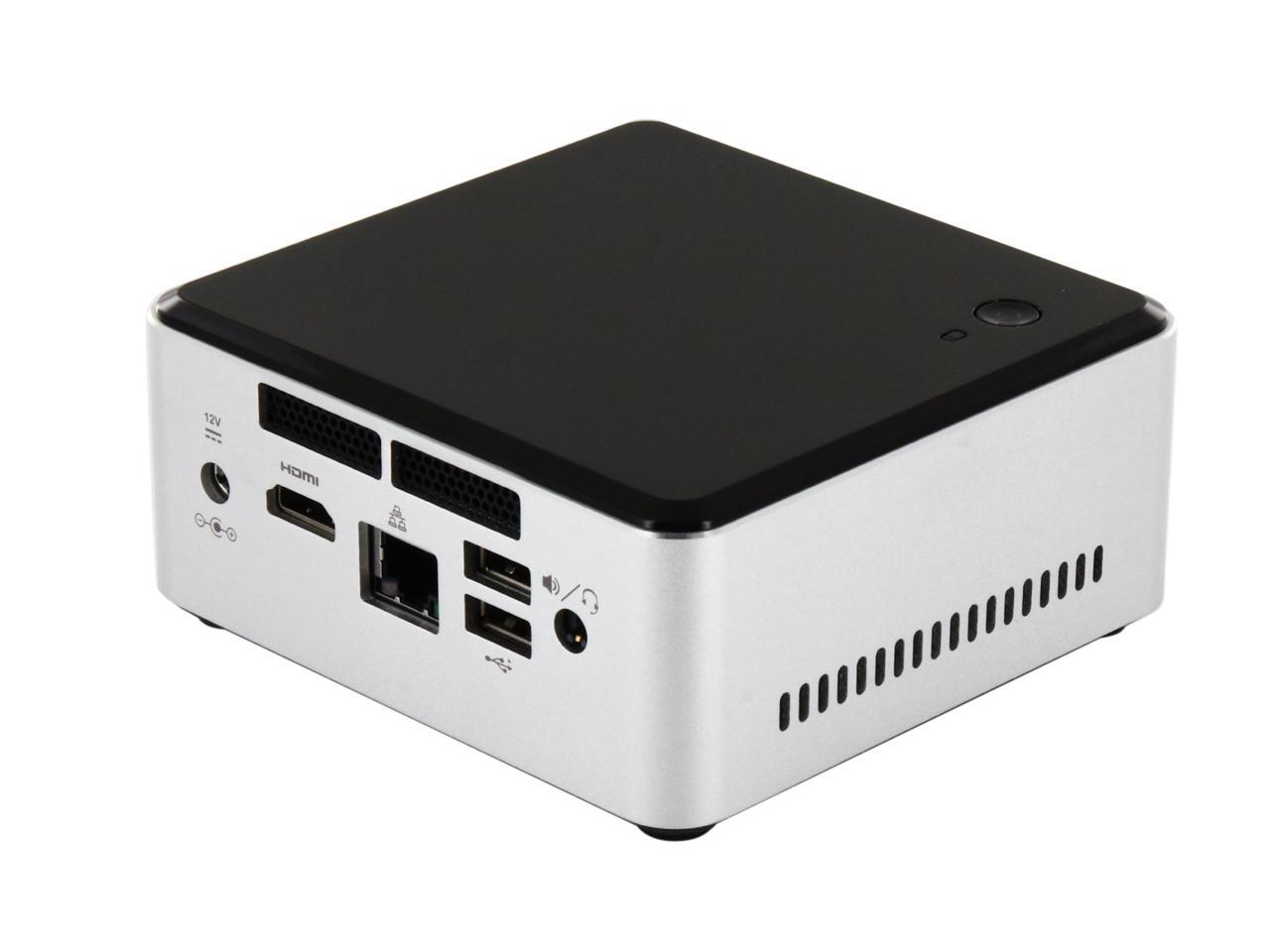

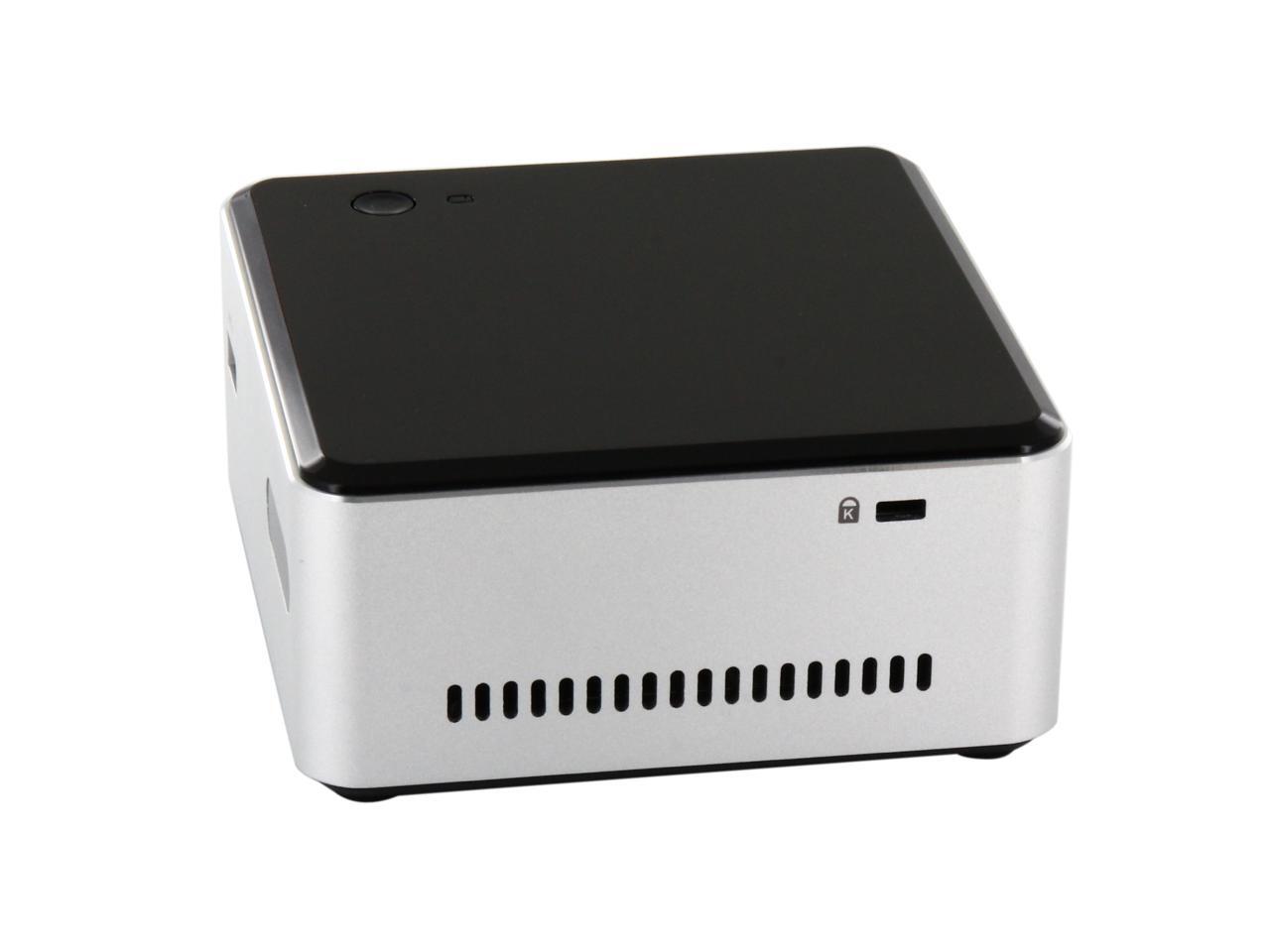

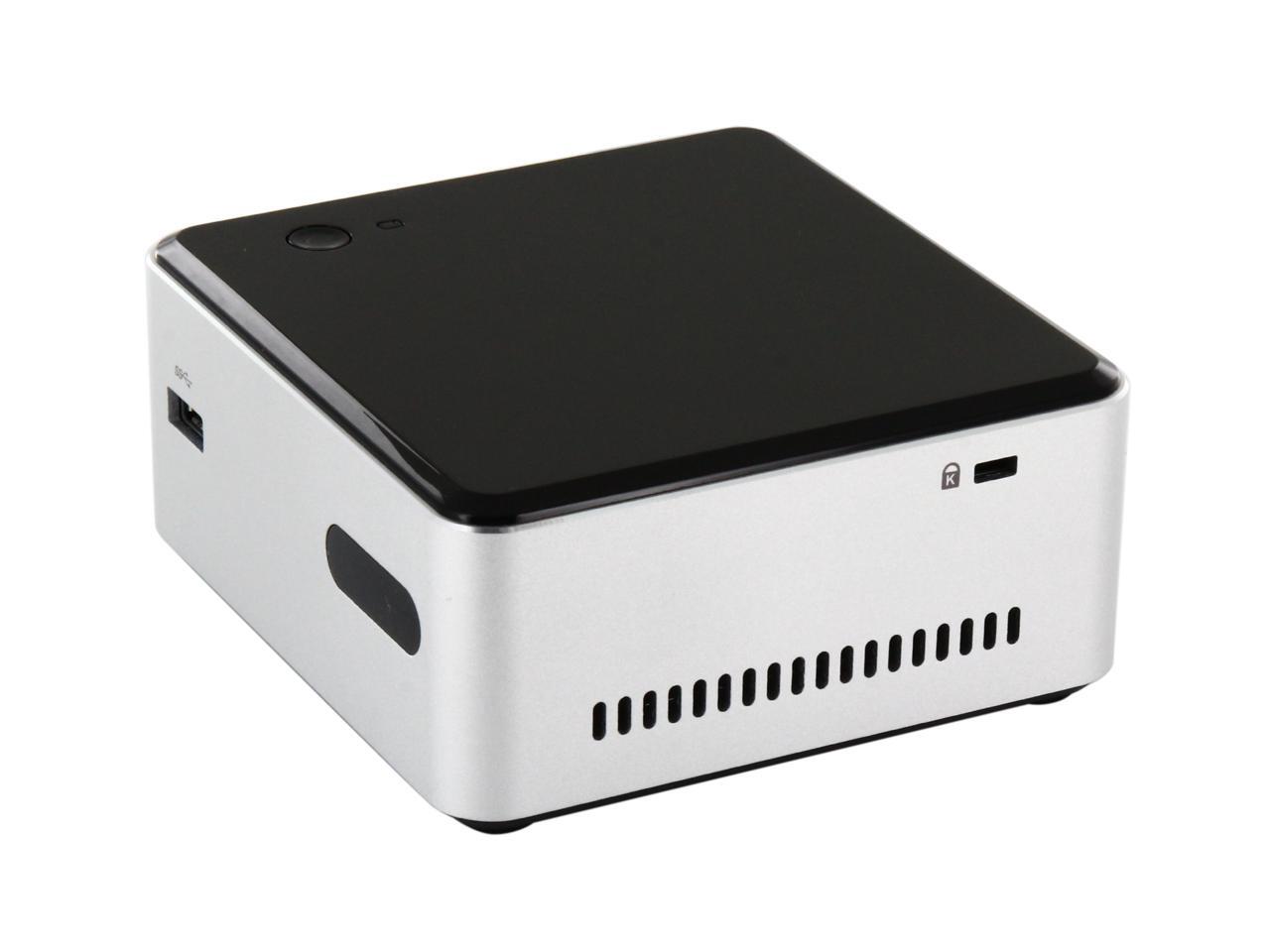

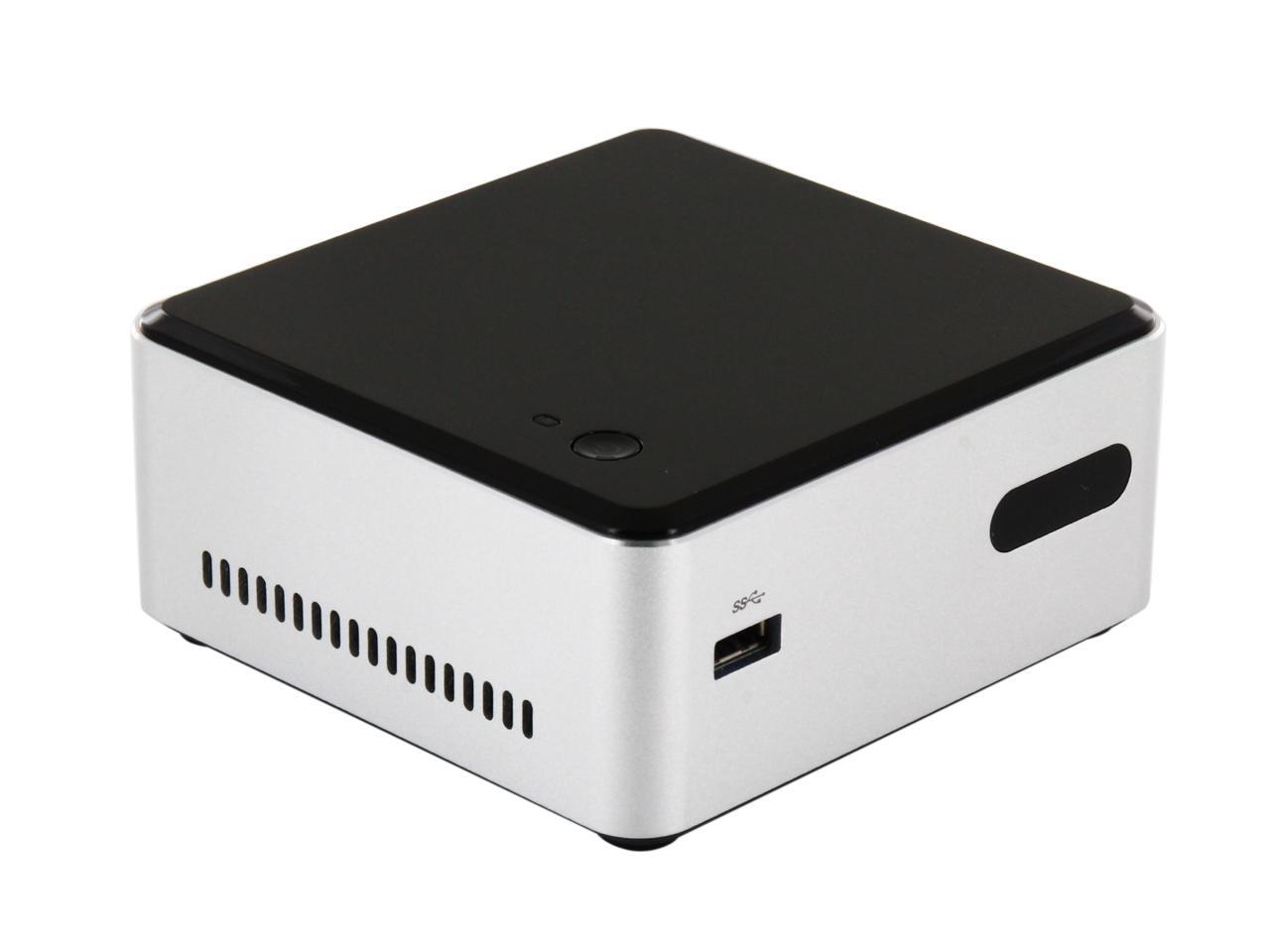

Intel BOXDN2820FYKH0 Mini / Booksize Barebone System

Mini PC - Intel® NUC Kit DN2820FYKH
