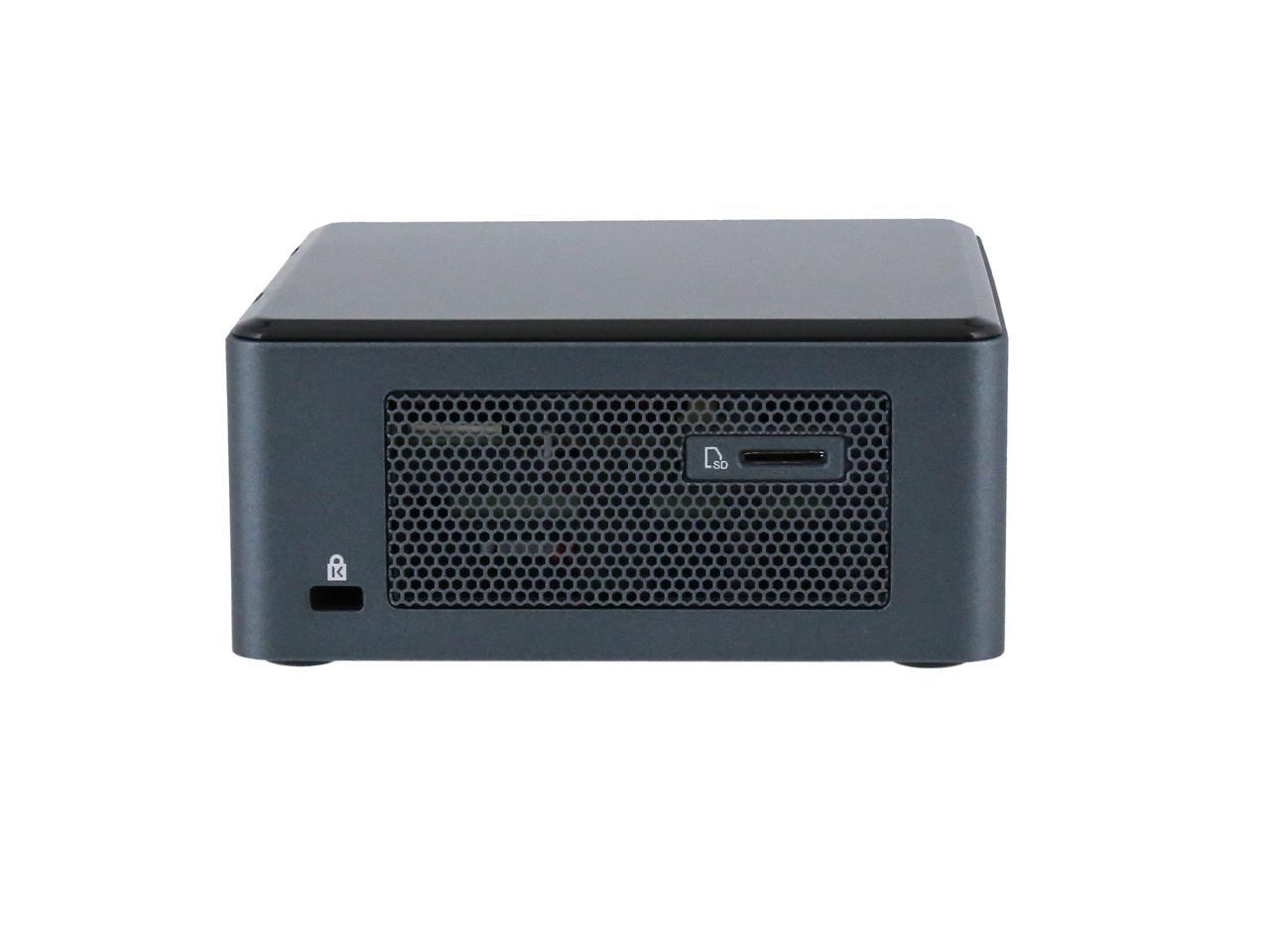

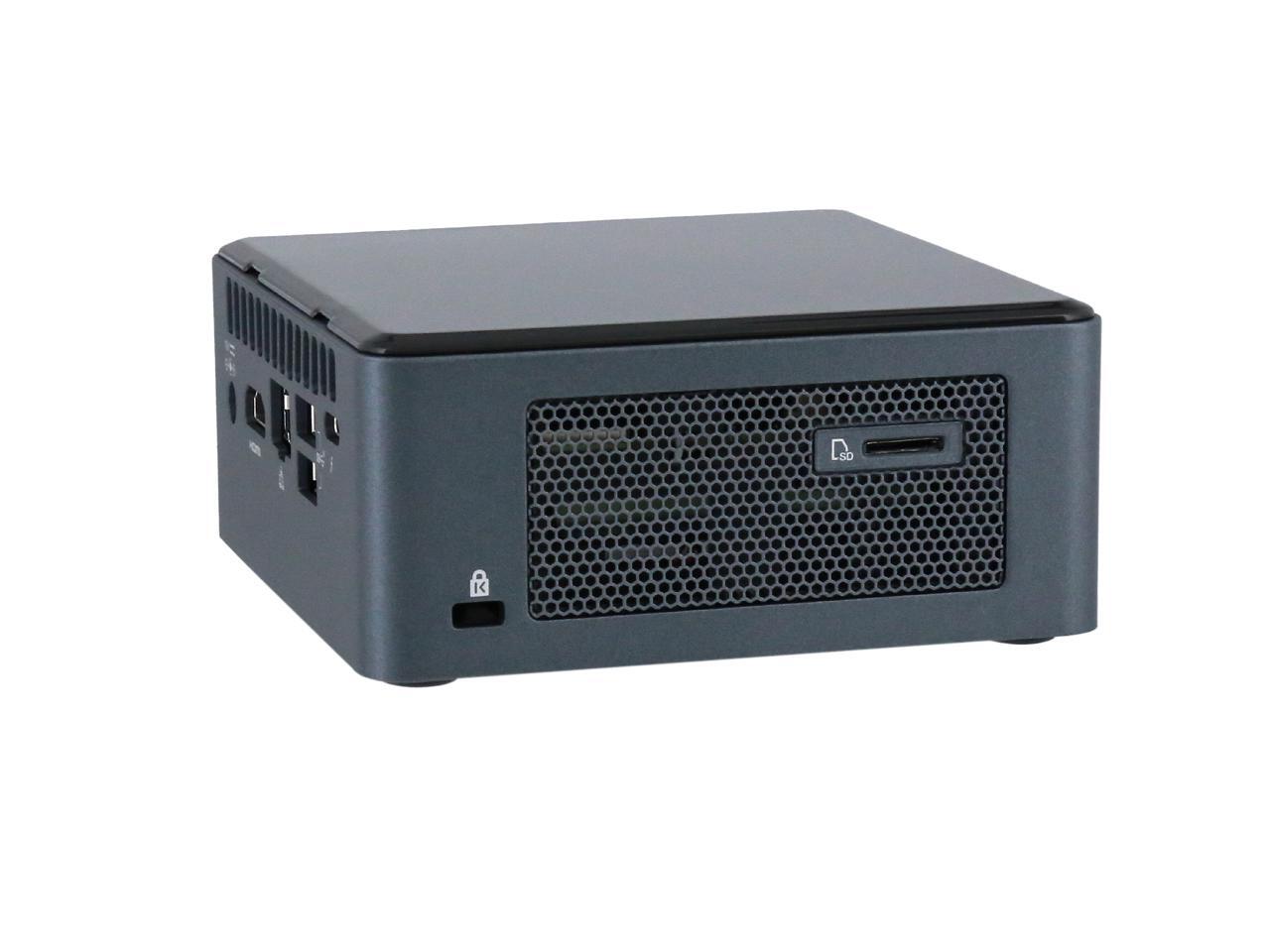

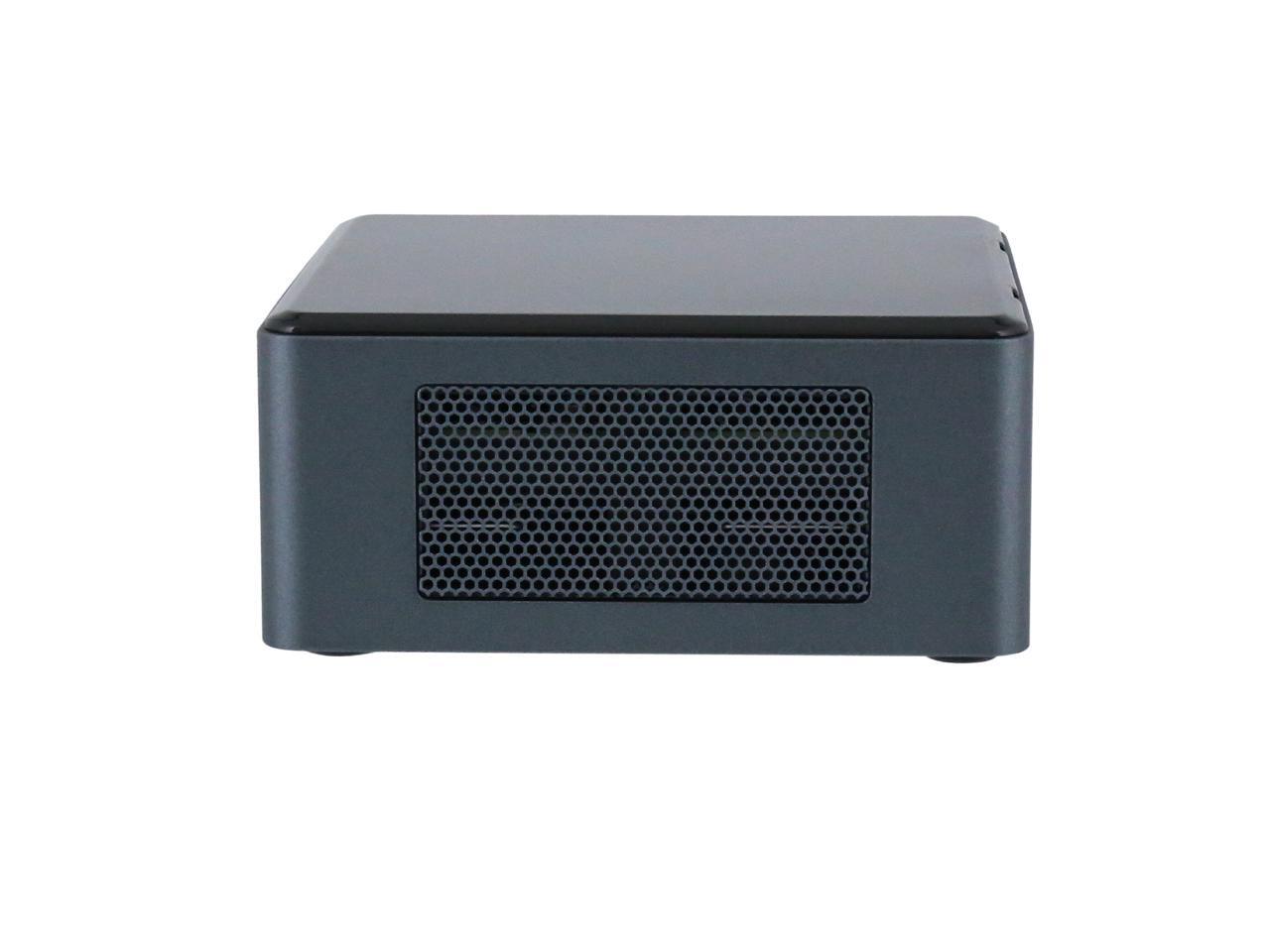

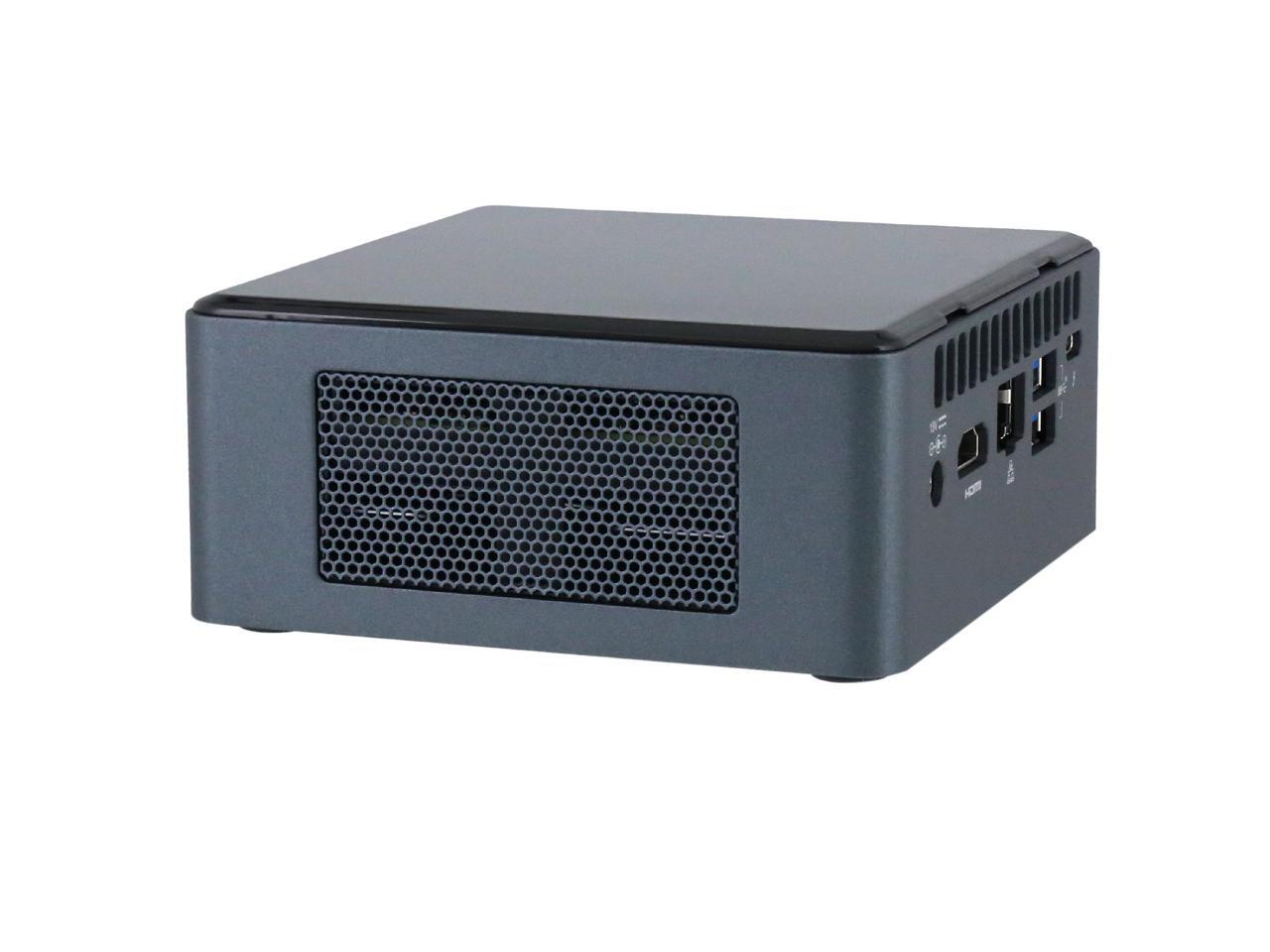

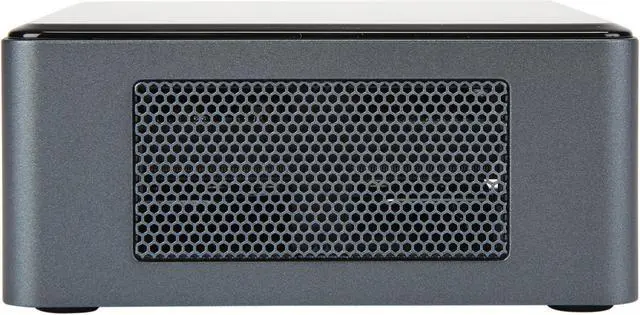

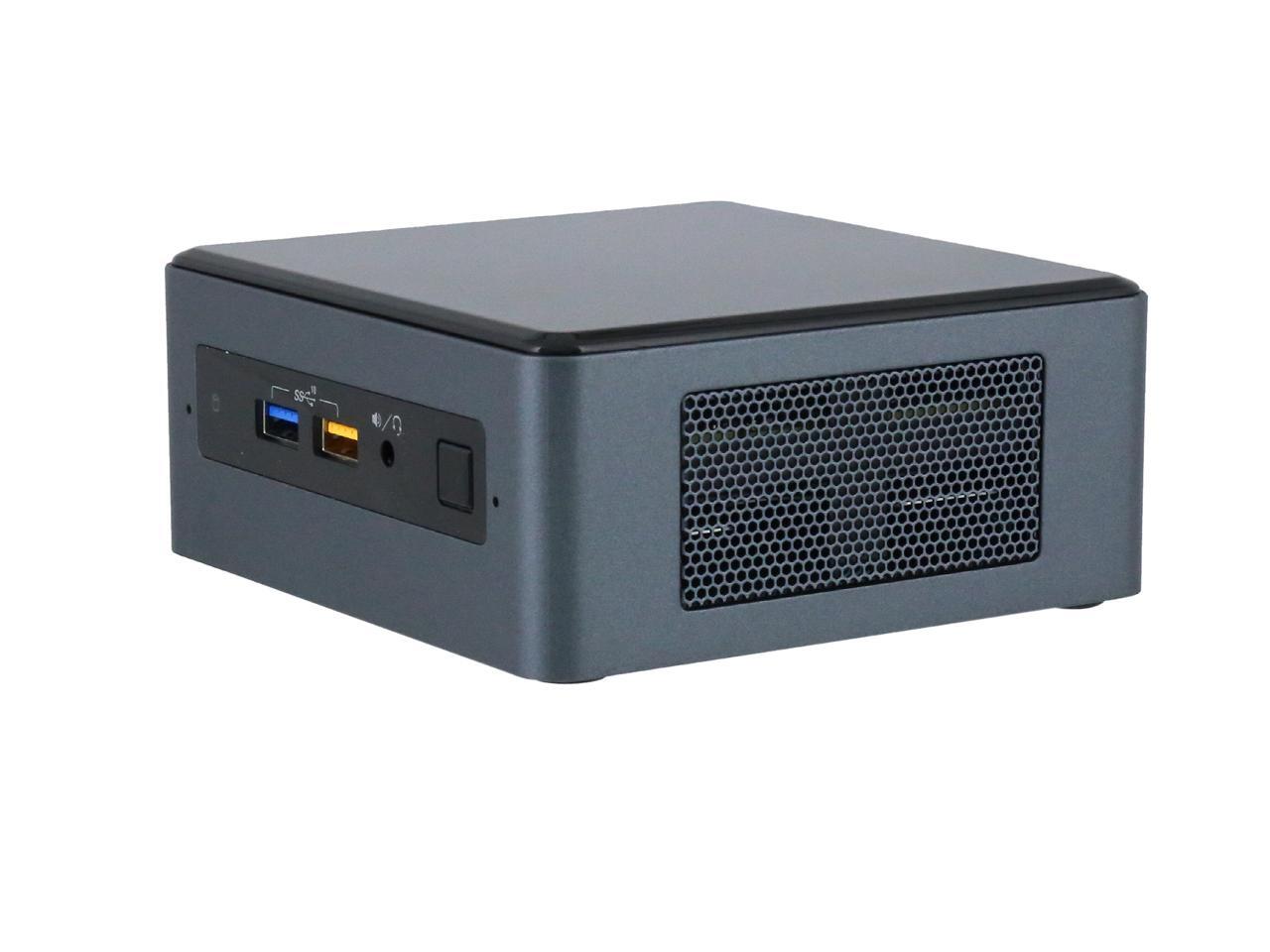

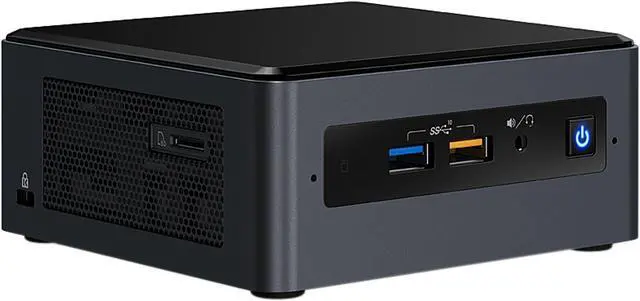

Intel NUC (Next Unit of Computing) BOXNUC8i5BEH1 Black Mini / Booksize Barebone System

OPEN BOX Product Type
  • Intel Core i5-8259U processor (2.3 GHz - 3.8 GHz, Quad Core, 6MB Cache, 28W TDP)
  • 2 x 260Pin SO-DIMM DDR4 2400
The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel BOXNUC8i5BEH1

Model
Brand Intel
Series NUC (Next Unit of Computing)
Model BOXNUC8i5BEH1
General
Color Black
CPU Supported
CPU Type Intel Core i5-8259U processor (2.3 GHz - 3.8 GHz, Quad Core, 6MB Cache, 28W TDP)
Memory Supported
Memory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported DDR4 2400
Max Memory Supported 32GB
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
M.2 One M.2 connector supporting 22x42 or 22x80 M.2 SSD
Graphics
Intergrated Graphics Intel Iris Plus Graphics 655
Audio
Channel 7.1 Channel
Communications
LAN Intel Gigabit LAN
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Dual Band Wireless-AC 9560 (802.11 ac), 2x2, up to 1.73Gbps
Bluetooth Dual Mode Bluetooth 5.0
Extension Bays
2.5" Internal Bays 2.5" HDD or SSD (up to 9.5mm thickness)

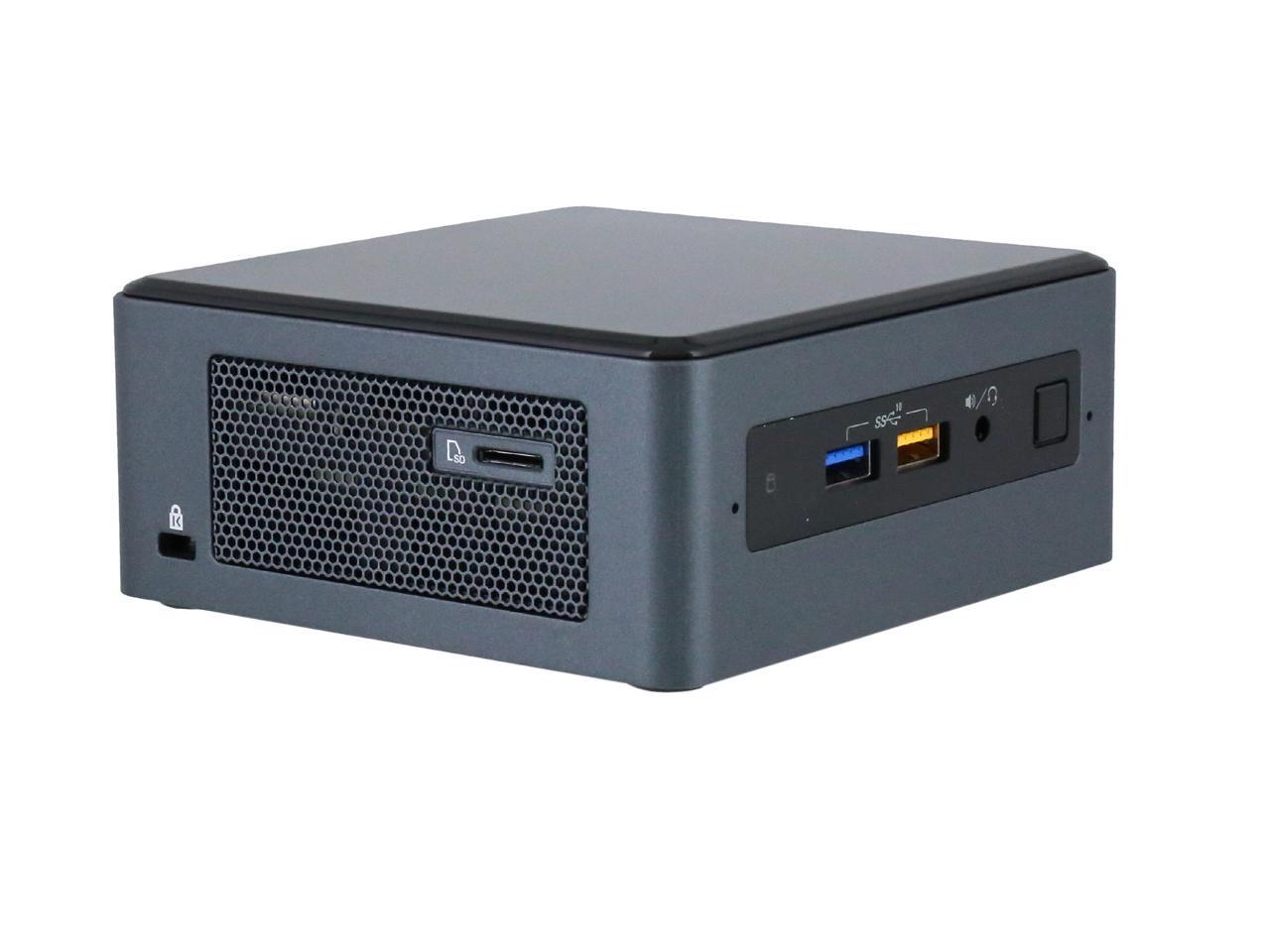

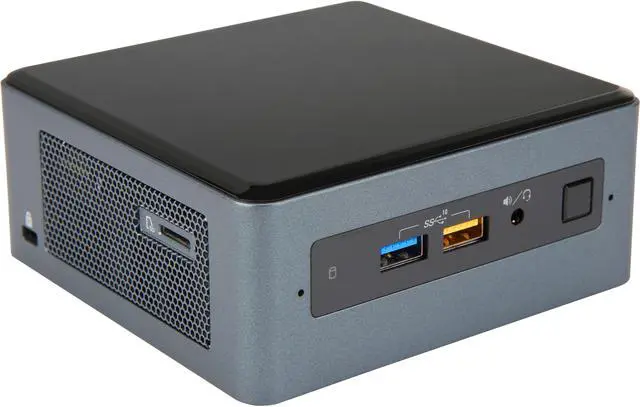

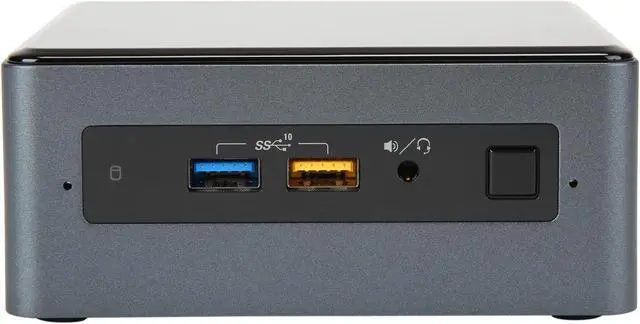

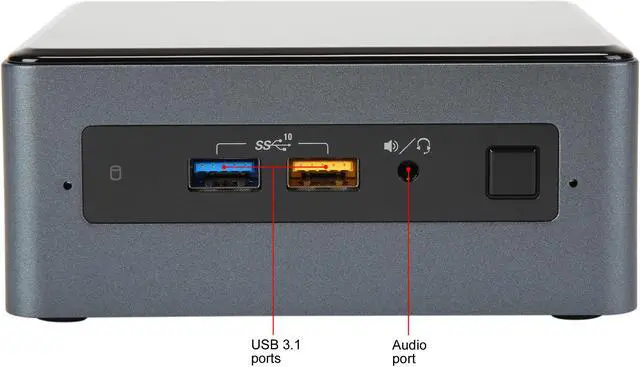

Front Panel Ports

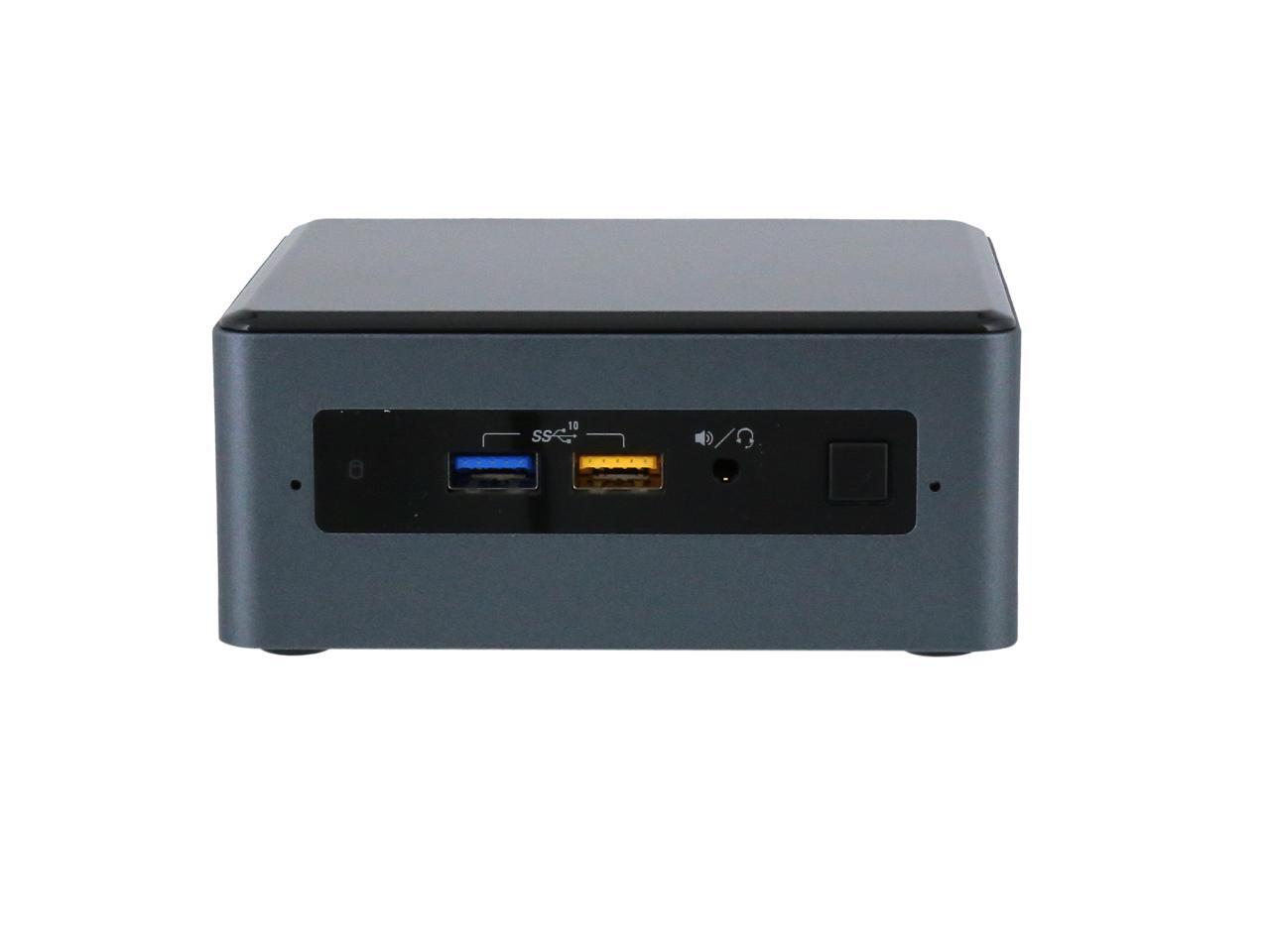

Front USB 2 x USB 3.1 ports including one charging port 2 x additional USB 2.0 ports via internal header
Front Audio Ports 1 jacks

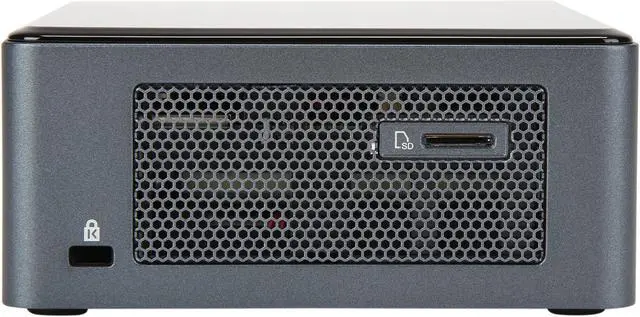

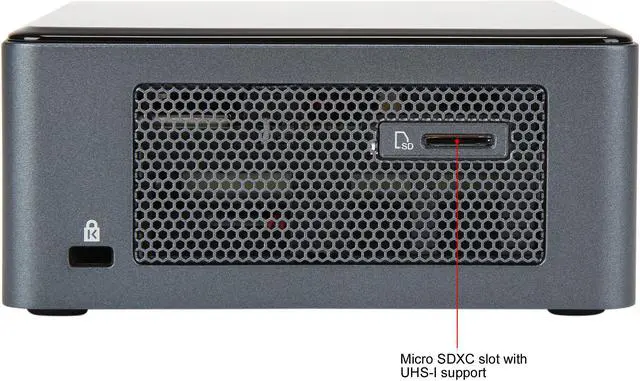

Card Reader Micro SDXC slot with UHS-I support on the side

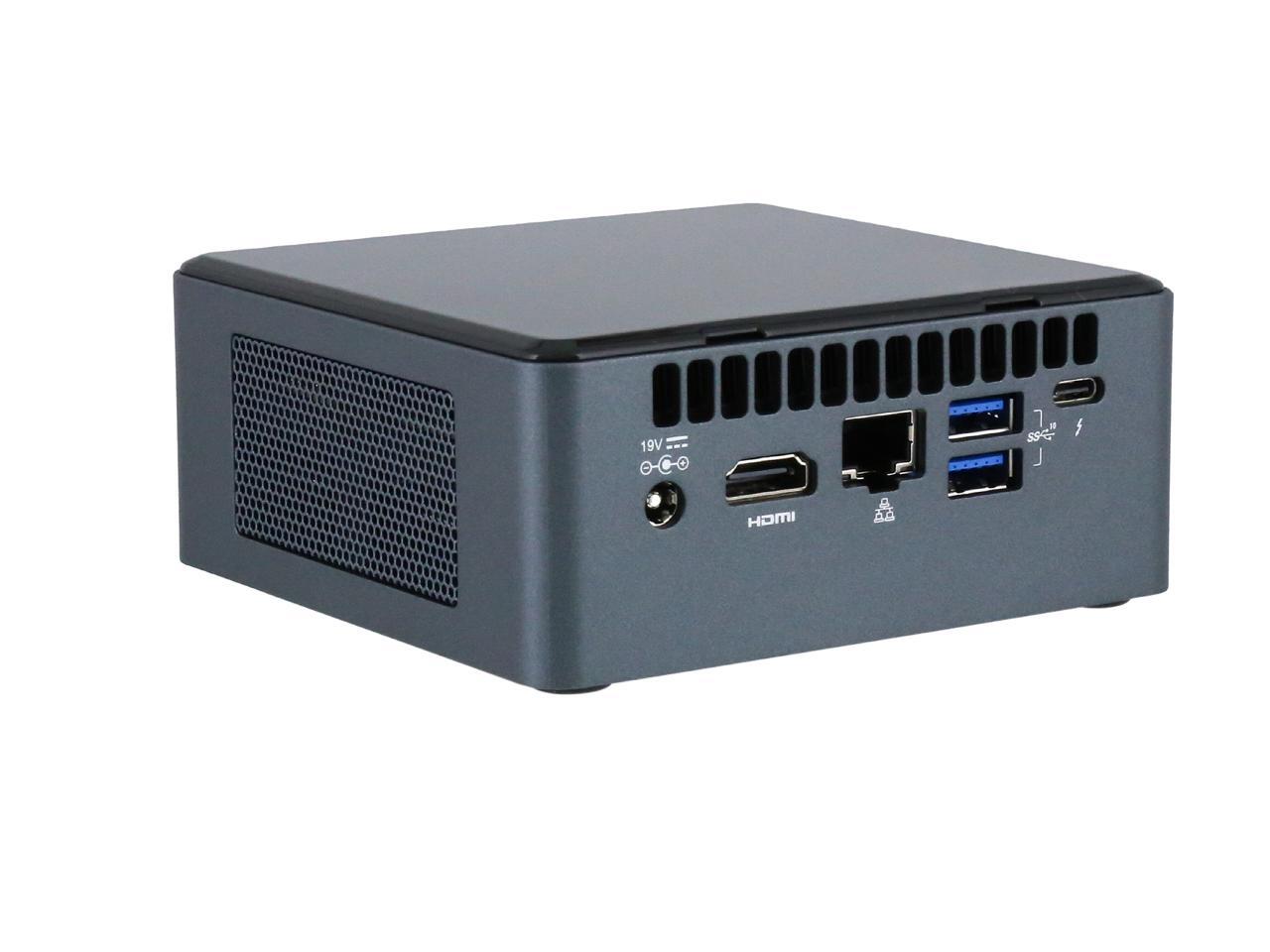

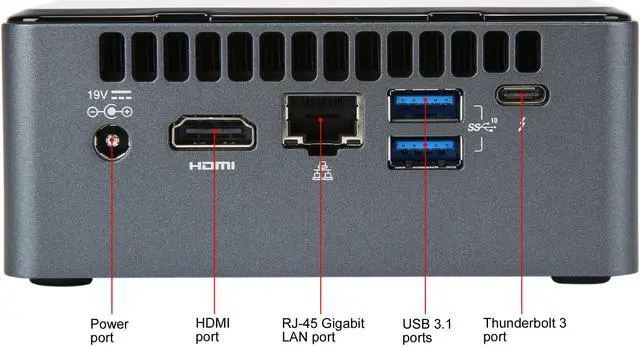

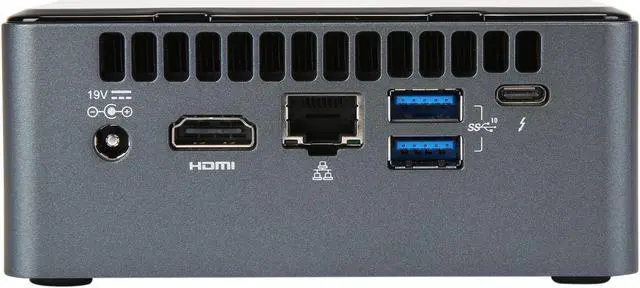

Back Panel Ports
HDMI 1 x HDMI 2.0a port with 4K at 60 Hz
Thunderbolt 3 Yes
Rear USB 2 x USB 3.1 ports
RJ45 1
Other Rear Ports Thunderbolt 3 with data transfer up to 40Gbps
Power Supply

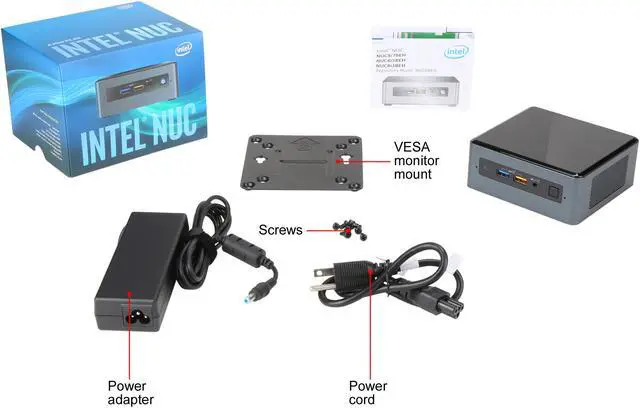

Power Supply 19V, 90W power brick
Physical SPEC
Dimensions 2.01" x 4.40" x 4.60"
Features
Features The first Intel NUC kit with a quad-core 8th generation Intel Core i5 processor
The Intel NUC8i5BEK Mini PC kit with a true quad-core 8th generation Intel Core i5 processor delivers a big jump in performance compared to the previous generation Intel NUC7i5BNH/BNK. Whether it's built to create content or look at photos with 4K UHD graphics for picture perfect entertainment, the Intel NUC8i5BEK Mini PC kit gives great visual immersion with Iris Plus Graphics 655 and the unprecedented performance of Intel Core processors.

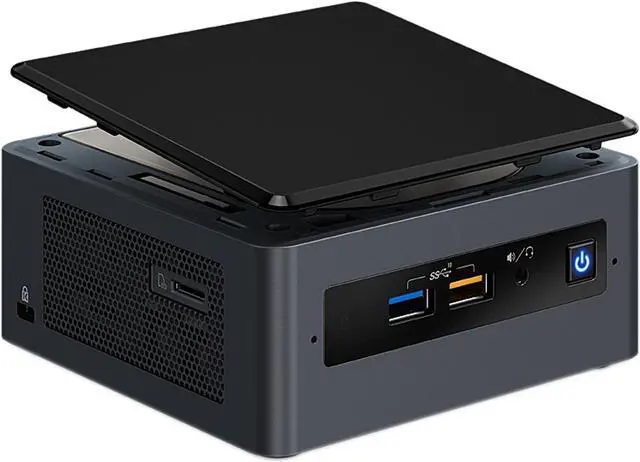

The slightly taller Intel NUC8i5BEH has the same processor and graphics, but also has room for a 2.5" HDD and is Intel Optane memory ready. By coupling a 2.5" HDD and Intel Optane memory, performance improves dramatically with up 1.4x faster media loading, opening large media files 3x faster, and completing daily tasks up to 2x faster.

With Thunderbolt 3 plus USB 3.1 for fast data transfer
The Intel NUC Mini PC kits have chassis that are connectivity powerhouses. Both come with Thunderbolt 3 which supports up to 40GBps of data transfer, and four USB 3.1 ports to bolster productivity for moving big media files around and providing room for peripherals. There's room in both kits for an M.2 SSD, and both come with two additional USB ports via 1x4 internal headers, an HDMI 2.0a port for 4K displays, and DisplayPort 1.2 via USB-C. With the ability to have triple displays all in 4K, photos, videos, and streaming media are all picture perfect.

Think you know what small can do? Think again.
In a footprint that's almost zero - especially when compared with a tower - the Intel Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere - from behind a display to tucked discretely in an entertainment center. And with improved cooling, fan noise is minimal.
Additional Information
First Listed on Newegg April 28, 2019
