$89.99
Meet Your Seller

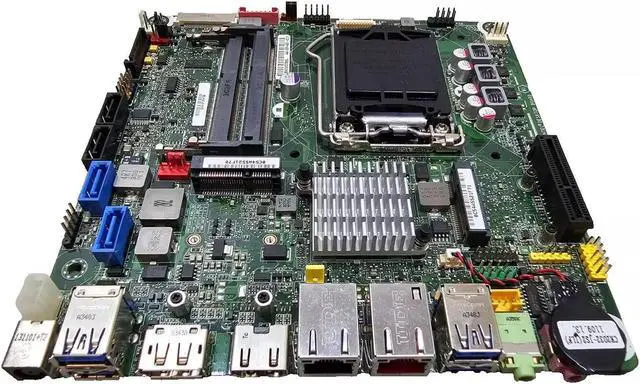

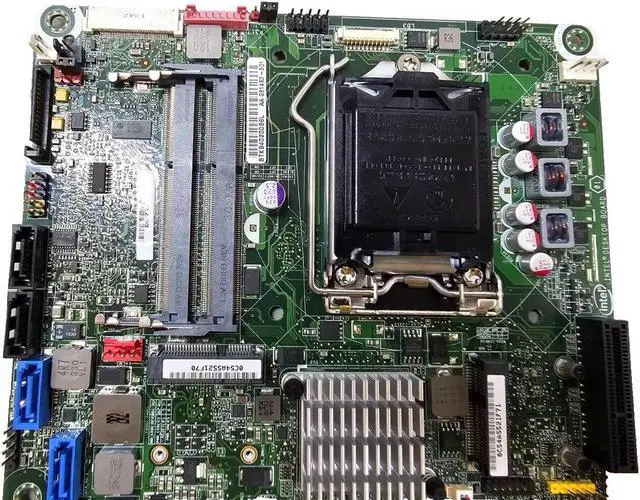

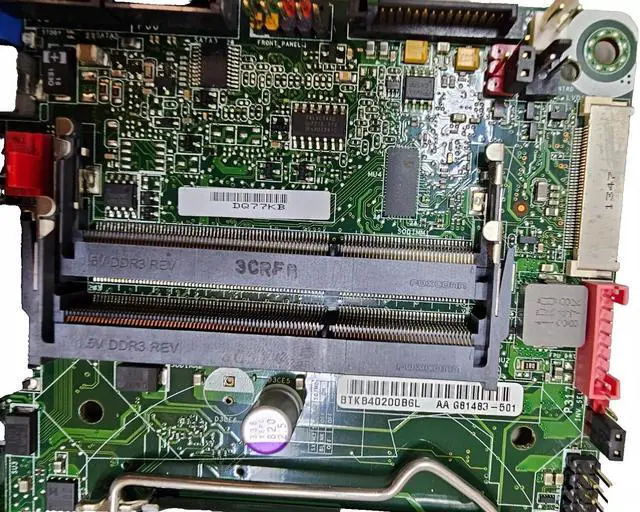

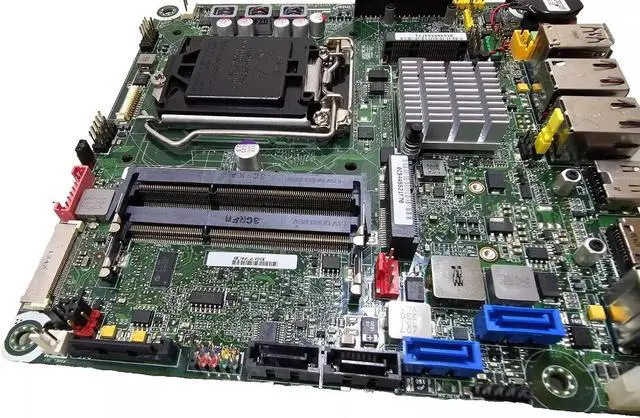

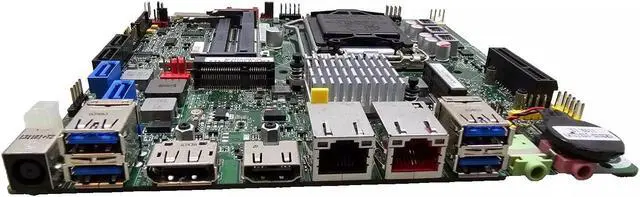

Intel DQ77KB Executive Series mini-ITX LGA1155 (2nd/3rd Gen) Q77 DDR3 Dual NIC - OEM
REFURBISHED Product Type
- Thin Mini-ITX Form Factor
- Low TDP Requirement
- ATX 2.2 Full and Half Height IO Shields
- LGA 1155 Second and Third Gen Intel Core I Series (And Xeon / Pentium)
- TPM Compliant
- Dual Channel SODIMM DDR3
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
New OEM packaging.

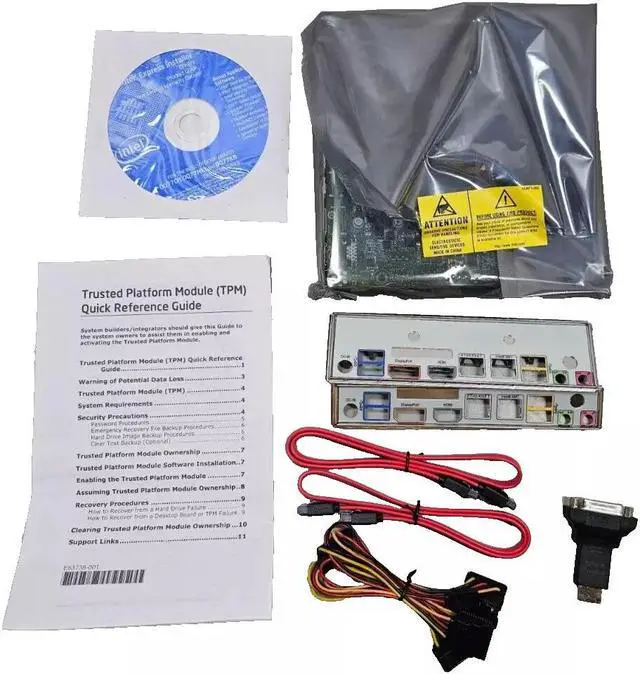

Each order ships with:
2 SATA cables
2 IO Plates (1 full factor, 1 slim)
1 Software Suite
1 DVI to HDMI Adapter.
Intel® Q77 Express Chipset
Extended Life Program (XLP) Yes
Memory & Storage
Max Memory Size (dependent on memory type) 16 GB
# of Memory Slots 2
Memory Types Dual DDR3 1333/1600
Max # of Memory Channels 2
ECC Memory Supported No
I/O
Graphics Output LVDS eDP HDMI DP
# of Displays Supported 2
# of USB Ports 9
USB 2.0 Configuration (External + Internal) 0, 5
USB 3.0 Configuration (External + Internal) 4, 0
Total # of SATA Ports 4
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 0, 1, 5, 10
# of Serial Ports 1
Serial Port via Internal HeaderYes
Audio (back channel + front channel) 2, 2
Integrated LAN Dual 10/100/1000
Expansion Options
PCIe x4 Gen 3 1
PCIe Mini Card Slot (Half Length) 1
PCIe Mini Card Slot (Full Length) 1
Package
TDP 65 W
Board Form Factor Thin Mini-ITX
Advanced Technologies
Intel® Rapid Storage Technology Yes
Security & Reliability
Intel vPro® Eligibility Intel vPro® Platform
TPM Yes
Intel® ME Firmware Version 8.0
Anti-Theft Technology Yes
Each order ships with:
2 SATA cables
2 IO Plates (1 full factor, 1 slim)
1 Software Suite
1 DVI to HDMI Adapter.
Intel® Q77 Express Chipset
Extended Life Program (XLP) Yes
Memory & Storage
Max Memory Size (dependent on memory type) 16 GB
# of Memory Slots 2
Memory Types Dual DDR3 1333/1600
Max # of Memory Channels 2
ECC Memory Supported No
I/O
Specifications
Graphics Output LVDS eDP HDMI DP
# of Displays Supported 2
# of USB Ports 9
USB 2.0 Configuration (External + Internal) 0, 5
USB 3.0 Configuration (External + Internal) 4, 0
Total # of SATA Ports 4
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 0, 1, 5, 10
# of Serial Ports 1
Serial Port via Internal HeaderYes
Audio (back channel + front channel) 2, 2
Integrated LAN Dual 10/100/1000
Expansion Options
PCIe x4 Gen 3 1
PCIe Mini Card Slot (Half Length) 1
PCIe Mini Card Slot (Full Length) 1
Package
Specifications
TDP 65 W
Board Form Factor Thin Mini-ITX
Advanced Technologies
Intel® Rapid Storage Technology Yes
Security & Reliability
Intel vPro® Eligibility Intel vPro® Platform
TPM Yes
Intel® ME Firmware Version 8.0
Anti-Theft Technology Yes
