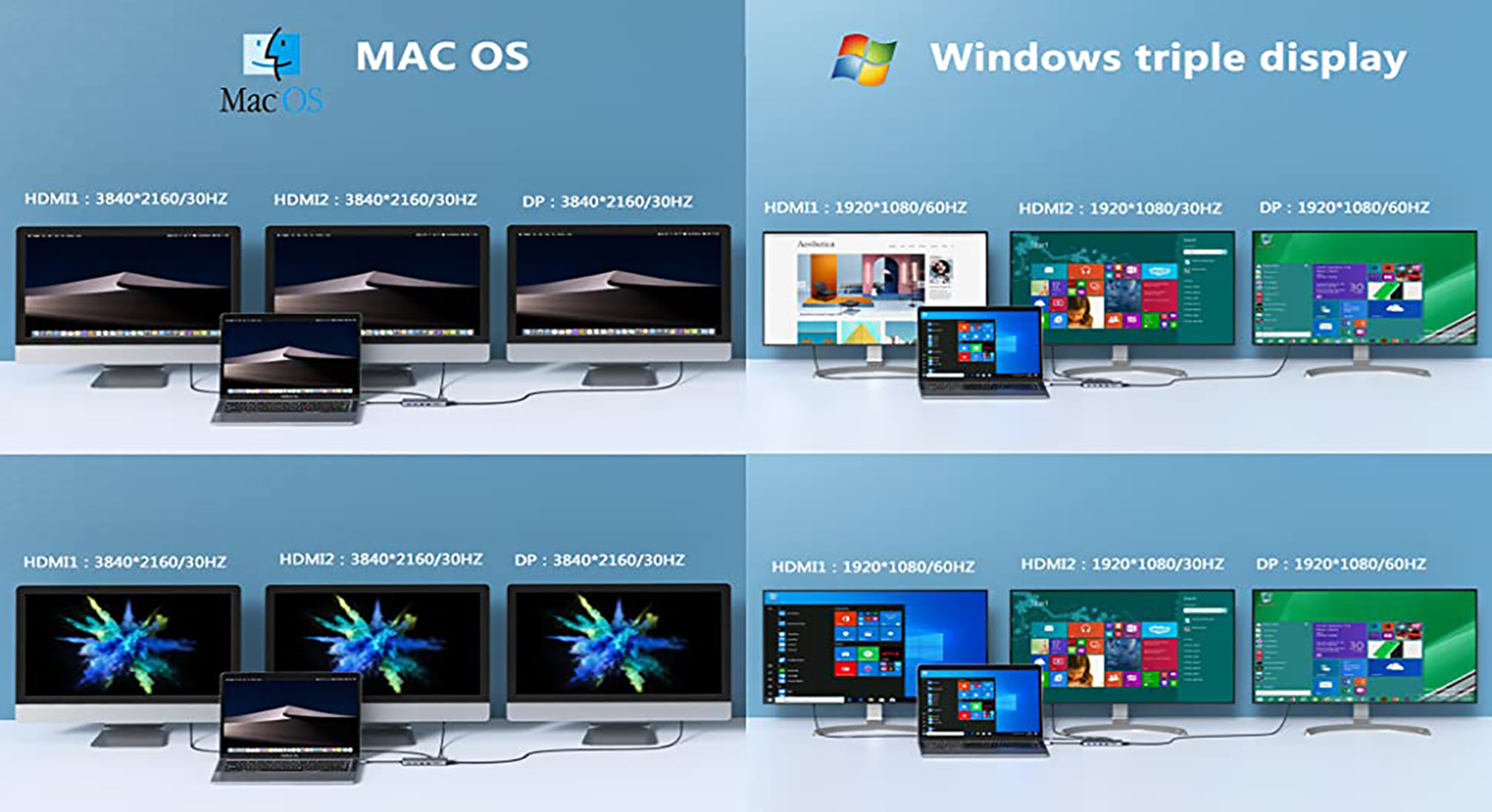

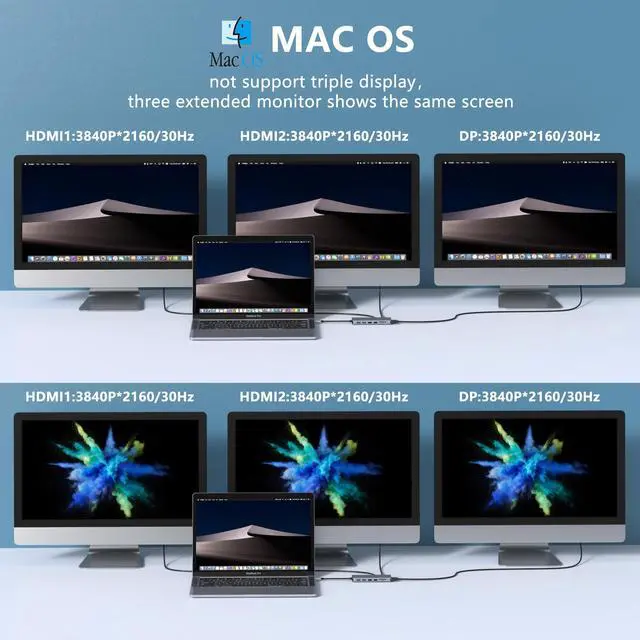

1.Mirror display with MAC OS system
- Note: For Mac system, it only support mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are same but different from laptop. you can get one display of HDMI1+HDMI2+DP, one display of your laptop. Totally two different contents for Mac OS.
- For Mirror mode 3 monitors' resolution are 4K @30Hz(for Mac ONLY MIRROR MODE)
- For Non-mirror mode 3 monitors' resolution are 4K @30Hz(for Mac)
- Please note: Not support dual monitor for M1,M2 chip macbook pro/air (M1,M2 chip only supports output to 1 monitor).

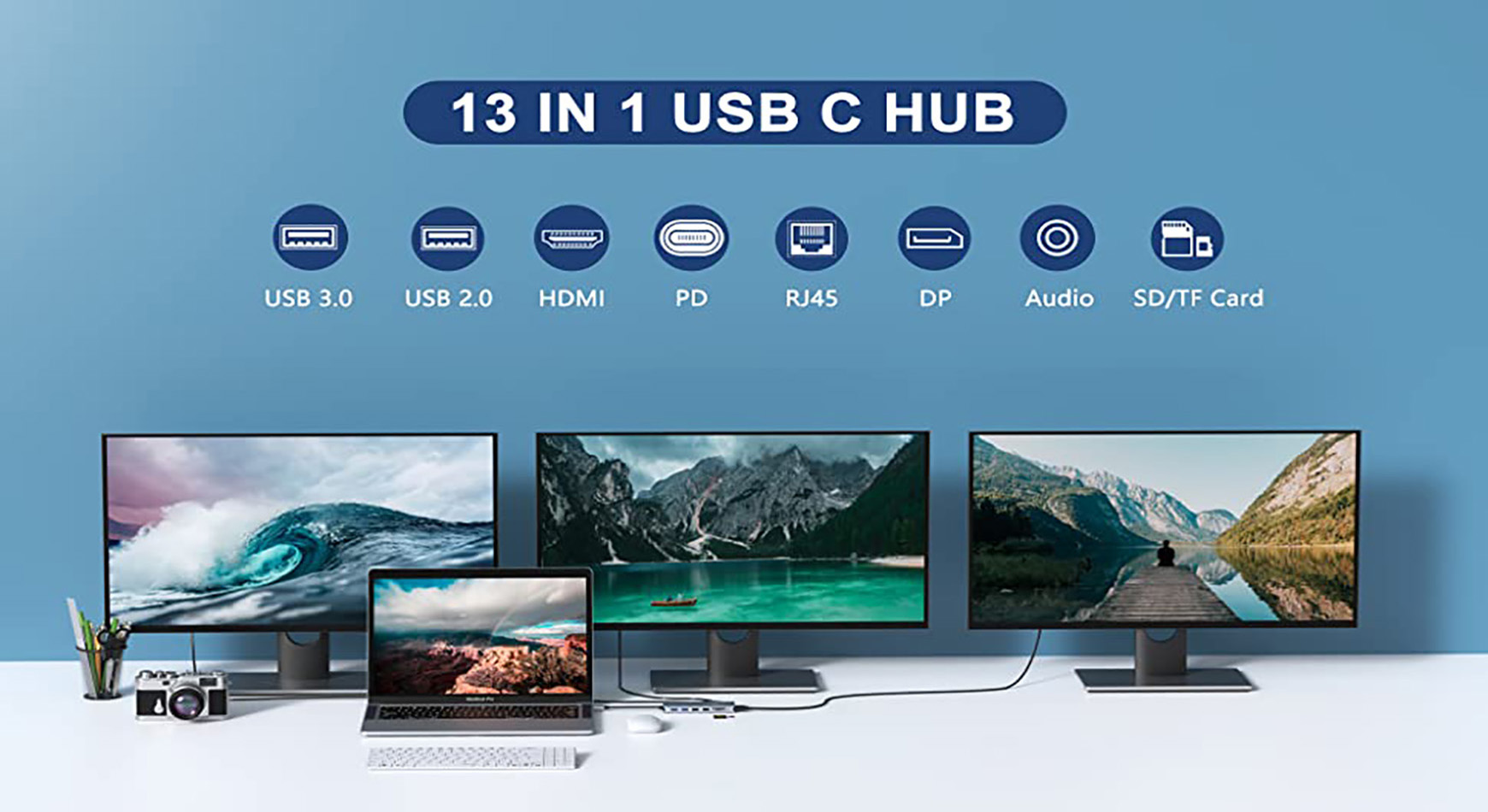

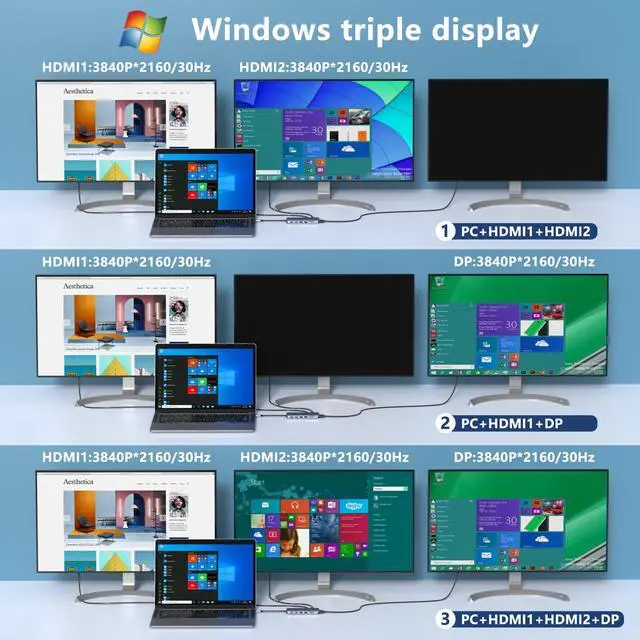

2.Triple display with Windows system
- Type C Hub expand triple monitors with our Adapter, HDMI port support up to 4K@60Hz(while source is DP1.4); DP port support up to 4K @60Hz.
- Mirror mode and Extend mode 3 monitors' resolution of two of the displays are 1080P@60Hz, another one will be limited to 1080@30Hz(for Windows)
The USB C ports are looking the same, but it has several critical differences between Thunderbolt 3, USB-C 3.1 Gen 2, and USB-C 3.1 Gen 1.
- Support Dual or Triple Display:
Thunderbolt 3: 40Gb/s
USB-C 3.1 Gen 2: 10Gb/s
USB-C 3.1 Gen 1: (Support Power Delivery)
- DOES NOT SUPPORT USB C DISPLAY OUTPUT:
× USB-C 3.1 Gen 1: 5Gb/s (data transfer only)
To use this product the host USB-C port from your device must support DisplayPort Alt Mode and Power Delivery

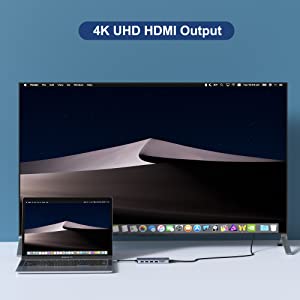

- HDMI 1: 4Kx2K 60Hz / 3840x2160 (DP1.4) ;
- 4Kx2K 30Hz / 3840x2160 (DP1.2)
HDMI 2: 4Kx2K 30Hz / 3840x2160 max
DP: 4Kx2K @60Hz / 3840x2160
- Only Mirror and Non-Mirror Modes are available for Mac OS System. This means, all connected external monitors can only be mirrored your MacBook screen or, all of the external monitors show only one identical display which is different from your MacBook screen.

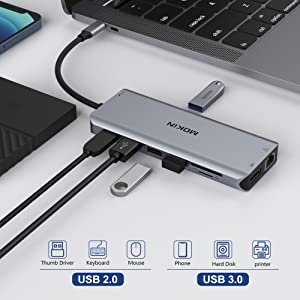

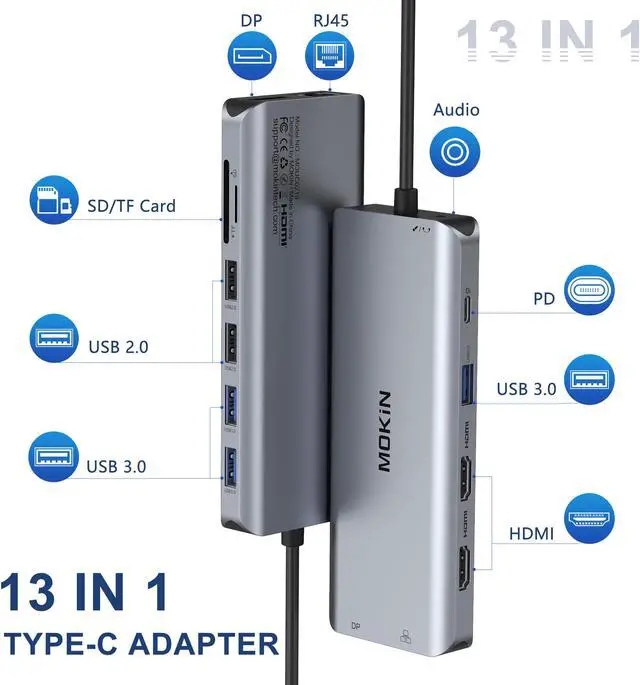

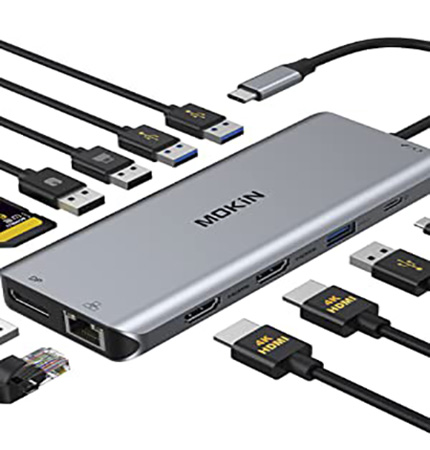

- MOKiN 13-1 usb c hub provides you 3 USB ports,and allows you to use them at the same time.

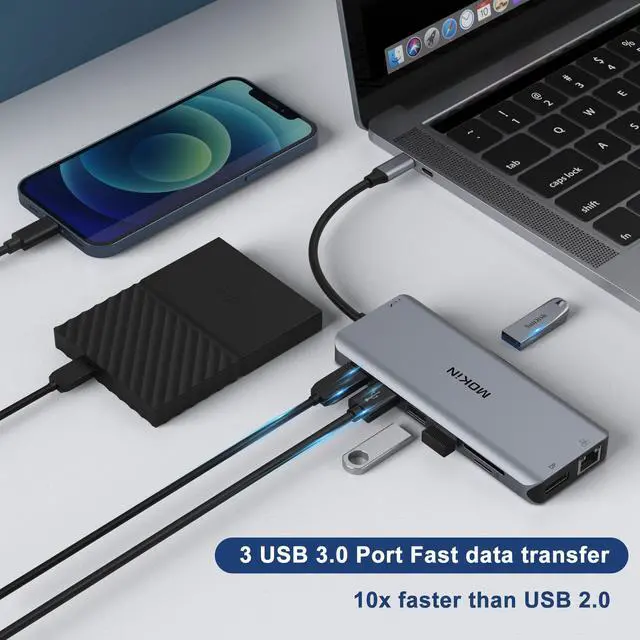

- 3 USB 3.0 Ports with 5Gbps data transfer rate and 4.5W (5V/900mA) Power output. compatible with USB2.0/USB1.1.
- 2 USB 2.0 Ports are better for mouse, keyboard or other low rate devices.

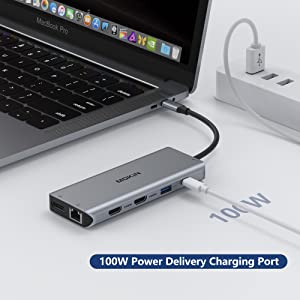

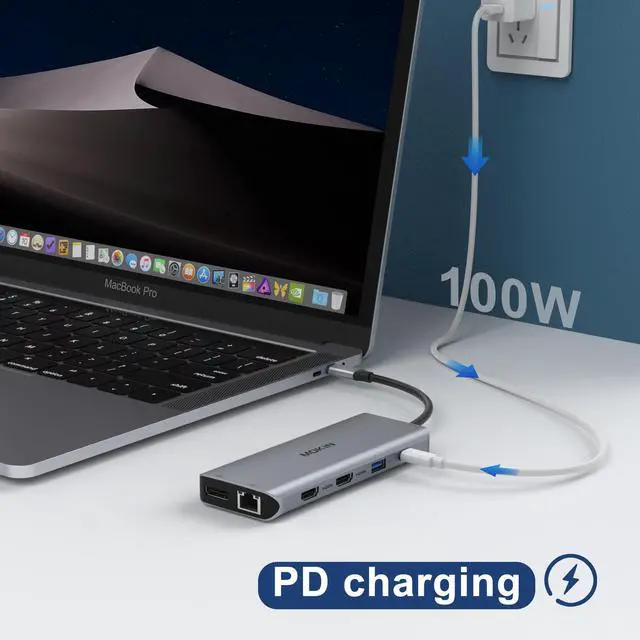

- The USB Type-C PD charging port supports a maximum of 100W power (only for charging). charging limitedto 87-96W for safety, Quickly charge laptops and use other hub functions at the same time
- Note: The hub will occupy 10W of power to work and if your laptop own a AC adapter, you'd better use the original charger directly cause it will provide the fastest charge speed and HP/Dell Laptop do not allow 3rd party charger to charge their laptop.

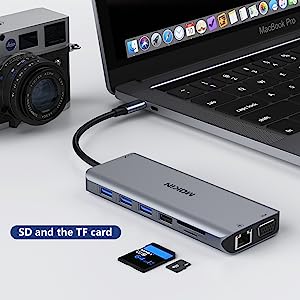

Built-in SD/TF card slots for Type-C devices to access files directly from an SD/TF card, support Memory card capacity up to 512GB.
Super fast read and write speed ,let you get access your files easily.sd card and micro sd can work simultaneouly.

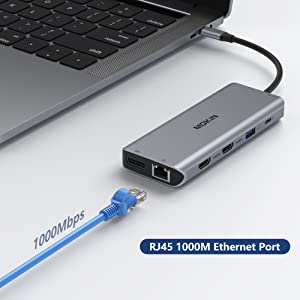

Instantly access to the Internet with the 10/100/1000 Mbps RJ45 Ethernet port, more stable and fast than wireless network, ensures you a smooth & instant wired Internet connection, anywhere and in just a flash.

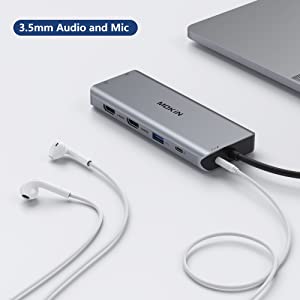

This usb c dock have a 3.5mm Audio Microphone port for you to put in your wired headset or microphone, so that you can enjoy music without disturbing others.
Compatible Laptop Devices: (Not a full list)
- Lenovo Yoga 900/ 910, Lenovo X1 Yoga (2nd Gen), 13' Lenovo 720 laptop ,NUC, Lenovo c740-14il, Lenovo Yoga C740, Lenovo legion Y740, Levnovo Yoga 920, Lenovo Ideapad 5, Lenovo ideapad slim 7, 2020 Lenovo IdeaPad 5 15 mit Ryzen 4800u, Lenovo Thinkpad T590, Lenovo Thinkpad T480, Lenovo thinkbook 14s, Think pad L590, Think Pad E15, ThinkPad X1 Carbon
- HP Spectre X2, HP X360, HP Elite×2 1012, HP Elitebook Folio G1, HP ZBook 15 G3, HP elitebook 840 g6; HP Chromebook; HP Notebook 15-dy1036nr; HP ENVY x360 13-ay0000; HP pavilion intel core 13; HP envy x360 model m6-aq105dx; HP Envy 17t (2020)
- Dell XPS 15 (9550, 9560) Dell XPS 13 (9350, 9360, 9370, 9380) Dell XPS 12 2-in-1 9250 Dell Precision 5510 Dell Latitude 5290 2 in 1/5285/5480/7280 Dell Latitude E7470 laptop; Dell Precision; Dell Latitude 5590; Dell Latitude 5510;
- Acer Spin 7, New Acer Switch Alpha 12, Acer Chromebook R13, Acer Aspire V Nitro 15; Acer model SB230; Acer Chromebook R13
- MacBook Pro 2020/2019/2018/2017/2016; MacBook Air 2020/2019/2018/2017; iPad Pro 2018/2020; Macbook Retina 12" Laptop 2015/2016; iMac, iMac Pro 2019 2018 2017 (won't support dual monitor/triple display monitors)
- Microsoft Surfacebook 2, Microsoft surface pro 7; Surface GO 2; Microsoft surface 3
- Asus zenbook s13 ux392; asus x571gd
- Google Chromebook Pixel;
- Reminder: Mac OS System are mirror mode only. If you have special equipment, any queries, just reach out to us directly
- Supported Systems: Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
Incompatible devices:(Not a full list)
- HP14s-be102TX, HP Probook 650 G2, HP Probook 455 G4, HP Pavilion-14 bf116tx, HP 14-ce1004TX 14, HP Elitebook 820 G3, HP Pavilion 15 ck009, HP EliteBook 745 G4, HP Pavilion Power Laptop 15-cb, HP Probook 430 G5, HP EliteBook 828 G4, HP Pavilion 15-cs3000, HP Pavillion Laptop Model 15-cs1014-ng, HP probook g3, HP bs049dx
- Lenovo IdeaPad 3 (17") Intel, Flex 5 14 (AMD), IdeaPad Flex 5 15 (Intel) 2 in 1, ThinkPad 11e Yoga Gen 6 (11') 2-in-1
- Dell Inspiron 15 3000, Inspiron 11 3000 2-in-1, Inspiron 17 3000
- Samsung Galaxy A20 / A20E / A50 / A70 / A80 / S6 / S7 / J6 / J7 / M20 / M30; Samsung Galaxy Tab A / 10.1 / 10.5 / S3;
- MacBook Air 7.2, MacBook Pro 2015, iMac 2021;
- LG Google Nexus 5X/6P, LG Stylist/LG G6,LG V30, LG k10/k20.
- Oneplus 2/3/3T/5T/6T; All Motorola's phone; GoPro; Amazon Fire Tablet; Surface Dock 2;
- Acer Aspire A717-72G,Acer Aspire A515-44-R1DM, Acer Aspire a515-54 model
- Predator Helios 300 PH315-52-754M, Microsoft Surface Pro 6, Huawei MediaPad M5 Lite
| Brand | MOKiN |
|---|---|
| Total Ports | 13 ports 2HDMI+DP |
| Hardware Interface | USB Type C |
| Manufacturer | Manufacturer |
Customer questions & answers
Question: Does this adapter work with Lenovo Yoga C930 laptops?
Answer: support
Question: Will this work for multiple different displays using a 2023 MacBook Pro?
Answer: Dear Customer,
Thanks for interesting in Mokin usb c docking station.
We checked for you this docking station is compatible with 2023 MacBook Pro, but for Mac system, it only support mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are same but different from laptop.
Any future problems, please kindly contact us.
Question: Can i use the type c port to power an external monitor while connecting to the hdmi and the hub connected to a laptop?
Answer: No, the USB C port is for charging the host only.
Question:Do this work with hp laptops? widely compatible really is vague.... thank you for your time!!!
Answer: If you have a USB port and a USB - USB-C adapter, will it work with a laptop with only USB & HDMI ports?If your laptop has a type c port,it is compatible.If it has UBS-c port it will.
Question: Is this compatible with lenovo ideapad flex 5 14itl05?
Answer: Most likely - if it has USB-C port
Question:Does this work with Surface Laptop 5?
Answer: Dear Customer,
Thanks for interesting in MOKiN usb c hub.
Yes, this does work with Surface Laptop 5.
Any further problems, please kindly contact us.
Thanks
MOKiN support team
Question:will this cast a galaxy's note 8 screen to a tv with vga plug?
Answer: It allowed me to cast my computer (Apple MacBook Pro) to my TV. Since the Galaxy Note 8 has a USB-C port, I would assume it will.
Question: Is there a way to extend the cord that plugs into the computer? it is too short to hide under the desk and reach the comp. thanks.
Answer: Yes, you can buy an extension USB cord. I did this for my own computer setup. Just make sure that you purchase a cord that is both power delivery (PD) and data.
