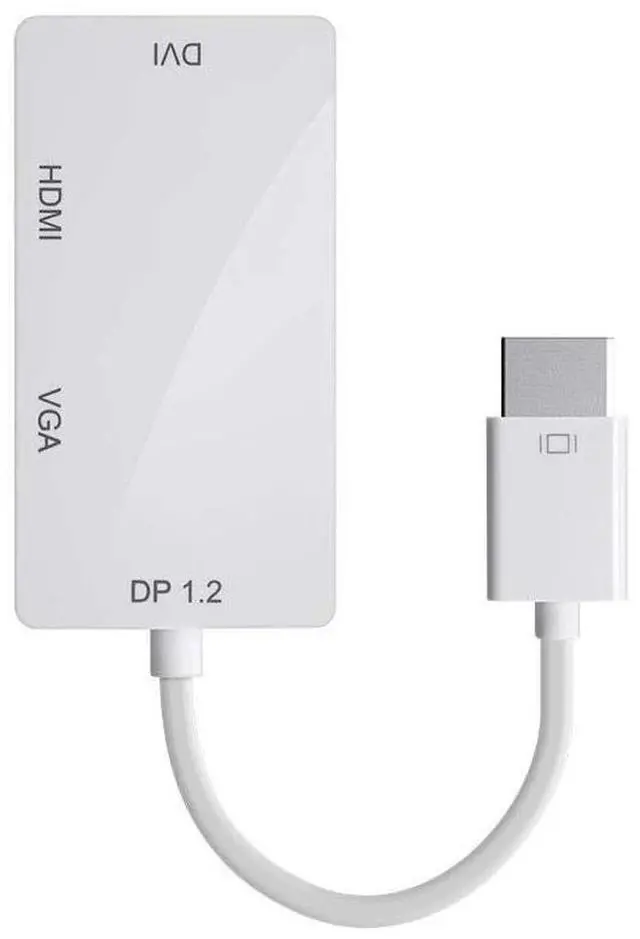

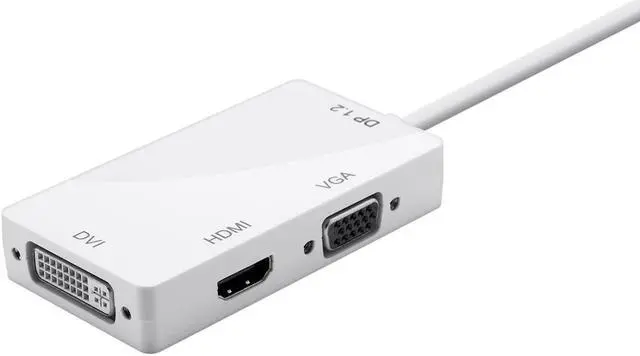

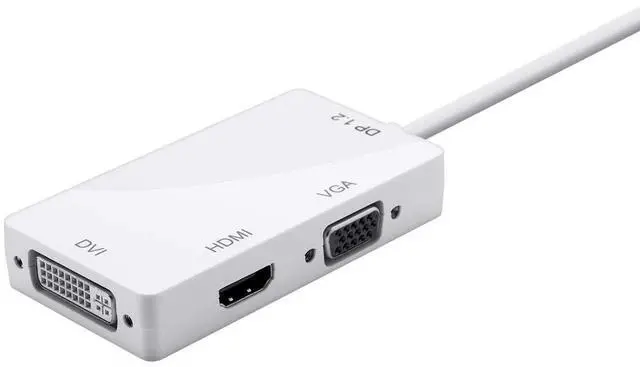

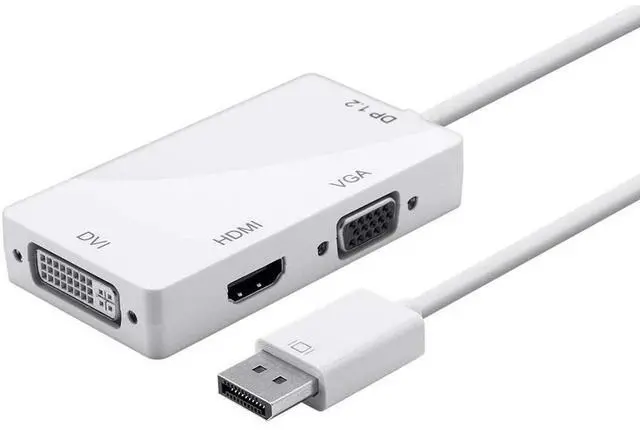

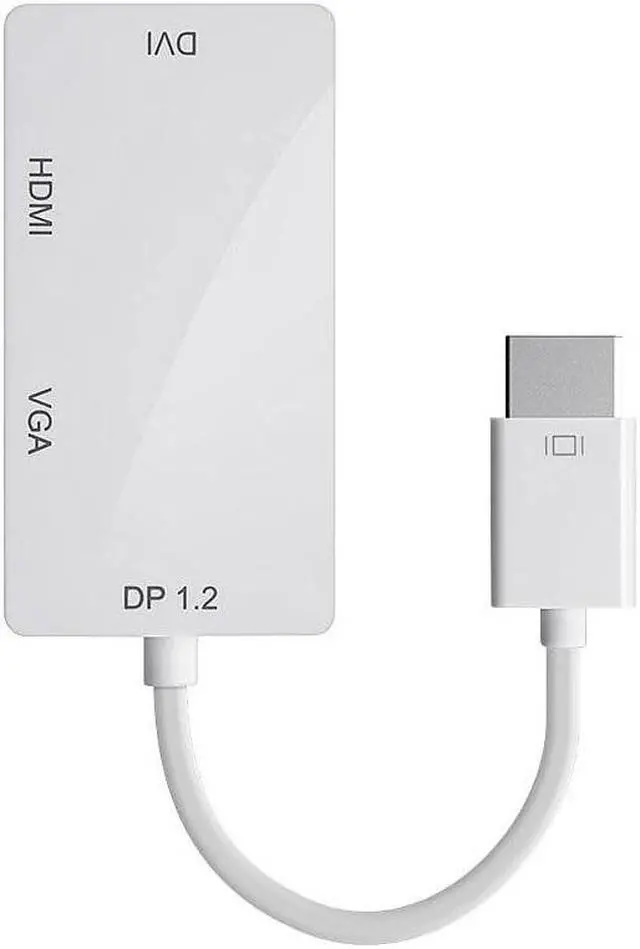

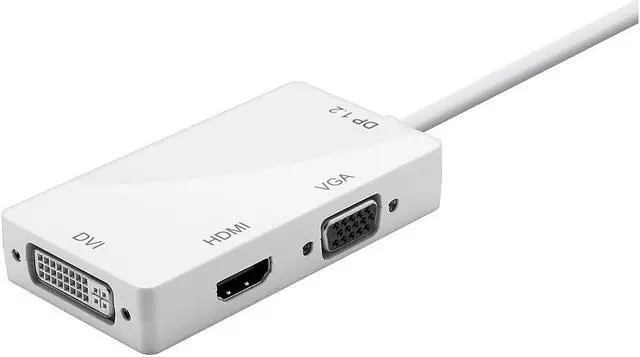

Monoprice DisplayPort 1.2a to 4K HDMI, Dual Link DVI, and VGA Passive Adapter, White

Connect your DisplayPort equipped PC to a 4K HDMI, Dual Link DVI, or VGA video display using this DisplayPort 1.2 a to 4K HDMI, Dual Link DVI, and VGA Passive Adapter from Monoprice!

This adapter is designed to allow you to connect an HDMI, DVI, or VGA display to a DisplayPort video output. It conforms to the DisplayPort 1.2 a standard and supports HDMI resolutions up to 4K (3840x2160p) @30Hz, Dual Link DVI resolutions up to 2560x1600p @60Hz, and VGA resolutions up to 1920x1080p @60Hz. Being a passive adapter, it is NOT compatible with the AMD Eyefinity and nVidia Surround multidisplay modes. Note that only one of the three video outputs can be used at any given time.

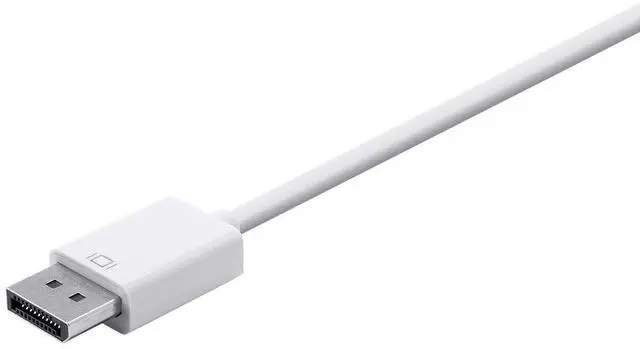

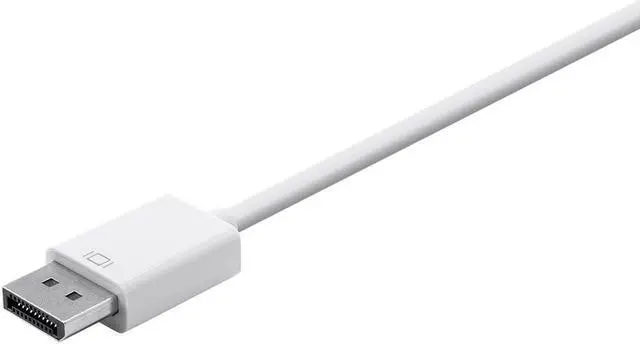

It features a true 6 cable length with polycarbonate connector heads. The VGA and DVI connectors have panel screw holes, so you can secure the cable to the connector. The DP connector head measures 14.5 mm thick, 25.5 mm wide, and 31.0 mm long. The multioutput connector head measures 20.0 mm thick, 50.0 mm wide, and 90.0 mm long.

Features:


Conforms to DisplayPort 1.2 a standard

Supports HDMI resolutions up to 4K (3840x2160p @30Hz)

Supports Dual Link DVI resolutions up to 2560x1600p @60Hz

Supports VGA resolutions up to 1920x1080p @60Hz

PASSIVE adapter is NOT compatible with nVidia Surround and AMD Eyefinity multidisplay modes
