SR Studio 2-Channel 1073-Style Microphone Preamp

SR Studio by Monoprice

SR Studio 2Channel 1073Style Microphone Preamp

All the classic characteristics heard on countless recordings, now possible at your disposal.

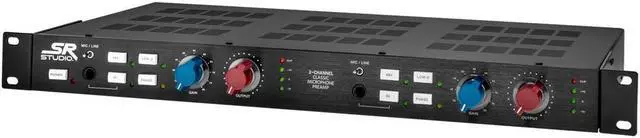

The SR Studio 2Channel 1073Style Microphone Preamp is a vintagestyle microphone, line, and instrument preamplifier. The signal path uses only discrete components, such as resistors, capacitors, and transistors. The input and output is transformerbalanced, using two different transformers, each optimized for its purpose. The circuit used is similar to the preamp section in the classic 1073 module, with a corresponding sound character that is warm, punchy, sweet, and musical. These classic characteristics have been heard on countless recordings throughout the years. It is a versatile sound that works well on most sound sources and in most musical genres.






Two independent channels

Completely discrete component signal path

One highimpedance instrument input for any sound module, electric guitar or bass





Up to 80dB gain capable of handling passive ribbon mics with quiet sound sources

Combination XLR/TRS input jack and separate output XLR and TRS jacks for flexible connections.


















DUAL CHANNELS



This is a twochannel vintage style microphone, line and instrument preamplifier that features 2 channels that are completely independent from each other; from the signal coming in to the signal going out.



















DISCRETE SIGNAL PATH

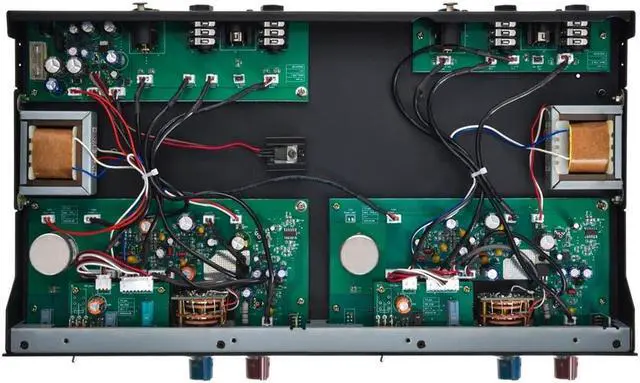

The preamp features a signal path that uses only discrete components like resistors, capacitors, and transistors. The way classic audio components were built before integrated circuits became available.



















DUAL TRANSFORMERS



The inputs and outputs are balanced by using two different transformers, each one optimized for its purpose.



















CLASSIC 1073 CHARACTERISTICS



The circuit used in this 1073style preamp is similar to the preamp section in the classic 1073 modules with a corresponding sound character that is warm, punchy, sweet, and musical.













PACKAGE CONTENTS

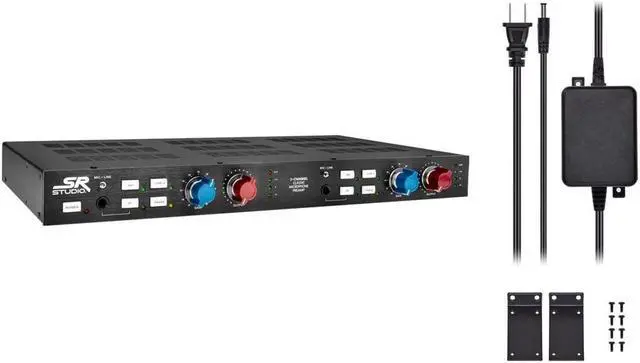

1x Studio 2Channel 1073Style Microphone Preamp 1x Power Adapter 1x Users Manual
