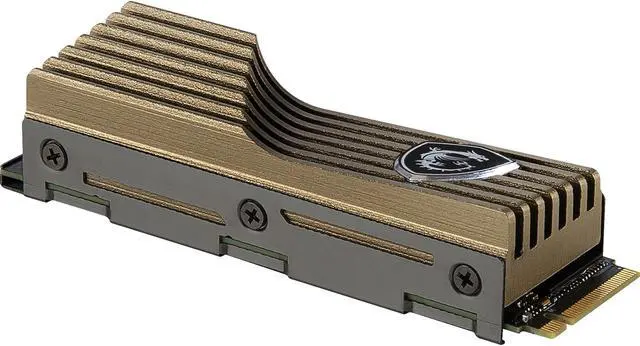

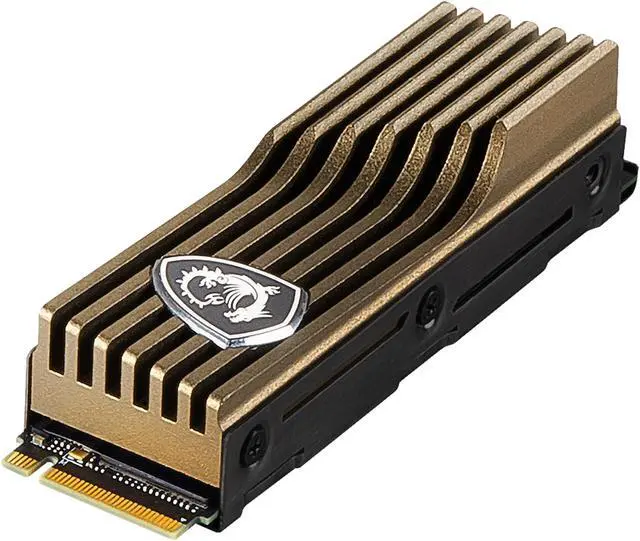

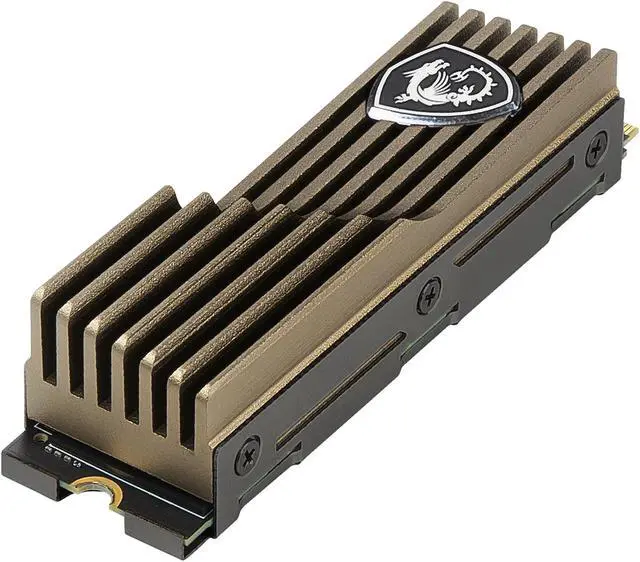

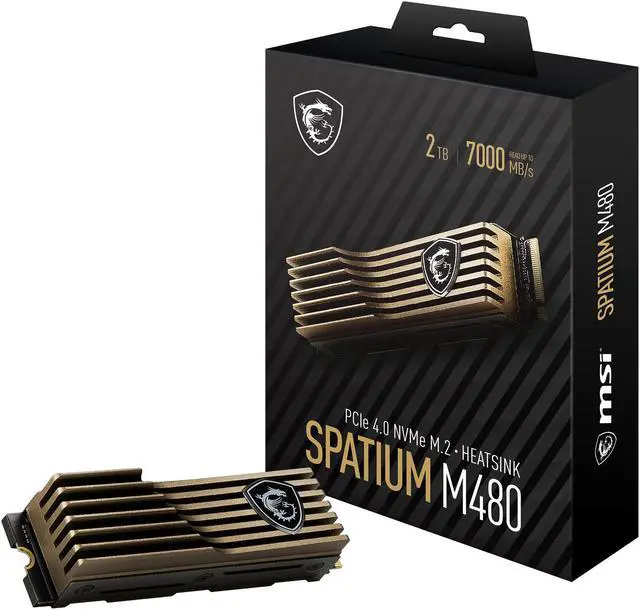

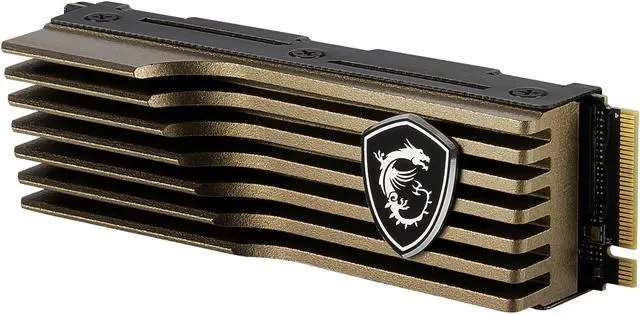

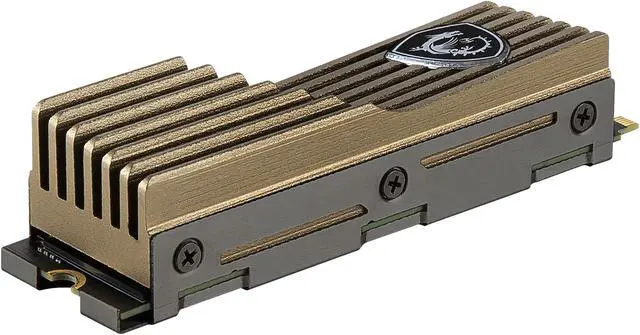

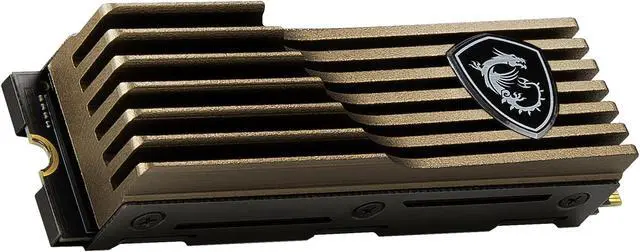

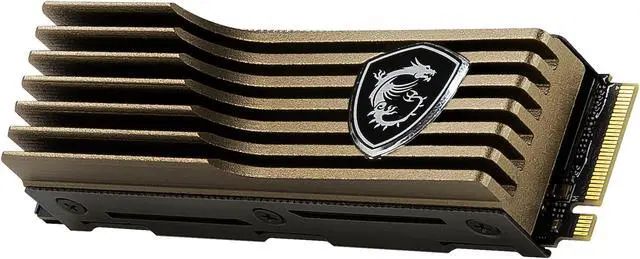

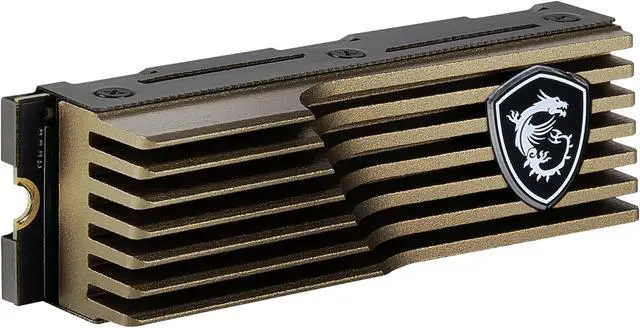

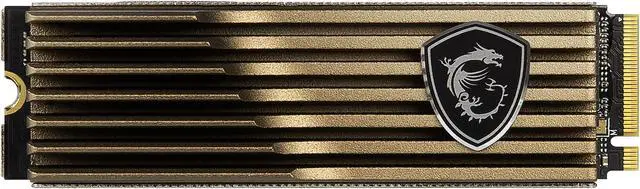

MSI SPATIUM M480 Heatsink M.2 2280 2TB PCIe Gen4x4, NVMe 1.4 3D NAND Internal Solid State Drive (SSD)

OPEN BOX Product Type
  • PCIe Gen4x4 interface and complies with the NVMe 1.4 standard
  • Sequential Read speeds up to 7000MB/s and Write speeds up to 6800MB/s
  • Up to 1400 TBW
  • Built-in data security and error-correction capabilities
  • 500GB to 2TB capacities in M.2 2280 form factor
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the MSI M480

Model
Brand MSI
Series SPATIUM Series
Model M480
Part Number SPATIUM M480 1TB
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor M.2 2280
Capacity 2TB
Memory Components 3D NAND
Interface PCIe Gen4x4, NVMe 1.4
Controller PHISON E18
Cache 2GB DDR4
Performance
Max Sequential Read Up to 7000 MBps
Max Sequential Write Up to 6800 MBps
4KB Random Read Up to 650,000 IOPS
4KB Random Write Up to 700,000 IOPS
Terabytes Written (TBW) 1400TB
MTBF 1,600,000 hours
HeatSink with HeatSink
Features
Features TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
Environmental
Power Consumption (Idle) 22 mW
Power Consumption (Active) 8.2W
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Dimensions & Weight
Height 20.40mm
Width 23.00mm
Depth 80.40mm
Additional Information
Date First Available August 27, 2022
