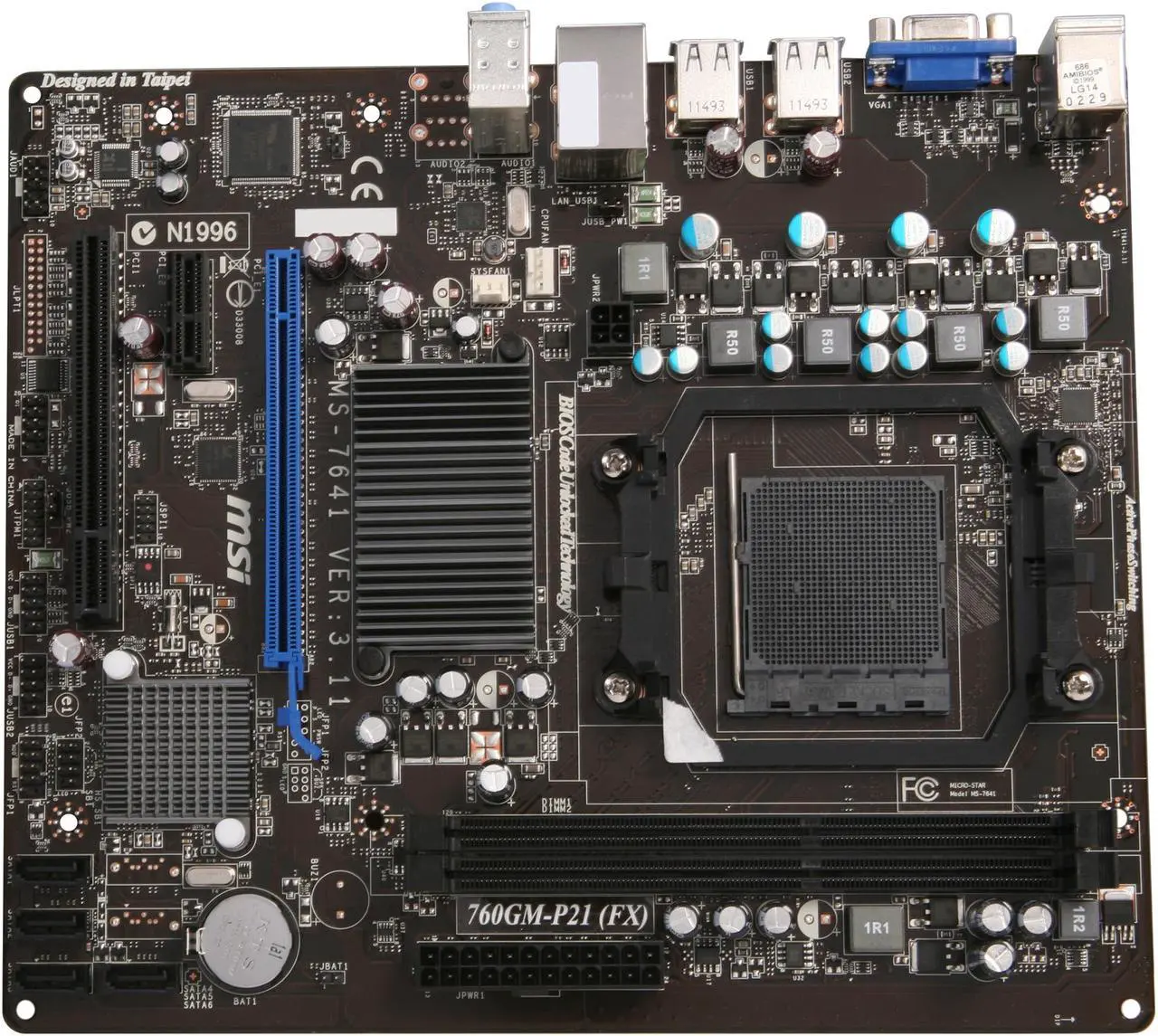

    MSI 760GM-P21 (FX) AM3+ AMD 760G Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD 760G
    • Athlon Series / FX Series / Phenom II / Sempron
    • DDR3 800/1066/1333
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the MSI 760GM-P21 (FX)

    Model
    Brand MSI
    Model 760GM-P21 (FX)
    Supported CPU
    CPU Socket Type AM3+
    CPU Type Athlon Series / FX Series / Phenom II / Sempron
    FSB 2600 MHz
    Chipsets
    Chipset AMD 760G
    South Bridge AMD SB710
    Memory
    Number of Memory Slots 2x240pin
    Memory Standard DDR3 800/1066/1333
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express 2.0 x16
    PCI Express x1 1 x PCI Express x1
    PCI Slots 1 x PCI Slot
    Storage Devices
    SATA RAID 0/1/10/JBOD
    Onboard Video
    Onboard Video Chipset ATI Radeon 3000
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8105E
    Max LAN Speed 100Mbps

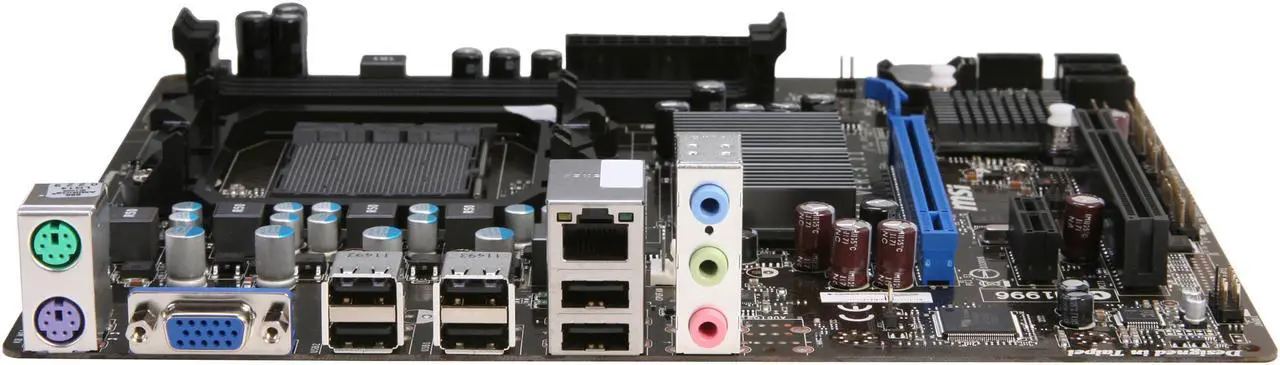

    Rear Panel Ports
    PS/2 2
    Video Ports D-Sub
    USB 1.1/2.0 6 x USB 2.0
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0
    Other Connectors 1 x ATX 24-pin power connector
    1 x ATX 4-pin 12V CPU power connector
    CPU x 1 / System x 1 FAN connectors
    1 x Front panel audio connector
    1 x Front panel connector
    1 x Chassis intrusion switch connector
    1 x Serial port connector
    1 x Clear CMOS jumper
    1 x SPDIF-out connector
    1 x TPM module connector
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 8.23"
    Power Pin 24 Pin
    Features
    Features OC Genie: Easy Overclocking Technology

    Unlock CPU Core: Unlock hidden CPU core and potential

    Lossless 24bit/192kHz HD Audio

    For notes of this item, please visit the official website.
    http://www.msi.com/product/mb/760GM-P21--FX-.html
    Additional Information
    Date First Available April 13, 2025
