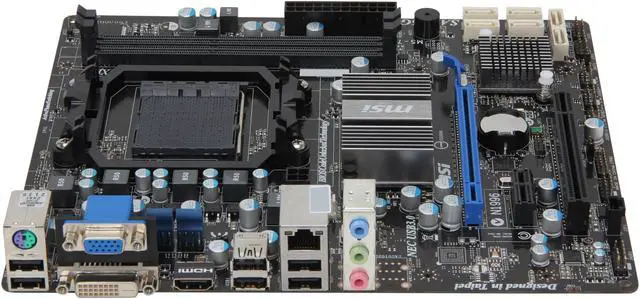

Alt view image 2 of 5 - MSI 880GMS-E41 (FX) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard

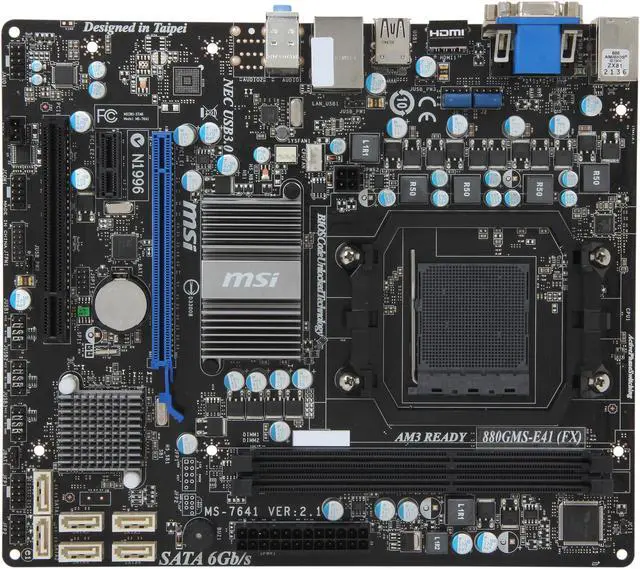

Alt view image 3 of 5 - MSI 880GMS-E41 (FX) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard

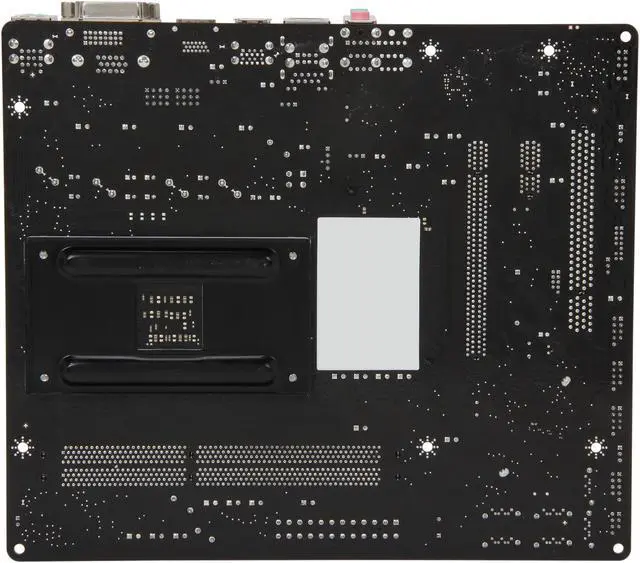

Alt view image 4 of 5 - MSI 880GMS-E41 (FX) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard

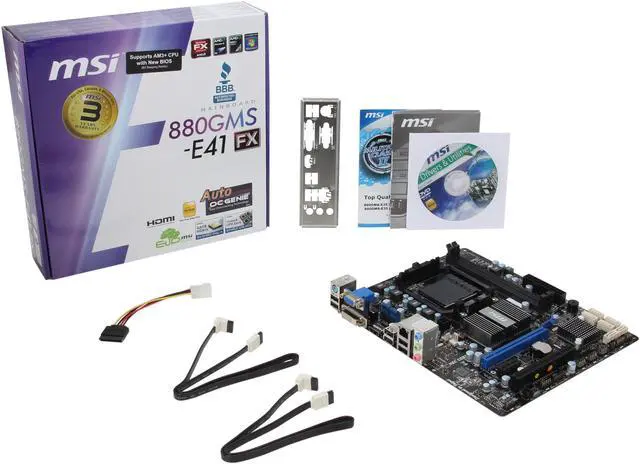

Alt view image 5 of 5 - MSI 880GMS-E41 (FX) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard

Shop All MSI Products

MSI 880GMS-E41 (FX) AM3+ AMD 880G HDMI Micro ATX AMD Motherboard

(27) Write a Review

AMD 880G
Athlon Series / FX Series / Phenom II / Sempron
DDR3 800/1066/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (27)

Any questions? Our AI beta will help you find out quickly.

Try me now

AMD® 880G Chipset Based

OC Genie: Easy Overclocking Technology
Unlock CPU Core: Unlock hidden CPU core and potential
Lossless 24bit/192kHz HD Audio
Supports SATA 6Gb/s

Model
Brand	MSI
Model	880GMS-E41 (FX)

Supported CPU
CPU Socket Type	AM3+
CPU Type	Athlon Series / FX Series / Phenom II / Sempron
FSB	2600 MHz

Chipsets
Chipset	AMD 880G
South Bridge	AMD SB850

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 800/1066/1333
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/10/JBOD

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 1.1/2.0	6 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	6 x USB 2.0
Other Connectors	1 x ATX 24-pin power connector 1 x ATX 4-pin 12V CPU power connector CPU x 1 / System x 1 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 1 x Chassis intrusion switch connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.07"
Power Pin	24 Pin

Features
Features	OC Genie: Easy Overclocking Technology Unlock CPU Core: Unlock hidden CPU core and potential Lossless 24bit/192kHz HD Audio Supports SATA 6Gb/s

Additional Information
First Listed on Newegg	June 11, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
