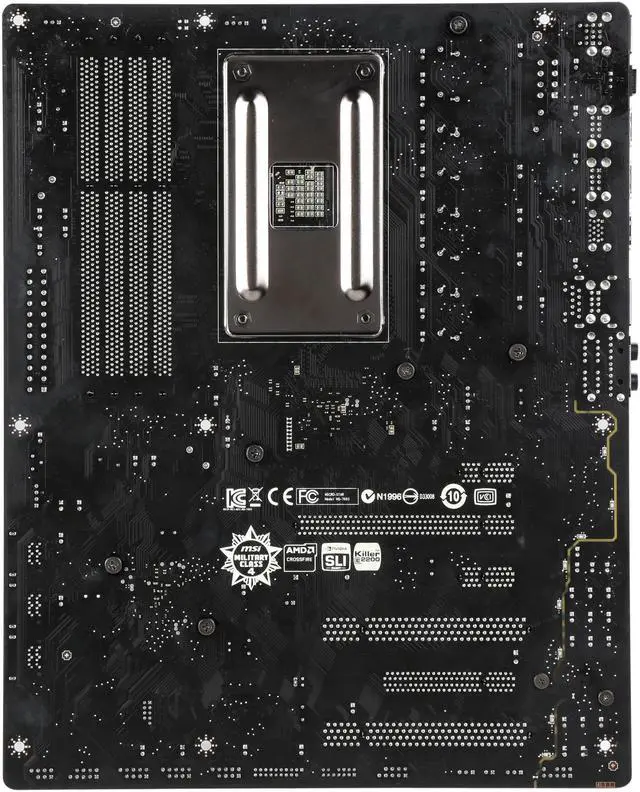

MSI Gaming 970 Gaming AM3+/AM3 AMD 970 and SB950 SATA 6Gb/s USB 3.0 ATX AMD Motherboard

REFURBISHED Product Type
(1) Write a Review
  • Supports AMD FX / Phenom II / Athlon II / Sempron processors for AM3+ socket
  • Supports DDR3-2133(OC) Memory
  • USB 3.0 + SATA 6Gb/s
  • Audio Boost 2: Reward Your Ears with True Quality
  • Killer Ethernet: Kill Your Lag
  • OC Genie 4: Overclock in 1 Second
  • Click BIOS 4: Easily Fine-tune Your System
  • AMD CrossFire Support
  • Sound Blaster Cinema 2: Realistic Surround Sound Experience
  • Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the MSI 970 GAMING

Model
Brand MSI
Model 970 GAMING
Supported CPU
CPU Socket Type AM3+/AM3
CPU Type FX / Phenom II / Athlon II and Sempron
Chipsets
Chipset AMD 970 and SB950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2133(OC)/ 1866/ 1600/ 1333/ 1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCIe 2.0 x16 slots
- PCI_E2 supports up to PCIe 2.0 x16 speed
- PCI_E4 supports up to PCIe 2.0 x8 speed
PCI Express x1 2 x PCIe 2.0 x1 slots
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Killer E2205 Gigabit LAN controller
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 8 x USB 2.0/1.1
PS/2 1 x PS/2 keyboard/mouse port
RJ45 1 x RJ45
USB 3.0 2 x USB 3.0
USB 1.1/2.0 8 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 6 x OFC audio jacks
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
1 x USB 3.0 connector
Other Connectors 1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
2 x 3-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Serial port connector
1 x S/PDIF-Out connector
1 x Clear CMOS jumper
1 x Slow mode booting switch
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports AMD FX / Phenom II / Athlon II / Sempron processors for AM3+ socket

Supports DDR3-2133(OC) Memory

USB 3.0 + SATA 6Gb/s

Audio Boost 2: Reward Your Ears with True Quality

Killer Ethernet: Kill Your Lag

OC Genie 4: Overclock in 1 Second

Click BIOS 4: Easily Fine-tune Your System

AMD CrossFire Support

Sound Blaster Cinema 2: Realistic Surround Sound Experience

Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices

Multi-GPU
- Supports 2-Way AMD CrossFire Technology*
- Supports 2-Way NVIDIA SLI Technology*
* Supports Windows 7 and Windows 8/ 8.1.

BIOS
- The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications.

Mounting
- 9 mounting holes.

Warning: This MB doesn't support 200W or above CPU.
Additional Information
Date First Available April 14, 2017
