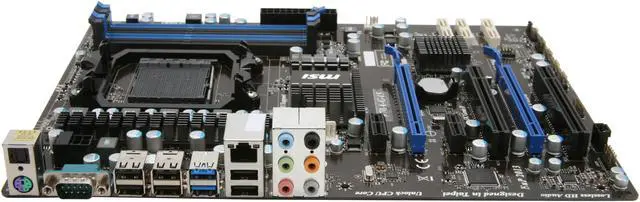

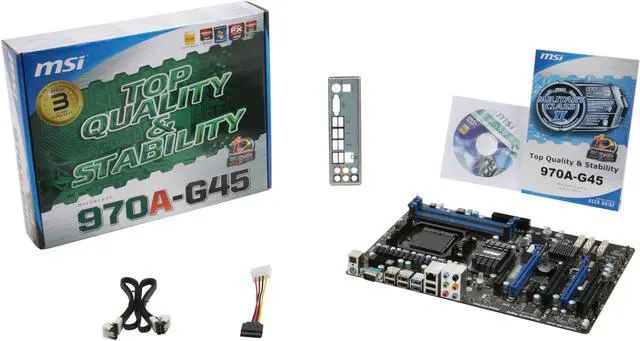

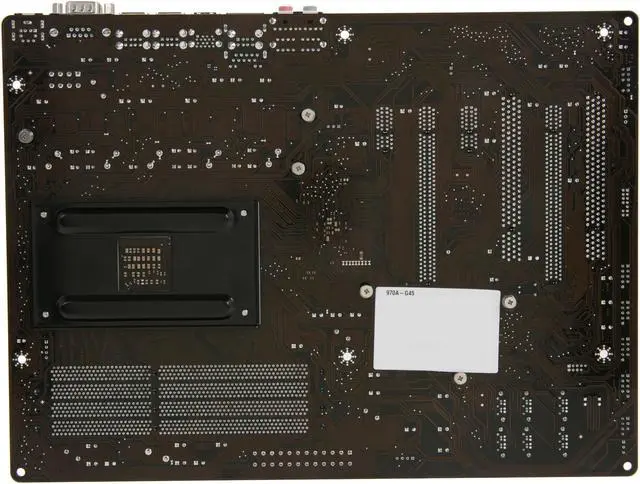

MSI 970A-G45 AM3+ AMD 970 USB 3.0 ATX AMD Motherboard

(98) Write a Review

AMD 970
Athlon Series / FX Series / Phenom II / Sempron
DDR3 800 / 1066 / 1333 / 1600 / 1866 / 2133* (OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (98)

Any questions? Our AI beta will help you find out quickly.

Try me now

Thank you for choosing the 970A-G45 Series (MS-7693 v1.X) ATX mainboard. The 970A-G45 Series mainboards are based on AMD 970 & SB950 chip sets for optimal system efficiency. Designed to fit the advanced AMD AM3/ AM3+ processors, the 970A-G45 Series deliver a high performance and professional desktop platform solution.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

CPU Socket Type	AM3+
CPU Type	Athlon Series / FX Series / Phenom II / Sempron
FSB	2400 MHz Hyper Transport (4800 MT/s)

Chipset	AMD 970
South Bridge	AMD SB950

Number of Memory Slots	4x240pin
Memory Standard	DDR3 800 / 1066 / 1333 / 1600 / 1866 / 2133* (OC)
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	2 (x16, x4)
PCI Express x1	2 x PCI Express x1
PCI Slots	2 x PCI Slots

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

MSI 970A-G45 AM3+ AMD 970 USB 3.0 ATX AMD Motherboard

Learn more about the MSI 970A-G45

Customer Reviews of the MSI 970A-G45

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x COM (Serial Port) / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
COM	1
USB 3.0	2 x USB 3.0
USB 1.1/2.0	6 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	6 x USB 2.0
Other Connectors	1 x ATX 24-pin power connector 1 x ATX 8-pin 12V CPU power connector CPU x 1 / System x 2 FAN connectors 1 x Front panel audio connector 1 x Front panel connector 1 x Chassis intrusion switch connector 1 x Clear CMOS jumper 1 x SPDIF-out connector 1 x TPM module connector

Model
Brand	MSI
Model	970A-G45

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12" x 8.86"
Power Pin	24 Pin

Item#: N82E16813130608
