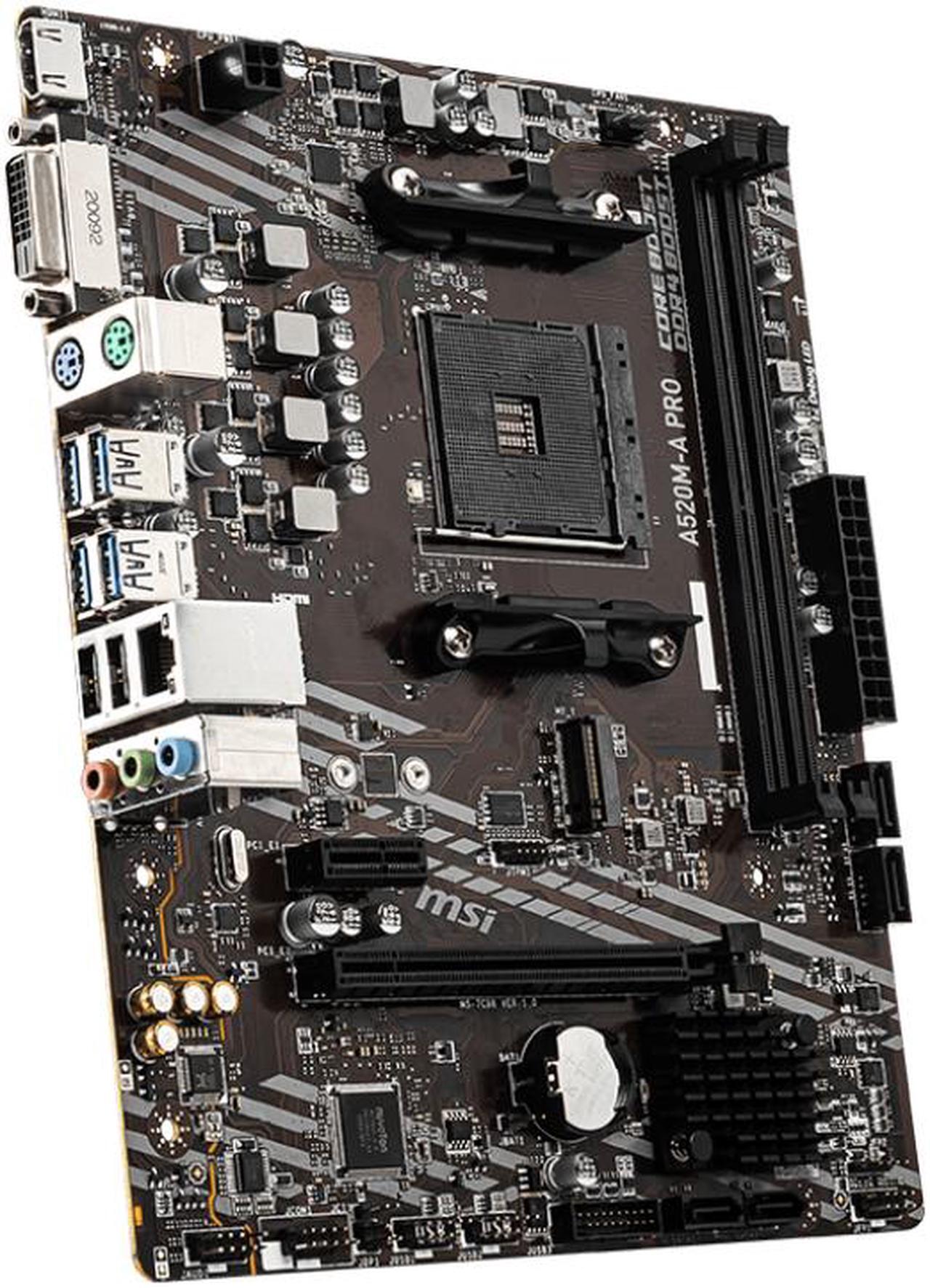

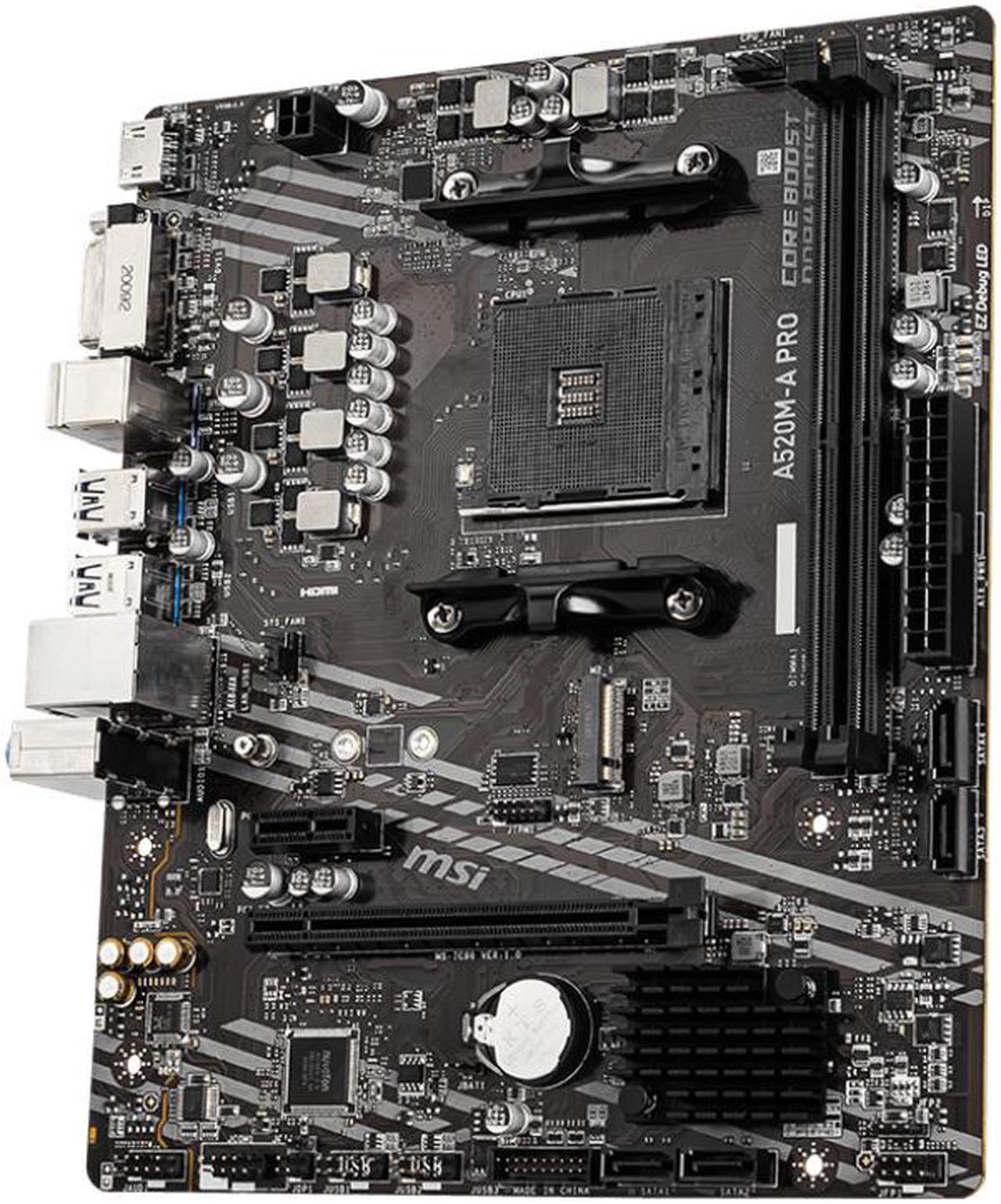

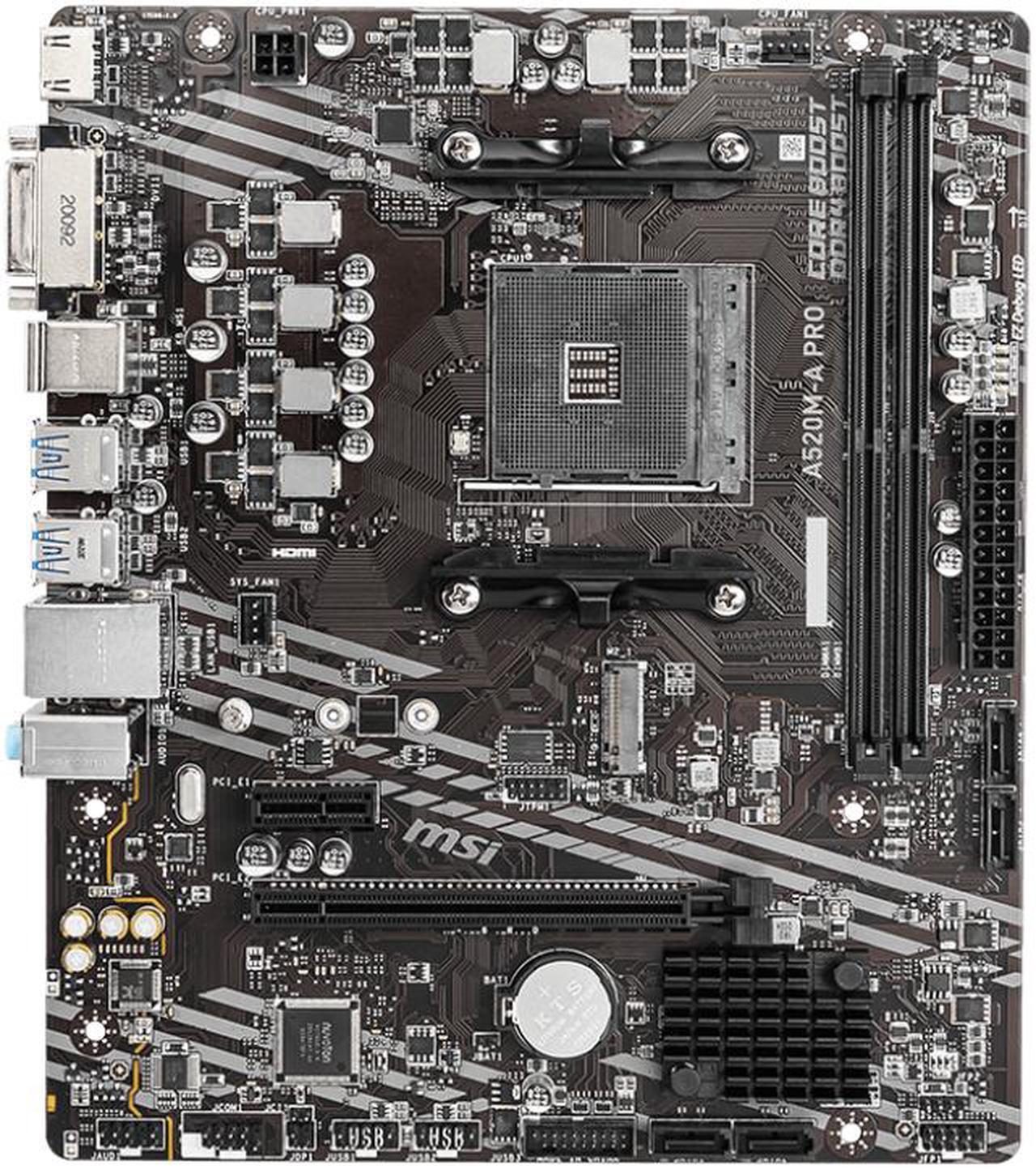

MSI A520M-A PRO AM4 AMD A520 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

REFURBISHED Product Type
Be the first to review this product...

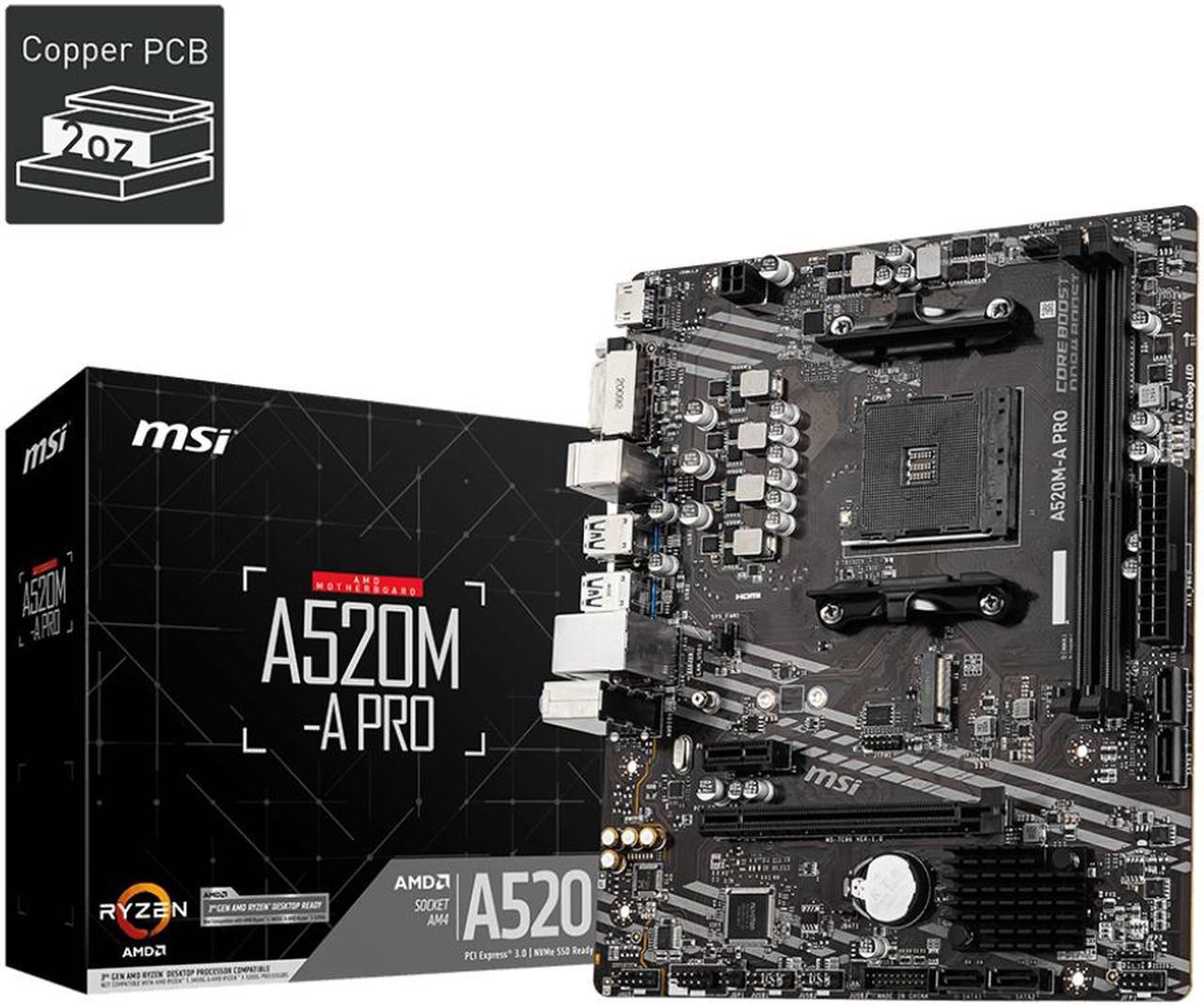

  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • EZ Debug LED: Easiest way to troubleshoot.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best
  • gaming performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality for the most
  • immersive audio experience.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe
  • based SSDs.
  • Core Boost: With premium layout and fully digital power design to support
  • more cores and provide better performance.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews

Learn more about the MSI A520M-A PRO

Model
Brand MSI
Model A520M-A PRO
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipsets
Chipset AMD A520
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16

* Actual support may vary by CPU.
PCI Express x1 1 x PCIe 3.0 x1 slot
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0 *
Supports SATA 6Gb/s
Supports 2242/2260/2280 storage devices

* The supported specification depends on installed processor.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic:

1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
Maximum shared memory of 16GB

1 Available for the processor with integrated graphics.
2 Graphics specifications may vary depending on the CPU installed.
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps
Rear Panel Ports

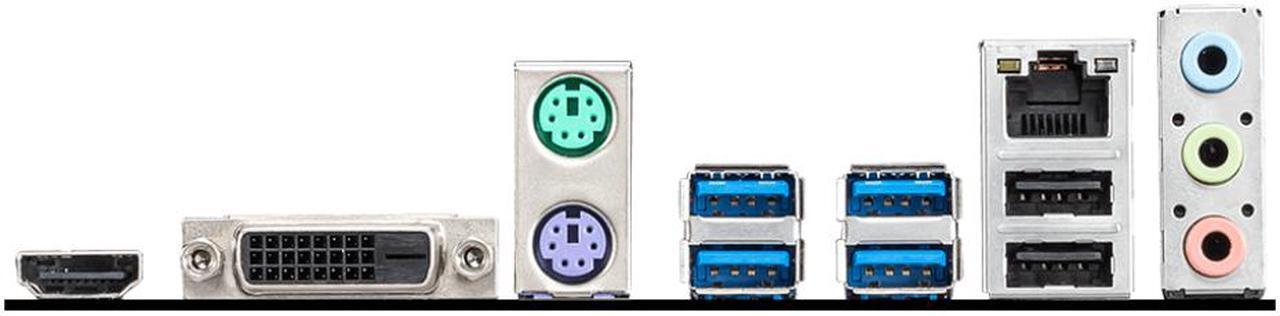

Back I/O Ports 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.2 Gen 1
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.3" x 7.9"
Power Pin 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Software Feature
Windows 11 Supported
Features
Features Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors

Supports DDR4 Memory, up to 4600(OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Core Boost: With premium layout and digital power design to support more cores and provide better performance

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability

2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability

Audio Boost: Reward your ears with studio grade sound quality

Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Additional Information
Date First Available April 26, 2023
