Question 1

Does this motherboard support 64bit operating systems?

Accepted Answer

Yes, It does. I ordered it a few months ago and Ive been running Windows 8.1 Enterprise. I have had some crashes, Due to Kernal data errors. But I want to blame that on my low ram or because Im running a free version of windows. Its a solid motherboard for the price. Sorry for the long winded answer. Cheers!

Question 2

will this board support an AMD Athlon II x2 CPU?

Accepted Answer

yes it should, but since there are different kinds of AMD Athlon II X2 CPUs, just check the description or title and if it has socket FM2 or FM2+ then it will work. But if not then the motherboard is not compatible. Most likely though its FM2 because I just checked so you should be fine.

Question 3

Does this motherboard require a videocard?

Accepted Answer

No, it does not require a videocard but it may be necessary depending on your usage.  I purchased it as a bundle to setup as a cheap system for my parents and it has been running for some time with only the onboard video.

Question 4

Does this motherboard require a video card?

Accepted Answer

If you equip this with a compatible A-Series processor then you will be able to use the onboard VGA/HDMI ports without a desecrate graphics card. However if this motherboard is used with a FM2 processor like the Athlon then a graphics card will be required.

Question 5

Is this motherboard 64bit????

Accepted Answer

It can be 32 or 64 bit... Your processor and software help determine it

Question 6

my power supply has a 20 pin plug. will I have to use a 24 pin adaptor cable ?

Accepted Answer

Yes you can. But recommended to upgrade to a 24 pin power supply. Depending on your build for the wattage. A 500 or 550 will allow room for system expansion.

Question 7

what type of fan does this support? nd/or whats a fan compatible that is capible of cooling an amd at 3.8 ghz?

Accepted Answer

I just used the fan that came with my processor. It kept the processor cool and didn't make a lot of noise.

Question 8

Will the HDMI output HD audio? At least 5.1 or better?

Accepted Answer

I believe so.  Supposed to have 8 channel capability.  Although I'm using HDMI for both video & audio, I built this system for use on a Linux work station.  I don't have a need for multi-channel sound on my system.

Question 9

Will I need to buy a WiFi card with this CPU?

Accepted Answer

Yes you will have to buy a WiFi card  for this Motherboard PCI Express x1 is what you will need.
Very nice Motherboard for the. price. You will also need a GPU either  a PCI EXPRESS  video card or a
Processor with a built-in GPU like the AMD A4-6300 Richland 3.7GHz (3.9GHz Turbo) Socket
This what I have runs very well.

Question 10

Does this motherboard support crossfire?

Accepted Answer

This motherboard is capable of using Crossfire technology with an A-Series APU and a compatible desecrate graphics card. Please refer to AMD's website for a compatibility list.

Brand	MSI
Model	A55M-E33

CPU Socket Type	FM2+ / FM2
CPU Type	Athlon/A- Series

Number of Memory Slots	2x240pin
Memory Standard	DDR3 2133(OC)/1866/1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

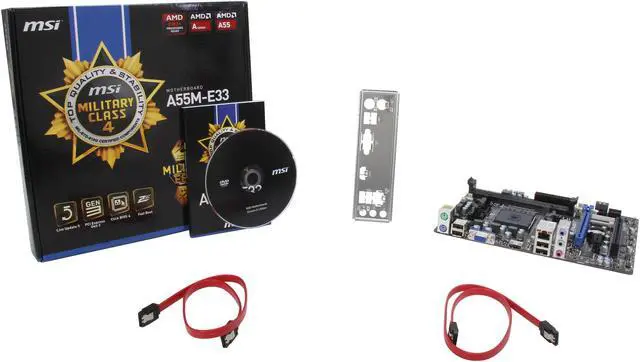

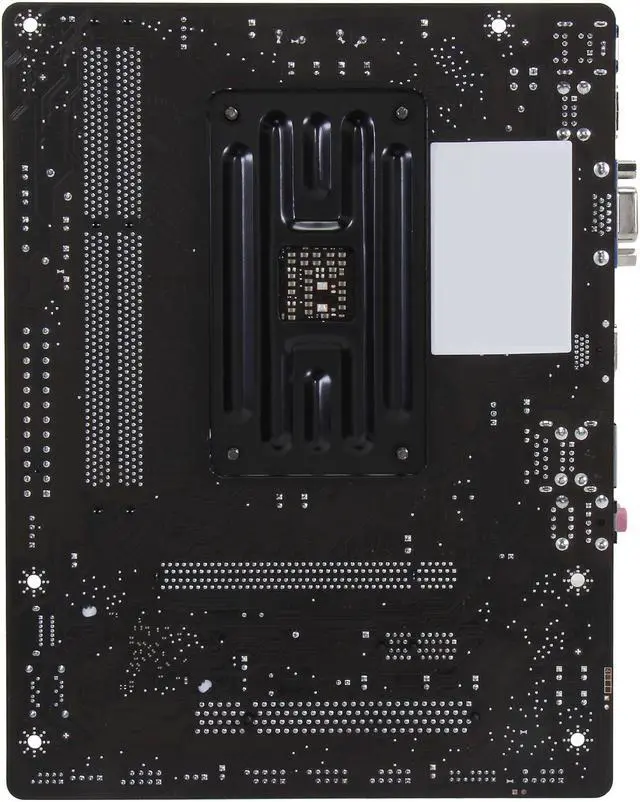

MSI A55M-E33 FM2+ / FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

Learn more about the MSI A55M-E33

Customer Reviews of the MSI A55M-E33

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x D-Sub / 1 x HDMI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard port 1 x PS/2 mouse port
Video Ports	1 x VGA
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 2 x USB power jumpers

Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 6.8"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Realtek 8111G
Max LAN Speed	1Gbps

Item#: N82E16813130748
