Question 1

need to know power specs plz ?

Accepted Answer

Just go to MSI site and all specs are available for that board. I don't remember offhand what the specs were. I used a 5350 processor with a Radeon 5450 GPU card to build a budget system for a customer. With 8 gigs of RAM and windows 7 x64 it did what they wanted rather well.

Question 2

Will amd fx8120 processor  fit/run in this unit ? And what is the shipping restrictions to Cinci. Ohio?

Accepted Answer

That is a socet AM3+ processor. That will NOT work in an AM1 Socket board. I know of no restrictions for shipping to Ohio.
A good board for a little more money would be:
MSI 760GM-P23 (FX) AM3+ AMD 760G + SB710 Micro ATX AMD Motherboard

Question 3

Does this come with secureboot?

Is secureboot easy to turn off?

How to turn off secureboot for this motherboard, does it have legacy bios?

Accepted Answer

Would be glad to if I could. I have not as yet assembled this unit.

Question 4

When was this motherboard released?

Accepted Answer

Check the BIOS date or go to manufactures site (with the revision date available) and you should be able to tell.

Question 5

Does this motherboard have a full blown PCI-E 2.0 X16?  Does that mean my PCI-E 2.1 X16 dedicated graphics card will be used to max potential?  I noticed most of the other boards were coming in with PCI-E 2.0 at X4.  Is this a limitation associated with the APU or the motherboard?

Accepted Answer

Just got back from the MSI website.  it is only X4.  rats.

Brand	MSI
Model	AM1M

CPU Socket Type	AM1
CPU Type	AMD Socket AM1 Athlon /Sempron Processors

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1333/1600
Maximum Memory Supported	32GB

PCI Express 2.0 x16	1 x PCIe 2.0 x16 slot, supports x4 speed
PCI Express x1	2 x PCIe 2.0 x1 slots

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

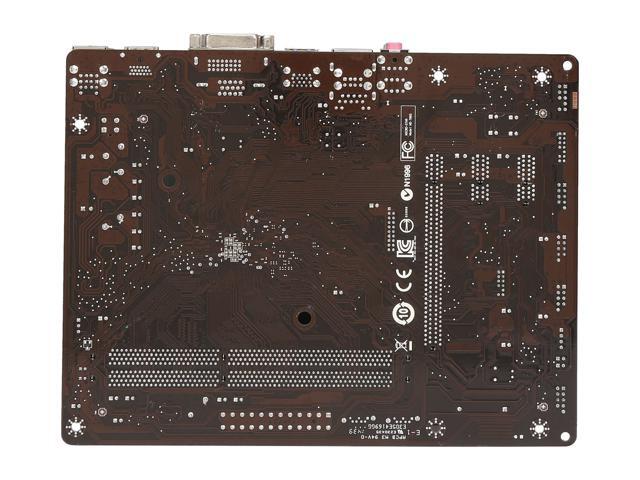

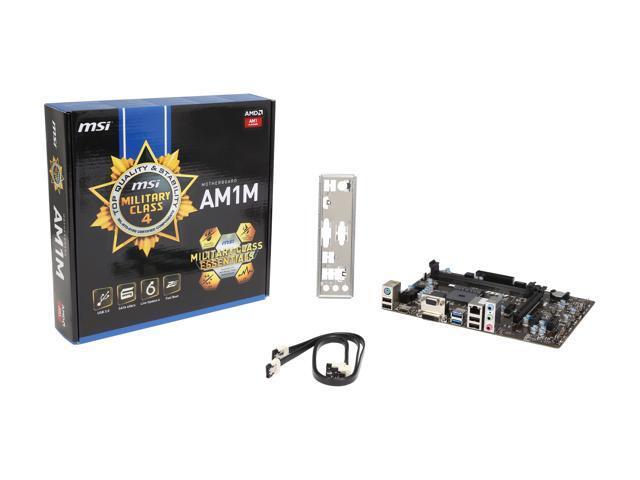

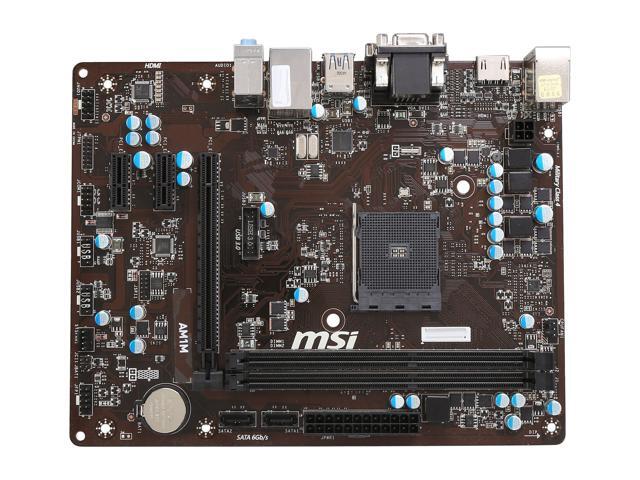

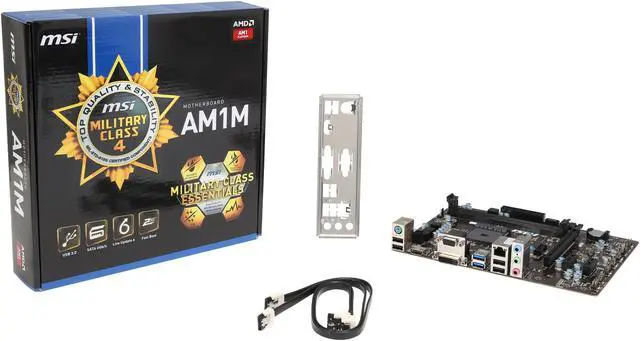

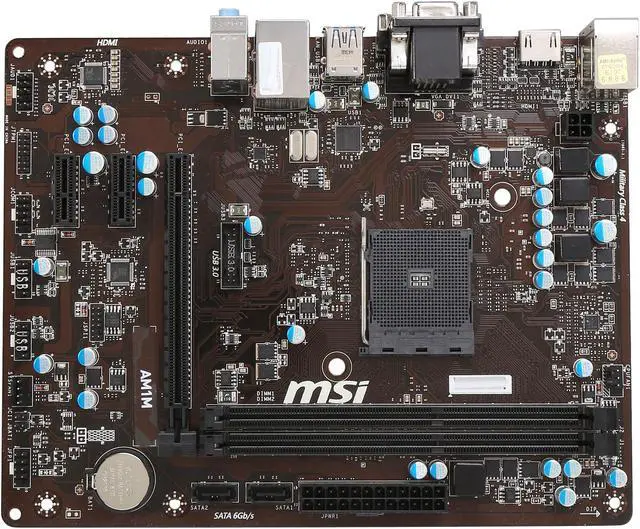

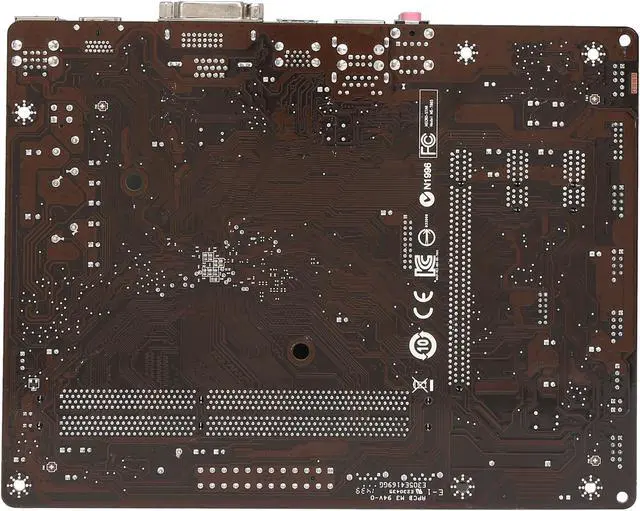

MSI AM1M AM1 AMD APU USB 3.0 HDMI Micro ATX AMD Motherboard

Learn more about the MSI AM1M

Customer Reviews of the MSI AM1M

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

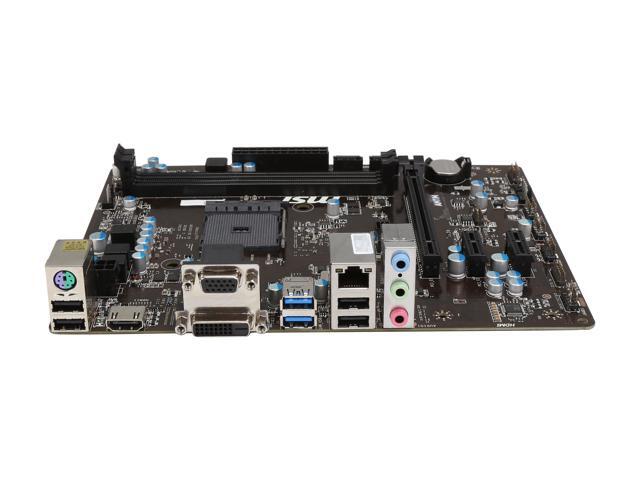

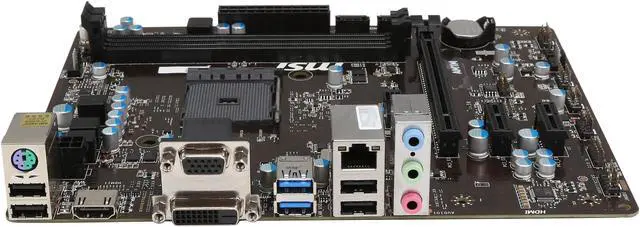

Back I/O Ports	1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x VGA port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 3-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 1 x TPM connector 1 x System panel connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	8.90" x 6.81"
Power Pin	24 Pin

Onboard LAN
LAN Chipset	Realtek RTL8111G
Max LAN Speed	1Gbps

Item#: N82E16813130804
