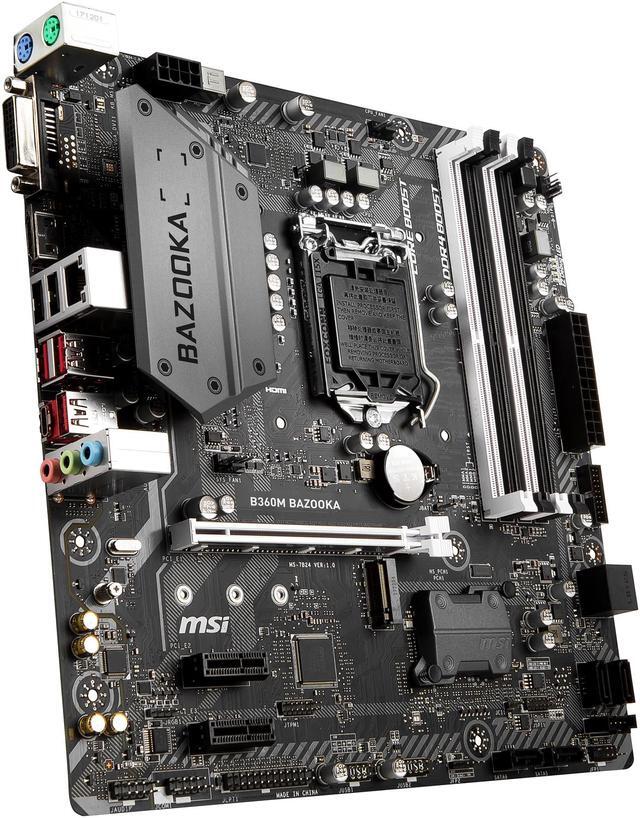

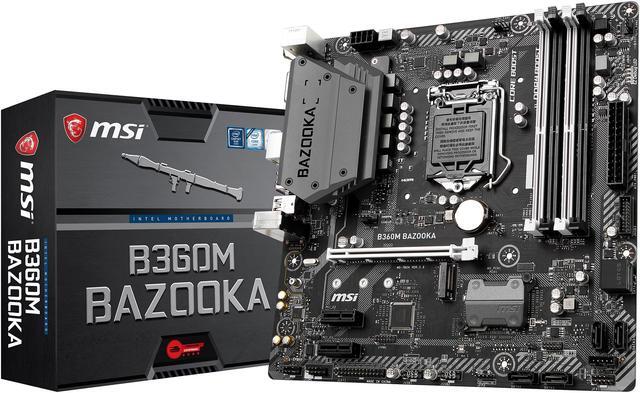

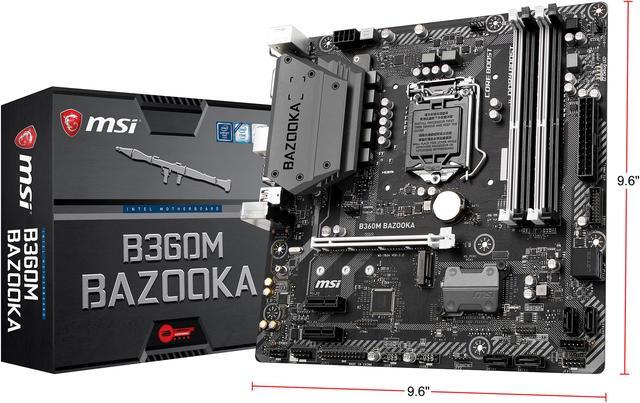

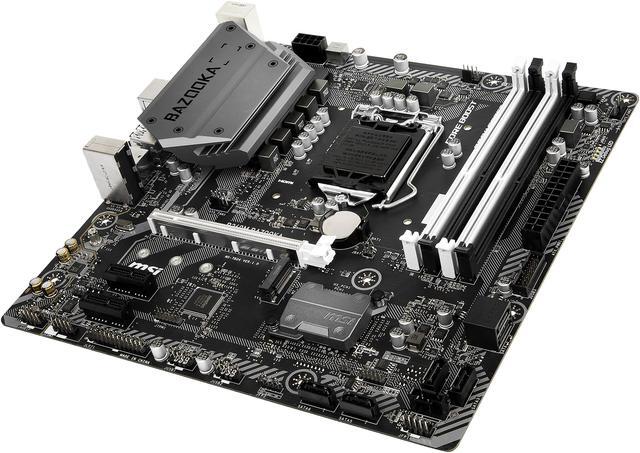

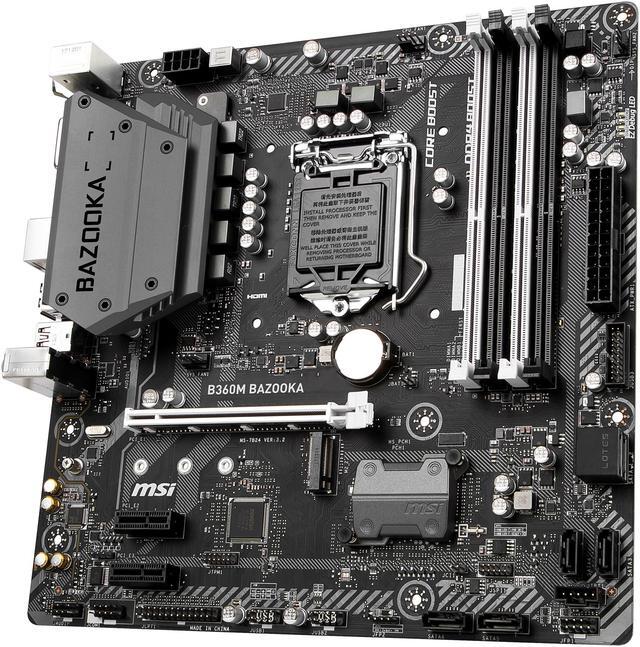

MSI B360M BAZOOKA Motherboard
A solid foundation for your gaming rig, featuring a blend of quality, features and style at a budget-friendly price. Powered by Intel B360 chipset, this board flawlessly supports 9th/8th Intel Core processors of up to eight cores. Coming in a micro ATX form factor, the B360M BAZOOKA offers quad DIMM slots, a PCIe x 16 slot, two PCIe x1 slots, and an M.2 PCIe 3.0 x4 slot (also supports SATA) for the latest SSD storage. The PCIe x16 slot is covered by steel plate to safeguard against EMI. And the military-style heatsinks allow efficient dissipation, while giving this board a tough and professional look, just like the system it goes into.
- Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Core Boost: With premium layout optimized power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device
- EZ Debug LED: Easiest way to troubleshoot.
|
||||||||||||||||||||||||||||
|
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
