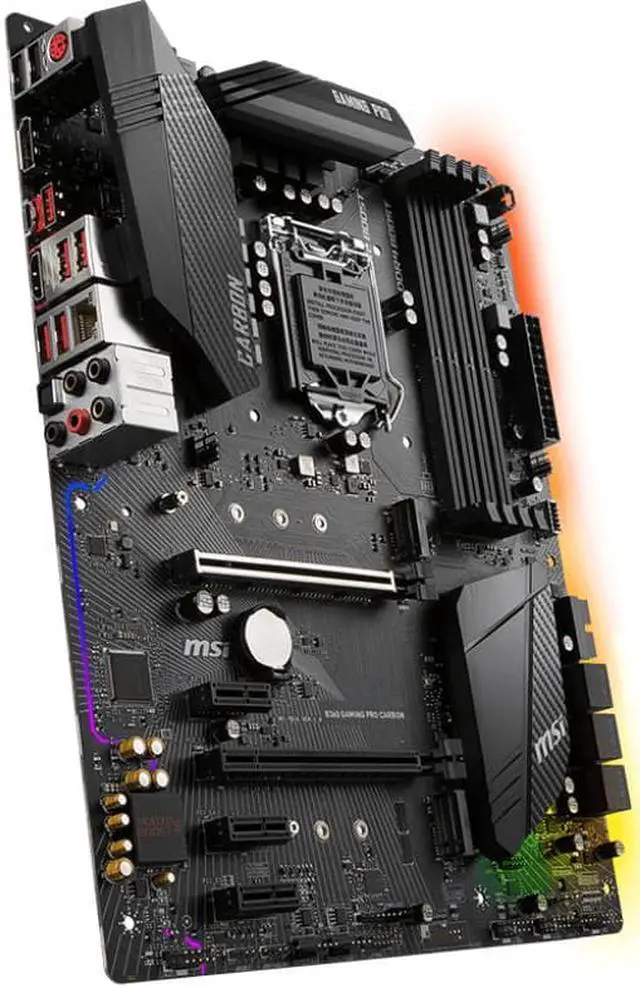

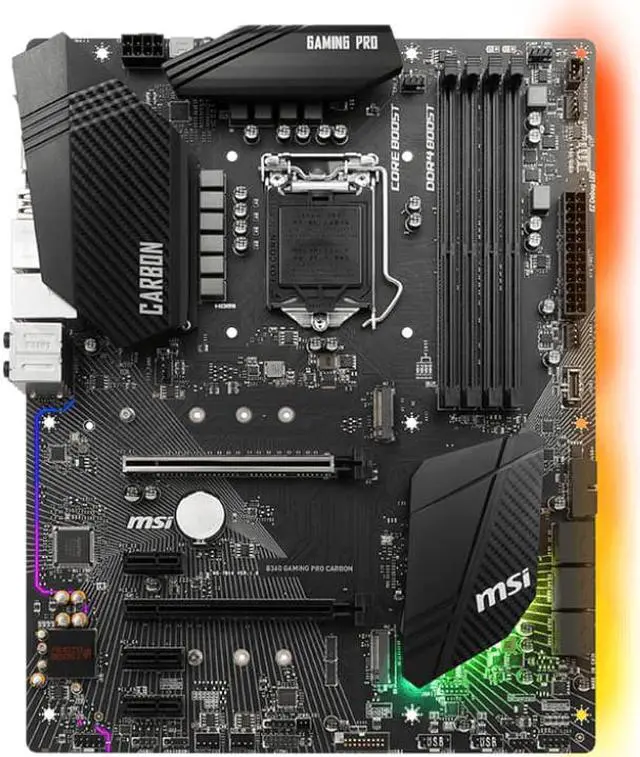

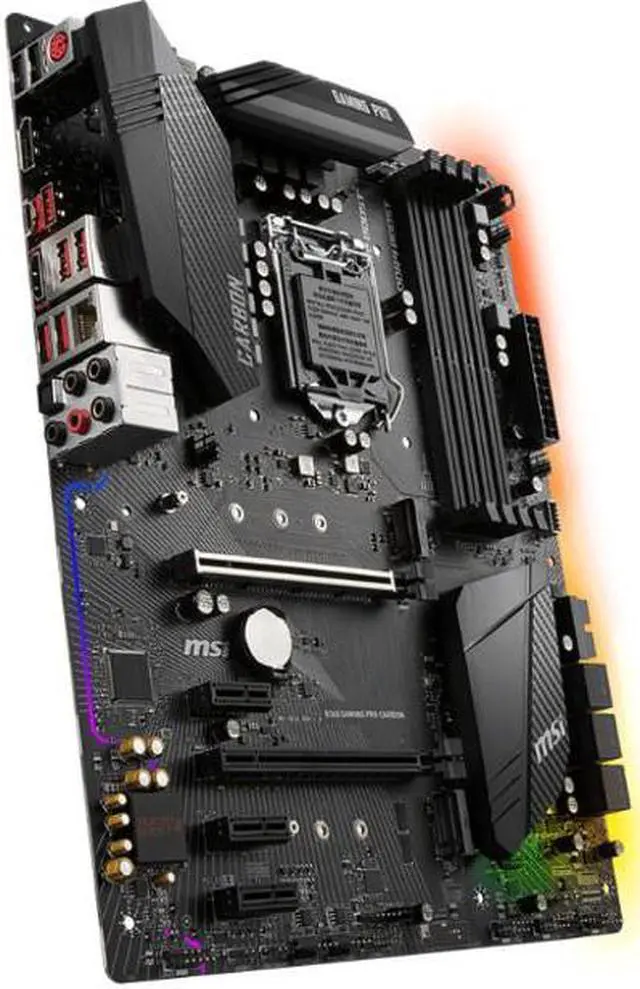

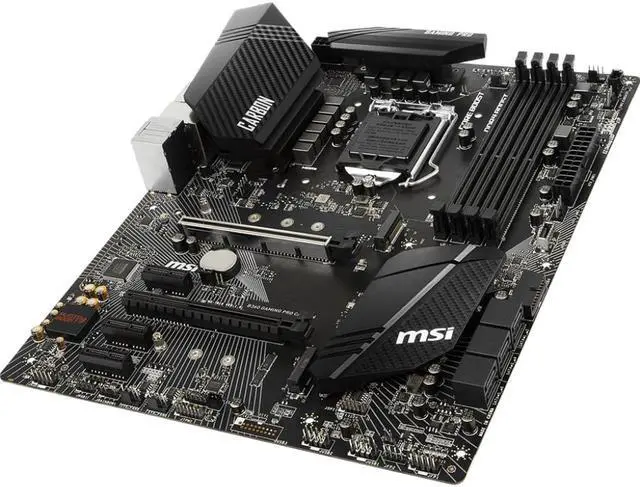

MSI Intel B360 GAMING PRO CARBON Socket LGA 1151 DDR4 ATX Motherboard (7B16-002R)
Used - Very Good Product Type
- Intel B360
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Internal IO
- Number of M.2 (M) slots: 2
- USB 3.1 (3.1 Gen 2) connectors: 1
- Supported storage drive interfaces: M.2, Serial ATA III
- USB 2.0 connectors: 2
- USB 3.0 (3.1 Gen 1) connectors: 1
- TPM connector: Yes
- Number of SATA III connectors: 6
- Number of chassis fan connectors: 5
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- ATX Power connector (24-pin): Yes
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B360
- Parallel processing technology support: 2-Way CrossFireX
- On-board graphics adapter: Yes
- Motherboard form factor: ATX
- Component for: PC
- Audio output channels: 7.1 channels
- Intel Extreme Memory Profile (XMP): Yes
- Windows operating systems supported: Windows 10
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B360
- Audio output channels: 7.1 channels
- Motherboard form factor: ATX
- Component for: PC
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory channels: Dual
- ECC: No
- Non-ECC: Yes
- Supported memory clock speeds: 2133,2400,2666 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
- Processor manufacturer: Intel
- Intel Core i3i5i7 series: i3-8xxx,i5-8xxx,i7-8xxx
- Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
- Maximum number of SMP processors: 1
- Processor socket: LGA 1151 (Socket H4)

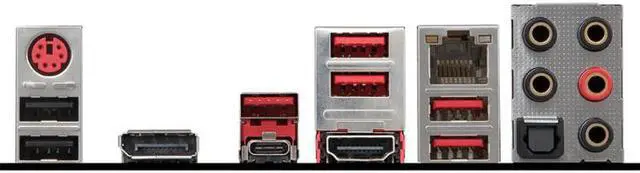

- USB 3.0 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.1 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.1 (3.1 Gen 2) Type-C ports quantity: 1
- USB 2.0 ports quantity: 2
- SPDIF out port: Yes
- PS2 ports quantity: 1
- Microphone in: Yes
- Headphone outputs: 1
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- DisplayPorts quantity: 1
- Ethernet LAN: Yes
- LAN controller: Intel I219-V
- Ethernet interface type: Gigabit Ethernet
- Windows operating systems supported: Windows 10
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B360
- Audio output channels: 7.1 channels
- Motherboard form factor: ATX
- Component for: PC
- Audio chip: Realtek ALC1220
- Parallel processing technology support: 2-Way CrossFireX
- On-board graphics adapter: Yes
- Maximum resolution: 4096 x 2304 pixels
- Graphics adapter family: Intel
- Discrete graphics support: Yes
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 3
- PCI Express x16 (Gen 3.x) slots: 2
- BIOS type: UEFI AMI
- Plug and Play: Yes
- Power source type: ATX
- Intel Extreme Memory Profile (XMP): Yes
- Intel Optane Memory Ready: Yes
- Maximum resolution: 4096 x 2304 pixels
- Graphics adapter family: Intel
- Discrete graphics support: Yes
- Windows operating systems supported: Windows 10
- Drivers included: Yes
- Width: 304 mm
- Depth: 243 mm
- Manual: Yes
- Drivers included: Yes
- Cables included: SATA
