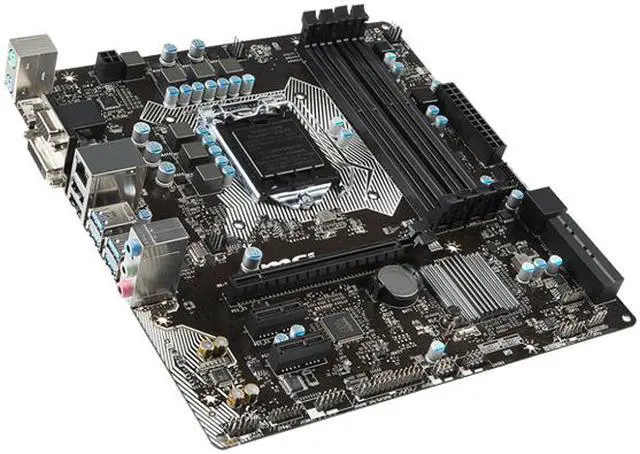

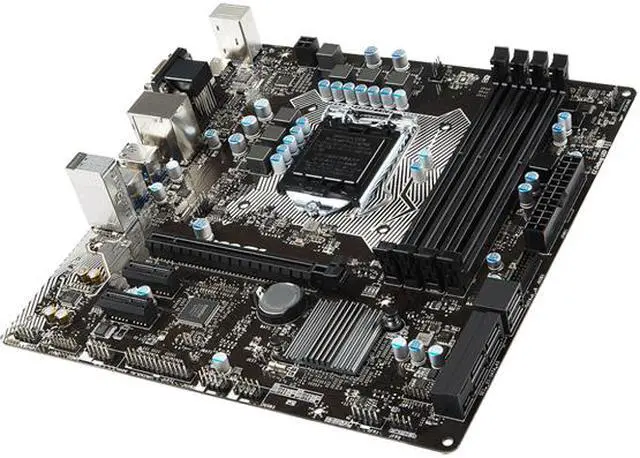

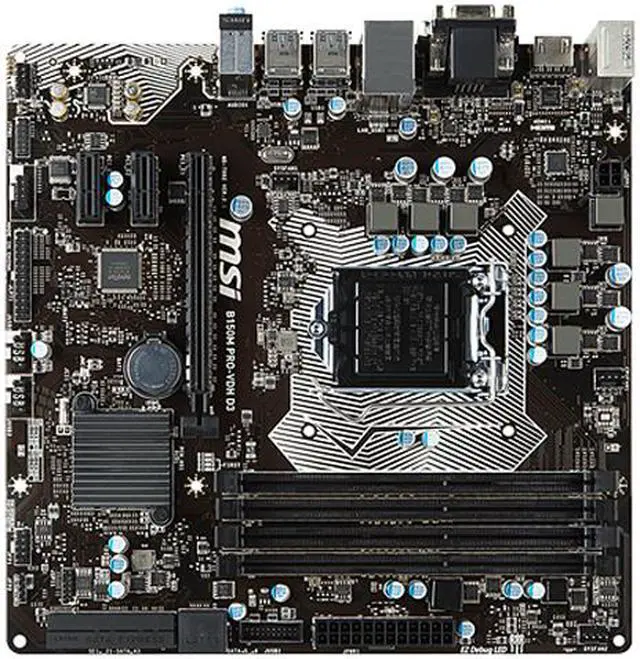

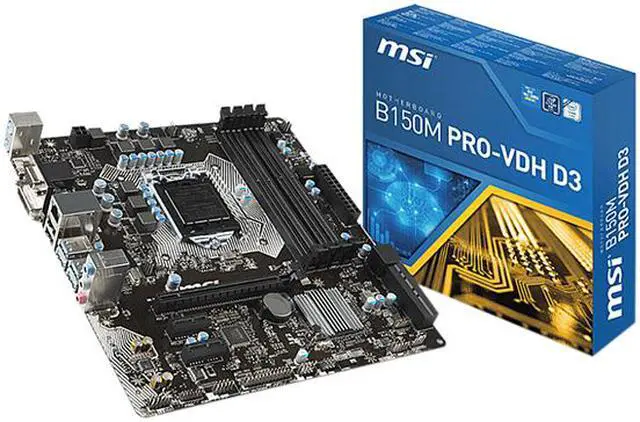

MSI B150M PRO-VD D3 LGA 1151 Intel B150 SATA 6Gb/s USB 3.1 ATX Intel Motherboard
Used - Very Good Product Type
- Intel B150
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
- DDR3/L 1600/ 1333/ 1066
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the MSI B150M PRO-VD D3
| Brand | MSI |
|---|---|
| Model | B150M PRO-VD D3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel B150 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3/L 1600/ 1333/ 1066 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
|---|---|
| Max LAN Speed | 1Gbps |

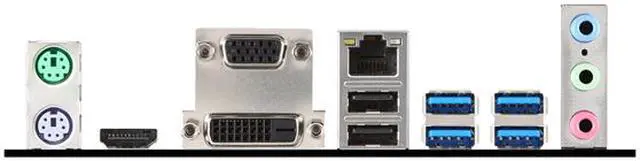

| Back I/O Ports | 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port 1 x VGA port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 9.25" x 7.09" |
| Power Pin | 24 Pin |
| Features | Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR3 / DDR3L - 1600 Memory USB 3.1 Gen1 + SATA 6Gb/s VGA Armor: Reinforced Armor slot Click BIOS: Secure and Reliable UEFI BIOS solution Audio Boost: Reward your ears with studio grade sound quality Military Class 4: Top Quality & Stability Guard-Pro: Improved Protection and Power Efficiency EZ Debug LED: Easiest way to troubleshoot Overvoltage Protection: Prevent Unforeseen Damage Intel SBB Support: Improves Productivity, Management and Security WHQL CERTIFIED. WINDOWS 10 READY. Onboard Graphics - 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz - 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz Mounting - 6 mounting holes |
|---|
| First Listed on Newegg | March 31, 2025 |
|---|
