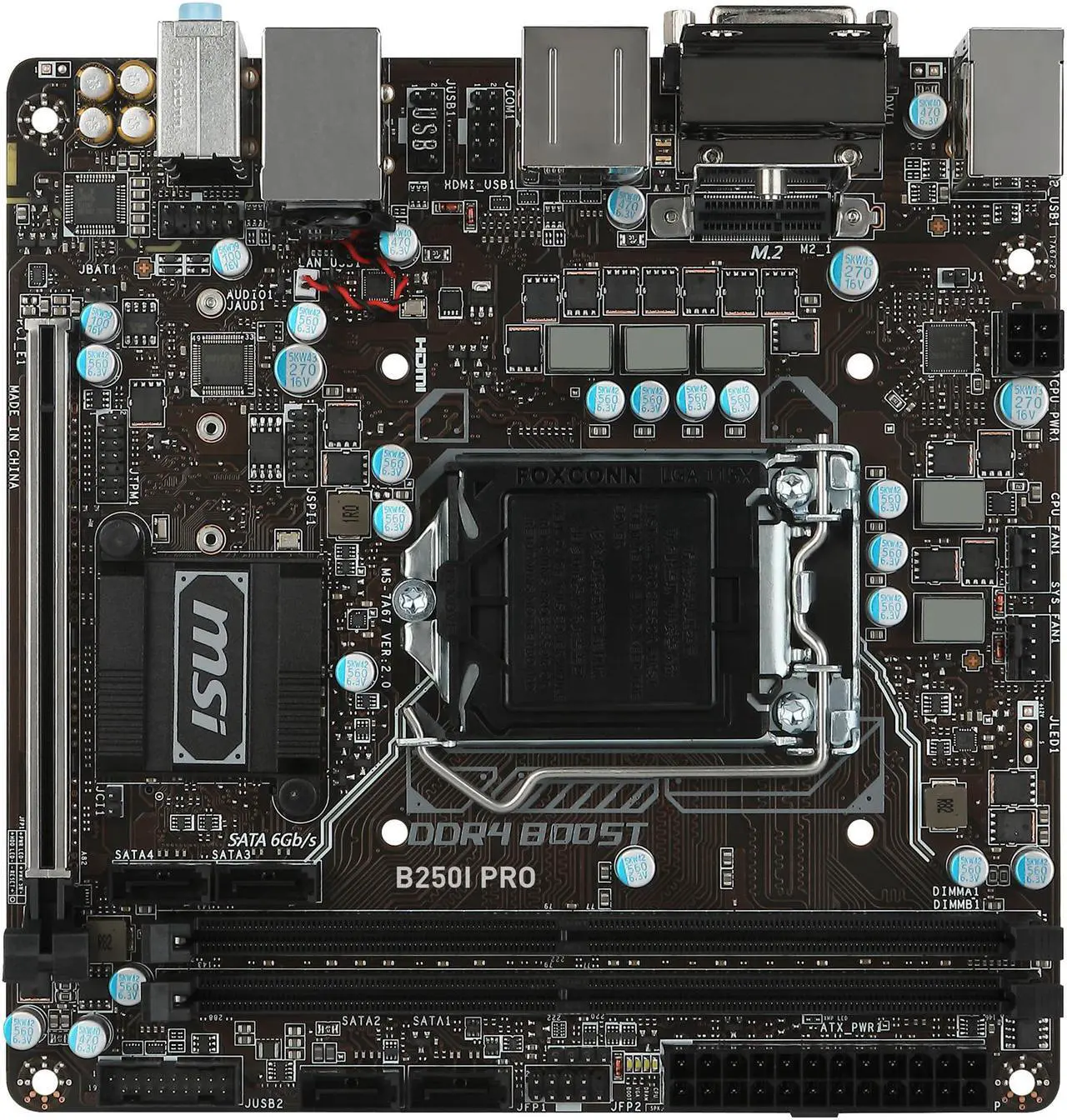

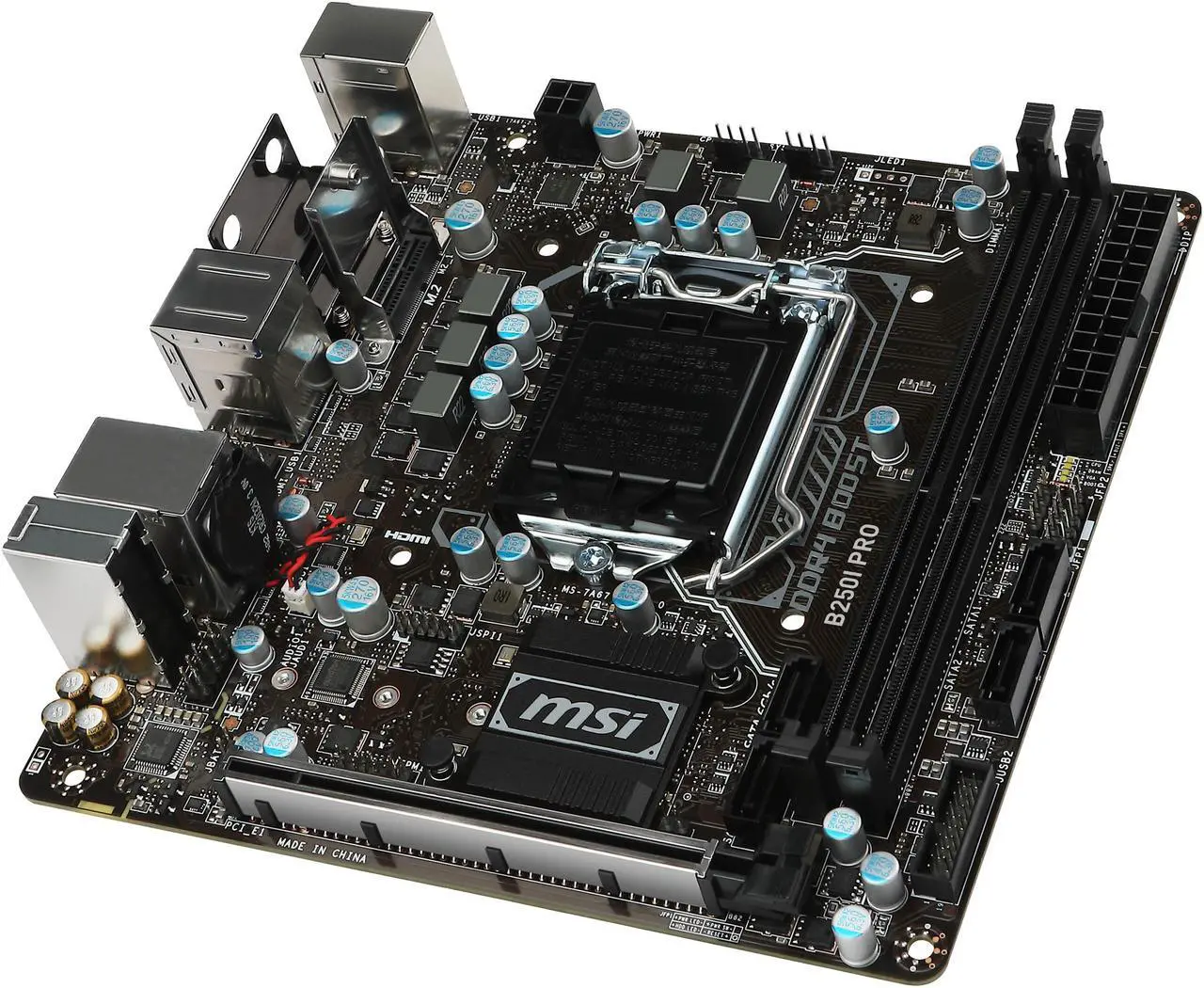

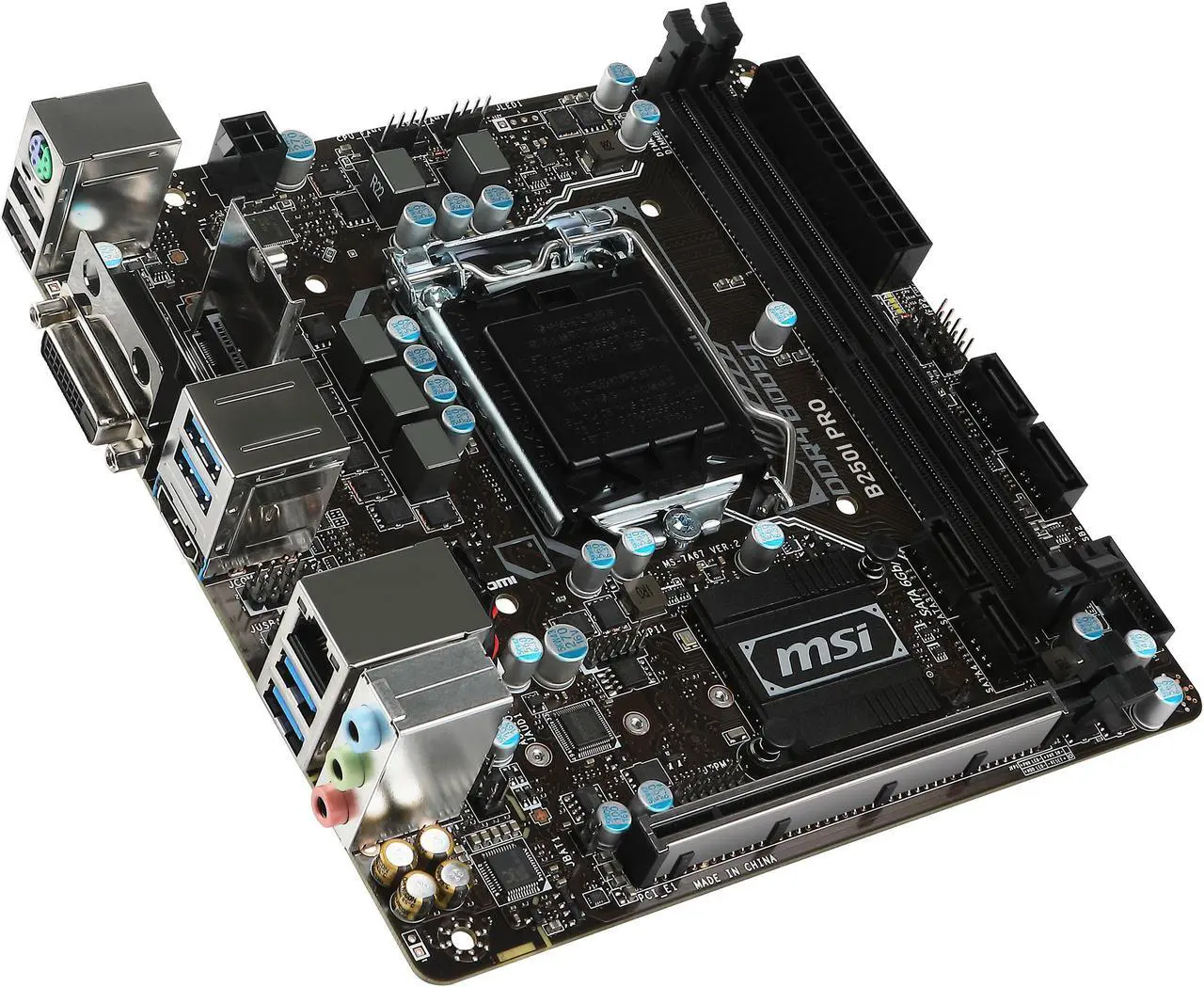

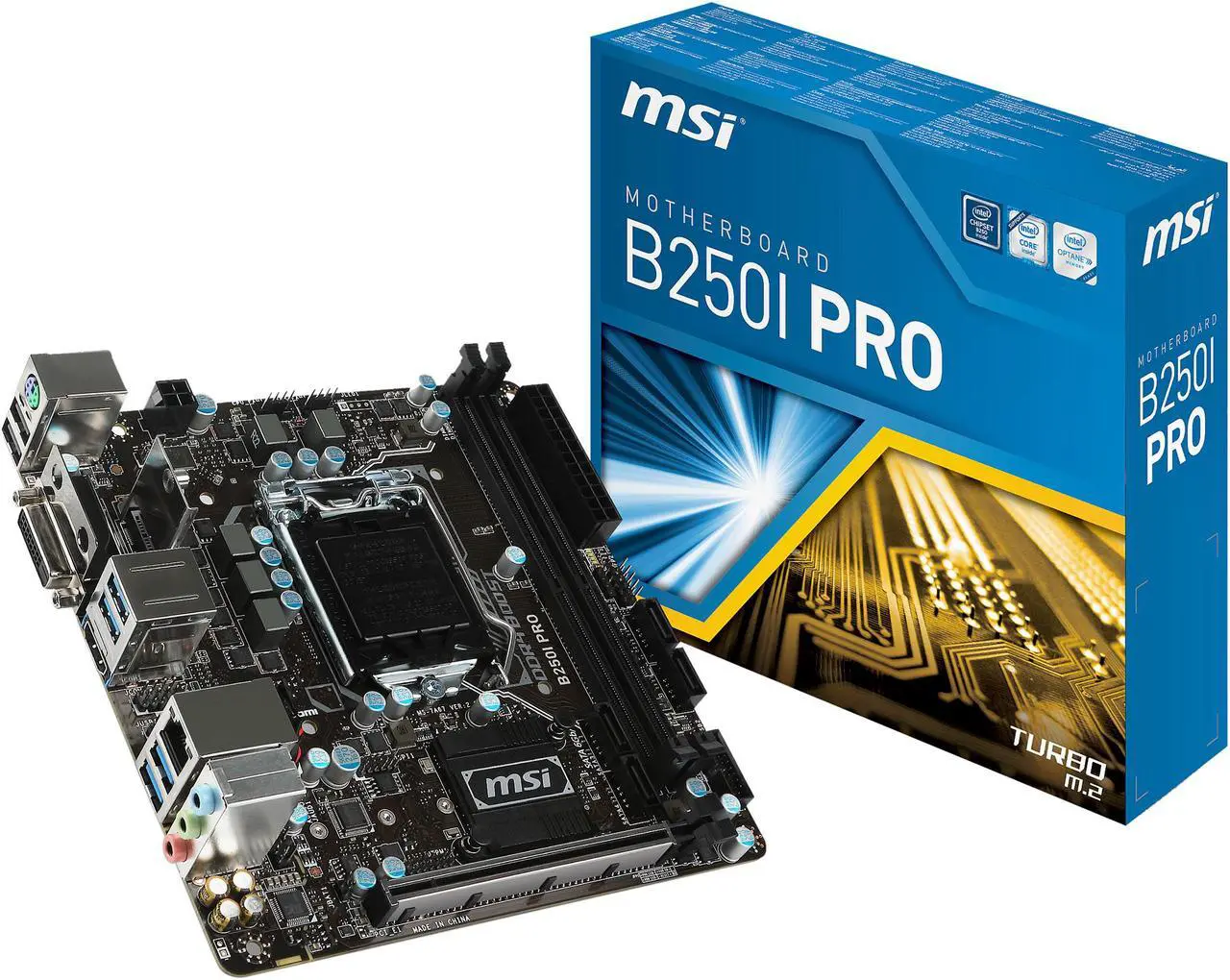

    MSI B250I PRO LGA 1151 Intel B250 HDMI USB 3.1 Mini ITX Intel Motherboard

    Used - Very Good Product Type
    • Intel B250
    • Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
    • 7th Gen processors support DDR4 2400/ 2133
    • 6th Gen processors support DDR4 2133
    • * Please refer www.msi.com for more information on compatible memory.
    • ** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the MSI B250I PRO

    Model
    Brand MSI
    Model B250I PRO
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Supports 6th/7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
    Supported CPU Technologies * Not Compatible with Intel 8th Gen CPUs
    Chipsets
    Chipset Intel B250
    Onboard Video
    Onboard Video Chipset Supported only by CPU with integrated graphic
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard 7th Gen processors support DDR4 2400/ 2133
    6th Gen processors support DDR4 2133

    * Please refer www.msi.com for more information on compatible memory.
    ** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16
    Other Slots 1 x M.2 Wi-Fi/ Bluetooth module vertical slot (Key E)
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s ports*
    * The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_2 slot.
    M.2 1 x M.2 slot (Key M slot on the bottom of the motherboard)
    - Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    - Supports 2242/2260/2280 storage devices
    - Intel Optane Memory Ready
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111H
    Max LAN Speed 1Gbps

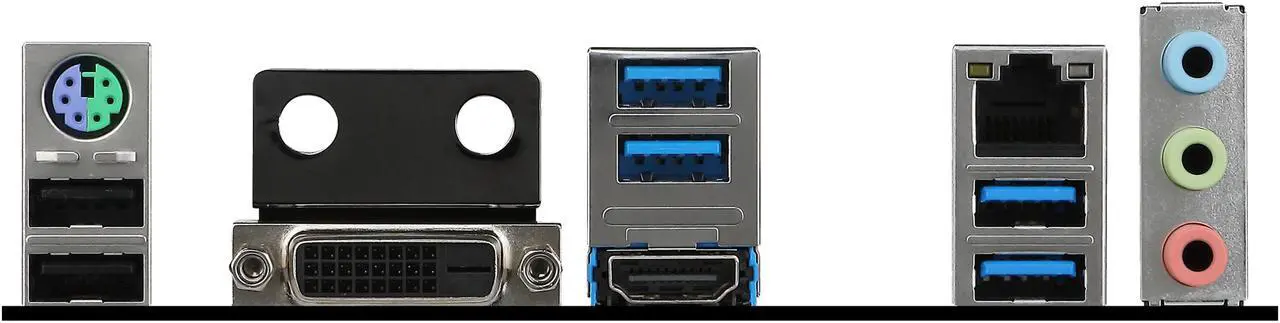

    Rear Panel Ports
    Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x DVI-D port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.1 4 x USB 3.1 Gen1 Type-A ports
    USB 1.1/2.0 2 x USB 2.0 Type-A ports
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
    1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
    Other Connectors 1 x 4-pin CPU fan connector
    1 x 4-pin system fan connector
    1 x Front panel audio connector
    2 x Front panel connectors
    1 x TPM module connector
    1 x Chassis Intrusion connector
    1 x Serial port connector
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    Features
    Features Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket

    Supports DDR4-2400 Memory

    DDR4 Boost: Give your DDR4 memory a performance boost

    Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience

    EZ Debug LED: Easiest way to troubleshoot

    Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready

    X-Boost: Great tool to boost your USB & Storage performance

    Doublo ESD Protection: Double layer grounding motherboard mounting holes

    Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency

    Click BIOS: Secure and Reliable UEFI BIOS solution
    Additional Information
    Date First Available March 31, 2025
