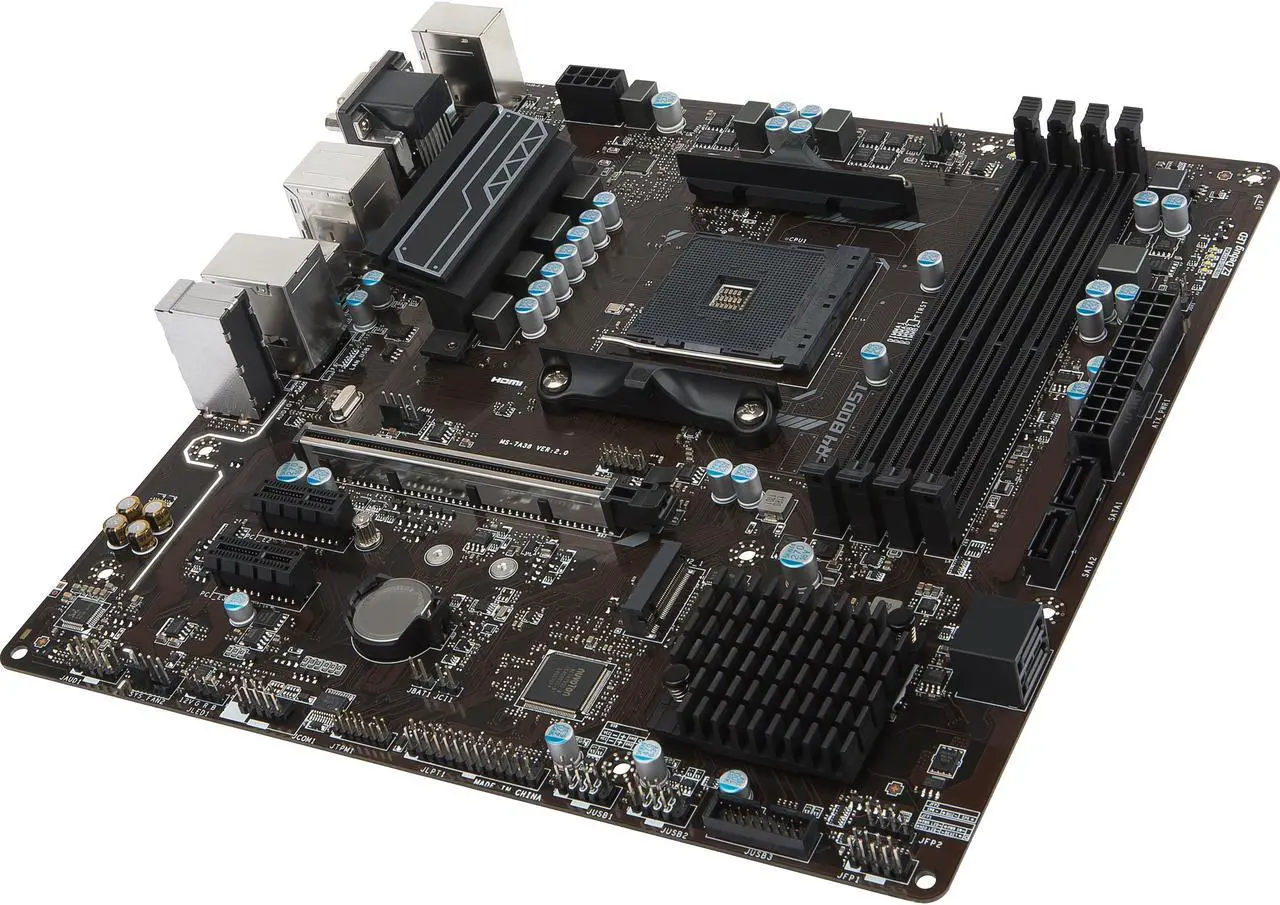

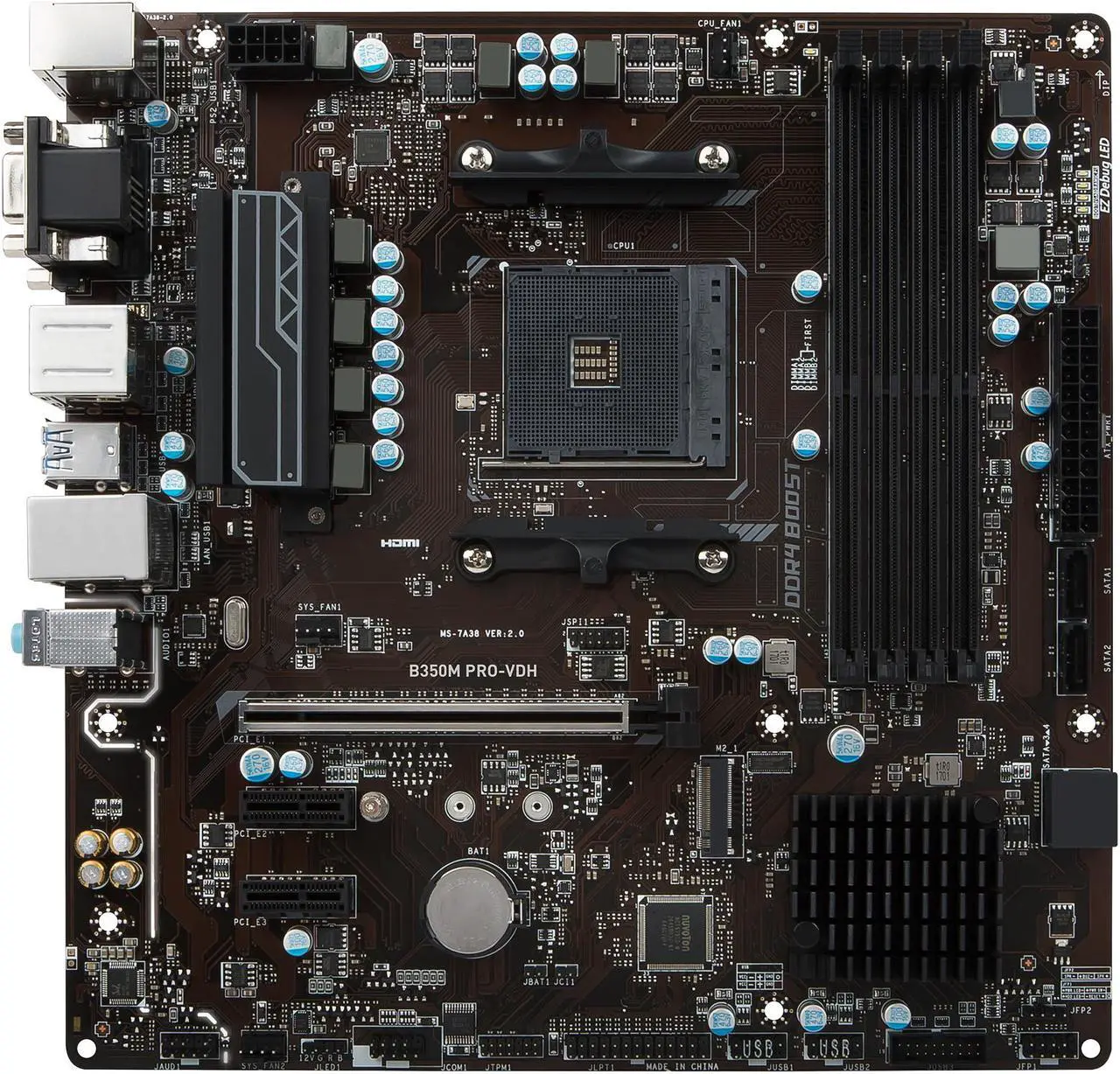

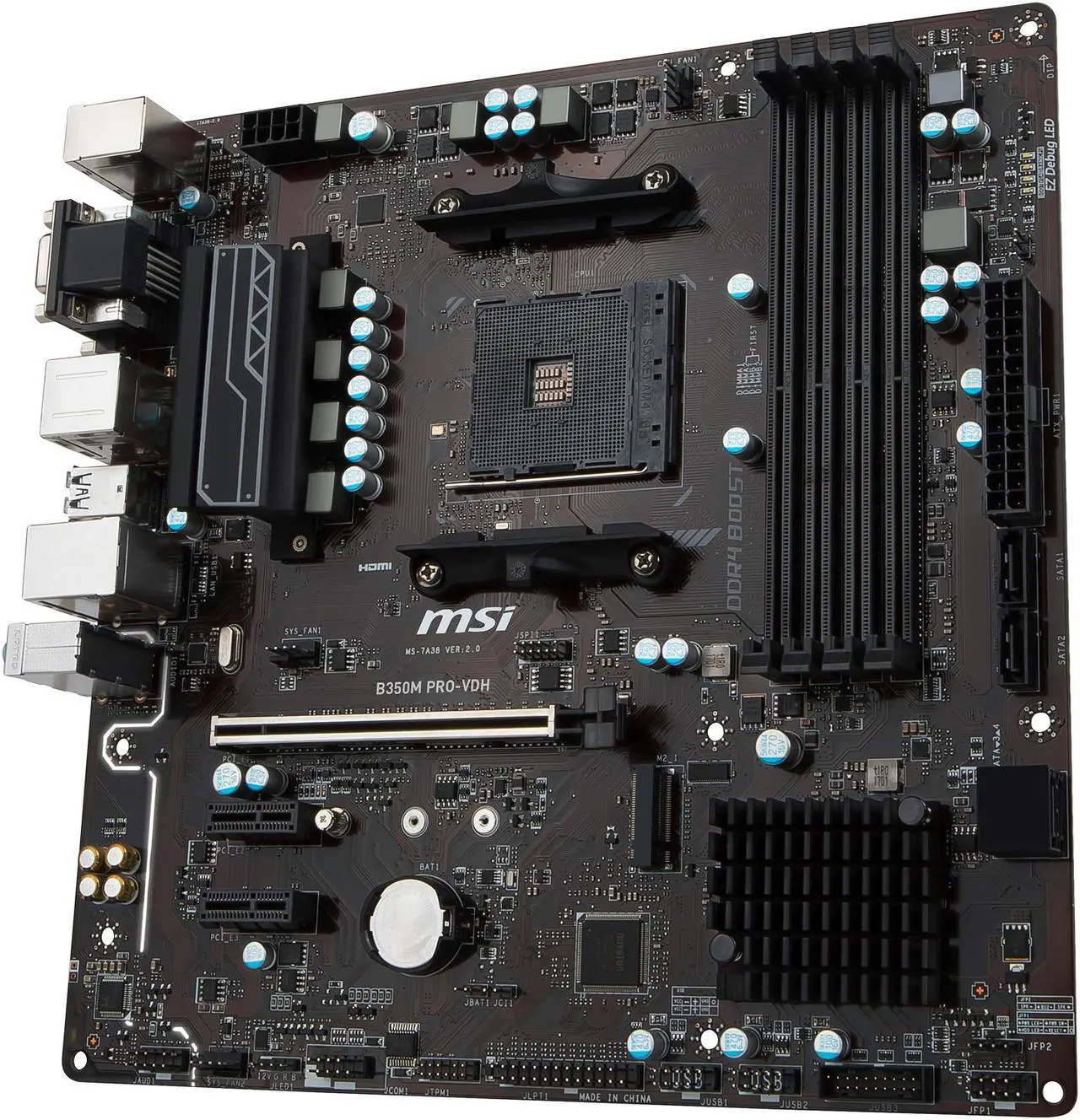

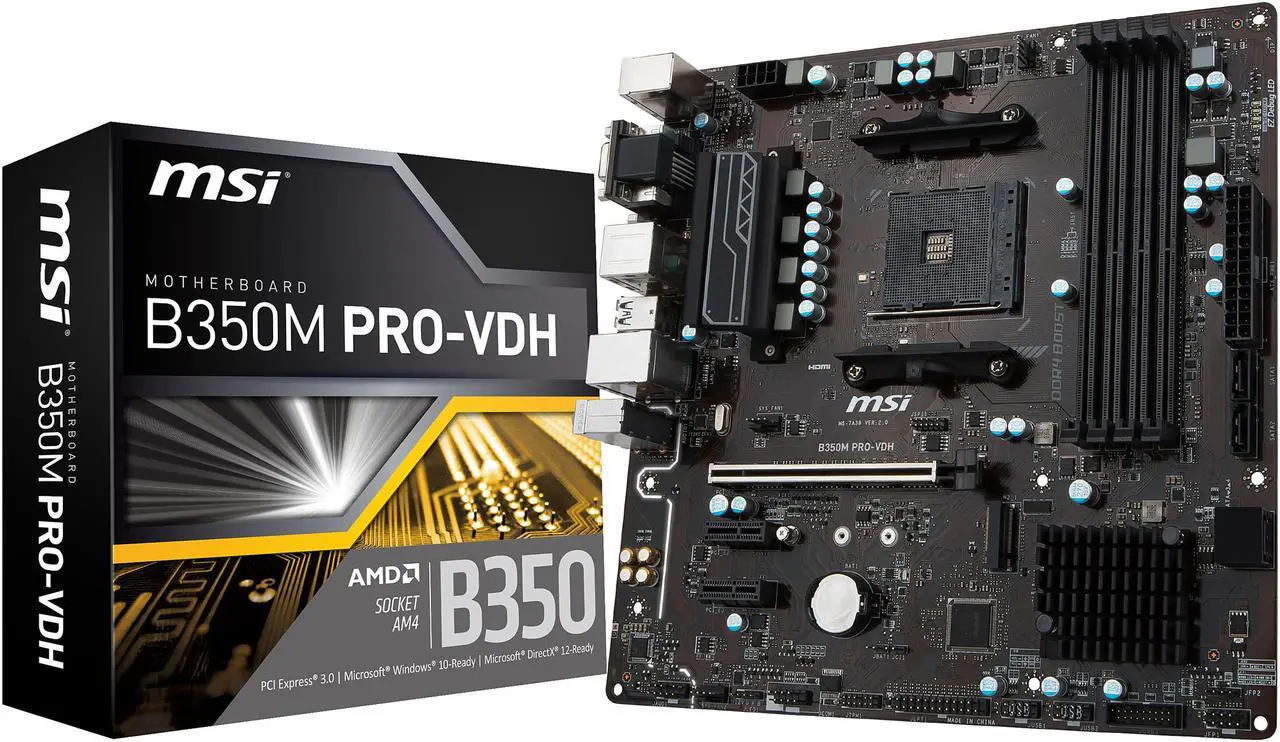

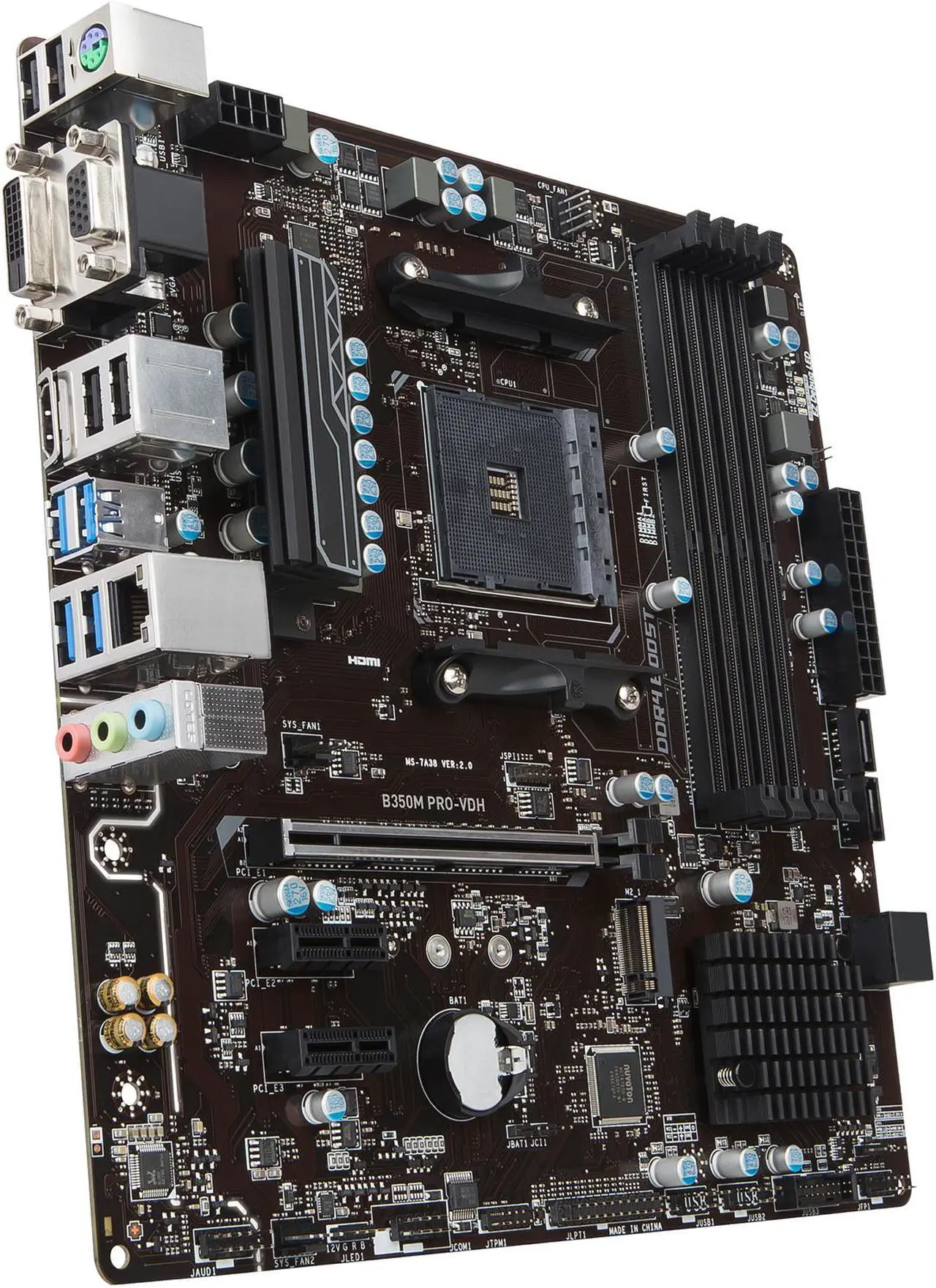

MSI B350M PRO-VDH AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard
Used - Like New Product Type
- AMD B350
- Ryzen 1000 Series / Ryzen 2000 Series / Ryzen 2000G Series / Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000 Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series
- DDR4 3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 *
- * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz.
+
+
Specs
Learn more about the MSI B350M PRO-VDH
| Brand | MSI |
|---|---|
| Model | B350M PRO-VDH |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Ryzen 1000 Series / Ryzen 2000 Series / Ryzen 2000G Series / Ryzen 3000 Series / Ryzen 3000G Series / Ryzen 4000 Series / Ryzen 4000G Series / Ryzen 5000 Series / Ryzen 5000G Series |
| Chipset | AMD B350 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 * * 7th Gen A-series/ Athlon processors support a maximum of DDR4 2400 Mhz. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 slots - 7th Gen A-series/ Athlon processors support x8 mode |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 slot (Key M) - Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors ) and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
|---|---|
| Max LAN Speed | 1Gbps |

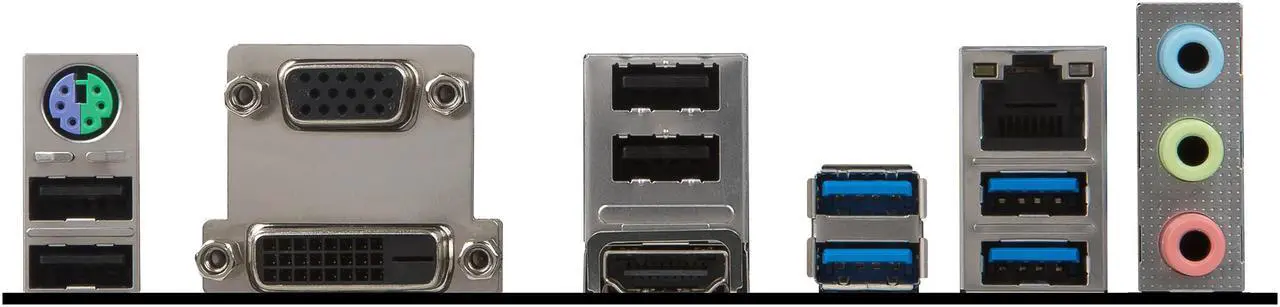

| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D port 1 x VGA port |
| HDMI | 1 x HDMI 1.4 port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen1 Type-A ports |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 2 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x LED connector 1 x JCOM connector 1 x JLPT connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports AMD RYZEN Series processors and 7th Gen A-series / Athlon Processors for socket AM4 Supports DDR4-3200+(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience EZ Debug LED: Easiest way to troubleshoot Turbo M.2: Delivering Speeds Up to 32Gb/s X-Boost: Great tool to boost your USB & Storage performance Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function WHQL certified for Windows 10 |
|---|
| Date First Available | April 11, 2025 |
|---|
