Does this support the 2000G series out of the box?

I would doubt it would support it OOB but with the latest BIOS flash it does. I'm not sure if that means it won't boot with a Raven Ridge until the flash was performed or not. From the little investigation I've done it sounds like without the BIOS upgrade installed the board probably won't boot from these new CPUs.

$79^.98

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (131 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

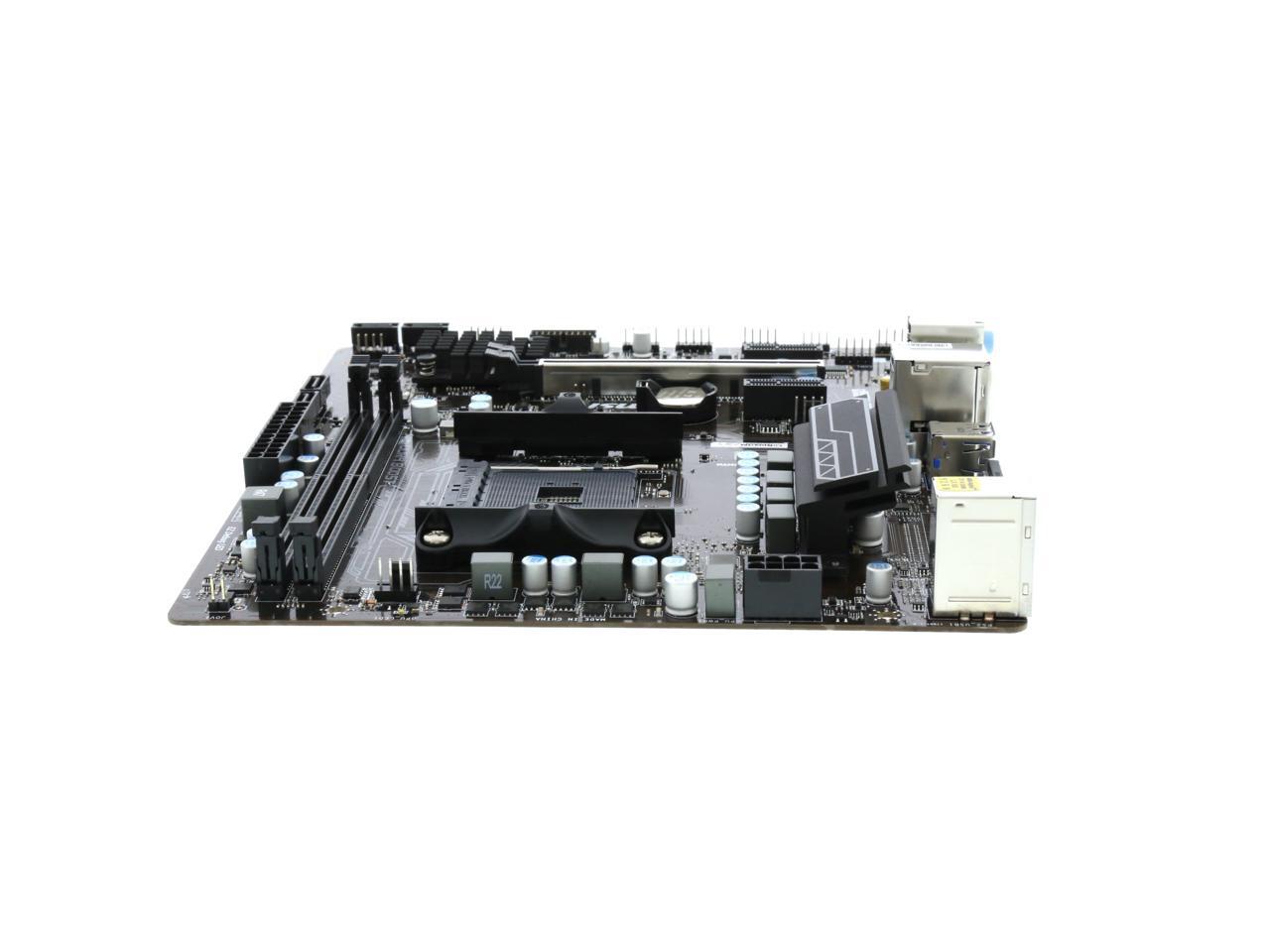

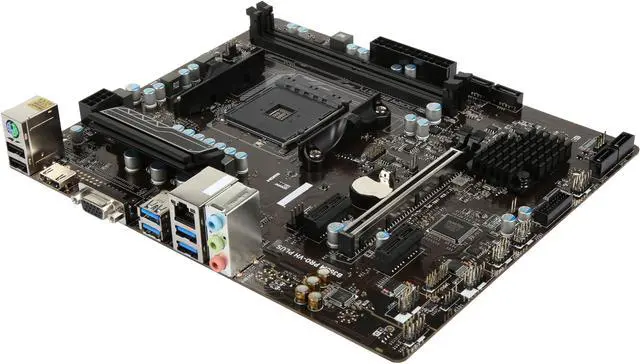

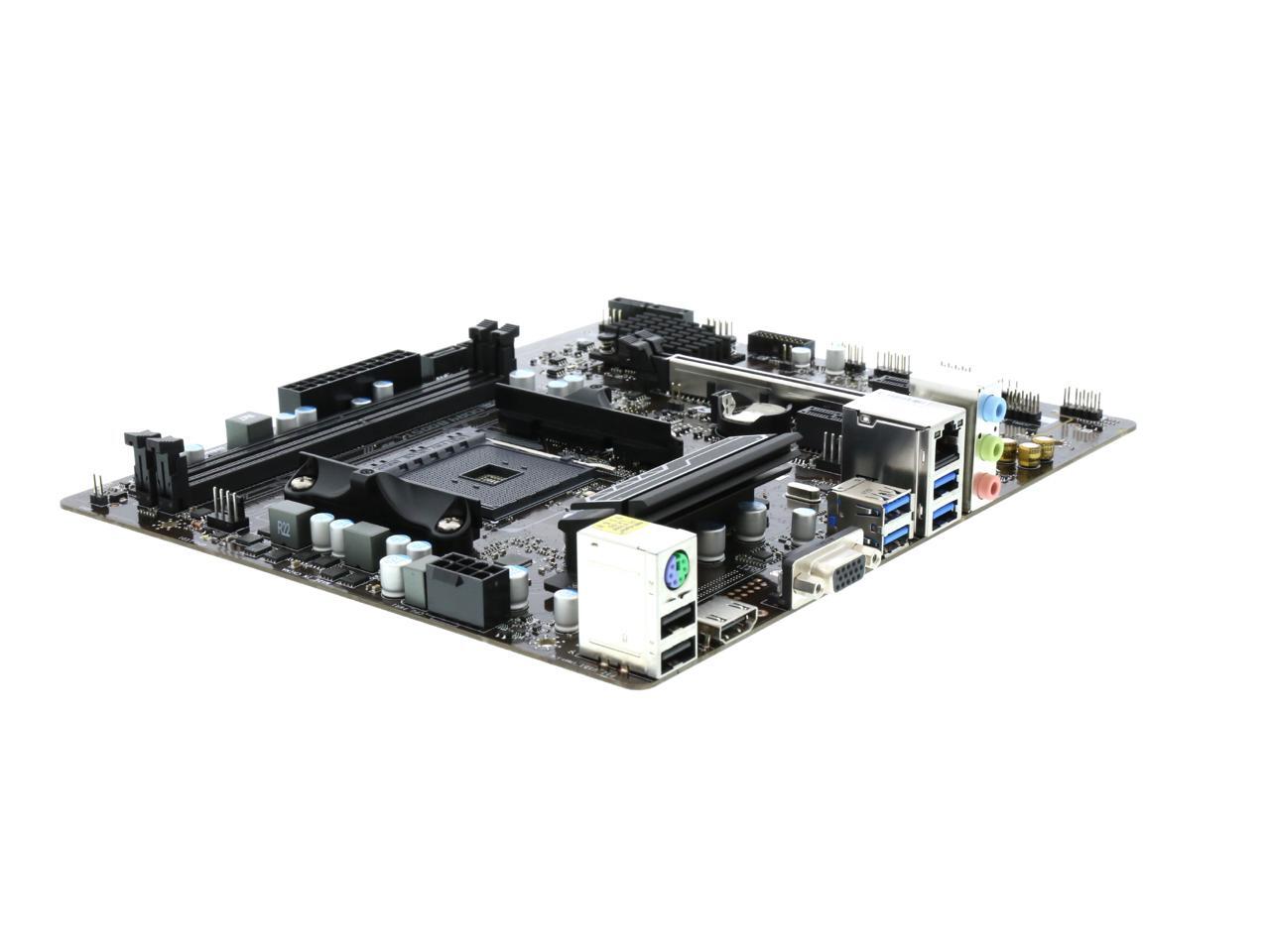

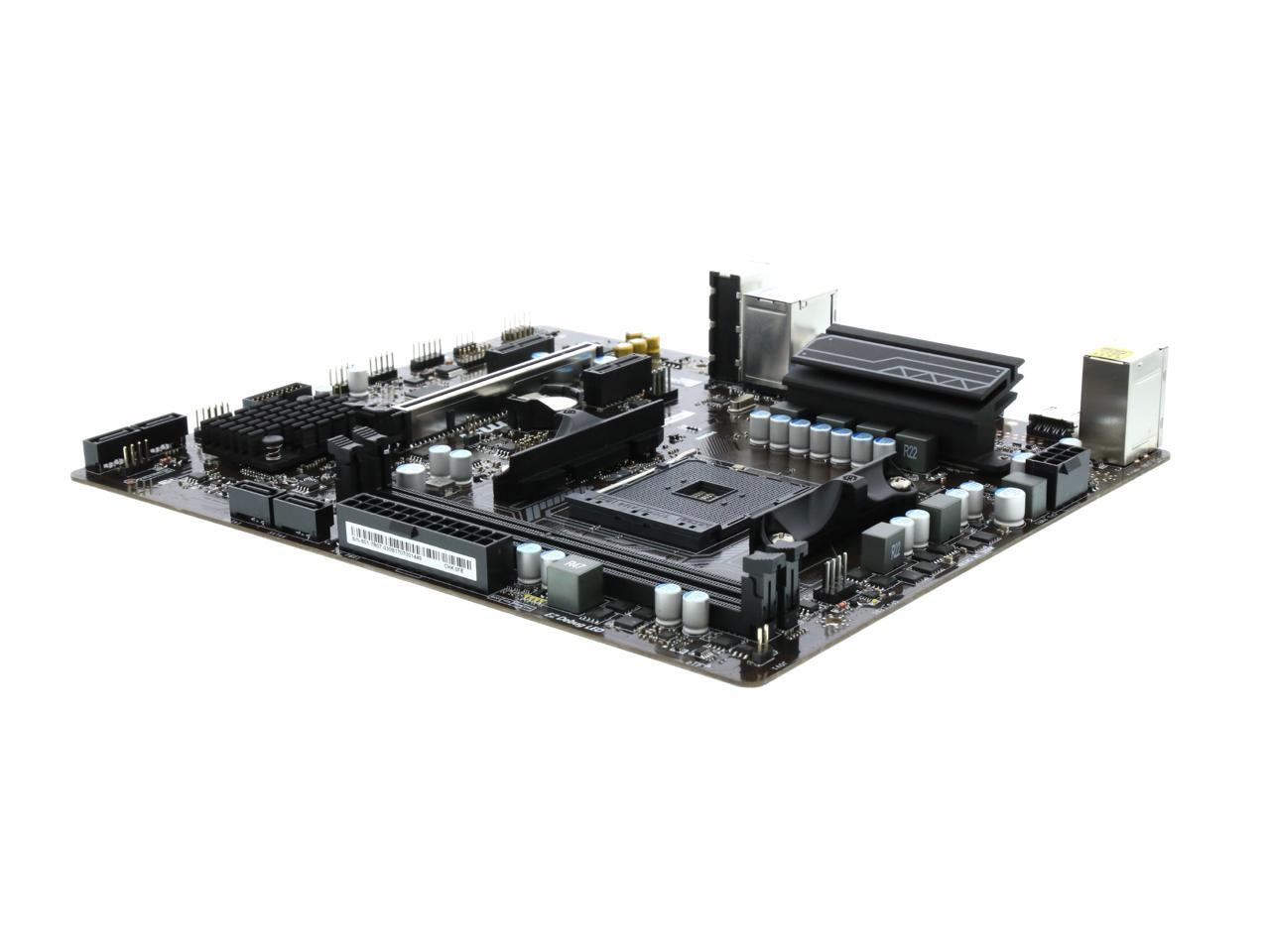

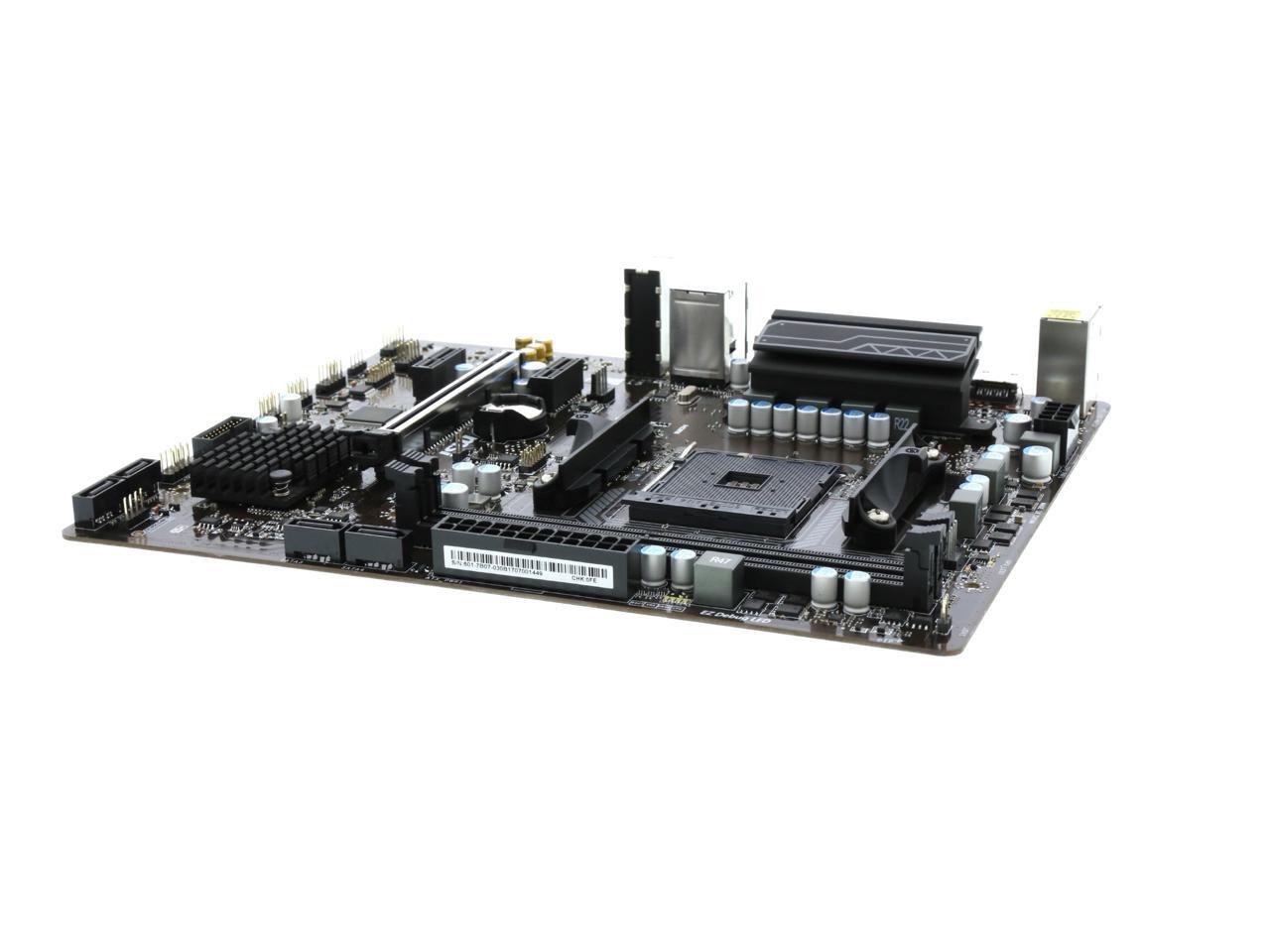

Main image of MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

100%

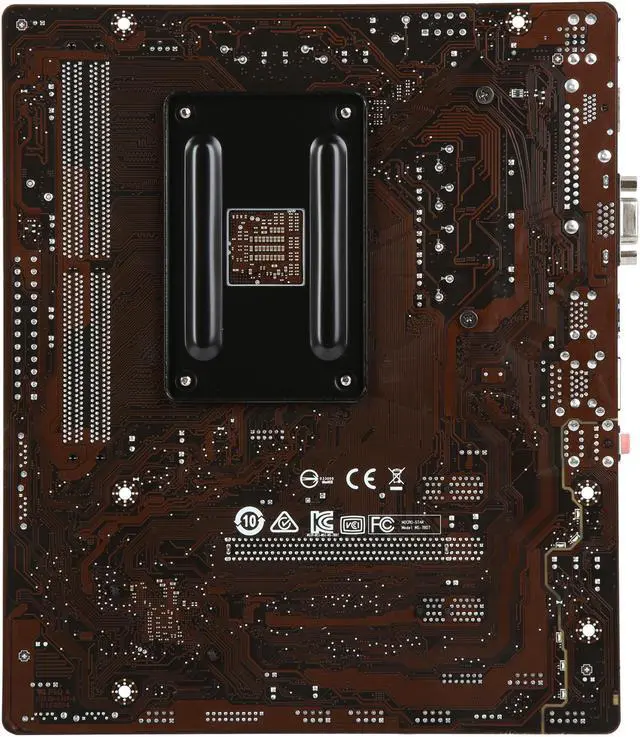

Alt view image 3 of 5 - MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 4 of 5 - MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 5 of 5 - MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

Alt view image 6 of 5 - MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

360^°

Shop All MSI Products | Visit Smith's Computer Market Store

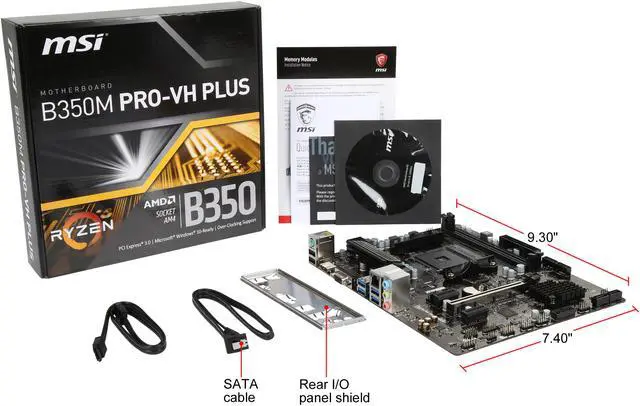

MSI B350M PRO-VH PLUS AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard

Used - Very Good

AMD B350
Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors for Socket AM4
DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz*
* 7th Gen A-series/Athlon processors support a maximum of DDR4 2400 MHz.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

MAKING YOUR LIFE EASIER IS OUR BUSINESS

STAY COOL

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.

ENJOY THE LATEST VIDEO STANDARDS

Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.

PROFESSIONAL SOUND QUALITY

Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.

STABLE, SECURE & FAST NETWORKING

Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.

BE THE FIRST TO BOOT UP IN THE MORNING

This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.

DESIGNED FOR LIMITLESS TUNING

Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.

TUNE YOUR SYSTEM WITH CLICK BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your system to deliver reliable maximum performance.

Model
Brand	MSI
Model	B350M PRO-VH PLUS

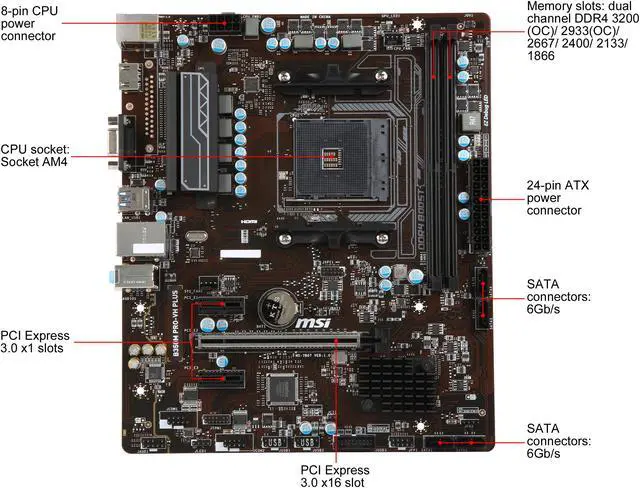

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD RYZEN series processors and 7th Gen A-series/ Athlon processors for Socket AM4

Chipsets
Chipset	AMD B350

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz* * 7th Gen A-series/Athlon processors support a maximum of DDR4 2400 MHz.
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0 x16 slots - RYZEN series processors support x16 mode - 7th Gen A-series/Athlon processors support x8 mode
PCI Express x1	2 x PCIe 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz* 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz * Only support when using a 7th Gen A-series/Athlon processor * Maximum shared memory of 2048MB

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

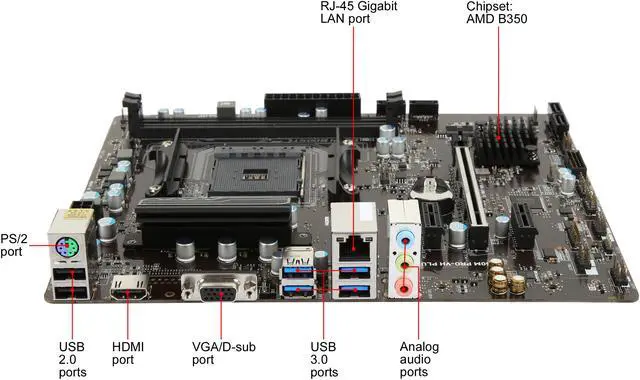

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x VGA port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen1 Type-A ports
USB 1.1/2.0	2 x USB 2.0 Type-A ports
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 2 x Serial port connector 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.3" x 7.4"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports AMD RYZEN series processors and 7th Gen A-series / Athlon Processors for socket AM4 Support DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz DDR4 Boost: Give your DDR4 memory a performance boost VR Ready: Best virtual reality game experience without latency Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience EZ Debug LED: Easiest way to troubleshoot X-Boost: Great tool to boost your USB & Storage performance Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function WHQL certified for Windows 10
